Xenya XS26GS User Manual

Managed optical ethernet switch
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Man
aged
Jun
e 15，20
011
Ver
sion: 1.0
01
http:/
//www.xeny
ya.si
XS26GS Ma
X
anaged Optic
XS2
26GS
Optica
al Ethe
User
Manu
ual
cal Ethernet
t Switch Use
ernet S
Switch
er Manual
h

Advertisement

Table of Contents
loading

Summary of Contents for Xenya XS26GS

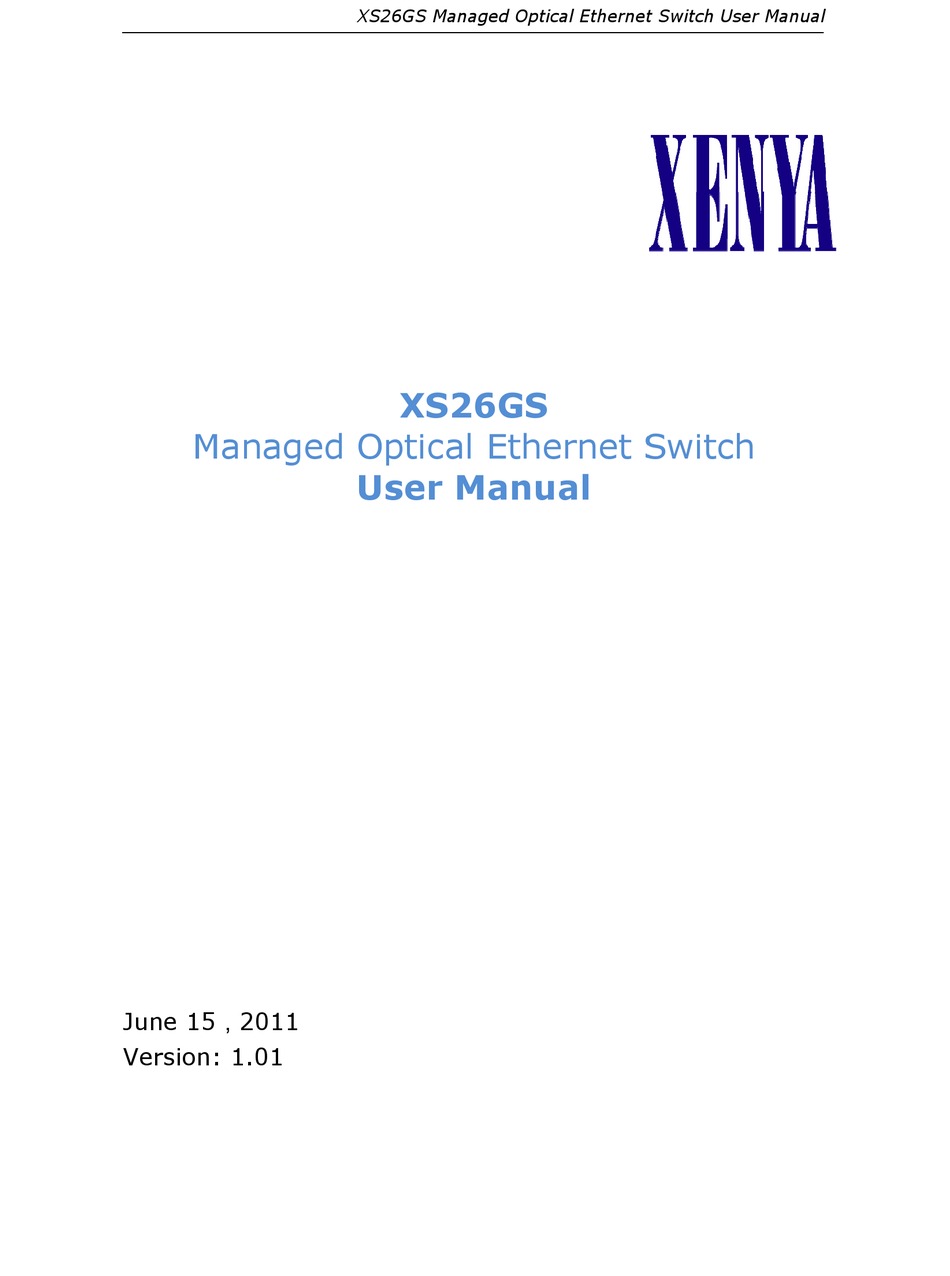

  • Page 1 XS26GS Ma anaged Optic cal Ethernet t Switch Use er Manual 26GS aged Optica al Ethe ernet S Switch User Manu e 15，20 sion: 1.0 http:/ //www.xeny ya.si...
  • Page 2 Xenya d.o.o. assumes no responsibility for any errors in this document. Furthermore, Xenya d.o.o. assumes no responsibility for the use or misuse of the information in this document and for any patent infringements that may arise from the use of this document.

  • Page 3: Table Of Contents

    XS26GS Managed Optical Ethernet Switch User Manual Table of Contents 1. Introduction ................5 1.1 F ....................5 EATURES 1.2 F ....................2 ANEL 1.3 SFP B .............2 ASED PTICAL NTERFACE PTIONS 1.4 P .................2 OWER UPPLY PTIONS 1.5 P .................2 HYSICAL AND NVIRONMENTAL 1.6 D...

  • Page 4: Ordering Information

    XS26GS Managed Optical Ethernet Switch User Manual 2.11.5 IGMP Snooping Group ..............38 2.11.6 Link Aggregation ................38 2.12 S ..................39 PANNING 2.12.1 Global .................... 39 2.12.2 STP&RSTP ..................40 2.12.3 MSTP Region ................... 43 2.12.4 MSTP Ports ..................45 2.12.5 MSTP State ..................

  • Page 5: Revision History

    XS26GS Managed Optical Ethernet Switch User Manual REVISION HISTORY Date Version Description Jan 28, 2011 V1.00 Initial release Jun 15, 2011 V1.01 Graphics update...

  • Page 6: Introduction

    Layer 2+ Gigabit Ethernet switch for service providers. It offers up to twenty-six SFP based Gigabit Ethernet fiber optic ports. XS26GS is targeted at the emerging market of Ethernet based FTTx. It comes with a rich feature set to meet the requirements of a wide range of applications, especially the access network and the small-to-medium-scale customized network.

  • Page 7: Face Panel

    Dual power supply modules provide power redundancy with status monitoring features. Face Panel The face panel of the XS26GS optical Ethernet switch is shown in the following figure. SFP Based Optical Interface Options 1000Base-X Dual multimode fiber(50/125μm), single wavelength 850nm, dual LC connector, 550m reach.

  • Page 8: Default Configuration

    XS26GS Managed Optical Ethernet Switch User Manual Default Configuration (1) Administration IP Address: 192.168.0.253 IP Sub network: 255.255.255.0 IP Gateway: 192.168.0.201 Accounts: User Level: Visitor User Administrator User Name: guest manager superuser Password: (none) (2) Port State: enabled Flow Control:...

  • Page 9: Management Software Specification

    XS26GS Managed Optical Ethernet Switch User Manual Management Software Specification The following table summarizes the protocols supported by the managed optical Ethernet switch in the current software release. TCP/IP ARP, ICMP, IP, TCP, UDP SNMP v2(1,2,3,9), FMC private MIBS, MIB counters of...

  • Page 10: Web Management Function

    XS26GS Managed Optical Ethernet Switch User Manual 2. Web Management Function A Web browser has been provided to manage and monitor the switch. The default values are set in section 1.6 of this manual. When logging to the switch, you can browse http://192.168.0.253...

  • Page 11: Advanced Configuration

    XS26GS Managed Optical Ethernet Switch User Manual Advanced Configuration This page configures whether to globally enable or disable the following protocols: IGMP Snooping GVRP LACP Authentication LLDP LBD Interval Time XS View IGMP Snooping: globally enable or disable the protocol.

  • Page 12: Port Aggregation

    XS26GS Ma anaged Opti cal Ethernet t Switch Use er Manual 4.1 Port t Config guration This p page configu ures a port. W When the set tup is compl eted, click < <Apply> to ta ake effect. LBD: enables loo...
  • Page 13 XS26GS Managed Optical Ethernet Switch User Manual port in a static LACP trunk shall have this port’s Link LACP enabled. When a static LACP trunk is (manually) deleted, all ports of this trunk with “up” status will generate one or more dynamic LACP trunks automatically.

  • Page 14: Port Bandwidth

    XS26GS Managed Optical Ethernet Switch User Manual Lacp Status Setting – sets LACP active or passive for each port Active: The port automatically sends LACP protocol packets. Passive: The port does not automatically send LACP protocol packets; it responds only if it receives a LACP protocol packet from the opposite device.

  • Page 15: Port Mirroring

    XS26GS Ma anaged Opti cal Ethernet t Switch Use er Manual rt Mirro oring This page config ures the po ort mirroring g function. Y You can set t up 1 to 4 Mirroring Group ps,each grou up can select...

  • Page 16: Vlan

    XS26GS Ma anaged Opti cal Ethernet t Switch Use er Manual VLAN This managed sw witch suppo orts 802.1Q, port-based d, mac-based d vlan, vlan n-vpn and proto ocol-based V LAN. VLAN is disabled in default co onfiguration. dvanced This p...
  • Page 17 XS26GS Ma anaged Opti cal Ethernet t Switch Use er Manual On th his tag page , the user c an create a new VLAN g group with s specific VID and VLAN group p name. Up t to 256 VLAN N groups can be created;...

  • Page 18: Q Vlan

    XS26GS Ma anaged Opti cal Ethernet t Switch Use er Manual Ingre ess Fliter:W When enable ed, an Ether rnet package e is discarde ed if this por rt is not a ber of the VL LAN with wh ich this pack kage is assoc ciated.

  • Page 19: Vlan Vpn

    XS26GS Ma anaged Opti cal Ethernet t Switch Use er Manual LAN VPN .6.1 VP N Global l Setting This p page enables s or disables s global VLAN N VPN. VLAN N VPN: enab ble or disable e the global VLAN VPN.
  • Page 20 XS26GS Ma anaged Opti cal Ethernet t Switch Use er Manual .6.3 Qin QinQ is an enhanc ced feature o of VLAN-VPN . An Outer Ta ag can be add ded, which is s based on the in nner Tag. In t...

  • Page 21: Garp

    XS26GS Ma anaged Opti cal Ethernet t Switch Use er Manual GARP P VLAN Regi stration Pro otocol (GVRP P) is based on Generic Attribute Re egistration Proto ocol (GARP). They are sta andard proto ocols describ bed in IEEE 8 802.1D.

  • Page 22: Qos Configuration

    XS26GS Ma anaged Opti cal Ethernet t Switch Use er Manual QoS p priority is dis sabled in def fault configu uration. oS Conf figuratio This t tag page sets s per port Qo oS paramete ers. For a sele...

  • Page 23: Transmit Queues

    XS26GS Ma anaged Opti cal Ethernet t Switch Use er Manual ansmit Q Queues This p page sets th e 802.1p pri iority to loca al precedence e mapping. following ta able lists th he default m mapping bet tween 802.

  • Page 24: Forwarding

    XS26GS Ma anaged Opti cal Ethernet t Switch Use er Manual Forw warding nicast M MAC Add dress There e are two tag g pages: MAC A Address Con nfiguration: T To add, mod ify, or delete e an entry in n MAC table.

  • Page 25: Multicast Mac Address

    XS26GS Ma anaged Opti cal Ethernet t Switch Use er Manual ulticast MAC Ad ddress This page sets m multicast MA AC address entries. Ea ch multicas t MAC addr ress entry conta ains multicas st address, fo orward ports s, and VID.

  • Page 26: Igmp Snooping

    XS26GS Ma anaged Opti cal Ethernet t Switch Use er Manual MP Sno ooping There e are three t ag pages on n this webpag ge for config guration: .3.1 IGM MP Snoo oping In thi is page, the user can ena...

  • Page 27: Mvr

    XS26GS Ma anaged Opti cal Ethernet t Switch Use er Manual Time e, Last Mem mber Query y Interval, and IGMP P Flood. ：It is in the Host t Timeout： e range of 200 to 100 00; by defau ult, the valu...

  • Page 28: Unknown Multicast

    XS26GS Ma anaged Opti cal Ethernet t Switch Use er Manual table to forward o or not to forw ward multica ast traffic to the receiver r ports. Sour rce Port: co onfigure upli nk ports tha at receive an...

  • Page 29: Security

    XS26GS Ma anaged Opti cal Ethernet t Switch Use er Manual Secu urity anagem ment Sec curity This p page configu ures the 802 2.1x system as follows: A Authenticat tion RADIU US Server IP, A Authenticat tion Port, Authentica...
  • Page 30 XS26GS Managed Optical Ethernet Switch User Manual 2.8.2.1 802.1x Port This tag page sets 802.1x port enabling, re-authentication, access control, and Guest VLAN for a specified Ethernet port. There are three choices for PortControl: Auto, ForceAuthorized, and ForceUnauthorized. Auto: specified to operate in auto access control mode. When one port operates in this mode, all the unauthenticated hosts connected to it are unauthorized.
  • Page 31 XS26GS Managed Optical Ethernet Switch User Manual the switch does not perform any 802.1x authentication-related actions for the supplicant system. The value is in the range of 1 to 65535, and is set to 60 seconds by default. Tx Period: sets the transmission timer. This timer sets the tx-period and is triggered in two cases.

  • Page 32: Mac Authentication

    XS26GS Managed Optical Ethernet Switch User Manual 2.8.3 MAC Authentication 2.8.3.1 Port Conf This page enables MAC Authentication on a specific port. 2.8.3.2 Misc This page sets Offine detect time, Quiet Period, and Server Timeout for MAC Authentication. Offline detect time: to check whether the client is offline in this time interval. The switch will immediately notify the RADIUS server to stop billing from the client when offline is detected.

  • Page 33: Ip Binding

    XS26GS Managed Optical Ethernet Switch User Manual Port, and Authenticate state. 2.8.4 IP Binding This page sets IP address, Unicast MAC Address, and Port for IP binding. The bottom part of this page lists all the IP binding information. 2.8.5 Storm Control This page sets thresholds of the specified Traffic Type.

  • Page 34: Management Acl

    XS26GS Managed Optical Ethernet Switch User Manual collection of permit and deny conditions that apply to packets. When a packet is received on an interface, the switch compares the fields in the packet against any applied ACLs to verify that the packet has the required permissions to be forwarded, based on the criteria specified in the access lists.
  • Page 35 XS26GS Managed Optical Ethernet Switch User Manual 2.9.2.2 Advanced IP ACL This page sets ACL rules based on packet Src IP Address, Dst IP Address, IP Protocol type and other protocol features, such as TCP or UDP source port, destination port, ICMP protocol message types etc.
  • Page 36 XS26GS Managed Optical Ethernet Switch User Manual 2.9.2.3 L2 ACL This page sets Src MAC Address, Src MAC Address Mask, Dst Mac Address, and Dst MAC address Mask, and the Action that can be selected as Permit or Deny. Rule ID: Identification the ACL rule.

  • Page 37: Port Binding

    XS26GS Managed Optical Ethernet Switch User Manual 2.9.3 Port Binding This page sets the binding of an Ethernet port to a specified ACL ID. If a port is bound, it will take effect on all the rules associated to this ACL ID.
  • Page 38 XS26GS Managed Optical Ethernet Switch User Manual 2.10.1.2 TLVs This page sets the type of transmitted information: Port Description, System Name, System Description, System Capability, and Management. Port Description: identifies information of the interface, including the name of manufacturer, product name, and the version of the interface hardware & software.

  • Page 39: Neighbor Information

    XS26GS Managed Optical Ethernet Switch User Manual 32768 seconds. The default value is 30 seconds. Tx Hold: TTL multiplier. TTL of TLV carried in LLDPDU is used to set the aging time on the neighbor device. Since TTL of TLV = TTL multiplier × Tx Interval, the aging time on the neighbor device can be adjusted by the TTL multiplier.
  • Page 40 XS26GS Managed Optical Ethernet Switch User Manual...

  • Page 41: Statistics

    XS26GS Managed Optical Ethernet Switch User Manual 2.11 Statistics All the pages in this menu show various statistics information of the switch. 2.11.1 Port Status This page shows the State, Link, Negotiation, Speed&Duplex, Flow Control, Learning of each Ethernet port.

  • Page 42: Vlan List

    XS26GS Managed Optical Ethernet Switch User Manual 2.11.3 VLAN List This page lists the information of all VLANs, including VID, Name, Type, Tagged, Untagged, and Forbidden. Type includes Static or Dynamic. Tagged lists all ports out of which packets are sent tagged， Untagged lists all ports out of which packets are sent untagged, and Forbidden lists all ports that cannot be added to the VLAN group.

  • Page 43: Igmp Snooping Group

    XS26GS Managed Optical Ethernet Switch User Manual 2.11.5 IGMP Snooping Group This page shows IGMP Snooping multicast group information, including VID, Multicast Group, MAC Address, and Member Ports. Multicast Group is the IP address of a multicast group, MAC Address is the address of a MAC multicast group, and Member Ports include all ports belonging to this IGMP Snooping group.

  • Page 44: Spanning Tree

    XS26GS Managed Optical Ethernet Switch User Manual Static Trunking Group: shows static trunk information, including Trunk ID, Trunk Name, Type, and Port List. Type is fixed to Static. LACP Trunking Group: shows LACP trunk information, including Priority, MAC of Actor and Partner.

  • Page 45: Stp&Rstp

    XS26GS Managed Optical Ethernet Switch User Manual the spanning tree will be recalculated at BPDU packet times out. When a switch becomes a root bridge, it regularly sends BPDUs at the interval specified by this hello time. A non-root-bridge switch adopts the interval specified by this hello time.
  • Page 46 XS26GS Managed Optical Ethernet Switch User Manual Priority, and Root Guard for each port, and also can set Path Cost and Priority. Edge Port: selects Enabled to configure the specified Ethernet port as an edge port. By default, all Ethernet ports are non-edge ports.

  • Page 47: Ports State

    XS26GS Managed Optical Ethernet Switch User Manual 2.12.2.2 Ports State This page lists all port parameters and spanning tree information, including STP, State, Priority, Cost, Role, Designated Port ID, Designated Root ID, and Designated Bridge ID.

  • Page 48: Bridge Information

    XS26GS Managed Optical Ethernet Switch User Manual 2.12.2.3 Bridge Information This page lists basic information of Designated Bridge, including Bridge ID, Root Bridge ID, Root Port, and Root Path Cost. Bridge ID: ID of this switch. Root Bridge ID: ID of the root bridge.
  • Page 49 XS26GS Ma anaged Opti cal Ethernet t Switch Use er Manual 2.12 2.3.3 VLA AN MAP This p page maps o ne or more V VLANs into a specific MST T instance. O One or more V VLANs can be as...

  • Page 50: Msti Ports

    XS26GS Managed Optical Ethernet Switch User Manual 2.12.4 MSTP Ports 2.12.4.1 Configuration This page enables Admin, Edge Port, P2P, and External Cost for each port. Similar to STP and RSTP port configuration described in section 2.12.2.1 Ports Configuration, this page sets MSTP port configuration.

  • Page 51: Mstp State

    XS26GS Managed Optical Ethernet Switch User Manual 2.12.5 MSTP State This page lists spanning tree information: Bridge ID, Root Bridge ID, External Path Cost, Internal Path Cost, and Root Port for each MST instance. 2.13 SNMP Manager 2.13.1 SNMP Account There are three tag pages: SNMP View, SNMP Community, and SNMP User.

  • Page 52: Snmp Community

    XS26GS Managed Optical Ethernet Switch User Manual 2.13.1.2 SNMP Community This page sets SNMP Version between v1 and v2c; Community Name, and Privilege between RO and RW. v1: creates an SNMPv1 user. v2c: creates an SNMPv2c user. Community Name: name of the community to be created. It is a string of 3 to 16 characters.

  • Page 53: Snmp User

    XS26GS Managed Optical Ethernet Switch User Manual 2.13.1.3 SNMP User This page creates a SNMP v3 user, and sets USM User, Privilege, SNMP V3 Encryption, Auth Algorithm, Auth Password, Privacy Algorithm, and Privacy Password. USM User: username, a string of 3 to 16 characters.

  • Page 54: Administration

    XS26GS Managed Optical Ethernet Switch User Manual host IP address. Trap Port: disables or enables the trap function for each port. The bottom part of this page lists the trap status of all ports. 2.14 Administration This part covers switch management and maintenance functions.

  • Page 55: Ping Diagnosis

    XS26GS Managed Optical Ethernet Switch User Manual 2.14.2 Ping Diagnosis This page can be used to ping a specific IP address. 2.14.3 Account This page can be used to add a new account. Username, Password, and Privilege for the new account are set on this page.

  • Page 56: Tftp Services

    XS26GS Managed Optical Ethernet Switch User Manual 2.14.4 TFTP Services There are three tag pages. Update Firmware: This page sets a TFTP Server IP and Firmware Name. Before doing firmware upgrade, make sure the switch is connected to the TFTP server and new firmware file exists on the server.

  • Page 57: Reboot

    XS26GS Managed Optical Ethernet Switch User Manual Restore Configuration: This page sets a TFTP Server IP and File Name. Before restoring a configuration, make sure the switch is connected to the TFTP server. The switch will download the file with the specified File Name and use it as the configuration file after Apply button is clicked.

  • Page 58: Save Configuration

    XS26GS Managed Optical Ethernet Switch User Manual Reset To Default: the switch will be reset to the factory default setting. 2.14.7 Save Configuration This page saves current configurations. 2.14.8 System Logs This page shows all of the system logs, clicking “Clear” button to clear all the records...

  • Page 59: Logout

    XS26GS Managed Optical Ethernet Switch User Manual 2.15 Logout Click “Logout” in the left menu to log out from the switch and close the browser.

  • Page 60: Command Line Interface (Cli)

    XS26GS Managed Optical Ethernet Switch User Manual 3. Command Line Interface (CLI) ERROR Message If an incorrect parameter is entered, or the command cannot be executed, one of the following error messages will be displayed on screen. Incomplete command Wrong type parameter...

  • Page 61: Cli Command Modes

    XS26GS Managed Optical Ethernet Switch User Manual Skip the current command and go to a new line. 【Ctrl】+【c】 Page shortcuts list: Shortcuts Explanation except Shows the next page. 【Enter】and【q】 Stops the displaying. 【q】 Shows the next line. 【Enter】 CLI Command Modes...

  • Page 62: Global Commands

    XS26GS Managed Optical Ethernet Switch User Manual Mst-regio From system view, enter XS(mst-region)# To exit to System n view spanning-tree view, enter mst-region view command end command, or press Ctrl-Z Ip-bindin From system view, enter XS(ip-binding)# To exit to System...

  • Page 63: System Management Commands

    XS26GS Managed Optical Ethernet Switch User Manual user no user user-name reset configuration tftp server-ip { get source-file | put dest-file } update firmware file-name tftp-server server-ip Admin CAN access all commands System Management Commands The “Any view” in the below table refers to any one of the following: System view, Ethernet port view, Port-based VLAN view, VLAN view, or dot1x view.

  • Page 64: Show User

    XS26GS Managed Optical Ethernet Switch User Manual Any view. Parameters None. Description Use show ipconfig command to display the IP address of the switch, including IP address, IP netmask, and IP gateway. Examples XS# show ipconfig Operation Mode: Manual Setting IP address: 192.168.0.253...
  • Page 65 XS26GS Managed Optical Ethernet Switch User Manual Parameters None. Description Use show history command to list history commands of the current user. History commands are those commands that were successfully executed previously and saved in the history command buffer. When the history command buffer is full, the earlier commands will be overwritten by the new ones.

  • Page 66: Show Management

    XS26GS Managed Optical Ethernet Switch User Manual Description Use show system-information command to display the basic information of the switch, including system name, system description, system location, system contact, hardware version, firmware version, boot loader version, MAC address, and System ID.
  • Page 67 XS26GS Managed Optical Ethernet Switch User Manual None Description Use show temperature command to display the current environmental temperature of switch. Example XS# show temperature 46.5 degree Celsius Current temperature: show fan-status Syntax Show fan-status View Any view Parameters None...
  • Page 68 XS26GS Managed Optical Ethernet Switch User Manual Power A status : Off Power B status : Off show local-time Syntax Show local-time View Any view Parameters None Description Use show local-time command to display the current and local time. Example...
  • Page 69 XS26GS Managed Optical Ethernet Switch User Manual show running-config Syntax show running-config View Any view Parameters None Description Use show running-config command to display which configuration you have set. Example XS# show running-config Current Running Configuration: ACL configuration Valid ACL Num: 2, 23, 48,...

  • Page 70: Management Mode

    XS26GS Managed Optical Ethernet Switch User Manual None. Description Use disable command to log out from the current user. Examples XS# disable Exit current level successfully! XS> enable Syntax enable View System view. Parameters None. Description Use enable command to log in as another user.
  • Page 71 XS26GS Managed Optical Ethernet Switch User Manual Examples XS# management mode vlan 2 Management mode is vlan. Management vlan is 2 ipconfig Syntax ipconfig { auto | ip ip-address [ netmask netmask ] [ gateway gateway ] } no ipconfig View System view.

  • Page 72: Reset Configuration

    XS26GS Managed Optical Ethernet Switch User Manual ECHO-REQUEST packet to the destination host. Then, if the connection to the destination network is normal, the destination host receives this packet and responds with an ICMP ECHO-REPLY packet. You can use ping command to check the network connectivity.
  • Page 73 XS26GS Managed Optical Ethernet Switch User Manual None. Description Use reset configuration command to make all of the factory default settings to be restored on the switch. When asked “Do you want to reset all the configurations except IP address and user account? (y/n)” , if you choose “y”, the switch will be reset to factory default settings, except for the IP address and user account;...

  • Page 74: Update Firmware

    XS26GS Managed Optical Ethernet Switch User Manual put: specified to upload a file to the TFTP server. dest-file: file name used when a file is uploaded and saved to a TFTP server. Description Use tftp tftp-server command to connect to a TFTP server and perform download or upload operations.

  • Page 75: Port Basic Configuration Commands

    XS26GS Managed Optical Ethernet Switch User Manual Description Use xs-view command to enable the XS View network management function. Use no xs-view command to disable the XS View network management function. Examples XS# xs-view XS View function has been enabled successfully.

  • Page 76: Show Interface Statistics

    XS26GS Managed Optical Ethernet Switch User Manual interface ethernet port, form interface { interface-type/interface-number}, interface-type = {0 | 1}, when interface-type is 0, interface-number = { 1 | 2 | … | 24 }, when interface-type is 1, interface-number = { 1 | 2 }.

  • Page 77: Show Interface Switchport

    XS26GS Managed Optical Ethernet Switch User Manual Parameters interface : ethernet port, in the form of interface = { interface-type/interface-number}, interface-type = {0 | 1}, when interface-type is 0, interface-number = { 1 | 2 | … | 24 }, when interface-type is 1, interface-number = { 1 | 2}.

  • Page 78: Interface Ethernet

    XS26GS Managed Optical Ethernet Switch User Manual Syntax show storm-control View Any view. Parameters None. Description Use show storm-control command to display the storm control configurations. Examples XS(vlan2)# show storm-control Show storm-control information Type :Broadcast Rate :1000pps interface ethernet Syntax...
  • Page 79 XS26GS Managed Optical Ethernet Switch User Manual Parameters None. Description Use end command to exit from the Ethernet port configuration environment. Examples XS(Ethernet0/9)# end shutdown Syntax shutdown no shutdown View Ethernet port view. Parameters None. Description Use shutdown command to shut down an Ethernet port.
  • Page 80 XS26GS Managed Optical Ethernet Switch User Manual Description Use speed command to set the port speed. Use no speed command to restore the port speed to the default setting. By default, the port speed is in the auto-negotiation mode. Note that you can only specify the 1000 and auto keyword for Gigabit Ethernet ports.
  • Page 81 XS26GS Managed Optical Ethernet Switch User Manual Description Use flow-control command to enable flow control on the Ethernet port. Use no flow-control command to disable flow control on the port. In the case that flow control is enabled on both the local and peer switches, when congestion occurs on the local switch, the local switch sends a message to notify the peer switch to stop sending packets to itself or reduce the sending rate temporarily.
  • Page 82 XS26GS Managed Optical Ethernet Switch User Manual rate rate-value: the upper rate threshold of the port. The rate-value is one of 64k,128k,192k,256k,320k,484k,512k,640k,768k,896k,1m,2m,4m,8m,10m,15m, 20m,30m,40m,50m,60m,70m,80m,90m Description Use line-rate command to configure the upper threshold of the traffic rate in Ethernet port view.

  • Page 83: Link Aggregation Commands

    XS26GS Managed Optical Ethernet Switch User Manual Parameters type type: type is in the range from 1 to 7. 1:Broadcast 2:Multicast 3:Destination Lookup Failed(DLF) 4:Broadcast+Multicast 5:Broadcast+DLF 6:Multicast+DLF 7:Broadcast+Multicast+DLF rate rate: rate is in the range from 1 to 262143. Description...
  • Page 84 XS26GS Managed Optical Ethernet Switch User Manual Syntax show lacp system-id View Any view. Parameters None. Description Use show lacp system-id command to display the device ID of the local system, including system priority and MAC address. Examples XS(Ethernet0/8)# show lacp system-id...
  • Page 85 XS26GS Managed Optical Ethernet Switch User Manual Ethernet0/12 Ethernet0/13 Ethernet0/14 Ethernet0/15 Ethernet0/16 Ethernet0/17 Ethernet0/18 Ethernet0/19 Ethernet0/20 Ethernet0/21 Ethernet0/22 Ethernet0/23 Ethernet0/24 Ethernet1/1 Ethernet1/2 Ethernet1/3 Ethernet1/4 show link-aggregation interface Syntax show link-aggregation interface ethernet interface 1 [ to ethernet interface View Any view.
  • Page 86 XS26GS Managed Optical Ethernet Switch User Manual Any view. Parameters None. Description Use show link-aggregation summary command to display summary information of all aggregation groups. Examples XS# show link-aggregation summary 1:00-0a-0b-0c-0e-09 Partner Selected Type Ports ---------------------------------------------------------------------- Manual Ethernet0/1,3 Manual Ethernet0/6,8...
  • Page 87 XS26GS Managed Optical Ethernet Switch User Manual lacp no lacp View System view, Ethernet port view. Parameters None. Description Use lacp command to enable LACP globally in system view or enable LACP on the port in ethernet port view. Use no lacp command to disable LACP globally in system view or disable LACP on the port in ethernet port view.
  • Page 88 XS26GS Managed Optical Ethernet Switch User Manual link-aggregation group agg-id description agg-name no link-aggregation group agg-id description View System view. Parameters agg-id: aggregation group ID, in a range from 1 to 13. agg-name: aggregation group name, a string of 1 to 32 characters.
  • Page 89 XS26GS Managed Optical Ethernet Switch User Manual lacp port-priority port-priority no lacp port-priority View Ethernet port view. Parameters port-priority: port priority, ranging from 1 to 65,535. Description Use lacp port-priority command to set priority of the port. Use undo lacp port-priority command to restore the default port priority.

  • Page 90: Mirroring Commands

    XS26GS Managed Optical Ethernet Switch User Manual 3.10 Mirroring Commands The “Any view” in the below table refers to anyone of the following: System view, Ethernet port view, Port-based VLAN view, VLAN view, or dot1x view. Command list: View Command...

  • Page 91: Show Mirror

    XS26GS Managed Optical Ethernet Switch User Manual XS(MIRROR-1)# no mirror-group The mirror group have been deleted successfully. show mirror Syntax show mirror View Any view. Parameters None. Description Use show mirror command to display the port mirroring configurations. Examples XS# show mirror...

  • Page 92: Vlan Commands

    XS26GS Managed Optical Ethernet Switch User Manual Use monitor-port command to configure the destination port. You can use to ethernet interface to configure a range of continuous destination ports. Examples XS(MIRROR-1)# monitor-port ethernet 0/20 Configuration completed successfully. mirroring-port Syntax mirroring-port ethernet interface [ to ethernet interface ] {both | egress |...
  • Page 93 XS26GS Managed Optical Ethernet Switch User Manual View Command Any view show vlan-mode Any view show vlan { all | dynamic | static | vlan-id1 [ to vlan-id2 ] } System view vlan-mode { none | port-based | 8021Q }...

  • Page 94: Show Vlan

    XS26GS Managed Optical Ethernet Switch User Manual show vlan Syntax show vlan { all | dynamic | static | vlan-id1 [ to vlan-id2 ] } View Any view. Parameters vlan-id1: specifies the ID of a VLAN the information of which is to be displayed, in the range of 1 to 4094.
  • Page 95 XS26GS Managed Optical Ethernet Switch User Manual VLAN ID: 3 VLAN Type: static Description: test3 Tag Ports: unTag Ports: Forbidden Ports: Protocol vlan information: vlan-mode Syntax vlan-mode { none | port-based | 8021Q } View System view. Parameters none: disabled VLAN function.
  • Page 96 XS26GS Managed Optical Ethernet Switch User Manual all: deletes all VLANs. Description Use vlan command to enter into vlan configuration environment. Use no vlan command to delete all VLANs or specified VLAN(s). Examples XS# vlan 2 XS(vlan2)# Syntax View VLAN view.
  • Page 97 XS26GS Managed Optical Ethernet Switch User Manual switchport Syntax switchport { forbidden | tagged | untagged } ethernet interface [ to ethernet interface ] no switchport { forbidden | tagged | untagged } ethernet interface [ to ethernet interface ] View VLAN view.
  • Page 98 XS26GS Managed Optical Ethernet Switch User Manual ipx: creates the IPX-based protocol template. mode: configures a user-defined protocol template. ethernetii etype-id: creates the protocol template that matches the Ethernet II encapsulation format and the corresponding protocol type value of the packet. The etype-id argument indicates the protocol type value and ranges from 0x0600 to 0xFFFF (excluding 0x0800, 0x8137, and 0x809b).
  • Page 99 XS26GS Managed Optical Ethernet Switch User Manual VLAN view. Parameters None. Description Use unknown-multicast-flood command to enable the Unknown Multicast Flood Status for this VLAN group. Use no unknown-multicast-flood command to disable the Unknown Multicast Flood Status for this VLAN group.
  • Page 100 XS26GS Managed Optical Ethernet Switch User Manual View VLAN view. Parameters vlan-id: specifies the ID of a VLAN the information of which is to be created, in a range from 1 to 4094. vlan-id1: specifies the ID of a VLAN the information of which is to be deleted, in the range of 1 to 4094.

  • Page 101: Switchport Protected

    XS26GS Managed Optical Ethernet Switch User Manual switchport link-type { access | hybrid | trunk } no switchport link-type View Ethernet port view Parameters access: sets the port link type to access. hybrid: sets the port link type to hybrid.
  • Page 102 XS26GS Managed Optical Ethernet Switch User Manual protected switchport protected no switchport View Ethernet port view Parameters None. Description protected Use switchport command to enable switchport protected function for the specified switch interface. protected Use no switchport command to disable switchport protected function for the specified switch interface.

  • Page 103: Port-Based Vlan Configuration Commands

    XS26GS Managed Optical Ethernet Switch User Manual Ingress-filtering has been disabled successfully! 3.11.2 Port-Based VLAN Configuration Commands The “Any view” in the below table refers to anyone of the following: System view, Ethernet port view, Port-based VLAN view, VLAN view, or dot1x view.
  • Page 104 XS26GS Managed Optical Ethernet Switch User Manual Ethernet0/12 Ethernet0/13 Ethernet0/14 port-based-vlan Syntax port-based-vlan vlan-id no port-based-vlan { all | vlan-id1 [ to vlan-id2 ] } View System view. Parameters vlan-id: specifies the ID of a VLAN the information of which is to be created, in the range of 1 to 255.
  • Page 105 XS26GS Managed Optical Ethernet Switch User Manual description Syntax description name View Port-based VLAN view. Parameters name: VLAN name, a description of 1 to 255 characters. It can contain special characters, but cannot be spaces. Description Use description command to assign a name to the VLAN.

  • Page 106: Vlan Vpn

    XS26GS Managed Optical Ethernet Switch User Manual 3.12 VLAN VPN The “Any view” in the below table refers to anyone of the following: System view, Ethernet port view, Port-based VLAN view, VLAN view, or dot1x view. Command list: View Command...
  • Page 107 XS26GS Managed Optical Ethernet Switch User Manual Ethernet0/10 Disabled 0x8100 Ethernet0/11 Disabled 0x8100 Ethernet0/12 Disabled 0x8100 Ethernet0/13 Disabled 0x8100 Ethernet0/14 Disabled 0x8100 Ethernet0/15 Disabled 0x8100 Ethernet0/16 Disabled 0x8100 Ethernet0/17 Disabled 0x8100 Ethernet0/18 Disabled 0x8100 Ethernet0/19 Disabled 0x8100 Ethernet0/20 Disabled 0x8100...

  • Page 108: Gvrp Commands

    XS26GS Managed Optical Ethernet Switch User Manual Parameters tpid(Tag Protocol Identifier): includes an Ethernet Type value that is used to identify the frame as a tagged frame and to select the correct tag decoding functions. Description Use vlan-vpn tpid command to set a TPID value.

  • Page 109: Show Garp Timer

    XS26GS Managed Optical Ethernet Switch User Manual Command list: View Command Any view show garp timer Any view show gvrp status System view garp timeout {hold | join | leave | leaveall } timer-value no garp timeout {hold | join | leave | leaveall }...
  • Page 110 XS26GS Managed Optical Ethernet Switch User Manual None. Description Use show gvrp status command to display the GVRP settings of all ports. Examples XS# show gvrp status Gvrp feature is currently enabled on this switch! Ports Gvrp-status Registration -------- ----------------- --------------------...

  • Page 111: Gvrp Registration

    XS26GS Managed Optical Ethernet Switch User Manual 2147483640, the default value is 10000 milliseconds. timer-value: timeout time (in milliseconds) of the GARP timer (Hold, Join, Leave or Leaveall ) to be set. Description Use garp timeout command to set a GARP timer.

  • Page 112: Qos Commands

    XS26GS Managed Optical Ethernet Switch User Manual propagates only static VLAN information to the other GARP members. forbidden: specifies the forbidden GVRP registration mode. A port operating in this mode cannot register or deregister VLAN information dynamically. It permits only VLAN 1, that is, it propagates only the information of VLAN 1 to the other GARP members.
  • Page 113 XS26GS Managed Optical Ethernet Switch User Manual Syntax show qos queue-scheduler View Any view. Parameters None. Description Use show qos queue-scheduler command to display the global queue scheduling configuration. Examples XS# show qos queue-scheduler Queue scheduling mode: weighted round robin...

  • Page 114: Show Qos Interface

    XS26GS Managed Optical Ethernet Switch User Manual queue show qos map dscp cos Syntax show qos map dscp cos View Any view. Parameters None. Description Use show qos map dscp cos command to display the mapping of DSCP priority to 802.1p priority, illustrated by a DSCP priority to 802.1p priority mapping table as...
  • Page 115 XS26GS Managed Optical Ethernet Switch User Manual #display the qos information of all ports XS# show qos interface PORT DEFAULT PRIORITY DSCP ----------- -------------------- ------ Ethernet0/1 disabled Ethernet0/2 disabled Ethernet0/3 disabled Ethernet0/4 disabled Ethernet0/5 disabled Ethernet0/6 disabled Ethernet0/7 disabled Ethernet0/8...
  • Page 116 XS26GS Managed Optical Ethernet Switch User Manual Description Use qos queue-scheduler command to configure the queue scheduling algorithm and the related parameters. Use no qos queue-scheduler command to restore to the default setting. By default, the SP algorithm is used for all output queues of a port.
  • Page 117 XS26GS Managed Optical Ethernet Switch User Manual Examples XS# qos cos-local-precedence-map 3 3 2 2 1 1 0 0 The configuration succeeds. qos map Syntax qos map dscp dscp to cos cos no qos map dscp dscp View System view.

  • Page 118: Mac Address Table Management

    XS26GS Managed Optical Ethernet Switch User Manual XS(Ethernet0/1)# qos-mode dscp Dscp is enabled on port ethernet0/1. priority Syntax priority priority-level no priority View Ethernet port view Parameters priority-level: port priority, ranging from 0 to 7. Description Use priority command to set the priority of a port.
  • Page 119 XS26GS Managed Optical Ethernet Switch User Manual vlan-id no mac-address { static | dynamic | blackhole } mac-address vlan vlan-id no mac-address interface ethernet interface-number no mac-address vlan vlan-id no mac-address vlan vlan-id mac-address Ethernet port view mac-address { static | dynamic | blackhole }...
  • Page 120 XS26GS Managed Optical Ethernet Switch User Manual 00-1d-7d-41-46-09 Dynamic Ethernet0/7 00-0a-0b-0c-0e-09 Learned 00-1a-4d-23-32-0a Learned Ethernet0/7 00-16-ec-5a-b6-fe Dynamic Ethernet0/7 00-1a-4d-3a-2a-d8 Learned Ethernet0/7 00-1d-72-09-fa-b4 Learned Ethernet0/7 00-1a-4d-6a-8b-64 Learned Ethernet0/7 00-1e-68-6a-b5-3f Learned Ethernet0/7 00-1a-4d-38-9f-a6 Learned Ethernet0/7 00-1a-4d-6a-8a-de Learned Ethernet0/7 00-0a-0b-0c-0e-09 Static 00-0d-61-4e-f5-e4 Dynamic...

  • Page 121: Mac Address

    XS26GS Managed Optical Ethernet Switch User Manual dynamic: displays dynamic MAC address entries. blackhole: displays blackhole MAC address entries. interface ethernet interface-number: specifies a port by its interface type and number, of which the MAC address entries are displayed. vlan vlan-id: specifies a VLAN by its ID in a range from 1 to 4094, for which the MAC address entries are displayed.
  • Page 122 XS26GS Managed Optical Ethernet Switch User Manual interface ethernet interface-number: specifies the outgoing port by its type and number for the MAC address. All traffic destined for the MAC address will be sent out from the port. vlan vlan-id: specifies a VLAN ID, in a range from 1 to 4094. The VLAN must exist.

  • Page 123: Multicast Commands

    XS26GS Managed Optical Ethernet Switch User Manual Setting an appropriate MAC address aging timer is important for the switch to run efficiently. If the aging timer is set too short, the MAC address entries that are still valid may be removed due to aging. Upon receiving a packet destined for a MAC address that is already removed, the switch broadcasts the packet to all ports within the VLAN to which the packet belongs.
  • Page 124 XS26GS Managed Optical Ethernet Switch User Manual Description Use show mac-address multicast command to display the information of the multicast MAC address entry or entries manually configured on the switch. Examples XS# show mac-address multicast show all of the multicast mac-address...

  • Page 125: Igmp Snooping Configuration Commands

    XS26GS Managed Optical Ethernet Switch User Manual entry on the port. Use no mac-address multicast vlan command to remove the specified multicast MAC address entry or all multicast MAC address entries on the port. Each multicast MAC address entry contains multicast address, forward port, VLAN ID, and so on.
  • Page 126 XS26GS Managed Optical Ethernet Switch User Manual None. Description Use show igmp-snooping configuration command to display IGMP Snooping configuration information. If IGMP Snooping is disabled, this command displays a message showing that IGMP Snooping is not enabled. With IGMP Snooping enabled, this command displays the following information:...
  • Page 127 XS26GS Managed Optical Ethernet Switch User Manual show igmp-snooping group information Vlan ID Multicast group :239.0.0.10 MAC address :01-00-5e-00-00-0a Port Member :Ethernet0/4, Total Entries igmp-snooping Syntax igmp-snooping no igmp-snooping View System view, VLAN view. Parameters None. Description Use igmp-snooping command to enable the IGMP Snooping feature.
  • Page 128 XS26GS Managed Optical Ethernet Switch User Manual XS# igmp-snooping querier IGMP querier has been enabled. XS# no igmp-snooping querier IGMP querier has been disabled. igmp-snooping query-interval Syntax igmp-snooping query-interval [time seconds] no igmp-snooping query-interval View System view Parameters seconds: time of query transmit interval, in a range from 1 to 300, in seconds.
  • Page 129 XS26GS Managed Optical Ethernet Switch User Manual aging time. By default, the aging time of multicast member ports is 260 seconds. The aging time of multicast member ports determines the refresh frequency of multicast group members. In an environment where multicast group members change frequently, a relatively shorter aging time is required.
  • Page 130 XS26GS Managed Optical Ethernet Switch User Manual By default, the leave timer is 30 seconds. Examples XS# igmp-snooping leave-time 200 Leave-time of igmp-snooping set to 200 seconds igmp-snooping max-response-time Syntax igmp-snooping max-response-time seconds no igmp-snooping max-response-time View System view. Parameters seconds: maximum response time in IGMP general queries, in a range from 1 to 25, in seconds.

  • Page 131: Commands

    XS26GS Managed Optical Ethernet Switch User Manual Use multicast static-router-port command to configure the specified port in the VLAN as a static router port. Use no multicast static-router-port command to remove the specified port from the VLAN as a static router port.
  • Page 132 XS26GS Managed Optical Ethernet Switch User Manual status: displays the information of 802.1x. interface: displays the 802.1x-related information of all ports. ethernet interface: displays the 802.1x-related information of a specified port. interface ethernet port, form interface { interface-type/interface-number}, interface-type = {0 | 1}, when interface-type is 0, interface-number = { 1 | 2 | …...
  • Page 133 XS26GS Managed Optical Ethernet Switch User Manual Ethernet0/16 Disabled ForceAuthorized Disabled Link down Ethernet0/17 Disabled ForceAuthorized Disabled Link down Ethernet0/18 Disabled ForceAuthorized Disabled Link down Ethernet0/19 Disabled ForceAuthorized Disabled Link down Ethernet0/20 Disabled ForceAuthorized Disabled Link down Ethernet0/21 Disabled ForceAuthorized...
  • Page 134 XS26GS Managed Optical Ethernet Switch User Manual XS(dot1x)# end max-req Syntax max-req max-retry-value View dot1x view Parameters max-retry-value: Maximum number of times that a switch sends authentication request packets to a user. This argument ranges from 1 to 10. Description By default, a switch sends authentication request packets to a user for up to 2 times.
  • Page 135 XS26GS Managed Optical Ethernet Switch User Manual the quiet-period timer is set to 60 seconds. reauth-period reauth-period-value: specifies re-authentication interval, in seconds. After this timer expires, the switch initiates 802.1x re-authentication. The value of the reauth-period-value argument ranges from 60 to 7200. By default, the reauth-period timer is set to 3600 seconds.
  • Page 136 XS26GS Managed Optical Ethernet Switch User Manual None. Description Use system-auth-control command to enable 802.1x globally. Use no system-auth-control command to disable 802.1x globally. Examples XS(dot1x)# system-auth-control 802.1x is enabled The configuration succeeds. radius-server Syntax radius-server host host-ip-address auth-port auth-port-number [ acct-port...
  • Page 137 XS26GS Managed Optical Ethernet Switch User Manual None. Description Use dot1x command to enable 802.1x for the specified Ethernet port. Use no dot1x command to disable 802.1x for the specified Ethernet port. Examples XS(Ethernet0/1)# dot1x 802.1x is enabled on port ethernet0/1...

  • Page 138: Stp Commands

    XS26GS Managed Optical Ethernet Switch User Manual network resources without the need of authentication. forceunauthorized: specified to operate in forceunauthorized access control mode. When a port operates in this mode, the hosts connected to it cannot access the network resources.
  • Page 139 XS26GS Managed Optical Ethernet Switch User Manual System view spanning-tree mst-region Mst-region view instance msti no instance msti Mst-region view instance msti ethernet ethernet-port path-cost cost no instance msti ethernet ethernet-port path-cost pri Mst-region view instance msti ethernet ethernet-port priority cost...
  • Page 140 XS26GS Managed Optical Ethernet Switch User Manual Ethernet0/2 Enabled Auto Designated Disabled 1:128 Ethernet0/3 Enabled Auto Designated Disabled 2:128 Ethernet0/4 Enabled Auto Designated Disabled 3:128 Ethernet0/5 Enabled Auto Designated Disabled 4:128 Ethernet0/6 Enabled Auto Designated Disabled 5:128 Ethernet0/7 Enabled Auto...
  • Page 141 XS26GS Managed Optical Ethernet Switch User Manual LBD: Disabled Path cost: 20000 Port priority: 128 STP State: Disabled STP Role: Disabled Desigated Port id: 0-0 Designated Path Cost: 0 Designated Bridge id: 0:00-00-00-00-00-00 show spanning-tree Syntax show spanning-tree {ethernet Ethernet-port instance mstid |...
  • Page 142 XS26GS Managed Optical Ethernet Switch User Manual Ethernet0/1 Disabled Disabled 32768:28b0cc0031d4 128:1 Ethernet0/2 Disabled Disabled 32768:28b0cc0031d4 128:2 Ethernet0/3 Disabled Disabled 32768:28b0cc0031d4 128:3 Ethernet0/4 Disabled Disabled 32768:28b0cc0031d4 128:4 Ethernet0/5 Disabled Disabled 32768:28b0cc0031d4 128:5 Ethernet0/6 Designated Forwarding 32768:28b0cc0031d4 128:6 Ethernet0/7 Disabled Disabled 32768:28b0cc0031d4 128:7...
  • Page 143 XS26GS Managed Optical Ethernet Switch User Manual System view, Ethernet port view Parameters None. Description Use spanning-tree command to enable STP globally (in System view) or for a port (in Ethernet port view). Use no spanning-tree command to disable STP globally (in System view) or for a port (in Ethernet port view).
  • Page 144 XS26GS Managed Optical Ethernet Switch User Manual XS# spanning-tree forward-time 17 Configure successfully spanning-tree hello-time Syntax spanning-tree hello-time timer-value no spanning-tree hello-time View System view Parameters timer-value: hello time in seconds to be set. This argument ranges from 1 to 10. The default value is 2 seconds.
  • Page 145 XS26GS Managed Optical Ethernet Switch User Manual Description Use spanning-tree max-age command to set the max age. Use no spanning-tree max-age command to restore to the default max age. By default, the max age of a switch is 20 seconds.
  • Page 146 XS26GS Managed Optical Ethernet Switch User Manual Description Use spanning-tree max-hops command to set the MSTP max-hops. Use no spanning-tree max-hops command to restore the max-hops to default value. The default max-hops are 20. Examples XS# spanning-tree max-hops 18 Configure successfully...
  • Page 147 XS26GS Managed Optical Ethernet Switch User Manual Parameters None. Description Use spanning-tree bpdu-guard command to enable the bpdu-guard. Use no spanning-tree bpdu-guard command to disable the bpdu-guard. Examples XS# spanning-tree bpdu-guard Set successfully spanning-tree hold-count Syntax spanning-tree hold-count num no spanning-tree hold-count...
  • Page 148 XS26GS Managed Optical Ethernet Switch User Manual Use spanning-tree root-guard command to enable the root protection function for a specified port on the switch. Use no spanning-tree root-guard command to disable the root protection for a specified port on the switch.
  • Page 149 XS26GS Managed Optical Ethernet Switch User Manual Description Use spanning-tree priority command to set a port priority for the specified ports. Use no spanning-tree priority command to restore to the default priority of the specified ports. Examples XS(Ethernet0/1)# spanning-tree priority 200...
  • Page 150 XS26GS Managed Optical Ethernet Switch User Manual Description Use spanning-tree protocol-migration command to enable the protocol migration feature. Use no spanning-tree protocol-migration command to disable the protocol migration feature. By default, the protocol migration feature is enabled. Examples XS(Ethernet0/1)# no spanning-tree protocol-migration...
  • Page 151 XS26GS Managed Optical Ethernet Switch User Manual View System view. Parameters None. Description spanning-tree mst-configuration command enter mst-region configuration environment. Examples XS# spanning-tree mst-region XS(mst-region)# instance Syntax instance msti no Instance msti View Mst-region view Parameters msti: MST instance ID Description Use instance command to enable the specified MST instance.
  • Page 152 XS26GS Managed Optical Ethernet Switch User Manual ethernet-port: ethernet port, form interface { interface-type/interface-number}, interface-type = {0 | 1}, when interface-type is 0, interface-number = { 1 | 2 | … | 24 }, when interface-type is 1, interface-number = { 1 | 2 } cost: path to be set.
  • Page 153 XS26GS Managed Optical Ethernet Switch User Manual instance msti priority pri no instance msti priority pri View Mst-region view Parameters Msti:instance ID Pri: the priority for the specified instance. It is in the range of 0 to 65535, the default value is 32768.

  • Page 154: Snmp Configuration Commands

    XS26GS Managed Optical Ethernet Switch User Manual region-name Syntax region-name name View Mst-region view Parameters name: a variable length text string encoded within a fixed field of 32 octets Description Use region-name command to set the configuration name of MST Configuration Identification.

  • Page 155: Show Snmp

    XS26GS Managed Optical Ethernet Switch User Manual Any view show snmp community Any view show snmp user Any view show snmp traps-host Any view show snmp traps-status System view snmp-server { name | description | contact | location } text...

  • Page 156: Show Snmp User

    XS26GS Managed Optical Ethernet Switch User Manual None. Description show snmp community command display information SNMPv1/SNMPv2c communities. SNMPv1 and SNMPv2c use community name authentication. Therefore, the SNMPv1 and SNMPv2c messages carry community names; if the carried community names are not permitted by the NMS/agent, the messages will be discarded.

  • Page 157: Show Snmp Traps-Host

    XS26GS Managed Optical Ethernet Switch User Manual XS# show snmp user Ver User AuthType: AuthPwd PrivType: PrivPwd Privilege --- ---------------- -------------------- -------------------- --------- v3 user1 v3 user2 MD5:useruser2222 v3 user3 MD5:agewhrjykkl DES:sageriutu6ui show snmp traps-host Syntax show snmp traps-host View Any view.

  • Page 158: Snmp-Server Community

    XS26GS Managed Optical Ethernet Switch User Manual ethernet 0/2 enable ethernet 0/3 enable ethernet 0/4 enable ethernet 0/5 enable ethernet 0/6 enable ethernet 0/7 enable ethernet 0/8 enable ethernet 0/9 enable ethernet 0/10 enable ethernet 0/11 enable ethernet 0/12 enable...

  • Page 159: Snmp-Server User

    XS26GS Managed Optical Ethernet Switch User Manual Syntax snmp-server community no snmp-server community community-name View System view. Parameters community-name: name of the community to be created; it is a string of 3 to 16 characters. Description Use snmp-server community command to create a SNMP community. SNMPv1 and SNMPv2c use a community name to restrict access rights.

  • Page 160: Snmp-Server Traps

    XS26GS Managed Optical Ethernet Switch User Manual which is more secure than DES. priv-password: encryption password, a string of 1 to 64 characters in plain text, a 32-bit hexadecimal number in cipher text if MD5 algorithm is used, and a 40-bit hexadecimal number in cipher text if SHA algorithm is used.

  • Page 161: Snmp-Server Traps-Host

    XS26GS Managed Optical Ethernet Switch User Manual snmp-server traps-host Syntax snmp-server traps-host host-ip no snmp-server traps-host host-ip View System view. Parameters host-ip: specifies the destination for the SNMP traps. Description Use snmp-server traps-host command to set a destination host to receive the SNMP traps generated.

  • Page 162: System Log Commands

    XS26GS Managed Optical Ethernet Switch User Manual XS(Ethernet0/23)# snmp-traps Enable this interface snmp trap (sending linkUp or linkDown) successfully! 3.21 System Log Commands The “Any view” in the below table refers to anyone of the following: System view, Ethernet port view, Port-based VLAN view, VLAN view, or dot1x view.

  • Page 163: Lldp Configuration Commands

    XS26GS Managed Optical Ethernet Switch User Manual Clear all the logs that were saved in the system. Examples XS# no log Clear all the logs successfully! 3.22 LLDP Configuration Commands The “Any view” in the below table refers to anyone of the following: System view, Ethernet port view, Port-based VLAN view, VLAN view, or dot1x view.
  • Page 164 XS26GS Managed Optical Ethernet Switch User Manual Examples XS# lldp Set successfully! XS# interface ethernet 0/1 XS(Ethernet0/1)# lldp Set successfully! lldp admin-status Syntax lldp admin-status { disable| rx| tx| rxtx } View Ethernet port view Parameters disable: A port in this mode does not send or receive LLDPDUs.
  • Page 165 XS26GS Managed Optical Ethernet Switch User Manual lldp timer tx-interval Syntax lldp timer tx-interval interval View System view Parameters interval: Required, between 5 to 32768 seconds, 30 seconds by default. Description Set the interval to send LLDPDUs. Examples XS# lldp timer tx-interval 50...
  • Page 166 XS26GS Managed Optical Ethernet Switch User Manual Description Set the initialization delay period. Examples XS# lldp timer reinit-delay 3 Set successfully! lldp hold-multiplier Syntax lldp hold-multiplier value View System view Parameters Value: Required, range between 1 to 10, 5 by default.

  • Page 167: Show Lldp Statistics

    XS26GS Managed Optical Ethernet Switch User Manual Syntax lldp tlv-enable basic-tlv { all | system-capability | system-description | system-name | port-description | management-address} no lldp tlv-enable basic-tlv { all | system-capability | system-description | system-name | port-description | management-address} View...
  • Page 168 XS26GS Managed Optical Ethernet Switch User Manual show lldp statistics View Any view Parameters None Description Display the LLDP statistics. Examples XS# show lldp statistics Ethernet0/1 Transmit Frames Receive Frames Receive Error Frames Discarded Frames TLVs Discarded Packets TLVs Unrecognized Packets : 0 Org.

  • Page 169: Acl Configuration Commands

    XS26GS Managed Optical Ethernet Switch User Manual Ethernet0/4 Enable Disable Ethernet-II Ethernet0/5 Enable Disable Ethernet-II Ethernet0/6 Enable Disable Ethernet-II show lldp tlv-config Syntax show lldp tlv-config View Any view Parameters None Description Display the types of the LLDP TLVs that are currently sent.
  • Page 170 XS26GS Managed Optical Ethernet Switch User Manual System view Parameters acl-number: Required, between 1 to 30 all: All the ACL number. Description Use acl number acl-number command to create an ACL and enter the ACL view. Use no acl number {acl-number | all} command to delete an ACL or all.

  • Page 171: Port Binding Configuration Commands

    XS26GS Managed Optical Ethernet Switch User Manual packet-filter acl-number acl-number no packet-filter acl-number {acl-number| all} View Ethernet port view Parameters acl-number: Required, between 1 to 30. all: the comand is applied to all the ACLs. Description Use packet-filter acl-number acl-number command to apply an ACL to a specific port.
  • Page 172 XS26GS Managed Optical Ethernet Switch User Manual View command System view ip-binding Ip-binding view user-bind mac-addr ip-addr ethernet ethernet-port no user-bind { all| ethernet ethernet-port| mac-addr mac ip-addr ip ethernet ethernet-port} Any view show ip-binding ip-binding Syntax ip-binding View System view...

  • Page 173: Mvr Configuration Commands

    XS26GS Managed Optical Ethernet Switch User Manual ports. Use no user-bind ethernet ethernet-port command to clear all the port binding commands of a specific port. Use no user-bind mac-addr mac ip-addr ip ethernet ethernet-port command to clear a specific port binding command.
  • Page 174 XS26GS Managed Optical Ethernet Switch User Manual Syntax View System view Parameters None Description Use mvr to enable global mvr. Use no mvr to disable global mvr. Examples XS# mvr Enable mvr mvr group Syntax mvr group mvr-group no mvr group mvr-group...

  • Page 175: Mvr Mode

    XS26GS Managed Optical Ethernet Switch User Manual Parameters source: set uplink ports that receive and send multicast data as source ports. receiver: set a port as a receiver port if it is a subscriber port and should only receive multicast data. It does not receive data unless it becomes a member of the multicast group, either statically or by using IGMP leave and join messages.
  • Page 176 XS26GS Managed Optical Ethernet Switch User Manual Syntax mVlanId vlan-id View System view Parameters vlan-id: a VLAN ID in the range of 2 to 4094. Description Use mvr mVlanId to set the multicast VLAN ID to transmit data and igmp-snooping packets.

  • Page 177: Loopback-Detection

    XS26GS Managed Optical Ethernet Switch User Manual Parameters None Description Display all multicast IP address groups. Examples XS# show mvr group Vlan ID : 200 Multicast group : 225.1.1.2 Vlan ID : 200 Multicast group : 226.1.1.2 show mvr port...
  • Page 178 XS26GS Managed Optical Ethernet Switch User Manual System view loopback-detection interval-time no loopback-detection interval-time Ethernet port view loopback-detection control no loopback-detection control Any view show loopback-detection loopback-detection Syntax loopback-detection no loopback-detection View System view and Ethernet port view Parameters None...
  • Page 179 XS26GS Managed Optical Ethernet Switch User Manual Set successfully loopback-detection control Syntax loopback-detection control no loopback-detection control View Ethernet port view Parameters None Description Use the loopback-detection control command to enable loopback-detection control on a specific port. Use the no loopback-detection control command to disable loopback-detection control on a specific port.
  • Page 180 XS26GS Managed Optical Ethernet Switch User Manual Ethernet0/4 Disabled Disabled Ethernet0/5 Disabled Disabled Ethernet0/6 Disabled Disabled Ethernet0/7 Disabled Disabled Ethernet0/8 Disabled Disabled Ethernet0/9 Disabled Disabled Ethernet0/10 Disabled Disabled Ethernet0/11 Disabled Disabled Ethernet0/12 Disabled Disabled Ethernet0/13 Disabled Disabled Ethernet0/14 Disabled Disabled...

  • Page 181: Ordering Information

    XS26GS Managed Optical Ethernet Switch User Manual Ordering Information Work In Prograes Operating Distance: 1: 275/550m (For Multimode Transceiver) Product Number: 2: 15km 3: 40km XS26GS Transmitting Wavelength: 1: 850nm Port Configuration: 2: 1310 or1550nm S: SFP on all ports...

  • Page 182: Appendix A: Command Index

    XS26GS Managed Optical Ethernet Switch User Manual 5. Appendix A: Command Index The command index includes all the commands in the User Manual, which are arranged alphabetically. A B C D E F G H I J K L M N O P Q R S T U V W X Y Z...
  • Page 183 XS26GS Managed Optical Ethernet Switch User Manual help ipconfig { auto | ip ip-address [ netmask netmask ] [ gateway gateway ] } interface ethernet interface interface ethernet interface [ to ethernet interface ] igmp-snooping VLAN view igmp-snooping System view, VLAN view...
  • Page 184 XS26GS Managed Optical Ethernet Switch User Manual management mode { disable | port-based ethernet interface | vlan vlan-id } monitor-port ethernet interface mirroring-port ethernet interface [ to ethernet interface ] { both | egress | ingress } mac-address { static | dynamic | blackhole } mac-address interface ethernet...
  • Page 185 XS26GS Managed Optical Ethernet Switch User Manual no igmp-snooping VLAN view no switchport pvid no switchport link-type no switchport admit-frame protected no switchport no switchport ingress-filtering no port-based-vlan { all | vlan-id1 [ to vlan-id2 ] } no interface ethernet interface [ to ethernet interface ]...
  • Page 186 XS26GS Managed Optical Ethernet Switch User Manual no snmp-server traps-host host-ip no snmp-traps no igmp-snooping leave-time no igmp-snooping max-response-time no loopback-detection interval-time no loopback-detection control ping ip-address protocol-vlan { at | ip | ipx | mode ethernetii etype-id } port-based-vlan vlan-id...
  • Page 187 XS26GS Managed Optical Ethernet Switch User Manual speed { 10 | 100 | 1000 | auto } storm-control type type rate rate show lacp system-id show lacp mode show local-time show lldp neighbor-information show lldp statistics show lldp status show lldp tlv-config...
  • Page 188 XS26GS Managed Optical Ethernet Switch User Manual spanning-tree point-to-point spanning-tree protocol-migration spanning-tree edge show snmp show snmp community show snmp user show snmp traps-host show snmp traps-status snmp-server { name | description | contact | location } text snmp-server community...

  • Page 189: Appendix B: Supported Mibs

    XS26GS Managed Optical Ethernet Switch User Manual 6. Appendix B: Supported MIBs This appendix lists the supported Management Information Base (MIBs) for this release of the XS26GS switch. MIB list RFC1213-MIB RFC1493-BRIDGE-MIB RFC1573-IF-MIB RFC1643-EtherLike-MIB RFC1757-RMON-MIB RFC2618-RADIUS-AUTH-CLIENT-MIB RFC2620-RADIUS-ACC-CLIENT-MIB RFC2674-P-BRIDGE-MIB RFC2674-Q-BRIDGE-MIB LLDP-MIB...

Table of Contents
