The design and specifications are subject to change without prior notice for
product improvement. Consult with the sales agency or manufacturer for
details.
CR070-RG52A2
202055091436

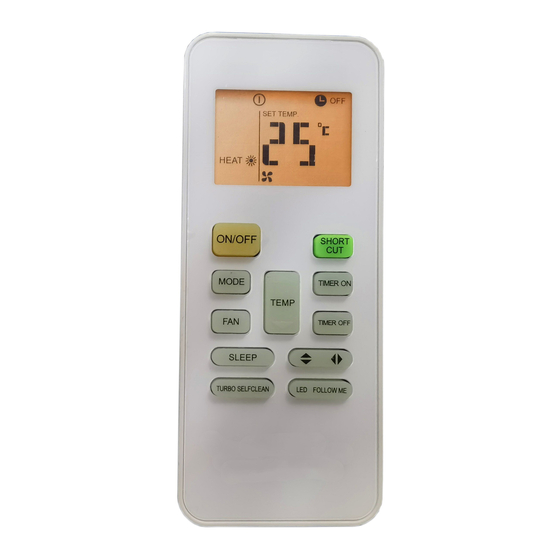

AIR CONDITIONER
REMOTE CONTROLLER ILLUSTRATION
Thank you very much for purchasing our air conditioner.
Please read this owner's manual carefully before using
your air conditioner.
Advertisement
Table of Contents
Related Manuals for Direct Air RG52A2/BGCEF
Summary of Contents for Direct Air RG52A2/BGCEF
- Page 1 AIR CONDITIONER REMOTE CONTROLLER ILLUSTRATION The design and specifications are subject to change without prior notice for product improvement. Consult with the sales agency or manufacturer for details. Thank you very much for purchasing our air conditioner. Please read this owner's manual carefully before using CR070-RG52A2 your air conditioner.
-
Page 2: Table Of Contents
Handling the remote controller CONTENTS Location of the remote controller. Use the remote controller within a distance of 8 Handling the remote controller ............meters from the appliance, pointing it towards the Remote controller Specifications........... receiver. Reception is confirmed by a beep. Keep the remote controller where its signals can Function buttons .... -
Page 3: Remote Controller Specifications
Operation starts when this button is pressed and stops when this button is pressed again. Model MODE Button RG52A2/BGCEF RG52A2/BGEF RG52A3/BGCEF RG52A3/BGEF Each time the button is pressed, the operation 3.0V(Dry batteries R03/LR03 2) Rated Voltage mode is selected in a sequence of following:... - Page 4 UP Button( Swing Button Push this button to increase the indoor Used to stop or start vertical louver movement and set the desired left/right air flow direction. temperature setting in 1 C increments to 30 C. The vertical louver changes 6 degree in angle DOWN Button( for each press.
-
Page 5: Indicators On Lcd
How to use the buttons Indicators on LCD Auto operation Mode display Ensure the unit is plugged in and power is Displays the current operation mode. Including available. The OPERATION indicator on the auto( ), cool( ), dry( ), heat( ) (be display panel of the indoor unit starts flashing. -
Page 6: Dehumidifying Operation
Timer operation Dehumidifying operation Press the TIMER ON button can set the auto-on Ensure the unit is plugged in and power is time of the unit. Press the TIMER OFF button available. The OPERATION indicator on the can set the auto-off time of the unit. display panel of the indoor unit starts flashing. - Page 7 TIMER OFF CAUTION (Auto-off Operation) When you select the timer operation, the remote controller automatically The TIMER OFF feature is useful when you want the transmits the timer signal to the indoor unit for the specified time. Therefore, unit to turn off automatically after you go to bed. The keep the remote controller in a location where it can transmit the signal to air conditioner will stop automatically at the set time.
- Page 8 TIMER ON TIMER OFF (Off Start Stop operation) This feature is useful when you want to start the air conditioner before you wake up and stop it after you leave the house. Example: Start To start the air conditioner 2 hours after setting, Stop and stop it 5 hours after setting.
Need help?
Do you have a question about the RG52A2/BGCEF and is the answer not in the manual?
Questions and answers

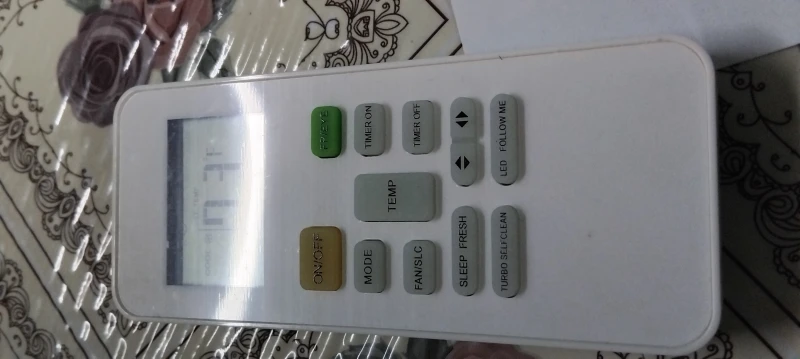

How do I program the RG52A8/BGEF a/c remote
To program the Direct Air RG52A2/BGCEF air conditioner remote, follow these steps:
1. Insert Batteries: Open the battery cover, insert two R03/LR03 (AAA) batteries, ensuring the (+) and (-) ends are correctly placed, then close the cover.
2. Power On: Press the ON/OFF button to turn on the air conditioner.
3. Select Mode: Press the MODE button repeatedly to choose between Auto, Cooling, Heating, Fan, or Dehumidifying mode.
4. Set Temperature: Use the TEMP buttons to adjust the temperature within the range of 17°C to 30°C.
5. Adjust Fan Speed: Press the FAN SPEED button to select the desired fan speed.
6. Set Timer (Optional): Use the TIMER ON or TIMER OFF buttons to schedule operation.
7. Use Additional Functions: Press function buttons like SLEEP, TURBO, or FRESH (if available) to enable specific features.
If the remote loses power or batteries are replaced, it will reset, and you must reprogram it. Ensure the remote is pointed at the indoor unit within an 8-meter range for proper operation.
