Cooper Tools Cleco 88 Series Operation & Service Manual

Hide thumbs Also See for Cleco 88 Series:

Advertisement

Quick Links

Download this manual

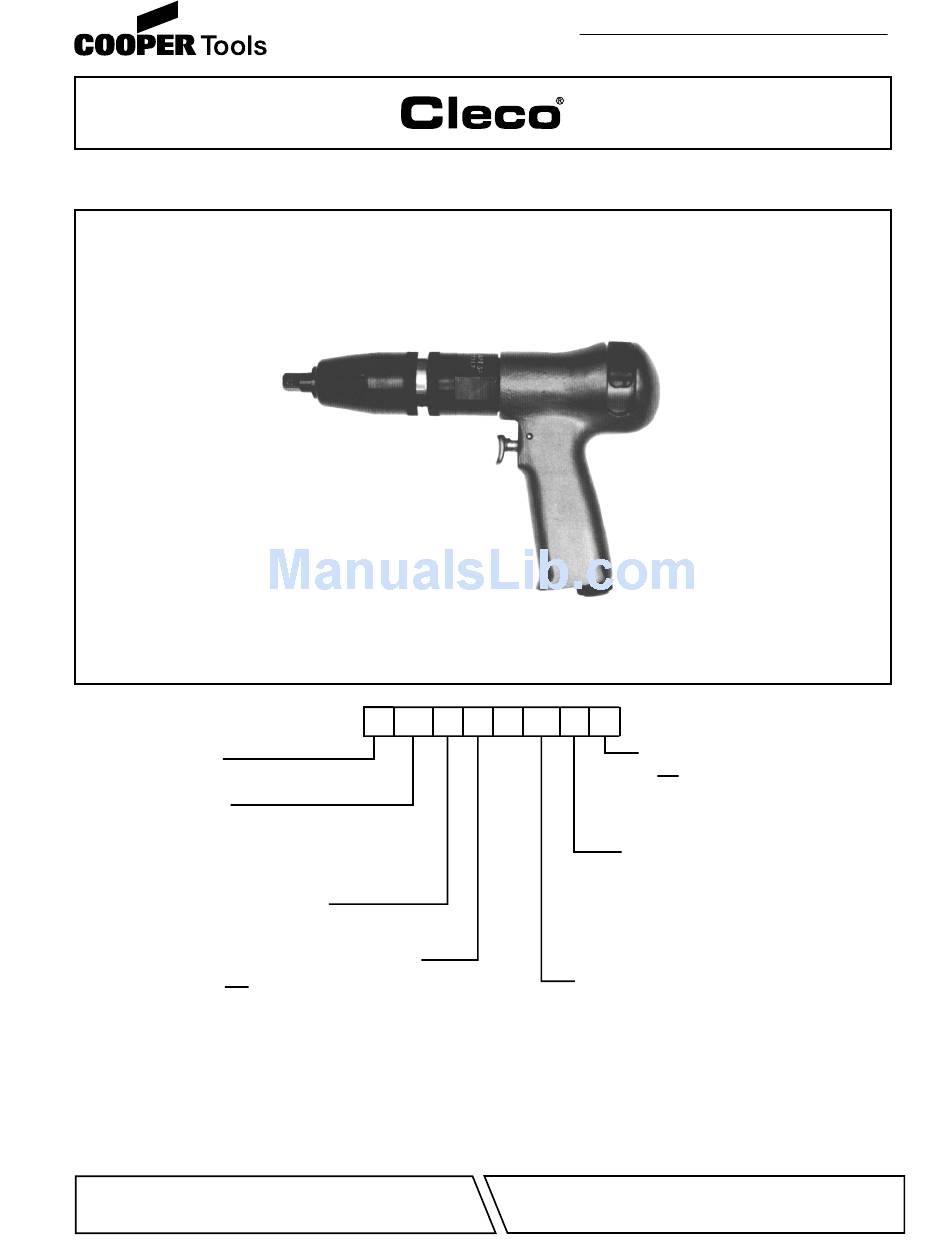

88 Series Screwdrivers
Series:
88
Tool Type:
S
Non-Rev. Screwdriver
RS
Rev. Screwdriver
(Button or Slide)
Torque Control Mechanism:
A
Clecomatic
P
PT
TP
L
NORTH AMERICA
CooperTools
P.O. Box 1410
Lexington, SC 29071
88
XX A XX -
Handle:
Inline
(Push To Start)
Pistol
(Push To Start)
Pistol
(Push & Trigger Start)
Pistol
(Trigger Start)
Lever
(Push To Start)
Operation & Service Manual
823018
X
X
X
Output Drive:
-3
Q
Generation:
C
Second
Gear Train Designation:
2
5
7
EUROPE
Cooper Power Tools GmbH & Co.
Postfach 30
D-73461 Westhausen
2/01
Finder Type
3/8"
Sq. Drive
Quick Change
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Cleco 88 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cooper Tools Cleco 88 Series

Summary of Contents for Cooper Tools Cleco 88 Series

  • Page 1 Operation & Service Manual 823018 2/01 88 Series Screwdrivers XX A XX - Output Drive: Series: Finder Type 3/8" Sq. Drive Tool Type: Quick Change Non-Rev. Screwdriver Rev. Screwdriver Generation: (Button or Slide) Second Torque Control Mechanism: Clecomatic Handle: Gear Train Designation: Inline (Push To Start) Pistol...
  • Page 2 Safety Recommendations For your safety and the safety of others, read and under- Before the tool is connected to the air supply, check the stand the safety recommendations and operating instruc- throttle for proper operation (i. e., throttle moves freely and tions before operating a screwdriver.
  • Page 3 Safety Recommendations Any tool operator should be aware of the following warning Work gloves with vibration reducing liners and wrist sup- signs and symptoms so that a problem can be addressed ports are available from some manufacturers of industrial before it becomes a debilitating injury. Any user suffering work gloves.
  • Page 4 OPERATING & SERVICE INSTRUCTIONS The No. 88C Series CLECOMATIC screwdrivers are push-to Application of the tool should govern how frequently it is start, automatic shutoff tools. Accurate torque is achieved by greased. It is recommended that the idler gears receive a setting the CLECOMATIC clutch to the desired torque.
  • Page 5 BACKHEAD DISASSEMBLY paragraphs list some of the more important reassembly proce- Straight dures. For inspection or replacement of the shut-off valve, No. 867890, or valve seal, No. 869201, unscrew the air inlet bushing, No. IMPORTANT NOTE: During final assembly of 88C RSATP 867882.

  • Page 6: Name Of Part

    844017 88C CLECOMATIC CLUTCH 844013 844016 202789 869304 881393 202749 202746 202748 202744 842161 Complete Assembly 861006 CAUTION: Always use dead handle when operating a tool with high torque capacities 843231 (i.e., 100 in. lbs. (11.3 Nm ) or above). 202745 203270 842161...

  • Page 7: Gear Train

    -2 GEAR TRAIN 203143 884125 884125 867903 203062 867903 202263 847147 867902 867925 867925 832125 869584 865576 203144 844364 202261 867905 NAME OF PART QTY. PART NO. 202261 2nd Red. Spider- (Incl. 884125) 202263 Gear Case (45T) 3rd Red. Idler Gear Bushing 203062 3rd Red.
  • Page 8 MOTORS FRONT BEARING Model Part No. 847095 REAR CYLINDER PIN Non-Rev. Straight 833718 Rev. Straight 812167 847609 Rev. Lever 812167 Non-Rev. Pistol 833718 Rev. Pistol 844234 REAR BEARING PLATE TRIP ROD Non-Rev. 867854 Model Straight Pistol Rev. 867937 867897 869052 847603 867897 869052...
  • Page 9 REVERSIBLE PUSH TO START HANDLE FOR RSA Reversible Tools Only 869253 Locking Std. 865770 202674 Non-Locking Opt. 867878 867891 Rev. 869233 Non- Rev. 869844 869850 869234 865777 Non-Rev. Only 867882 867890 833300 869201 867887 863454 PARTS LIST — REVERSIBLE PUSH TO START HANDLE PART NO.
  • Page 10 LEVER PUSH TO START HANDLE FOR RSAL 869253 Locking (Opt.) 865770 202674 Non-locking (Std.) 867878 869747 867007 869751 869754 863399 867006 869201 867005 869752 867008 869748 869510 867874 412603 869753 867877 202410 PARTS LIST — LEVER PUSH TO START HANDLE PART NO.
  • Page 11 REVERSIBLE AND NON-REVERSIBLE PUSH TO START PISTOL HANDLE WITHOUT TRIGGER FOR RSAP AND SAP REVERSIBLE TOOLS ONLY 613749 869852 867887 867889 Non- Rev. 869235 REVERSIBLE TOOLS ONLY Rev. 202771 867898 617290 867926 847272 867901 202760 869236 (Non-Reversible Tools Only) 412775 867929 867933 847411...
  • Page 12 REVERSIBLE AND NON-REVERSIBLE REVERSIBLE TRIGGER PUSH TO START PISTOL HANDLE TOOLS ONLY FOR RSAPT, RSATP, SAPT AND SATP 613749 867887 RSAPT 869852 869682 RSATP 867889 Non-Rev. 869237 REVERSIBLE TOOLS ONLY Rev. 202773 867898 617290 867926 847272 867901 202760 844787 867939 201905 869236 (Non-Reversible...
  • Page 13 NOTES...
  • Page 14 NOTES...
  • Page 15 NOTES...
  • Page 16 CooperTools 670 Industrial Drive Lexington, SC 29072 Phone: (803) 359-1200 Fax: (803) 359-2013 www.cooperindustries.com...
