Summary of Contents for Alpha Professional Tools HEPADV10

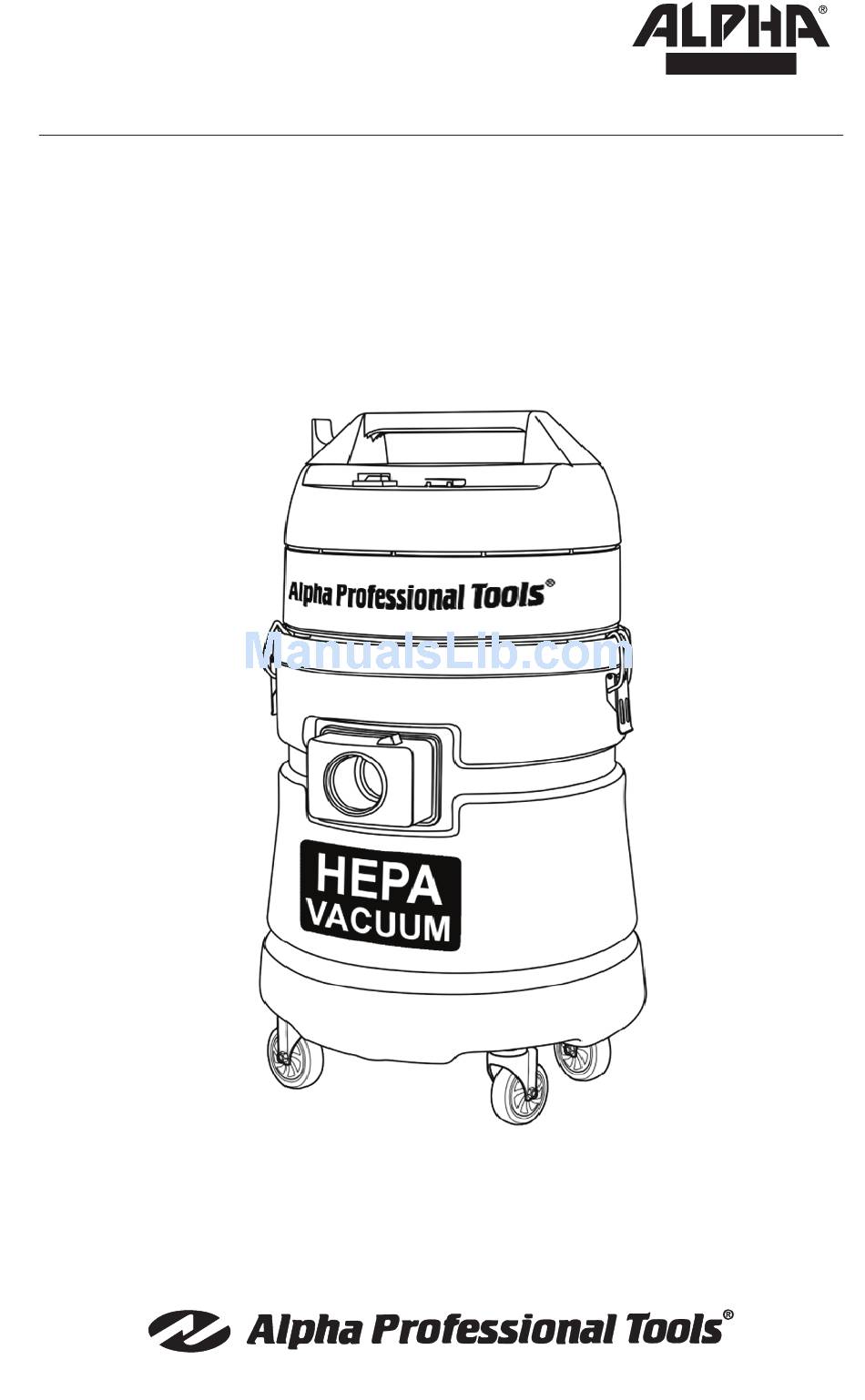

- Page 1 MANUAL Alpha HEPA Dry ® Vacuum Manual Part No: HEPADV10 Version 4...
-
Page 2: Table Of Contents
TAblE of CoNTENTs Introduction ....................3 About the symbols ..................3 General safety Instructions ................3 safety Instructions for Electric Tools ............4 Grounding Instructions ................. 6 HEPA Dry Vacuum overview ................ 7 Specifications ..................7 HEPA Dry Vacuum Accessories ..............8 Components .................... -
Page 3: Introduction
INTRoDUCTIoN Thank you for purchasing an Alpha HEPA Dry Vacuum for Power Tools. This ® vacuum cleaner is a high-quality, precision made product. All parts used in the manufacturing of this vacuum cleaner have passed rigid quality control standards prior to assembly and an “each unit” final inspection prior to packaging is your assurance of proper assembly. -
Page 4: Safety Instructions For Electric Tools
3. Do not allow to be used as a toy. Close attention is necessary when used by or near children. 4. Use only as described in this manual. Use only manufacturer’s recommended attachments. 5. Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, contact Customer service. - Page 5 3. AVoID DANGERoUs ENVIRoNMENTs. Keep work areas as dry as possible. Do not use tool in presence of flammable liquids or gases. Keep the area well lit. 4. KEEP CHIlDREN AND VIsIToRs AWAy. All visitors should be kept a safe distance from the work area. Keep out of reach of children. 5. DoN’T foRCE Tool. It will do the job better and safer at the rate for which it was designed.
-
Page 6: Grounding Instructions
GRoUNDING INsTRUCTIoNs This appliance must be grounded. If it should malfunction or breakdown, ground- ing provides a path of least resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord having equipment ground- ing conductor and grounding plug. -
Page 7: Hepa Dry Vacuum Overview
Clamp Hose Inlet w/Gasket 10 Gallon Tank 10’ Crushproof Hose w/Ends steel Caster sPECIfICATIoNs Model ......................HEPADV10 Recovery Wet ....................10 Gallon Horse Power ......................2HP Rating ......................120 Volts Amperage ......................11.1A Water lift ......................105” CfM ......................... 110 Weight ........................33 lbs... -
Page 8: Hepa Dry Vacuum Accessories
HEPA DRy VACUUM ACCEssoRIEs CoMPoNENTs: 1. HEPA filter Assembly (Part No. HEP100483) (Including filter, Gasket and Dacron “Never Clog” filter bag) 2. 10’ Crushproof Hose w/Ends (Part No. HEP110026) 3. 4’ Crushproof Hose w/o Adapter (Part No. -
Page 9: About The Machine
Insert casters into sockets on bottom of canister. Push casters until seated. Attach hose to coupling on front of can. MAINTENANCE This vacuum cleaner contains no user serviceable parts. If repair is needed, please take the vacuum cleaner to an authorized Alpha Professional Tools service cen- ® ter. -
Page 10: Hepa Dry Vacuum Motor Schematic
AlPHA HEPA DRy VACUUM MoToR sCHEMATIC ®... -
Page 11: Hepa Dry Vacuum Tank Schematic
AlPHA HEPA DRy VACUUM fIlTER / TANK sCHEMATIC ®... -
Page 12: Hepa Dry Vacuum Motor Parts List
AlPHA HEPA DRy VACUUM MoToR PARTs lIsT ® DRAWING No. PART No. DEsCRIPTIoN QUANTITy HEP160644 Top Handle HEP701881 switch HEP110029 outlet HEP160646 screw 4.8 x 15mm HEP110037 Dome HEP160648 Terminal strip HEP701892 screw 2.9 x 19mm HEP701893 Cord Restraint HEP160649 Rubber strain Relief HEP110019 Cord set 14/3-50’... -
Page 13: Troubleshooting Guide
TRoUblEsHooTING GUIDE PRoblEM PossIblE CAUsE CoRRECTIVE ACTIoN loss of sUCTIoN Clean hose or wand obstruction in hose or wand Clean or replace filter Clogged filter assembly Reposition or replace gasket Uneven gasket fit Replace Plastic tank Collection can rim is chipped or cracked MoToR WoN’T RUN Replace fuse or circuit breaker blown building fuse or tripped circuit breaker Replace switch Defective switch... -
Page 14: Accessories And Factory Service
1 year from the date of original retail ® purchase (proof of purchase required). If Alpha Professional Tools receives notice of such defects during the warranty period, our obligation assumed under this warranty is limited to the repair or replacement of parts, without charge. -
Page 15: Product Registration
Note: serial & Model Number must be included for proper registration. (800) 648-7229 Register online at: www.alpha-tools.com/productregistration.aspx Mail or Fax to: ® Alpha Professional Tools 103 Bauer Drive, Oakland, NJ 07436 Fax: 800-286-0114 Photocopy of product registration form will be accepted. 15 1 5... - Page 16 103 Bauer Drive, Oakland, NJ 07436 • 800-648-7229 • Fax: 800-286-0114 www.alpha-tools.com Copyright © 2012 Alpha Professional Tools. All rights reserved. 08/2012...
