MANUAL
Alpha
HEPA Wet/Dry
®
Vacuum Manual
Part No: HWD1120/HWD1240
Version 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HEPA HWD1120 and is the answer not in the manual?

Questions and answers

Related Manuals for Alpha Professional Tools HEPA HWD1120

Summary of Contents for Alpha Professional Tools HEPA HWD1120

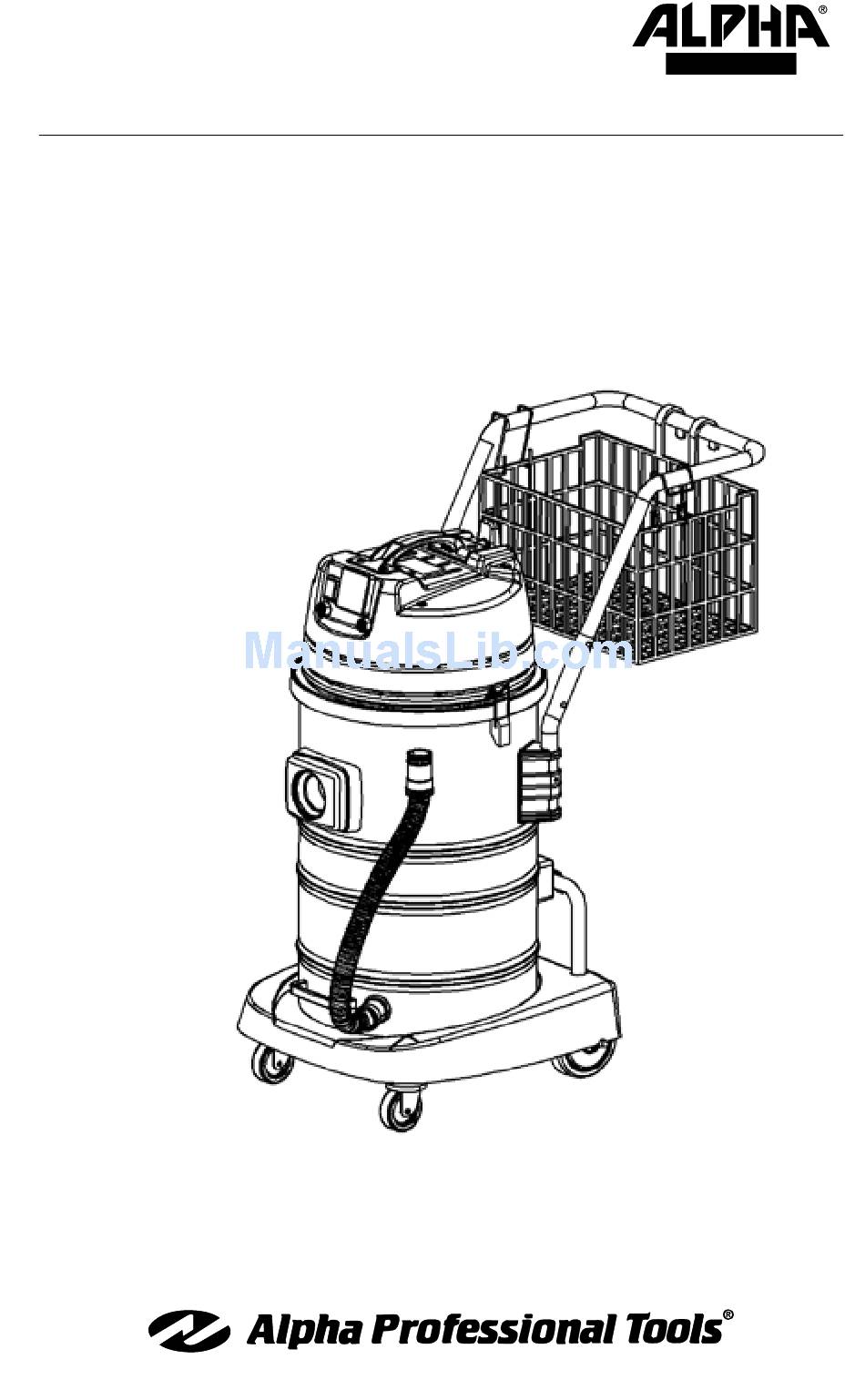

  • Page 1 MANUAL Alpha HEPA Wet/Dry ® Vacuum Manual Part No: HWD1120/HWD1240 Version 1...

  • Page 2: Table Of Contents

    Table of CoNTeNTs Introduction ...................... 3 About the Symbols ..................3 General Safety Instructions ................4 Safety Instructions for Electric Tools ..............5 Grounding Instructions ..................7 HEPA Wet/Dry Vacuum Overview ..............8 Specifications .................... 8 HEPA Wet/Dry Vacuum Accessories ............... 9 Components ....................

  • Page 3: Introduction

    INTroDuCTIoN Thank you for purchasing an Alpha HEPA Wet/Dry Vacuum for Pneumatic and ® Power Tools. This vacuum cleaner is a high-quality, precision made product. All parts used in the manufacturing of this vacuum cleaner have passed rigid quality control standards prior to assembly and an “each unit” final inspection prior to packaging is your assurance of proper assembly.

  • Page 4: General Safety Instructions

    GeNeral safeTy INsTruCTIoNs When using an electrical appliance, basic precaution should always be followed, including the following: reaD all INsTruCTIoNs before usING THIs VaCuum CleaNer WarNING To reduce the risk of fire, electric shock or injury: 1. Do not leave appliance when plugged in. Unplug from outlet when not in use and before servicing.

  • Page 5: Safety Instructions For Electric Tools

    11. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes. 12. Do not use dry without dustbag and/or filters in place. 13. Turn off all controls before unplugging. 14. Use extra care when cleaning on stairs. 15. Do not use to pick up flammable or combustible liquids such as gasoline, or use in areas where they may be present. 16.
  • Page 6 7. Wear ProPer eye ProTeCTIoN. Use safety glasses at all times. Also, use a face mask if work area is dusty. 8. DoN’T oVerreaCH. Keep proper footing and balance at all times. 9. DIsCoNNeCT Tools WHeN NoT IN use. Always disconnect tool before servicing;...

  • Page 7: Grounding Instructions

    GrouNDING INsTruCTIoNs This appliance must be grounded. If it should malfunction or breakdown, ground- ing provides a path of least resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord having equipment ground- ing conductor and grounding plug.

  • Page 8: Hepa Wet/Dry Vacuum Overview

    HePa WeT/Dry VaCuum oVerVIeW Handrail Handle Electrical Outlet Switch Storage Basket Air-In Connector Air-Out Connector Tank Clip Suction Inlet Stainless Steel Tank Drain Hose Tilt/Dump Support Shelf Tank Handle Pedestal Front Wheels Back Wheels SPECIFICATIONS Model ................HWD1120 / HWD1240 Capacity ................15 Gallon / 60 Liters Rating ..................

  • Page 9: Hepa Wet/Dry Vacuum Accessories

    HePa WeT/Dry VaCuum aCCessorIes          ComPoNeNTs: 1. Hose Assembly 1-1/2” x 10’ (Part No. HWD5004) 2. Round Brush (Part No. HWD5006) 3. Cloth Dust Bag (Part No. HWD5085) 4. Wet Floor Nozzle (Part No. HWD5009) 5.

  • Page 10: Additional Safety Instructions

    aDDITIoNal safeTy INsTruCTIoNs 1. Before operation, check that the local power supply is same as the specifica- tion on the rating label. 2. Do not use the machine in a combustible and explosive place in case the motor sparks and causes a fire. 3. Do not force items into the Air Hose Inlet mouth, as it may cause the temperature to rise and damage the motor.
  • Page 11 7. Always turn off the machine and remove the plug when repairing or after each use. 8. Do not overturn the machine to avoid water from going into the motor and damaging it. 9. Keep machine away from strong sunlight and high temperature places to avoid the plastic distorting.

  • Page 12: Operation Method

    oPeraTIoN meTHoD CoNNeCTIoN 1. Insert the hose connector into the suction inlet as shown in Figure 1, make sure the connector is tightly fastened. Connector Button Figure 1 2. Press the connector button as shown in Figure 2 and pull the connector out when you want to disconnect from the machine.

  • Page 13: Operation - Electric Tool

    NOTE: When tools are turned on in the Auto Start mode, the vacuum cleaner will delay for 3-4 seconds before turning on. NOTE: When tools are turned off, the vacuum cleaner will remain on 8-9 seconds to ensure all of the dust is suctioned from the hose.

  • Page 14: Adjusting Handrail Height

    aDjusTING HaNDraIl HeIGHT According to your requirements, the height of the handrail can be adjusted. Press the buttons on both sides of the handrail to raise or lower. CoNNeCTING THe alPHa eCoGuarDs ® 54”...

  • Page 15: Connecting To Palm Sanders, Gear Action Sanders

    CoNNeCTING To Palm saNDers, Gear aCTIoN saNDers aND saNDING bloCKs Dust Exhaust Hose (Part No. VH91100 / Sold Separately) 1. Insert the Alpha ® “cone” shape end into the opening of the Hose Assembly (Part No. HWD5004). NOTE: The Alpha Dust Exhaust Hose has a 3/4”...

  • Page 16: Setting Up The Vacuum For Wet Use

    The vacuum can be used for wet pick-up. Remove ALL dirt and debris found in the tank to avoid contamination into the motor unit. Remove the HEPA FILTER, CLOTH FILTER and CLOTH DUST BAG prior to using the vacuum for wet pick-up. seTTING uP THe VaCuum for WeT use 1.

  • Page 17: Automatic Suction Shut Off

    auTomaTIC suCTIoN sHuT-off The vacuum is equipped with an automatic suction shut-off that operates when picking up liquids. As the level of the liquid rises in the tank, an internal float rises until it seats itself against a seal at the intake of the motor, shutting off suction (Figure 9).

  • Page 18: Maintenance

    maINTeNaNCe 1. Tank Cleaning – Dry use After working or when the cloth dust bag is full, it is recommended to clean the tank to remove any dust or debris. This dust or debris could decrease the suction considerably. Prior to cleaning the tank, disconnect the power from the motor.

  • Page 19: Attaching The Storage Basket

    aTTaCHING THe sToraGe basKeT NoTe: This foldable metal wire storage basket utilizes release tab springs to hold the basket into the open position. Carefully follow the steps listed below to fully open this storage basket. 1. Release the clip holding the foldable storage basket together making sure to hold the storage basket down with your other hand.
  • Page 20 3. Place the side hanging support brackets (x2) on each side of the basket as shown below. Figure 20 Figure 21 Figure 22 4. Place the back support bracket of the Storage Basket on the Handrail of the vacuum as shown below. Figure 23 Figure 24 5.

  • Page 21: Alpha ® Hepa Wet/Dry Vacuum Schematic (Inside)

    alPHa HePa WeT/Dry VaCuum sCHemaTIC ® (INsIDe)

  • Page 22: Alpha ® Hepa Wet/Dry Vacuum Schematic (Outside)

    alPHa HePa WeT/Dry VaCuum sCHemaTIC ® (ouTsIDe)

  • Page 23: Alpha ® Hepa Wet/Dry Vacuum Parts List

    alPHa HePa WeT/Dry VaCuum ParTs lIsT ® Drawing No. Part No. Description Quantity HWD5010 Screw 4x16 HWD5011 Top Plastic Handle HWD5012 Top Cover HWD5013 Elbow Fitting HWD5014 Air Flow Switch HWD5015 Pipe-A 8mm x 200mm HWD5016 Pipe-B 8mm x 80mm HWD5017 T-Fitting HWD5018...
  • Page 24 alPHa HePa WeT/Dry VaCuum ParTs lIsT ® (CoNTINueD) DraWING No. ParT No. DesCrIPTIoN QuaNTITy HWD5040 Power Control Board HWD5041 Screw M4x25 HWD5042 Washer HWD5043 Wire Block HWD5044 Nut M4 HWD5045 Power Cable (UL Plug) 120V HWD5088 Power Cable (VDE Plug) 240V HWD5046 Cable Sleeve HWD5047...
  • Page 25 alPHa HePa WeT/Dry VaCuum ParTs lIsT ® (CoNTINueD) DraWING No. ParT No. DesCrIPTIoN QuaNTITy HWD5070 Screw 4x20 HWD5071 Left Handle Seat HWD5072 Screw for Suction Inlet 4x16 HWD5073 Screw 4x12 HWD5074 Suction Inlet HWD5075 Suction Inlet Cover HWD5076 Water Outlet Plug HWD5077 Plug Retainer Ring HWD5078...

  • Page 26: Accessories And Factory Service

    ® and workmanship for a period of 1 year from the date of original retail purchase (proof of purchase required). If Alpha Professional Tools receives ® notice of such defects during the warranty period, our obligation assumed under this warranty is limited to the repair or replacement of parts, without charge.

  • Page 27: Product Registration

    Note: Serial & Model Number must be included for proper registration. (800) 648-7229 Register online at: www.alpha-tools.com/productregistration.aspx Mail or Fax to: Alpha Professional Tools ® 103 Bauer Drive, Oakland, NJ 07436 Fax: 800-286-0114 Photocopy of product registration form will be accepted.
  • Page 28 103 Bauer Drive, Oakland, NJ 07436 • 800-648-7229 • Fax: 800-286-0114 www.alpha-tools.com Copyright © 2017 Alpha Professional Tools. All rights reserved. 08/2017...
