Summary of Contents for Icecrypt T2300HD
-
Page 1: User Manual

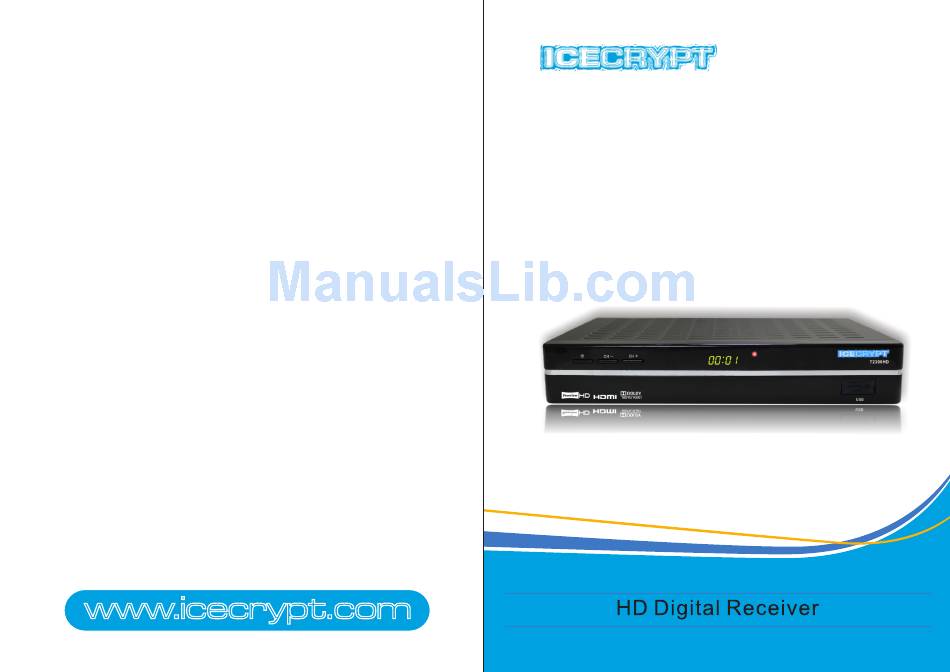

User Manual Icecrypt T2300HD... -
Page 2: Table Of Contents
Content: Content ......................Introduction ...................... Introduction and Features Quick Start Guide ..................... Unpacking, Safety information Controlling the receiver, Front Panel information ................Rear Panel connections, Connecting up your digital receiver ............Connecting to your Antenna, HDMI, SCART and Audio devices ............. Remote Control ............................ - Page 3 Content Electronic Programme Guide ................EPG information, Programme reminder, Scheduling features MHEG-5 / Teletext ..................... MHEG-5 Digital Text and conventional Teletext functions Home Networking ..................... UPnP, Network Media requirement, Digital Media Player ..............Playing Media files: Movies, Photos, Music ..................Network Based Applications (IP Button) ............
-
Page 4: Introduction
Introduction The ICECRYPT T2300HD digital receiver is fully compliant with the international Digital Video Broadcasting DVB-T and DVB-T2 standard. In order to receive these services, all that is required is a conventional terrestrial aerial. Features The ICECRYPT T2300HD has the following features: DVB-T/DVB-T2 compliant MPEG-2 MP@ML, H.264(MPEG-4 Part 10) SD &HD transport stream... -
Page 5: Quick Start Guide
Quick Start Guide Unpacking Please check that you have received the following items with the digital receiver. Remote control unit Two batteries for the remote control(AAA 1.5V) One HDMI cable A copy of this User Manual Note: Accessories may vary according to your local area. Safety precautions Please read carefully the following safety precautions. -
Page 6: Unpacking, Safety Information Controlling The Receiver, Front Panel Information
Quick Start Guide Controlling the digital receiver You can operate the ICECRYPT T2300HD digital receiver with the remote control or via the buttons on the front panel. NOTE When not in use, please keep the unit in stand-by mode in order to allow event times to function normally. -
Page 7: Rear Panel Connections, Connecting Up Your Digital Receiver
Quick Start Guide Rear panel connections The T2300 HD has the following connections on the back: Connect the terrestrial aerial to this socket Terrestrial signal loop output socket: Connect other digital receiver products to this socket. Digital audio output socket for the audio-video receiver Local area network (connect to your router) USB device socket Audio and video output socket for the high definition... -
Page 8: Connecting To Your Antenna, Hdmi, Scart And Audio Devices
Quick Start Guide Connecting to the antenna First, connect the digital receiver to the terrestrial antenna so that it can receive digital television broadcasts. Connect the antenna cable to the ANT IN connector. If you have another digital receiver, you may connect it to the LOOP connector using an RF lead. -
Page 9: Remote Control
Quick Start Guide Remote control Function Standby/ON Change the HD format Mute Displays the favourite group list Subtitles Teletext AUDIO Display the Audio window. Volume up / down Direct channel entry PR+,PR- Change channels up/down Back to previous channel TV/RADIO Selects TV or Radio mode Move cursor up or down in menu Move cursor right or left in menu... -
Page 10: Switching On For The First Time
Quick Start Guide Switching on for the first time First insert batteries provided into the remote control. Take care when opening the battery compartment and insert the batteries observing the polarity, which is marked on the base of the battery compartment. Ensure that your television set is switched on and on the correct video channel so that you will be able to see the on-screen display from the digital receiver. -
Page 11: Service Search
Quick Start Guide Service Search After you have checked all your connections to your receiver, you can now perform a service search. Powering up for the first time. When powering up for the first time, you will be guided through the following installation steps: Press keys to highlight menu language, then press OK. -
Page 12: Basic Operations
Basic Operations Stand-By Press key to turn your receiver ON or Stand-by. Changing channels To change channels, you can: Use the numeric keys (0-9) on the remote to enter the channel number directly. If the channel number is invalid, the "Invalid number” message with be displayed. Press OK key to close this message. -
Page 13: Day To Day Use Of Your Receiver
Basic Operations OK/LIST 1. Press the OK or LIST key to display TV or Radio Programme list. 2. Press keys to navigate the channel list up or down, and then press OK key to select the highlighted channel. 3. Press MENU or EXIT key to exit this list. Display/Confirm Select Audio... -
Page 14: Menu Information
Menu Information When you press MENU key, you can enter Main Menu. Menu Overview - Auto Tuning - DTV Manual Turning - Programme Edit - Signal Information - Software Update(OAD) - TV System - Scart Mode - Aspect Ratio - Resolution - Balance - AD Switch - SPDIF Mode... -
Page 15: Channel Menu
Channel Menu Auto Tuning To use Auto Tuning to search for available channels, please proceed with the following steps: Your ICECRYPT receiver supports the following digital TV systems: 1. Press the MENU key to display the Channel Menu. 2. Highlight Auto Tuning and press OK to select Auto Tuning. -
Page 16: Manual Tuning
Channel Menu Manual Tuning You can also use Manual Tuning to search for available channels per frequency. Unlike analogue TV, where each channel occupies a frequency, in Digital Television each channel frequency may contains a number of TV and Radio channels. To use Manual Tuning, please proceed with the following steps: 1. -
Page 17: Programme Edit
Channel Menu Programme Edit (1)Press FAV button to change favourite list between Fav 1 and Fav 8 (2) Press keys to highlight the desired channel. (3) To add the highlighted channel to favourite list, press GREEN button. The favourite icon will be displayed next to channel name. -
Page 18: Signal Info, Software Update
Channel Menu Signal Information: Displays the current signal information for that channel in real time. The information may be used for fault diagnostics. Channel: The current UHF channel index. Network: The current Network name. Modulation: TV channel modulation type, DVB-T or DVB-T2. Strength: Signal strength for the current channel. -
Page 19: Picture Menu
Picture Menu The Picture menu allows you to optimise your ICECRYPT to best suit your TV. To enter the TV System Menu, Press Menu key, then use the keys and navigate to “Picture” menu, where you will find the following options:. -
Page 20: Sound Menu
Sound Menu In the Sound Menu, you can adjust audio parameters to suit your system: Balance Balance setting 0 to 100, where default setting is 50 which means Left and Right audio levels are equal. AD Switch Enable or Disable AD function. It also allows you to set volume value when AD is set to on. -
Page 21: Time Menu
Time Menu You can set the various time related functions on your unit: Clock Time as defined by the broadcaster. Off Time Sets the time for the receiver to enter standby automatically. On Time Sets the time for the receiver to switch on automatically. Display Select Confirm... -
Page 22: Option Menu
Option Menu The following options are available within this MENU: OSD Language Sets the On-Screen Menu language. Audio Language Sets the default audio language for all channels (whenever multiple audio languages become available). The user can also change it by using the AUDIO button on the remote control when watching TV or listening to Radio channels. -
Page 23: Network Configuration
Option Menu Network Configuration Your ICECRYPT DTV has a network feature which allows it to connect to your network in the following ways: 1- DHCP, where your unit will automatically obtain the required network settings from your modem. 2- You can also set up your network configuration manually. -
Page 24: Eco Power, Antenna Power, Country, Software Update (Usb) And System Information
So please ensure you have set your receiver to your local country. Software Upgrade (USB) From time to time ICECRYPT will provide software updates in order to improve the performance and specifications of your unit. When available, the unit is designed to accept the update via the USB port via a USB memory stick. -
Page 25: Lock Menu
Lock Menu With the Lock Menu you can lock functions or programmes to prevent unauthorised access to settings or channels. Lock System When Lock System is ON, the Auto Tune and Manual Tune Menus are password protected. Set Password Use this MENU to set your password. First you must enter the OLD password. -
Page 26: Multimedia Player
Multimedia Player Your ICECRYPT receiver’s built-in Multimedia player allows you to enjoy movies, music and photos on your TV. To access your multimedia, please refer to the information below: Your Media To locate your media, press Menu and use the keys and select APPLICATION. -
Page 27: Photos, Thumbnails, Files
Multimedia Player Your ICECRYPT receiver’s built-in Multimedia player allows you to enjoy movies, music and photos on your TV. To access your multimedia, please refer to the information below: Photos Highlight the photos you would like to view, and press OK to view in FULL SCREEN. -
Page 28: Setting Movie Preview Window. Setting Resume Play And Slide Show
Multimedia Player Setting the preview window for movie files. (On/OFF) Open the Setup page and press key to mark the highlight on the “Movie”. From “Movie” Press key and press to set the preview window setting. Preview = ON, user can preview the movie and picture in the preview window. -
Page 29: Devices (Usb), Dtv Mode, Supported Media Format Information
Multimedia Player Device The DEVICE menu allows you to select which USB devices to play from. Press the key to highlight USB device. Press OK key to select the device. You will then see a V tag next to the selected device. Return to DTV Select this option and press OK to EXIT the Multimedia mode and return to DTV (Digital Television Mode). -
Page 30: Audio, Music And Picture Format Information
Multimedia Player Audio Formats: Audio Codec File Extension Bit/Sampling Rate Remark 32Kbps ~ 448Kbps(Bit rate) MPEG1/2 Layer1 16KHz ~ 48KHz(Sampling rate) 8Kbps ~ 384Kbps(Bit rate) MPEG1/2 Layer2 16KHz ~ 48KHz(Sampling rate) 8Kbps ~ 320Kbps(Bit rate) MPEG1/2 Layer3 16KHz ~ 48KHz(Sampling rate) 32Kbps ~ 640Kbps(Bit rate) (work with video files only) 32KHz, 44.1KHz, 48KHz(Sampling rate) -
Page 31: Personal Video Recording And Playback
Personal Video Recorder (PVR): Please note: PVR is only available for certain countries. The ICECRYPT receiver supports DTV programme record and playback functions. Any DTV programme can be recorded and be viewed via the PVR file browser. The receiver also supports Timeshift, and Always on Timeshift functions. - Page 32 Multimedia Player Playback: The Media Player supports various trick modes during file playback: PAUSE/RESUME 2x-32x times fast forward or fast reverse to search or skip to a particular scene. Please note: For FAST FORWARD, at up to 4x speeds you will see a continuous frame sequence of the movie. For speeds of 8x to 32x you will see individual frame by frame sequences displayed in intervals.
-
Page 33: Electronic Programme Guide
Electronic Programme Guide EPG: The Electronic Programme Guide (EPG) is a comprehensive on-screen display of channels, their programme schedules and information all in one. The user can directly select channels from this guide to view or transfer the programme scheduling to the PVR. The EPG provides the following information: Channel Number Channel Name... -
Page 34: Mheg-5 / Teletext
MHEG-5 / Teletext MHEG-5: MHEG-5, also known as Digital Text is widely used in DTV broadcasters around the world. It provides a variety of interactive TV functions from on-demand programmes, news and weather to interactive games. When available, you will be prompted to press the RED or TXT button to access the service. -
Page 35: Home Networking
Here's a quick checklist of what you'll need: - Icecrypt DTV receiver - At least one Digital Media Server (e.g. laptop, network drive etc) - A router... -
Page 36: Playing Media Files: Movies, Photos, Music
Select the desired Digital Media Server and it will display the media type available on that server. 3. Play media files: You can watch movies, listen to music and display your photos stored on your server on the Icecrypt digital receiver. Movies: Press... -
Page 37: Network Based Applications (Ip Button)
Network based applications (IP button) This receiver can support different network based applications depending on model type and location. To access these application please press the IP button on your remote and navigate within the menu using the and colour coded buttons. Please note options and applications may vary depending your location. -
Page 38: Hbbtv (Only Available For Certain Models And Markets)
Network Based Applications HbbTV (Only available in certain models and markets) Hybrid Broadcast Broadband TV or “HbbTV”, is a major new pan-European initiative aimed at harmonising the broadcast and broadband delivery of entertainment to the end consumer through connected TVs and set-top boxes. Through the adoption of HbbTV, consumers will be able to access new services from entertainment providers such as broadcasters, online providers and CE manufacturers –... -
Page 39: Main Menu, Epg, Video On Demand (Vod), Teletext
Network Based Applications Main Menu: Click the RED key when the menu bar is displayed at the bottom of the screen will show available functions. EPG: Informative EPG with programme information shown. At the bottom of the screen you will find colour-coded multi-function keys: BLUE/ YELLOW key to scroll UP and DOWN the page. -
Page 40: Youtube (Only Available For Certain Models And Markets)
YouTube Leanback YouTube Leanback (Only available for certain models and markets) YouTube Leanback is a different way of watching videos on YouTube. It is simple to use, easy to navigate with your keyboard's arrow keys. The videos are streamed so you will get quick loading and playback. Watching Videos: Autoplay - videos will play as soon as YouTube Leanback starts. -
Page 41: Skype (Only Available For Certain Models And Markets)
Skype Skype (Only available for certain models and markets) Skype is a proprietary Voice Over Internet Protocol service (VOIP). This service allows users to communicate with others by voice, video, and instant messaging over the Internet. Phone calls may also be placed to recipients on the traditional telephone networks. -
Page 42: Making Video Calls, Making Voice Calls
Skype 3. Making Video/Voice calls. Skype offers two ways to connect to someone. One is via video call so that you can see the other person on-screen and talk at the same time. The other way is the more traditional voice call where you and the other person communicate by voice only. -
Page 43: Facebook
Facebook Facebook is a social networking service. Users are required to register before using the site, after which they may create a personal profile, add other users as friends, and exchange messages, receive automatic updates of their friends. Login to Facebook: When you first enter Facebook using the receiver, you will be given an ACTIVATION CODE. - Page 44 Facebook Notifications: Press numeric key 3 for Notification of your status and updates about you. If someone has sent you a friend request to you, the Friend request will be notified in this screen. Language: Press numeric key 4 to change page to the Facebook Language settings.
-
Page 45: Twitter (Only Available For Certain Models And Markets)
Twitter Twitter (Only available for certain models and markets): Twitter is an online social networking and micro-blogging service that enables its users to send and read text-based posts,known as "tweets", of up to 140 characters. To navigate: Press the corresponding Numeric Keys shown on top of the screen: 1. -
Page 46: Web Browser
Web browser You can use the built-in web browser to browse the web. Default view displays Google home page search engine. Red Cursor: keys move Red Cursor: Cursor over icons or hyperlinks and then press OK to “Click” and go there! Control Menu: Press the Menu key to display the Control Menu (each icon is explained in the bubble): Example:... -
Page 47: Google Maps
Google Maps Google Maps is a free web mapping service application provided by Google. It offers detailed street maps, navigation route planner tools for traveling on foot, car or by public transport for numerous countries around the world and interesting tools like “Street Views” from around the world. 1. -
Page 48: Flickr / Picasa
Flickr: Flickr (Only available for certain models and markets): Flickr is an image and video hosting website, web services suite, and online community. To navigate: Press the corresponding Numeric Keys shown on top of the screen: 1. Flickr Explore - you can take a look at all recently posted pictures on the site and also check out what it deems to be the most interesting pictures posted. -
Page 49: Samba File Sharing
Samba File Sharing Press MEDIA button to enter to media player menu. Enter to Device sub-menu. Then you can find a Net Device item listed in the end of device list. Press OK/LIST to enter, the screen as right screen shot will be displayed. -
Page 50: Trouble Shooting
Trouble shooting: If you suspect there is a fault with your unit, please check the following trouble shooting guide before calling an authorised service agent. Warning! Under no circumstances attempt to repair the receiver yourself. Tampering with the unit may result in electric shock and will invalidate your warranty. -
Page 51: Technical Specifications
Ean Code: 5060086981100 Features and specifications are subject to change without prior notice. For more information please visit: http://www.icecrypt.com For support, please contact us at: e-mail: info@icecrypt.com Hot-line: 08712 003 191 - only available inside the UK, for overseas please use email or contact...
