38MVC/40MVC
38MVQ/40MVQ
Comfortt Series High---Wall Duct---Free Split System
Sizes 009 --- 024
SAFETY PRECAUTIONS
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
GENERAL
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PART NAMES
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DISPLAY PANELS
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
REMOTE CONTROL
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
REMOTE CONTROL FUNCTIONS
CLEANING, MAINTENANCE AND TROUBLESHOOTING

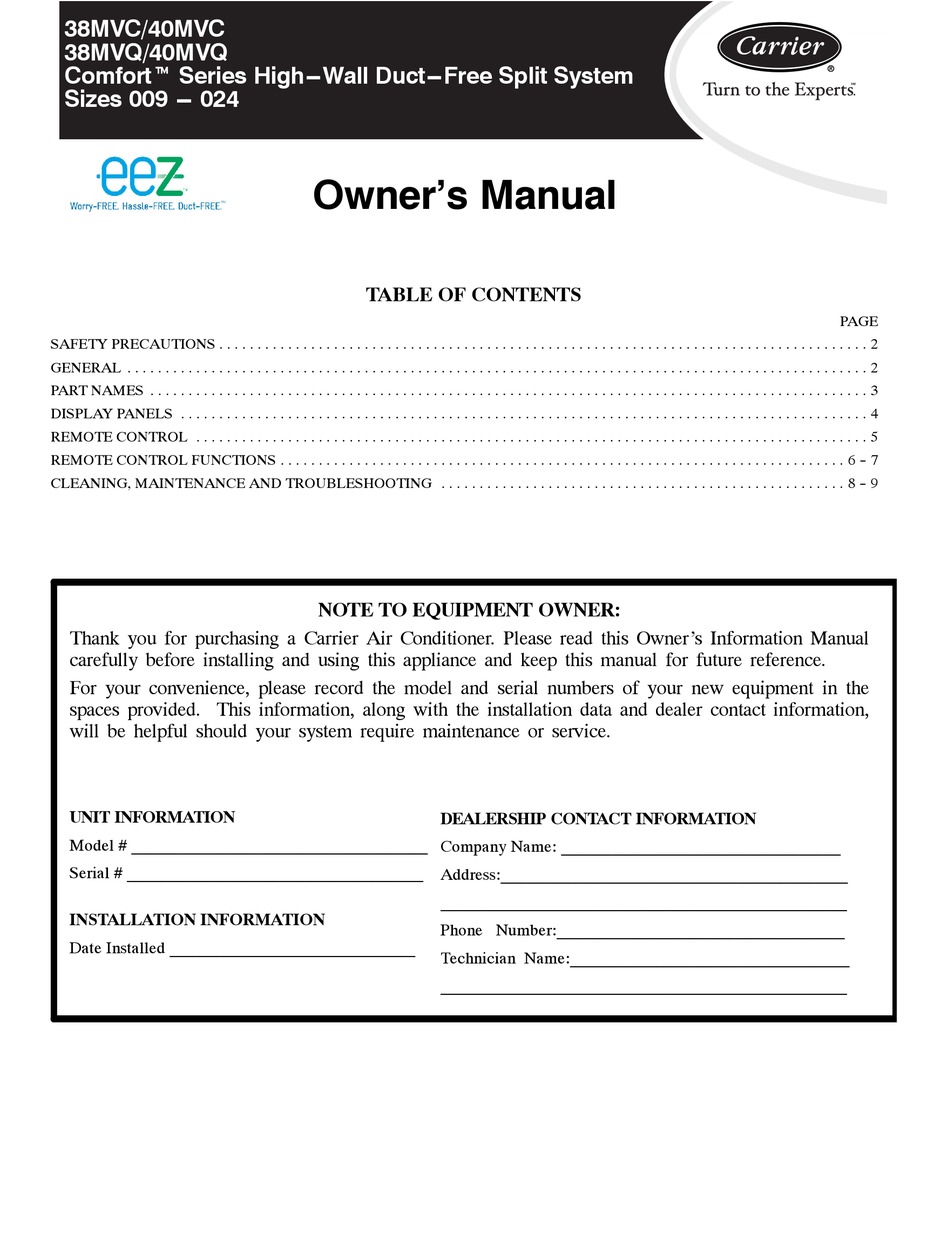

Thank you for purchasing a Carrier Air Conditioner. Please read this Owner's Information Manual
carefully before installing and using this appliance and keep this manual for future reference.
For your convenience, please record the model and serial numbers of your new equipment in the
spaces provided. This information, along with the installation data and dealer contact information,
will be helpful should your system require maintenance or service.
UNIT INFORMATION
Model # ___________________________________
Serial # ___________________________________
INSTALLATION INFORMATION
Date Installed _____________________________
Owner's Manual
TABLE OF CONTENTS
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
NOTE TO EQUIPMENT OWNER:
DEALERSHIP CONTACT INFORMATION
Company Name: _________________________________
Address:_________________________________________
________________________________________________
Phone Number:__________________________________
Technician Name:_________________________________
________________________________________________
PAGE
2
2
3
4
5
6 - - 7
8 - - 9
Advertisement
Table of Contents
Related Manuals for Carrier Comfort 38MVC Series
Summary of Contents for Carrier Comfort 38MVC Series
- Page 1 8 - - 9 NOTE TO EQUIPMENT OWNER: Thank you for purchasing a Carrier Air Conditioner. Please read this Owner’s Information Manual carefully before installing and using this appliance and keep this manual for future reference. For your convenience, please record the model and serial numbers of your new equipment in the spaces provided.
-
Page 2: Safety Precautions
SAFETY PRECAUTIONS GENERAL The high wall fan coil unit provides quiet, maximum comfort. In addition to cooling and/or heating, the high wall fan coil unit WARNING matched with an outdoor condensing unit will filter and dehumidify the air in the room to provide maximum comfort. PERSONAL INJURY, DEATH, OR PROPERTY IMPORTANT: The high wall fan coil unit should be installed by DAMAGE HAZARD... -
Page 3: Part Names
PART NAMES INDOOR UNIT Air inlet Front panel frame Front panel Air filter Horizontal air flow grille Vertical air flow louver Air outlet Room temperature sensor OUTDOOR Display panel Infrared signal receiver UNIT Remote control Air inlet Remote control bracket Interconnecting tubing Control and power wiring to indoor unit Service valves... -
Page 4: Unit Display Panels
UNIT DISPLAY PANELS NOTE: The display panel on the indoor unit will look like one of the following. Some of the functions will appear on the display panel, remote control or both. On the Unit: OPERATION: Infrared signal receptor This indicator flashes once per second after power is on and OPERATION AUTO TIMER... -
Page 5: Remote Control
REMOTE CONTROL SET TEMPERATURE( F) AUTO HIGH COOL HEAT TEMP ON/OFF MODE FAN SPEED SLEEP TIMER ON SWING TIMER OFF RESET LOCK DIRECTION DISPLAY TURBO A07542 Remote Control Operation - - Quick Start CAUTION NOTE: When transmitting a command from the remote control to the unit, be sure to point the control toward the right side of the EQUIPMENT DAMAGE HAZARD unit. -
Page 6: Remote Control Functions
REMOTE CONTROL FUNCTIONS Pressing the On/Off Button Selecting the Horizontal Direction Louver Position ON/OFF The airflow direction can be adjusted to optimize air distribution. Indicator Press the AIR DIRECTION button repeatedly to choose one of the louver positions. In the Cooling, Dehumidification, and Fan Only mode, the louver will swing in the cooling range. -
Page 7: Defrost Operation
Timer OFF only Turbo Mode This function is available in COOL mode on 9k and 12k cooling only units. Use the TURBO mode to cool the room rapidly. - - Press the TURBO button. An audible “beep” will be heard. TIMER OFF - - The fan will run on high speed. -
Page 8: Cleaning, Maintenance And Troubleshooting
CLEANING, MAINTENANCE AND TROUBLESHOOTING CAUTION CAUTION EQUIPMENT DAMAGE HAZARD ELECTRICAL SHOCK HAZARD Failure to follow this caution may result in personal injury Failure to follow this caution may result in equipment damage. or death. When cleaning the front panel, do not use water hotter than Always turn off power to the system before performing any 105_F (40.56_C) and do not pour water onto the fan coil. - Page 9 Table 1—Periodic Maintenance INDOOR UNIT EVERY MONTH EVERY 6 MONTHS EVERY YEAR Clean Air Filter* Change Remote Control Batteries OUTDOOR UNIT EVERY MONTH EVERY 6 MONTHS EVERY YEAR Clean Outdoor Coil from Outside Clean Outdoor Coil from Inside† Blow Air Over Electric Parts† Check Electric Connection Tightening†...
- Page 10 HEATING & COOLING Catalog No: OM38---40MV ---01 Copyright 2007 Carrier Corporation Printed in the U.S.A. Edition Date: 12/07 Manufacturer reserves the right to change, at any time, specifications and design without notice and without obligation. Replaces: New...
