Dension DBR-9202-1 User Manual

DAB+R
DAB Radio Receiver
with Remote Controller
User Manual
DBR-9202-1
The Dension DAB+R is a universal solution for listening to your
favorite DAB (Digital Audio Broadcast) stations in your car. This
device offers full DAB information (metadata) on the display of
your car radio through RDS (if your car radio supports radio
text).
BBC R2
Now playing: White Light
by George Michael
This manual will explain how to easily install and use the
DAB+R device with our remote controller.
Please study this user guide carefully and keep it handy in
case any questions may arise later.
TECHNICAL DETAILS
• Digital Audio Services: DAB/DAB+/DMB-A (Supports
DAB, DAB+ standards).
• RF Frequency Range: DAB Band III Channels 5A to
13F (174 MHz ~ 240 MHz).
• RF Sensitivity for DAB Band III: -98 dBm ~ -100 dBm.
• FM Transmission Range: 87.6 MHz ~ 107.9 MHz.
• Power supply: 11 V ~ 16V DC Fuse: 1 amp.
• Input Connectors: DC micro fit power plug, 3.5mm
stereo audio Auxiliary Input socket. AUX-in connector
for external devices.
• Presets: 10 DAB station Presets
• DAB aerial connector SMB Male. Passive and active
antenna support (Separate power supply output is
provided for active antennas. Phantom powering is
not supported).
• Operating Temperature Range: -10 ~ +70 deg C.
• Storage Temperature Range: -40 ~ +85 deg C.
WARNING: Do not expose the remote controller to direct
sunlight or heat.
PACKAGE CONTENTS
• Main device (DAB+R module)
• Car side power cable
• Power wire for active antenna
• Power cable with cigar lighter adapter
• Installation accessories
• Quick Start Guide
• Remote Controller

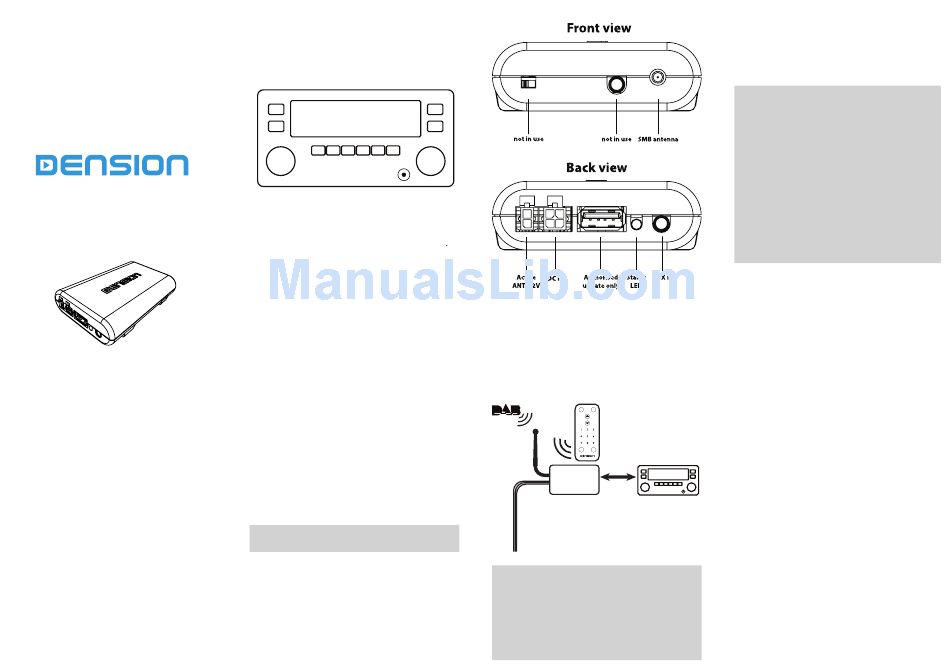

DEVICE INSTALLATION
Use the included car side power cable and connect the 3
power leads as follow:
• Red: +12V Battery (permanent 12V or ACC)
• Purple: +12V Switched (ACC or ignition)
• Black: Ground (GND)
SRC SCAN
FM 0 INFO
RADIO
DAB+R
FM
power connection
DAB
DAB (Digital Audio Broadcast) is an international standard
for digital radio broadcasts. The availability of DAB
stations and broadcast coverage are very much location
and country specific. Please consult your local broadcast
information for availability.
POSITIONING THE DAB ANTENNA
The DAB reception and performance depends on many factors,
both in the vehicle and other external conditions. Before you
start the antenna installation and/or the product testing, please
make sure that you have a good DAB coverage and reception.
Important notes:
• If your vehicle comes with metalized windscreen
(e.g. windscreen heating) the external antenna is
required to be mounted outside of the car.
• The DAB module supports both amplified and
non-amplified aerials. For amplified antennas
12V power is provided by the DAB+R receiver
via the 2 pin molex connector. Read the manual
of the antenna used carefully and follow the
instructions in order to find the right place for
installation. Always test (read next chapter) the
DAB functions before finalizing the installation.
