INSTALL GUIDE

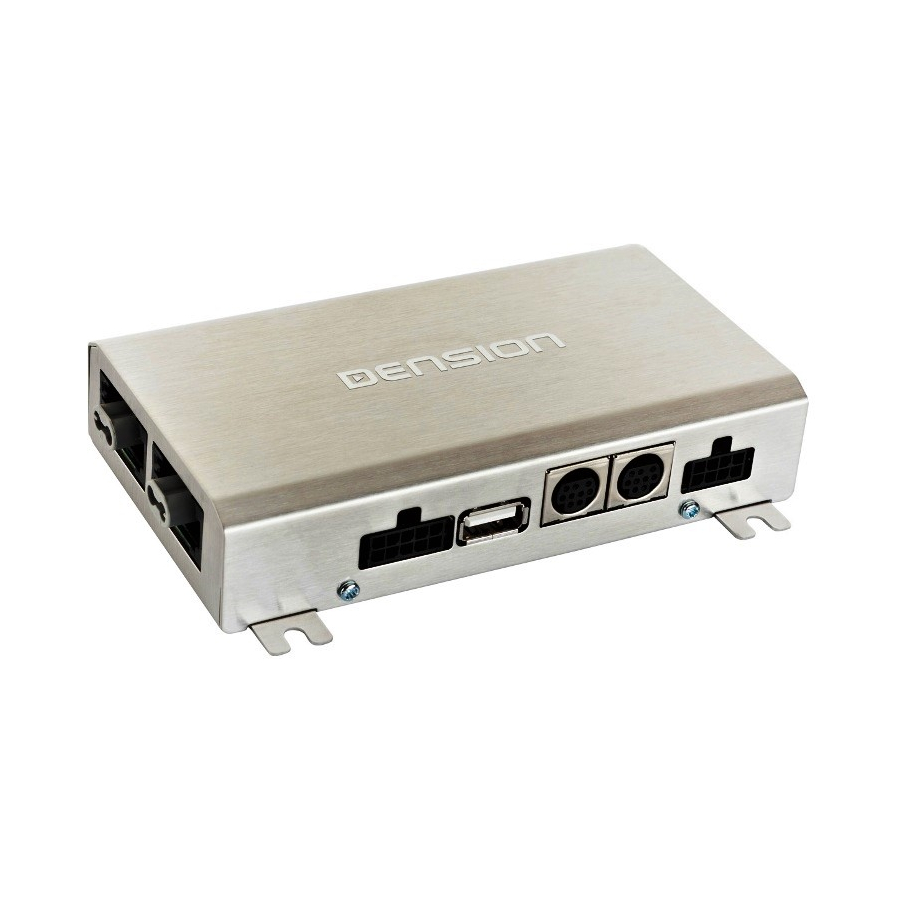

ice 4 Link Gateway 500 MOST
State of the art car integration
for media players, USB and
Bluetooth devices
GW5-9210-8

Introduction

Gateway 500 emulates a CD changer and uses CD changer controls to access
offboard audio sources including iPod, USB devices and Dension Gateway
accessories. If your car is not already equipped with a CD changer, it may be
necessary to have the car programmed by your dealer in order to use the
GW500 with it.

Programming the car for GW500

Audi
No programming required
BMW non iDrive-4
If original CD changer fitted and MP3 capability is available: no programming
is required.
If original CD changer fitted and no MP3 capability is available:
a) Retrofit "KMP3" option with service computer
b) Used in non text capable BMW mode
If original CD changer not fitted or E60 M-ASK used: install GW500 and retrofit
"IPOD" option with service computer
BMW with iDrive-4
If original CD changer fitted: no programming is required
If original CD changer not fitted: install an original BMW CD changer and
retrofit "CD Changer" temporarily option with service computer
Mercedes
Generally no programming is required but in some cases (e.g. no device was
connected onto the optical ring) it is needed to enable a CD changer with the
service computer.
Porsche
Generally it is needed to enable a CD changer with the service computer but
in rare cases the PCM accept the GW500 without this enabling process.
Saab 9-3
It is needed to enable a CD changer with the service computer using an
original CD changer.

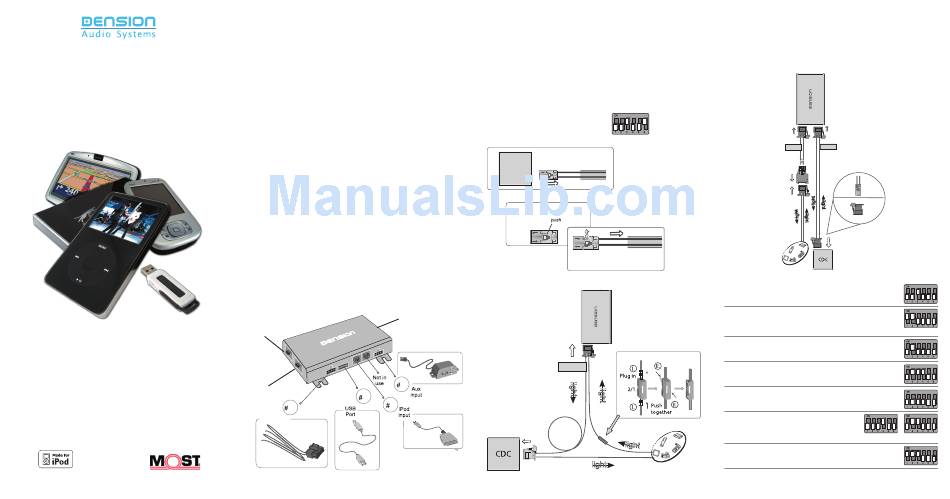

Package Content & Electrical Installation
DIP switch
Car side
3
CDC side
1
2
4
Power
harness
Power harness:
-red wire
(+12V non switched)
-black (GND)
1
Installation Type 1:
Vehicles supporting multiple CD changers
and equipped with a CD changer
• Audi A4/S4/RS4/A5/A6/S6/RS6/A8/Q7
with MMI-2 High (colour)
These vehicles allow selection of Gateway audio sources
and the original CD changer through the existing car audio
controls.
Set the DIP switches to the following
position and install the Gateway
500 as illustrated below:
1a.
CDC
Remove the blue locking clip from the
middle of the fibre optic housing.
1b.
Strain the hook carefully with a
sharp tool, while pulling out the
optical fibre from the housing.
1c.
3.
Car side
2
Installation Type 2a:
Vehicles with an existing CD changer
These vehicles allow selection of Gateway audio sources and
the original CD changer by switching the mode between CD
Changer and Gateway mode.
CDC side
Car side
Audi (MMI-2 Basic Monochrome)
Text capable BMW E87, E90, E91, E92, E93,
E60/61, E63/E64, E65/E66 (03/2005-), E70
and Mini (non iDrive-4)
Non text capable BMW E65/E66 (-03/2005)
(non iDrive-4)
BMW E90, E91, E92, E93 with iDrive-4
Mercedes (NTG1-, NTG2- Audio 20/50 and
Comand)
Porsche (CDR 23/24 and PCM I/II/2.1)
for longer CDC and car side cable use
FOA1PO1
CDR
Saab 9-3 (Rear CDC)
3
PCM
