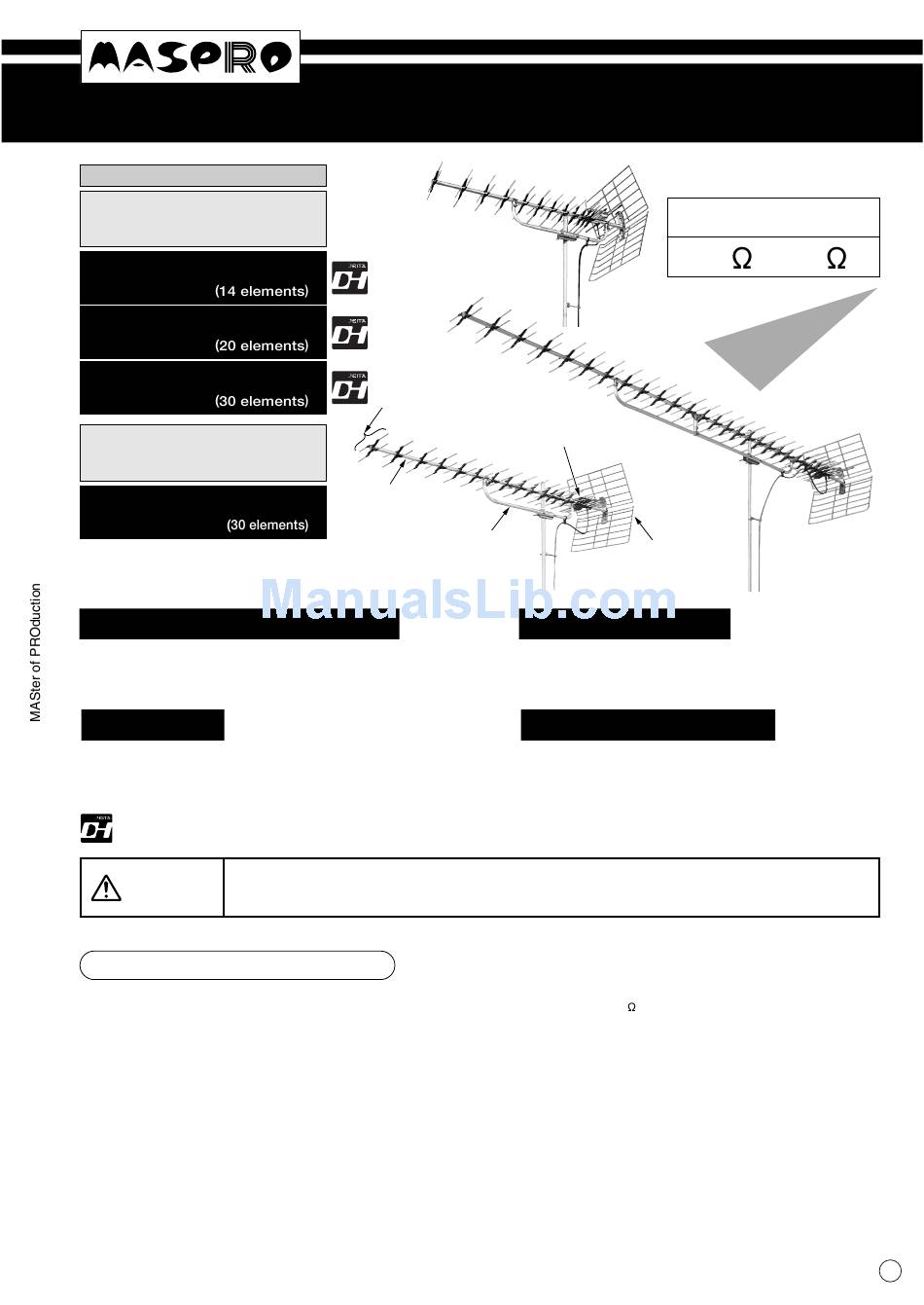

Maspro LS14 Instruction Manual

ULTRA HIGH PERFORMANCE
Model
European Standard E ch. 21~57
American Standard A ch. 14~63
Chinese Standard C ch. 13~44
LS14
LS20
LS30
European Standard E ch. 21~44
American Standard A ch. 14~45
Chinese Standard C ch. 13~31
LSL30
Wide Screen Reflector ( Corner )
Wide screen reflector with excellent front-to-back ratio
eliminates interference from unfavorable directions,
providing clear images.
Beam Dipole
MASPRO's original beam dipole with built-in phase
shifter provides excellent gain and VSWR over a wide
band.
The JEITA Digital Hi-Vision mark (DH mark) is conferred by the Japan Electronics and Information Technology Industries Association to indiacate the superior
Performance of antennas and equipment for both satellite and terrestrial digital TV broadcasting.
Skill and experience are required to install antennas on roofs or other elevated
NOTE
locations. Make sure to consult your dealer concerning installation.

Antenna Installation Precautions

¡Be very careful to install antenna at the safest spot possible, so
that parts of the antenna will not cause injury or property damage if
they fall.
¡To prevent electric shock accidents, install the antenna as far away
as possible from wires (powerlines, high voltage wires, telephone
lines) so that it will not come into contact with the wires even if it
falls.
¡Never attempt installation on rainy or windy days. Be extremely
careful also when working under a scorching sun in summer, as
the roof can become very hot.
¡Take necessary safety measures before installing antenna, e.g.
binding the antenna, mounting brackets, and tools to prevent them
from dropping.
¡Working at elevated locations is extremely dangerous. Take all
safety measures possible before installation. When you are on the
roof, you may experience vertigo or experience an exaggerated
sense of height; your feet may become shaky and your footing
unstable. Take special care to avoid slipping.
UHF COLOR TENNAS
4 Elements Director
Beam Dipole
Boom
Boom
Support
4 Elements Director
High performance director equipped with four elements
in one holder and provides high gain.
Aluminum Double Boom
Double structured aluminum boom and boom support
are light yet sturdy.
¡Make sure to remove TV and Tuner AC plugs from AC wall outlets
when you connect 75
remain in outlets, electric shock may occur.
¡Do not install the antenna and guy wire by yourself. Make sure that
someone, or preferably two or more people, are present to assist
you.
¡Reception level may differ depending on where you install the TV
antenna. During installation, try to adjust the position, height and
direction of antenna for optimum reception.
¡After typhoon or heavy snow, check the antenna, mounting brackets,
mast, roof mount, and guy wires for any signs of trouble or loosened
bolts and nuts. Replace damaged or bent antenna with a new one. If
you neglect antenna or leave them without proper maintenance,
parts of the antenna and mounting brackets may become damaged
and drop, causing physical injury or property damage.
¡Be careful not to use a rusty or corroded antenna and mounting
bracket. Weak or damaged equipment may loosen and drop,
resulting in physical injury or property damage.
Read this instruction manual carefully before use.
Instruction Manual
For Horizontal / Vertical
Polarization
75
LS14
LOVE STORY
Screen
Reflector
LS20
coaxial cable from TV and Tuner. If plugs
( For Home Use )
200
/
LS30
LSL30
1
