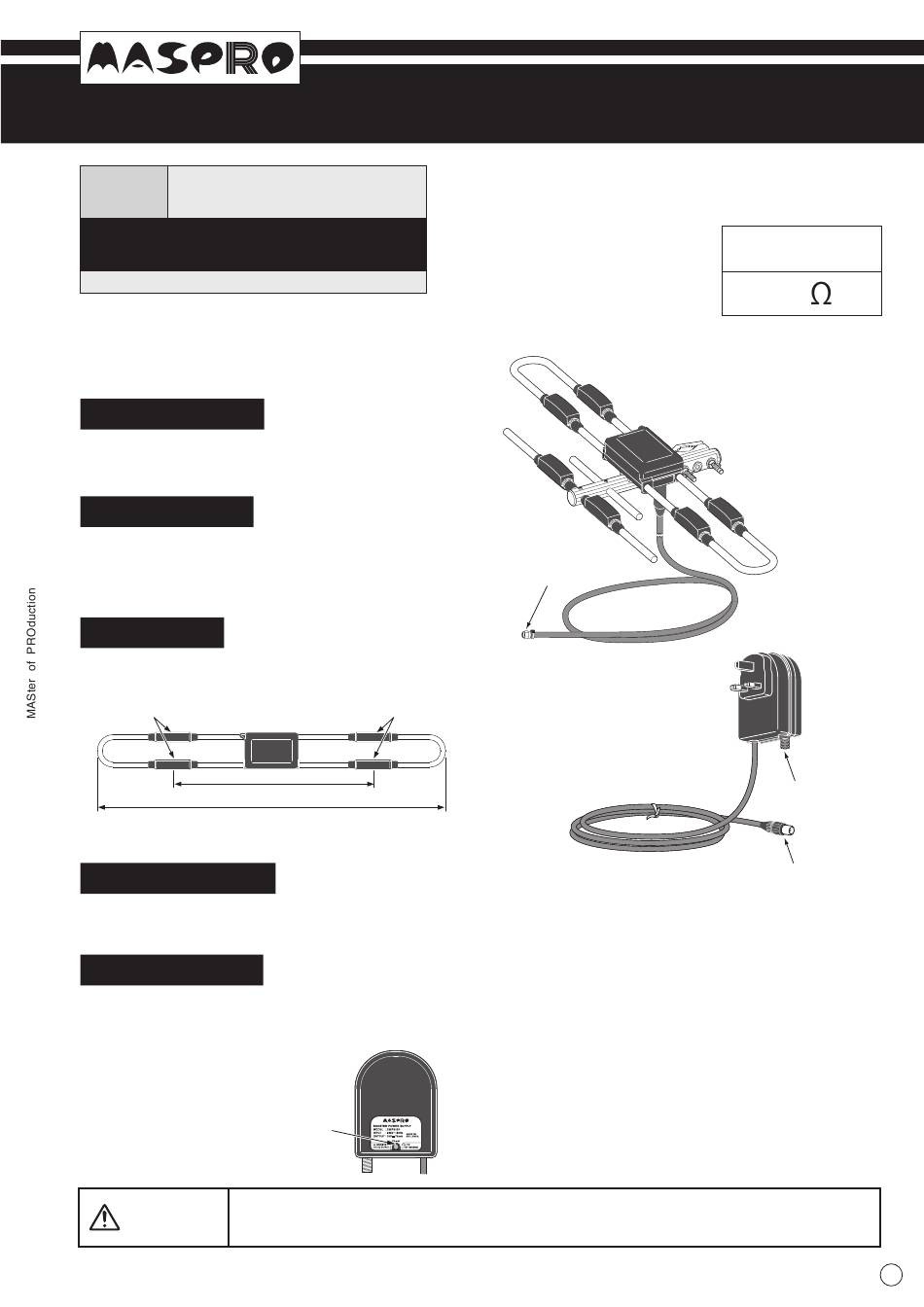

BUILT-IN-BOOSTER ANTENNA
European Standard
Reception
American Standard
Channels
Chinese Standard
VU3BW
15V DC Type
Built-in Booster
Built-in Booster adjusts splitted signal losses.
Easy to Set Up
Included 14m coaxial cable with a connector makes an
antenna installation easily.
Multi Dipole
4 Traps provide VHF and UHF wide-band reception.
Traps
Aluminum Boom
Aluminum boom is light and sturdy.
Power Indicator
Indicates the operating state of the Power Supply.
Lighting ...power-on
•
Light-off... power-off or a short circuit
•
between the Power Supply
and the Antenna.
Power Indicator
Skills and experiences are required to install antennas on roofs or other
NOTE
elevated locations. Make sure to consult your installer.
ch.5-12 & ch.21-62
ch.7-13 & ch.14-69
ch.6-12 & ch.13-49
Traps
UHF
VHF
Read this instruction manual carefully before use.
INSTRUCTION MANUAL
F-type(Male)
VHF/UHF Antenna
(Included 14m coaxial cable)
Power Supply (Indoor use)
(Coaxial cable length : 1.8m)
for VHF/ UHF
with WARRANTY
For Horizontal
Polarization only
75
F-type (Female)
IEC/PAL(Male)
1
Advertisement
Table of Contents
Related Manuals for Maspro VU3BW
Summary of Contents for Maspro VU3BW
- Page 1 Reception American Standard ch.7-13 & ch.14-69 with WARRANTY Channels Chinese Standard ch.6-12 & ch.13-49 VU3BW For Horizontal Polarization only 15V DC Type Built-in Booster Built-in Booster adjusts splitted signal losses. Easy to Set Up Included 14m coaxial cable with a connector makes an antenna installation easily.
- Page 2 Safety Precautions Antenna • • Be very careful to install the antenna at the safest Make sure to remove TV and/or Tuner AC plugs spot possible so that parts of it will not cause from AC wall outlets when you connect 75Ω injury or property damage if they fall.
- Page 3 How to Install VHF/UHF Antenna Install the antenna in higher Mast Fixing Clamp Note location as possible to Do not open the lid hole Front receive good TV signals. Backing plate because the cable end has been already Loosen the wing nuts, and then connected to dipole.
- Page 4 Temperature Range 0 – + 40°C Adaptable Mast Diameter 22 – 38.1mm You can always rely on MASPRO’s performance data. 65 ( H ) x 650 ( W ) x 229 ( D ) mm Dimensions (Except 14m coaxial cable) Approx.
