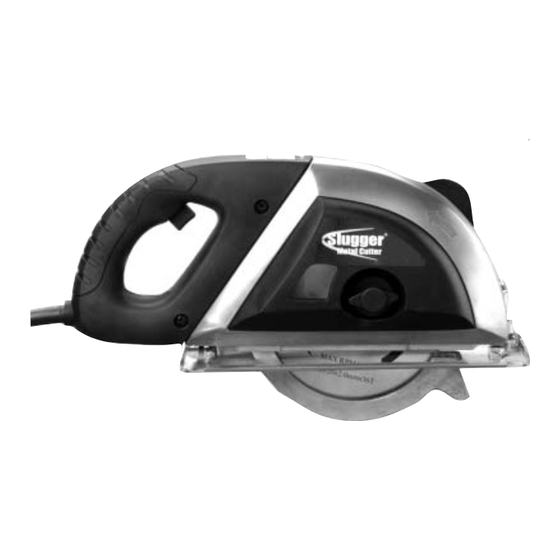

  • Page 1 Slugger Metal Cutter Portable Metal Cutting Saw OPERATOR’S MANUAL WARNING! BEFORE USE BE SURE EVERYONE USING THIS MACHINE READS AND UNDERSTANDS ALL SAFETY AND OPERATING INSTRUCTIONS IN THIS MANUAL EYE PROTECTION HEARING PROTECTION NEVER PLACE LINE VOLTAGE BEWARE OF REQUIRED...

  • Page 2: Table Of Contents

    Portable Metal Cutting Saw Congratulations on your purchase of a Slugger Metal Cutter. Please take a moment to complete and mail your product warranty registration card. Doing so will validate your machine’s warranty period and ensure prompt service if needed.

  • Page 3: General Safety Rules And Specifications

    GENERAL SAFETY RULES WARNING! Read and understand all instructions. Failure to follow all instructions listed below, may result in electric shock, fire and/or serious personal injury. SAVE THESE INSTRUCTIONS. Work Area Keep Your Work Area Clean and Well Lit. • Cluttered benches and dark areas invite accidents.
  • Page 4 GENERAL SAFETY RULES (cont.) Personal Safety Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use tool • while tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating power tools may result in serious personal injury.

  • Page 5: Specific Safety Rules And Symbols

    SPECIFIC SAFETY RULES AND SYMBOLS WARNING! DO NOT OPERATE MACHINE IF WARNING AND OR INSTRUCTION LABELS ARE MISSING OR DAMAGED CONTACT JANCY ENGINEERING FOR REPLACEMENT LABELS HEARING PROTECTION EYE PROTECTION NEVER PLACE LINE VOLTAGE BEWARE OF REQUIRED REQUIRED FINGERS NEAR PRESENT ROTATING CUTTING AREA...
  • Page 6 SPECIFIC SAFETY RULES (cont.) - DANGER! — Keep hands and body away from and to the side of the blade. Contact with blade will result in serious injury. - WARNING! — To reduce the risk of injury, check lower guard. It must close instantly! Hold saw with both hands. Support and clamp work.
  • Page 7 SPECIFIC SAFETY RULES (cont.) CAUSES AND OPERATOR PREVENTION OF KICKBACK Kickback is a sudden reaction to a pinched, bound or misaligned saw blade, causing an uncontrolled saw to lift up and out of the workpiece toward the operator. When the blade is pinched or bound tightly by the kerf closing down, the blade stalls and the motor reaction drives the unit rapidly back toward the operator.

  • Page 8: Functional Description

    FUNCTIONAL DESCRIPTION...

  • Page 9: Assembly

    ASSEMBLY Remove all contents from packaging and inspect to ensure no damage was incurred during shipping. Your Slugger Metal Cutter package should also include the following: DESCRIPTION PART OPERATOR’S MANUAL LIT113 EARPLUGS, 3M-1100 MC702301 SAFETY GOGGLES MC702302 HEX KEY, M6...

  • Page 10: Exploded View

    ASSEMBLY (cont.)

  • Page 11: Parts List

    SAW PARTS LIST ITEM DESCRIPTION PART ITEM DESCRIPTION PART MAIN FRAME MC710004 WASHER, FLAT M5 JIS B 1256 MC751142 PLATE, SPINDLE BEARING SUPPORT MC710003 POWER CORD, 16-3 SEOOW MC770501 BEARING, BALL 6202 SHIELDED MC701126 POWER CORD, 1.5MM 250V C-EUROPE MC770505 SPINDLE MC751911 SCR, CRPHMS M5 X 12 JIS B 1111...

  • Page 12: Operation

    OPERATION 1. The surface you are working on should be clean and level, free from rust, scale, dirt and chips. 2. Adjust the base plate to the desired bevel angle by loosening and then re-tightening the T-knob (item# 57). 3. For long, straight cuts in sheet stock, position the edge guide to the desired width and secure with thumb screw. 4.

  • Page 13: Operation

    OPERATION (cont.) CHIP COLLECTOR WARNING! ALWAYS DISCONNECT THE SAW FROM POWER SOURCE BEFORE CHANGING BLADES CLEARING CHIPS OR MAKING ADJUSTMENTS 1. Remove the T-knob and flat washer securing chip collector. 2. Remove chip collector from side panel of saw. 3. Empty chip collector, using a chip brush to thoroughly remove chips and debris from saw body. 4.

  • Page 14: Maintenance / Changing Saw Blades

    MAINTENANCE WARNING! ALWAYS DISCONNECT THE SAW FROM POWER SOURCE BEFORE CHANGING BLADES CLEARING CHIPS OR MAKING ADJUSTMENTS CHANGING SAW BLADES 1. Place saw on level, secure surface. 2. Remove two (2) saw blade housing screws and washers (item# 67 and item# 68). 3.

  • Page 15: Troubleshooting Checklist

    TROUBLESHOOTING CHECKLIST SLUGGER 7" METAL CUTTER MCSL07, MCSL07-2 1. Low Blade Life/Teeth Chipping –Wrong blade for the type of material. a. MCBL07 for mild steel up to 5/16” solid. b. MCBL07ALM for aluminum up to 3/8” solid. c. MCBL07SS for stainless steel up to 1/4” solid.

  • Page 16: Specifications

    Case Dimensions 460mm H (18") 546mm W (21.5") 280mm D (11") YOUR DISTRIBUTOR MANUFACTURER OF SLUGGER ® CENTERFREE CUTTERS AND PORTABLE MAGNETIC DRILLING MACHINES Tel · 563.391.1300 or Fax · 563.391.2323 2735 Hickory Grove Road · Davenport, Iowa 52804 email · jancy@jancy.com / web · jancy.com LIT113 ©2/03...
