AC-225-X
Advanced Scalable Networked Access Controller
Hardware Installation and User Guide
May 2010
www.rosslaresecurity.com
0706-0960202+02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AC-225-X and is the answer not in the manual?

Questions and answers

Summary of Contents for Rosslare AC-225-X

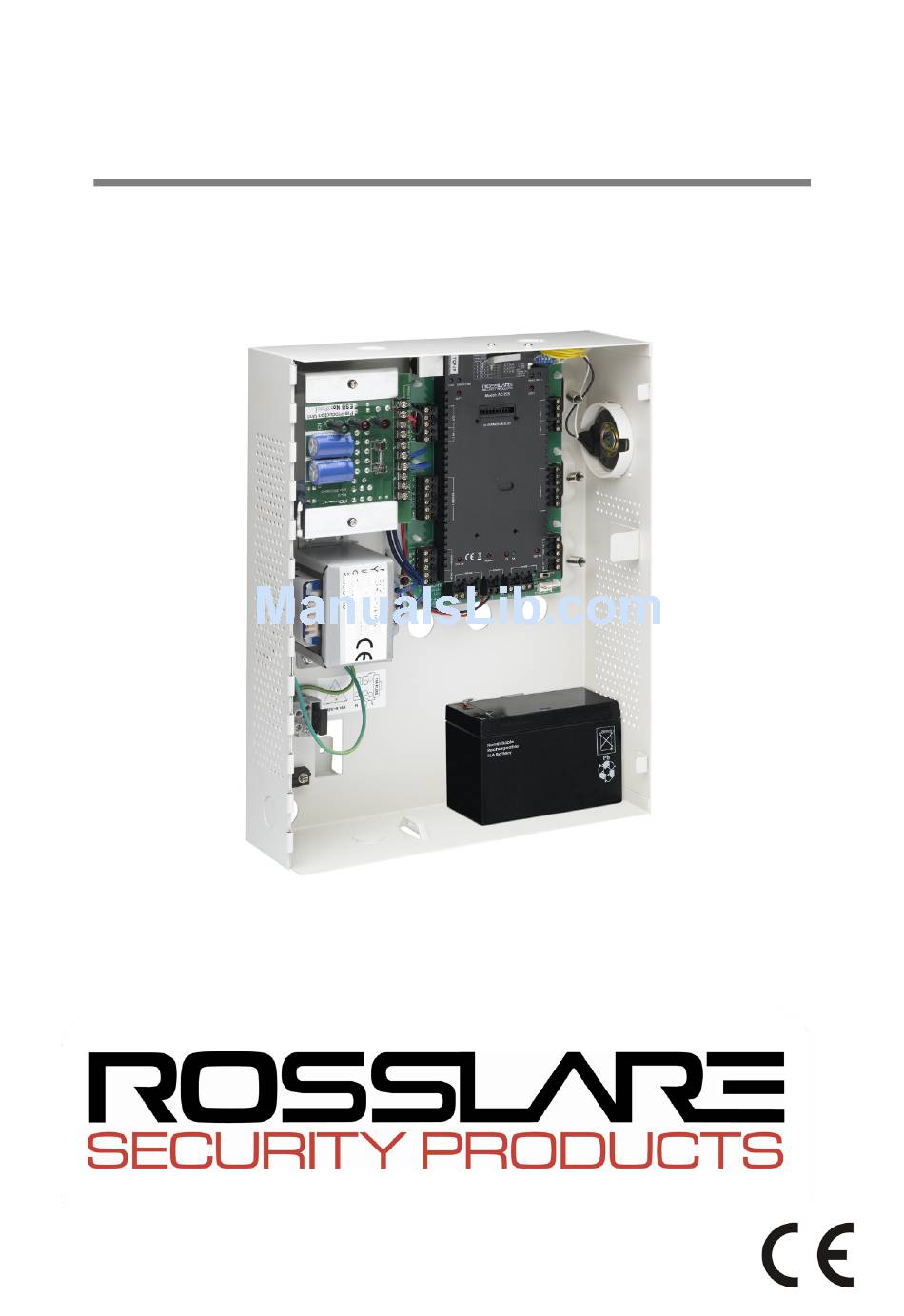

  • Page 1 AC-225-X Advanced Scalable Networked Access Controller Hardware Installation and User Guide May 2010 www.rosslaresecurity.com 0706-0960202+02...

  • Page 3: Table Of Contents

    Table of Contents Advanced Scalable Networked Access Controller2 AC-225-X 1. Introduction ..............3 1.1 Features ................5 1.2 AxTrax AS-525 ..............5 1.3 Compatible Readers ............6 2. Technical Specifications ..........7 3. AC-225 Panel Set-Up ............. 10 3.1 Inputs Wiring – Non-Supervised Inputs ......11 3.2 Inputs Wiring –...

  • Page 4: Introduction

    When used in combination with Rosslare's AxTrax software system, the AC- 225 gives you full control over access to your premises. The system can control both single and double door entrances and up to four doors, with MD-D02 two Door expansion module.
  • Page 5 Introduction Figure 1: AC-225 panel AC-225 Hardware Installation and User Guide Page 4...

  • Page 6: Features

    Introduction 1.1 Features The AC-225 is a powerful and adaptable access control solution with a range of powerful features. • Controls 1-2 doors (DIP switch controlled) or 2-4 doors when optional MD-D02 installed • Two IN/OUT readers, with tamper switch and LED control •...

  • Page 7: Compatible Readers

    Fingerprint Recognition AxTrax can share user details with Rosslare's BioTrax software system. The BioTrax system can then download all selected users information to an AYC-W6500 fingerprint reader.

  • Page 8: Technical Specifications

    Technical Specifications Technical Specifications Electrical Characteristics Operating Voltage 13.8V DC 1.5A from PS-33 Maximum Input Current AC-225: Standby: 80mA Maximum: 325mA AC-225IP: Standby: 120mA Maximum: 370mA General Inputs 4 supervised high impedance inputs. 8 or 12 supervised inputs when using MD-D02 or MD-IO84 expansion boards Maximum voltage: 5V DC Relay Outputs...
  • Page 9 Technical Specifications Environmental Characteristics Operating Temperature 32°F - 120°F (0°C - 49°C) Range Operating Humidity 0 - 85% (Non-condensing) Dimensions Height x Width x Depth 10.4 x 13.2 x 3.4 inch 264 x 334 x 84.5 mm Weight AC-225 8.38 lbs. (3.80 Kg) AC-225IP 8.40 lbs.
  • Page 10 Technical Specifications PS-33 Power LEDs Power In (AC) Main power Green LED1 Power Out (DC) Low voltage Red LED2 Low Battery Backup battery low voltage Red LED3 Note: For models: AC-225U and AC-225IPU These models come without a transformer. When using a third-party transformer, please make sure that it is rated for at least 50W (16.5 VAC @ 3A).

  • Page 11: Ac-225 Panel Set-Up

    AC-225 Panel Set-Up AC-225 Panel Set-Up Every AC-225 panel controls one or two doors (up to 4 doors with MD- D02). The panels connect together in a network and are controlled by a central server computer, running the AS-525 AxTrax software system. The following diagram shows an example set-up for a network of AC-225 access control panels.

  • Page 12: Inputs Wiring - Non-Supervised Inputs

    AC-225 Panel Set-Up 3.1 Inputs Wiring – Non-Supervised Inputs Figure 3: Inputs Wiring – Non-supervised Inputs 3.2 Inputs Wiring – Supervised Inputs When wiring the AC-225 for supervised inputs, resistors should be placed on the input switch and not on the terminal block. For further details refer to Input and Output Connections on page 17.
  • Page 13 AC-225 Panel Set-Up Figure 4: Door Lock – Failed Close AC-225 Hardware Installation and User Guide Page 12...

  • Page 14: Power Supply

    AC-225 Panel Set-Up Figure 5: Door Lock – Failed Open 3.4 Power Supply The following diagram illustrates wiring between the PS-33 power supply and the AC-225. It is recommended to add a 12VDC lead acid backup battery if the main power supply fails. If the main output is 12VDC, wire it to the PS-33, whose load ratings are 1.5A / 0.9A / 0.3A.
  • Page 15 AC-225 Panel Set-Up Figure 6: Wiring Between PS-33 and AC-225 AC-225 Hardware Installation and User Guide Page 14...

  • Page 16: Reader

    AC-225 Panel Set-Up 3.5 Reader Proximity & keypad readers are supplied with a limited cable. The color of the cable cover represents the cable’s function. Note: When extending the cable distance, be careful with the color of the cable cover. Refer to the reader specifications for the maximum cable length (typically 150m with an 18 AWG cable).
  • Page 17 AC-225 Panel Set-Up Figure 8: Connector location for MD-IO84 or MD-D02 AC-225 Hardware Installation and User Guide Page 16...

  • Page 18: Input And Output Connections

    Input and Output Connections Input and Output Connections This chapter describes the AC-225 access control panel's input and output connections. 4.1 Input Types There are four input types – Normally Open, Normally Closed, Normally Open Supervised 1 or 2 resistors, and Normally Closed Supervised 1 or 2 resistors.
  • Page 19 Input and Output Connections Normally Open Input Connection: Normally Open Input has 2 states: • Switch Open - Normal State: Loop resistance = Infinite (open circuit). • Switch Closed – Abnormal State: Loop resistance = 0 (short circuit). Figure 9: Normally Open Input Connection Normally Closed Input Connection: Normally Closed Input has two states: •...
  • Page 20 Input and Output Connections Normally Open Supervised Single Resistor Input Connection Connect an 8.2K resistor in parallel to the input switch contacts. Normally Open Supervised Input has 3 states: • Switch Open - Normal State: Loop resistance = 8.2K. • Switch Closed – Abnormal State: Loop resistance = 0 (short circuit).
  • Page 21 Input and Output Connections 3) Open circuit (Infinite loop resistance) or short circuit (0 resistance) across input terminals - Trouble State. Figure 12: Normally Open Supervised Input (Double Resistor) Normally Closed Supervised Single Resistor Input Connection Connect a 2.2K resistor in series to the input switch contacts. Normally Closed Supervised Input has 3 states: •...
  • Page 22 Input and Output Connections Figure 13: Normally Closed Supervised Input (Single Resistor) Normally Closed Supervised Double Resistor Input Connection Connect a 2.2K resistor in series to the input switch contacts. Connect an 8.2K resistor parallel to the input switch contacts. Normally Closed Supervised Input has 3 states: •...

  • Page 23: Inputs Description

    Input and Output Connections Figure 14: Normally Closed Supervised Input (Double Resistor) 4.2 Inputs Description Request to Exit Button (REX) Input Use the REX Input to open a door directly. Typically, the REX input is connected to a Normally Open push button that is located inside the premises.
  • Page 24 Input and Output Connections Door Monitor Input The Door Monitor Input typically connects to a Normally Closed door sensing micro-switch for door status monitoring. Using Door Monitor enables many advanced options such as door forced alarm, door held open warnings, interlocking doors and more. The following should be defined: Single door controller: Door 1 - IN1A...

  • Page 25: Outputs

    Input and Output Connections 4.3 Outputs Rosslare Security recommends the use of suppression diodes for all outputs that activate an inductive load. Door Lock There are two types of door locking devices: • Fail open (fail secure) • Fail close (fail safe)
  • Page 26 Input and Output Connections When using the MD-D02, the following should be defined: Double door controller: Reader1 – Door 1 IN/OUT (each door has two Reader2 – Door 1 OUT/IN readers) Reader3 – Door 2 IN/OUT Reader4 – Door 2 OUT/IN Four door controller: Reader1 –...

  • Page 27: Ac-225 Hardware Settings

    AC-225 Hardware Settings AC-225 Hardware Settings Each AC-225 panel controls an entrance. The behavior of the panel is controlled by Dipswitch settings. Select the appropriate Dipswitch setting to operate the panel as either a single door, a double door, or four doors. Refer to Access Control Panel Type, on page 29.
  • Page 28 AC-225 Hardware Settings Double door with 4 readers (MD-D02): Outputs Door1 Lock output (OUT 1) General purpose output (OUT 1A) General purpose output (OUT 2) General purpose output (OUT 2A) Door2 Lock output (OUT 5) General purpose output (OUT 6) General purpose output (OUT 7) General purpose output...

  • Page 29: Dip Switch Configuration

    AC-225 Hardware Settings Readers Reader1 (Door1 IN/OUT) Reader2 (Door2 IN/OUT) Reader3 (Door3 IN/OUT) Reader4 (Door4 IN/OUT) 5.1 DIP Switch Configuration The access control panel DIP switch controls a number of operating parameters including the device address and baud rates for serial communication.

  • Page 30: Access Control Panel Baud Rate

    AC-225 Hardware Settings 5.2 Access Control Panel Baud Rate The Access control panel serial port baud rate, set in dip switches one and two, defines the communication speed for connecting with a PC in a network connection. The default baud rate is set to 9600 bits per second. 1 2 3 4 5 6 7 8 Figure 16: DIP Switch with Baud Rate Setting The following lists switch 1 and 2 status and baud rate:...

  • Page 31: Access Control Panel Addressing

    AC-225 Hardware Settings • Off - defines using two readers for each door. Panel will control one door or two doors when MD-D02 is installed. • On - using one reader for each door. Panel will control two doors or four doors when MD-D02 installed.
  • Page 32 AC-225 Hardware Settings Page 31 AC-225 Hardware Installation and User Guide...

  • Page 33: Communications

    Communications Communications Communication lines are used to upload and download information between the access control panel and the AxTrax AS-525 software. When the access control panel and the computer are communicating, the system’s two LEDs flash accordingly. • The RX LED flashes when the controller receives data •...
  • Page 34 Communications RS-232 Connection to the Computer Set the J1 switch to the RS-232 position. Access control DB9 Connector DB25 Connector panel Pin 5 Pin 7 Pin 2 Pin 3 Pin 3 Pin 2 Note: The RS-232 connection can only connect a single access control panel to the computer.

  • Page 35: Tcp/Ip Network Connection

    RS-485, up to 32 panels can be connected on each TCP/IP network, This means that one AC-225IP panel can support up to 31 AC-225 panels. To connect to a TCP/IP network using other AC-225 models, add Rosslare's MD-N32 TCP/IP to RS-232 gateway converter. Note: For more information on operating an MD-N32, refer to the MD-N32 User Manual.
  • Page 36 Rosslare's MD-14 RS-485 converter can be used. To connect an MD-N32 to more than one panel (up to 32 panels), Rosslare's MD-14 RS-485 converter must be used. Connect the MD-14 between the RS-485 access control panel network and the MD-N32 converter.

  • Page 37: Modem Network Connection

    Communications Access Access Control Control AC-225IP Panel #1 Panel #2 LAN/WAN RS-485 RS-485 Figure 22: Connecting Multiple Access control panels with AC-225IP Note: For more information on operating an MD-N32, refer to the MD-N32 User Manual. 6.3 Modem Network Connection Access control panels can be controlled from the computer's modem.

  • Page 38: Hardware Requirements

    • 2 Standard Telephone cables – RJ11 plugs in both sides • Crossed 9 pin RS-232 cable (female jack on both sides) • Rosslare MD-14 (RS-232 to RS-485 converter) • 2 Rosslare MD-N33 (Modem to serial gateway) • Rosslare AC-225 panel Prerequisites...

  • Page 39: Appendix A. Limited Warranty

    (24 Months). Warranty Remedy Coverage In the event of a breach of warranty, ROSSLARE will credit Customer with the price of the Product paid by Customer, provided that the warranty claim is delivered to ROSSLARE by the Customer during the warranty period in accordance with the terms of this warranty.
  • Page 40 This warranty shall not extend to any ancillary equipment not furnished by ROSSLARE, which is attached to or used in conjunction with a Product, nor to any Product that is used with any ancillary equipment, which is not furnished by ROSSLARE.

  • Page 41: Appendix B. Technical Support

    Technical Support Appendix B. Technical Support Asia Pacific, Middle East, Africa Rosslare Security Products Headquarters 905-912 Wing Fat Industrial Bldg, 12 Wang Tai Road, Kowloon Bay Hong Kong Tel: +852 2795-5630 Fax: +852 2795-1508 E-mail: support.apac@rosslaresecurity.com United States and Canada...
