VideoLabs DocCam Pro AV Installation & User Manual

Integrated document camera
Hide thumbs

Advertisement

Quick Links

Download this manual
™

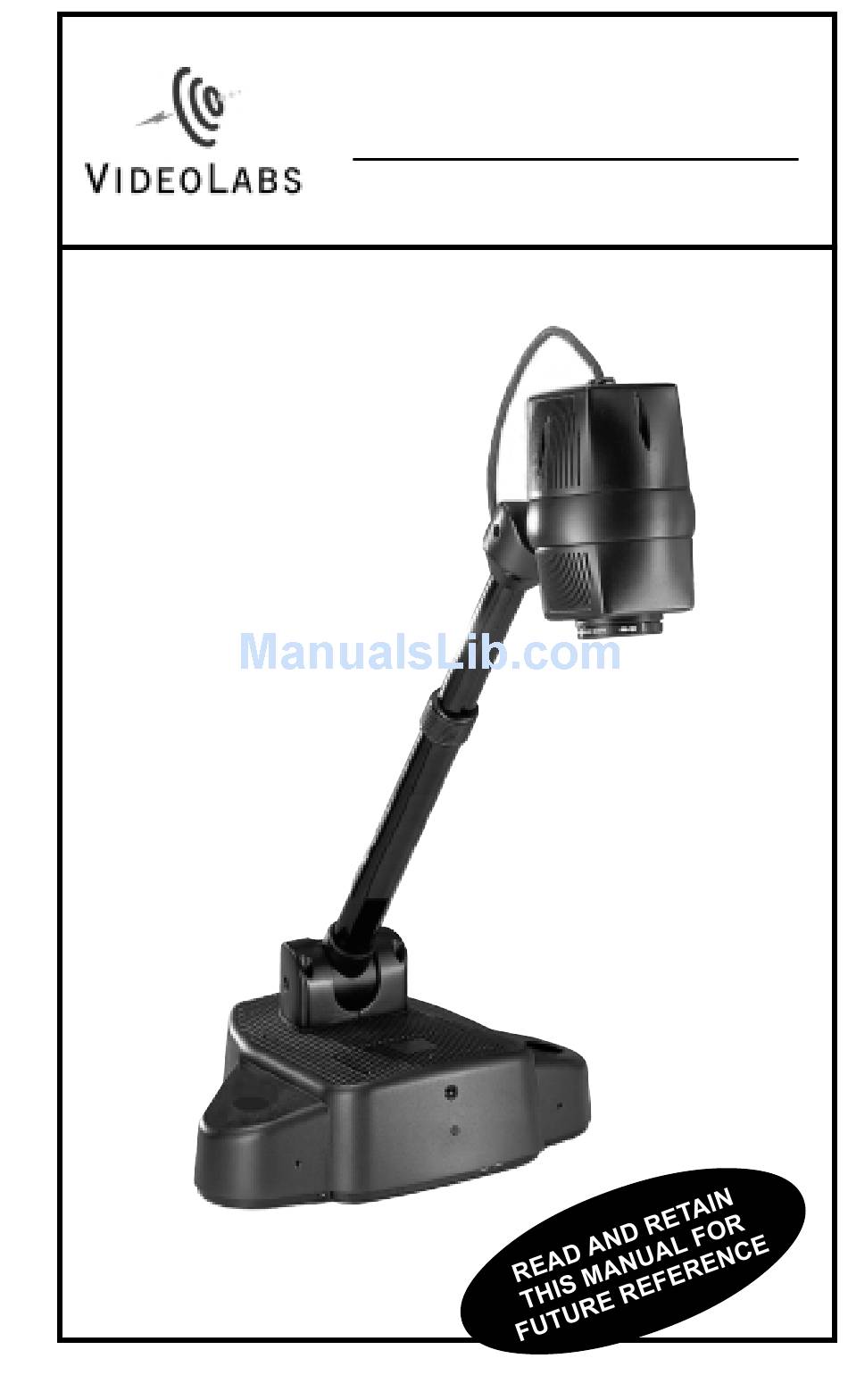

DocCam Pro
AV
Integrated Document Camera
®
Installation & User Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the DocCam Pro AV and is the answer not in the manual?

Questions and answers

Related Manuals for VideoLabs DocCam Pro AV

Summary of Contents for VideoLabs DocCam Pro AV

  • Page 1 ™ DocCam Pro Integrated Document Camera ® Installation & User Guide...
  • Page 2 DocCam Pro AV Keypad Controls ZOOM POWER Zooms Turns video camera image in on/off • • • camera VIDEO PASS-THRU POWER ZOOM • • lights ZOOM VIDEO PASS-THRU Zooms video Switches from image out camera output to video pass-thru LIGHTS...
  • Page 3 2.) Set the unit on a flat, solid surface. Unpack and identify the other parts: • Power supply • Connecting cables for the DocCam Pro AV – S-Video cable – Video and stereo audio cable (3- plug to 3-plug; yellow is video, red and white are audio cables) ™...
  • Page 4 AUDIO VIDEO POSITIVE POWER IN Figure 3 – The DocCam Pro AV’s backplate. 1.) First connect the power supply to the jack on the base of the camera. Then connect the wall plug cable to the power supply brick. Plug into a wall outlet.
  • Page 5 VCRs. You can use the DocCam Pro AV as a docu- ment camera or as an auxiliary camera. Set up your camera according to your particular...
  • Page 6 ZOOM OUT Figure 6 – DocCam Pro AV’s keypad. Zoom The DocCam Pro AV is capable of zooming to a 16X magnification factor – allowing you to quickly and easily focus in on an object or document with the document close-up lens provided.

  • Page 7: Operating And Storage Conditions

    Operating and Storage Conditions Do not store or operate the DocCam Pro AV under the following conditions: • A temperature above 104˚F (40˚C) or below 32˚F (0˚C) •...

  • Page 8: Troubleshooting

    Troubleshooting Problem Suggestion Green LED does not indicate Make sure the power adapter is camera power is turned on. plugged into a wall outlet and the “power” jack on the camera. Green LED is on, but no picture Check screen operation. appears on the screen.
  • Page 9 DocCam Pro AV Specifications Image Pick-up Device 1/4” CCD Total Pixels 410,000 Number of Effective Pixels 768H x 494V Horizontal Resolution 450 TV lines Sensitivity 3 lux Lens: (Horizontal angle) F1.4(w)-F2.8(t) [47˚(w)-3˚(t)] Mechanical Zoom F-4 64mm; 16X Video Output S-Video/Composite/L&R Audio...

  • Page 10: Warranty Information

    (1) year from the date of purchase. If VideoLabs receives notice of such defects during the warranty period, VideoLabs will either, at its option, repair or replace products which prove to be defec- tive.

  • Page 11: Declaration Of Conformity

    5960 Golden Hills Drive Minneapolis, MN 55416-1040 763-542-0061 Declares that Product – Product Name: Image Capture Devices – Model Number: DocCam Pro AV Conform to the following product specifications – Safety International: IEC 950:1991 – Europe: EN 60950: 1992 – Australian/New Zealand Standard: AS/NZS 3260: 1993 This product complies with the requirements of the Low Voltage Directive 72/23/EEC.
  • Page 12 ® info@videolabs.com ©2001 E.mergent, Inc. Reproduction in whole or part without written permission is prohibited. VideoLabs is a registered trademark of E.mergent, Inc. DocCam Pro is a trademark of E.mergent, Inc. Specifications subject to change without notice. Form Number VL1168/5-01...
