Summary of Contents for VideoLabs DocCam Pro VC

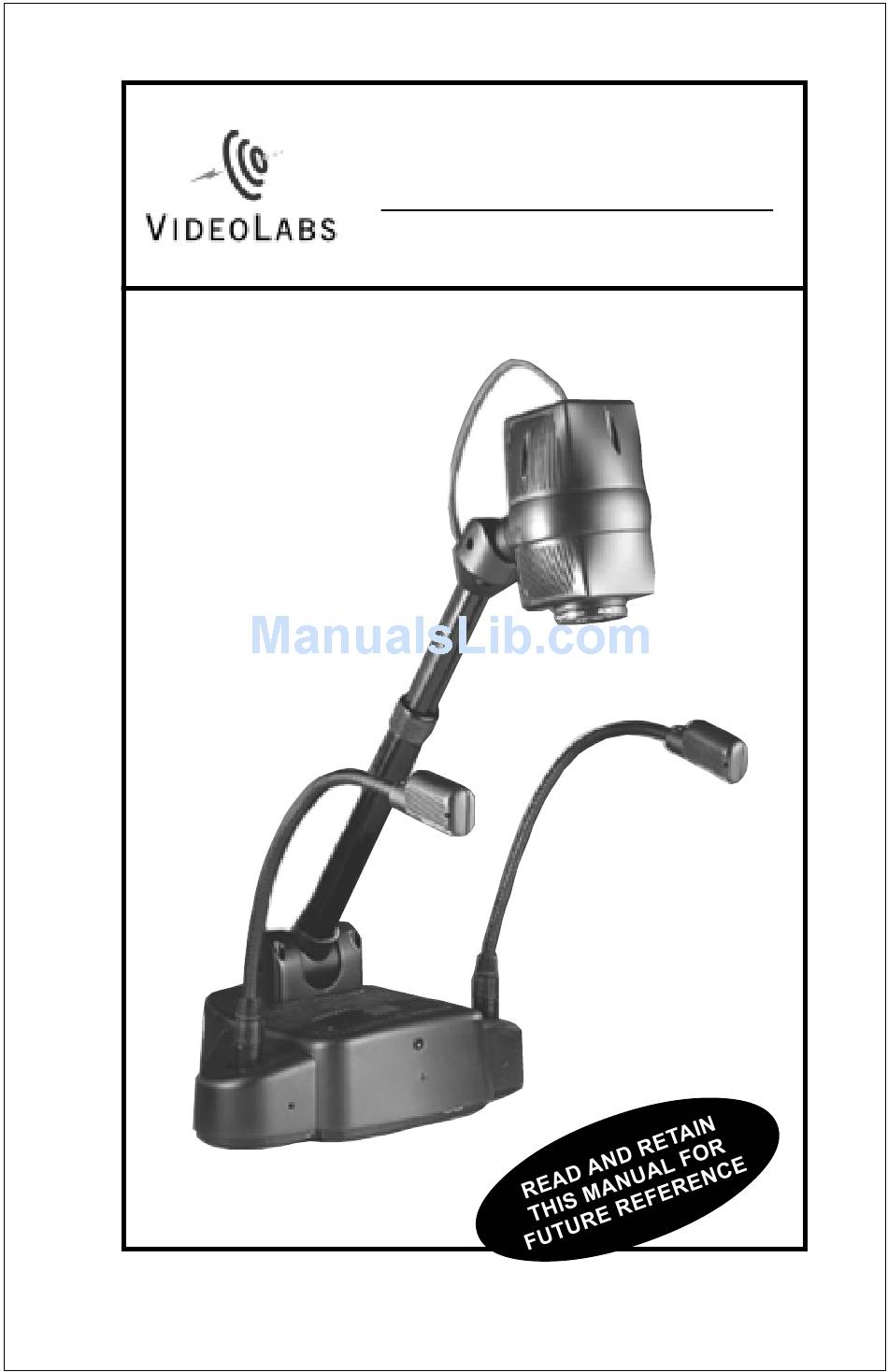

- Page 1 ™ DocCam Pro Integrated Document Camera ® Installation & User Guide...
- Page 2 DocCam Pro VC Keypad Controls MENU ZOOM POWER Activates on-screen Zooms Turns display (OSD) menu video camera for scan converter image in on/off • • • menu camera • • POWER ZOOM • video/VGA • • • lights enter ENTER...
- Page 3 2.) Set the unit on a flat, solid surface. Unpack and identify the other parts: • Power supply • Connecting cables for the DocCam Pro VC – S-VHS video cable – Video and stereo audio cable (3- plug to 3-plug; yellow is video, red and white are audio cables) –...
- Page 4 VIDEO VIDEO POSITIVE POWER IN Figure 3 – The DocCam Pro VC’S backplate. 1.) First connect the power supply to the jack on the base of the camera. Then connect the wall plug cable to the power supply brick. Plug into a wall outlet.
- Page 5 Troubleshooting section of this manual. Operating Your DocCam Pro VC Setting Up For Operation The DocCam Pro VC is designed to be used with all major videoconferencing systems, in- ® ® ®...
- Page 6 ZOOM OUT Figure 6 – DocCam Pro VC’s keypad. Zoom The DocCam Pro VC is capable of zooming to a 16X magnification factor – allowing you to quickly and easily focus in on an object or document with the document close-up lens provided.
-
Page 7: Scan Converter
TV monitor. The scan converter projector, for instance. setting and adjustments buttons are on the left half of the DocCam Pro VC keypad. To use, follow directions for the scan converter below. Scan Converter The built-in scan converter converts the VGA output signal from a computer to a normal (S-VHS or Composite) video signal. - Page 8 When viewing a picture from the computer, press the “Menu” button on the keypad to dis- play an on-screen display menu. The eight adjustable functions below are displayed on the screen from left to right. Using the right > and left <...
- Page 9 Panning • Press “Menu” to display the on-screen dis- play controls • Use the arrow keys to select the panning icon • Press “Enter” • Press “Enter” to toggle between the panning modes – vertical and horizontal Overscan/Underscan The VGA image you see on the TV monitor is in overscan, which means that the image is outside the visible area on the screen.
- Page 10 Brightness • Press “Menu” to display the on-screen dis- play controls • Use the arrow keys to select the brightness icon • Press “Enter” • Press “Enter” to adjust the brightness level (four levels are available) Color Bar Displaying the color bar is helpful to verify the accuracy of the TV color settings, or to customize the display for any special applications.
-
Page 11: Operating And Storage Conditions
Operating and Storage Conditions Do not store or operate the DocCam Pro VC under the following conditions: • A temperature above 104˚F (40˚C) or below 32˚F (0˚C) •... -
Page 12: Troubleshooting
Troubleshooting Problem Suggestion Green LED does not indicate Make sure the power adapter is camera power is turned on. plugged into a wall outlet and the “power” jack on the camera. Green LED is on, but no picture Check screen operation. appears on the screen. - Page 13 Troubleshooting continued Problem Suggestion No picture is seen from the VGA Check monitor, LCD projector or input. other video device to ensure it is operating correctly. The edges on the image from the Check that video/VGA button is computer are cut off. pushed into correct mode.
-
Page 14: Warranty Information
(1) year from the date of purchase. If VideoLabs receives notice of such defects during the warranty period, VideoLabs will either, at its option, repair or replace products which prove to be defec- tive. -
Page 15: Declaration Of Conformity
5960 Golden Hills Drive Minneapolis, MN 55416-1040 763-542-0061 Declares that Product – Product Name: Image Capture Devices – Model Number: DocCam Pro VC Conform to the following product specifications – Safety International: IEC 950:1991 – Europe: EN 60950: 1992 – Australian/New Zealand Standard: AS/NZS 3260: 1993 This product complies with the requirements of the Low Voltage Directive 72/23/EEC. - Page 16 ® info@videolabs.com ©2001 E.mergent, Inc. Reproduction in whole or part without written permission is prohibited. VideoLabs is a registered trademark of E.mergent, Inc. DocCam Pro is a trademark of E.mergent, Inc. Specifications subject to change without notice. Form Number VL1164/5-01...
