HUDSON STEEL ES-701 Instructions For Use Manual

Download this manual

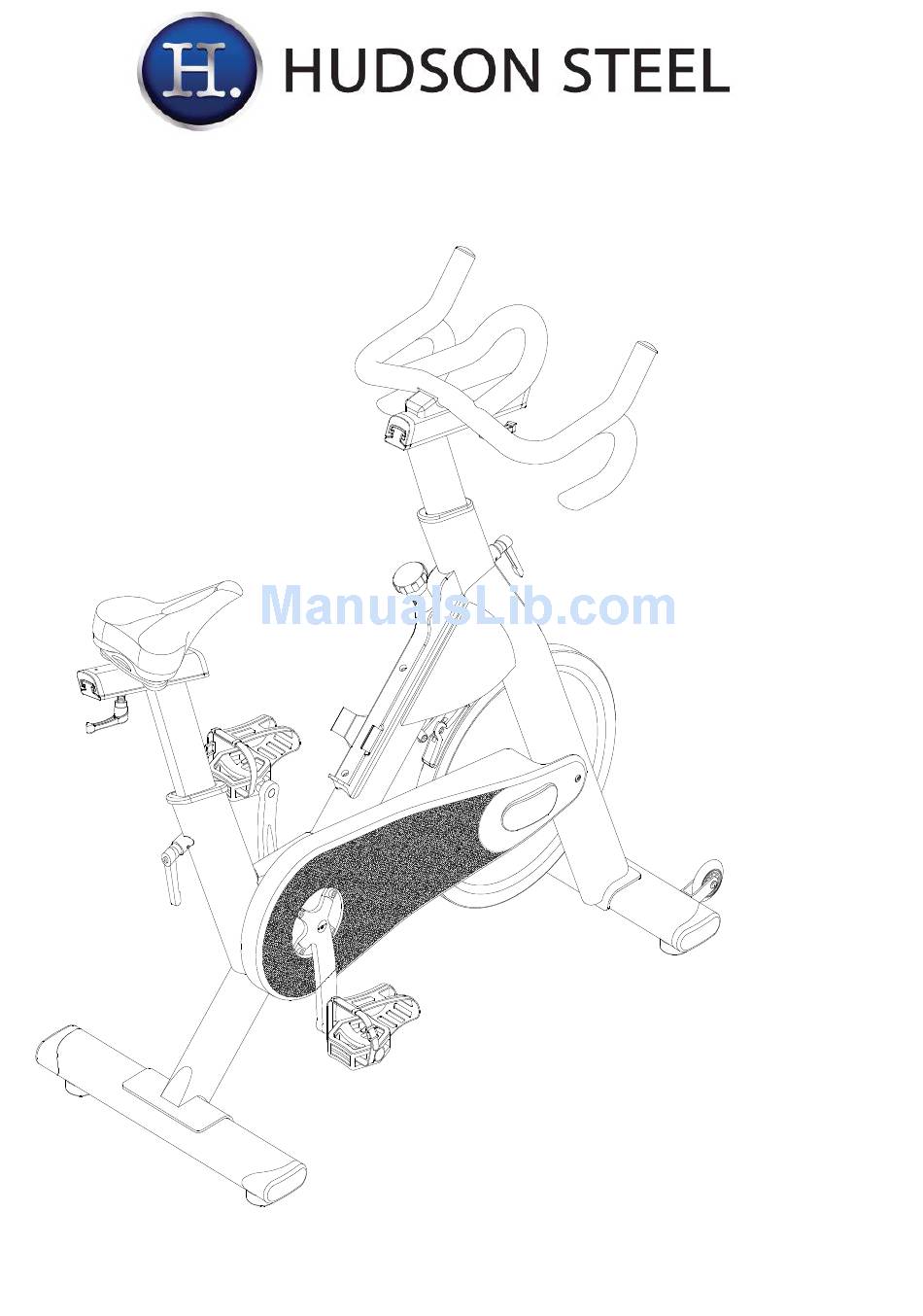

BIKE ES-701

MANUAL

Need help?

Do you have a question about the ES-701 and is the answer not in the manual?

Page 1 BIKE ES-701 MANUAL...
Page 2 ES-701 INSTRUCTIONS FOR USE 1) The model ES-701 is designed to be used as a group cycle in fitness studios and health clubs. It has a fixed wheel driven flywheel and should only be used under professional supervision. 2) Installation – it is important that the ES-701 is correctly assembled and we recommend that installation and assembly be carried out by suitably qualified personnel.
Page 3 ES-701 Assembly Diagrams...
Page 4 ES-701 ASSEMBLY Step 1 (foot) Attach the front foot (7) to the frame using the bolt (3A) and washer (6). Step 2 (foot) Attach the rear foot (2) to the frame using the bolt (3A) and washer (6). STEP 2 Step 3.
Page 5 Step 4. 5. (handlebar & stem) Open screw(14) from handlebar top slider then assemble slider's locking piece (78) onto bottom slider , attach handlebar (11) onto handle bar stem (20)then sliding forward until coming to a stop , assemble lock lever (12) then screw bolt (14) into top slider and tighten it , Insert slider's end cap (74) into top slider .
Page 6 ES-701 Explode Diagram...
Page 7 ES-701 Parts List parts no. description q'ty parts no. description q'ty 1 1 1 1 1 1 1 1 1 Main Frame 41 Brake pad 1 1 1 1 1 1 1 1 2 Rear Ground Tube 42 Brake pad fixed screw...
