Summary of Contents for HUDSON STEEL P-10

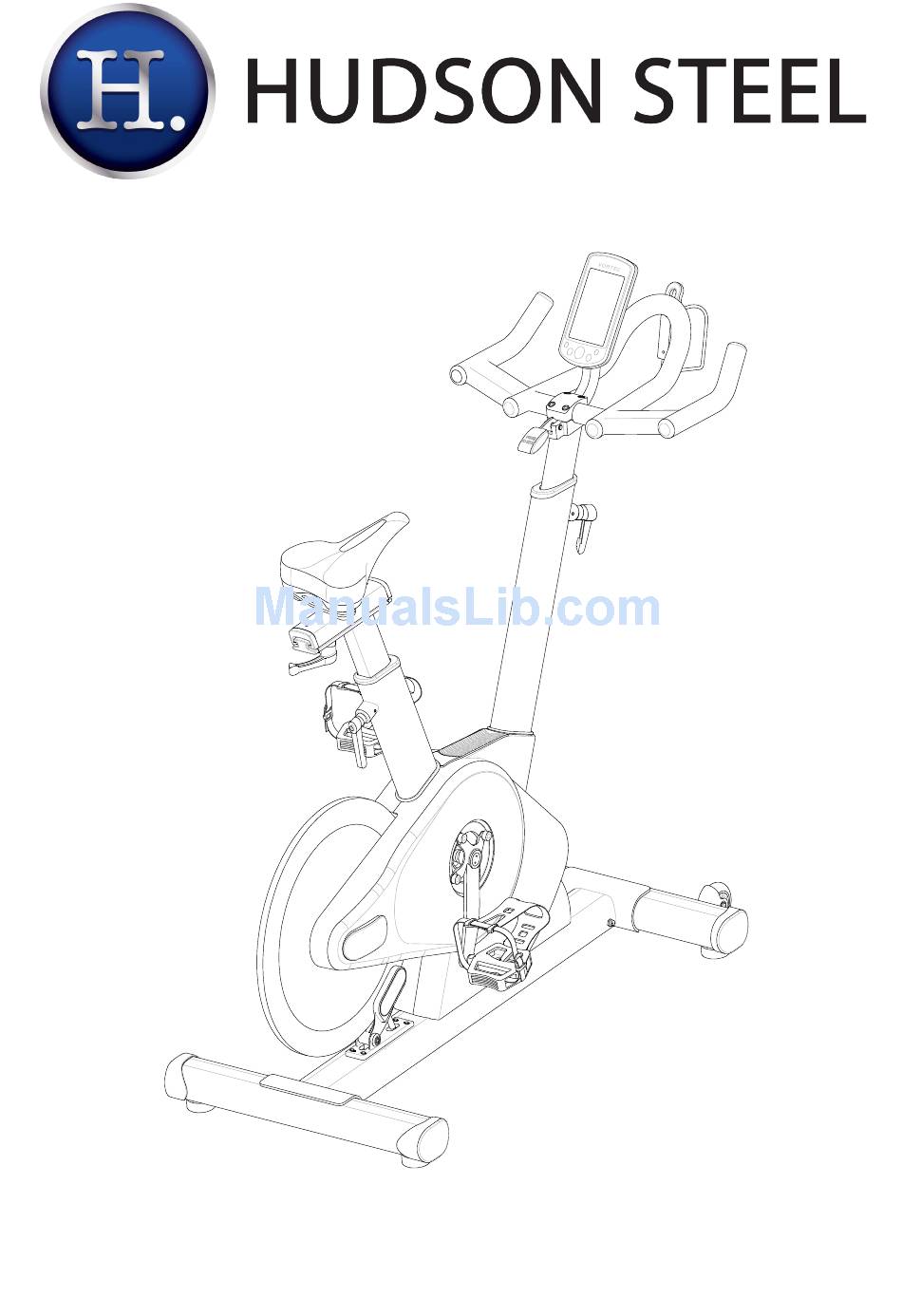

  • Page 1 Bike Manual...

  • Page 2: Instructions For Use

    For emergency stop then press down the brake lever for stopping the wheel. 6) The P-10 bike should operate on a level surface with no lateral movement. There are heightadjuster pads located on either side underneath of front and rear.

  • Page 3: Assembly Diagrams

    ASSEMBLY DIAGRAMS...
  • Page 4 ASSEMBLY Step 1 (foot) Attach the front foot (7) to the frame using the bolt (3) and washer (4). Step 2 (foot) P10-WEBRACER Attach the rear foot (2) to the frame using the bolt (3) and washer (4). STEP 1 STEP2 Step 3.
  • Page 5 Step 4. &5 (handlebar & stem) and Consol assemble Adjust handlebar stem (16) to a proper position then using lock lever (21) to fixed , assemble cable (117) through and out from top cover/consol bracket (10). put handlebar onto the handlebar bottom holder that on the top of stem then clamp with top cover/consol bracket (10) by 4 fixing bolt(12) ,adjust handlebar until at right angle then tighten 4 fixing bolt (12).
  • Page 6 Step 8. (bottle cage) Attach bottle cage(14) on handlebar bottle hold bracket then use 2 screw (13) to fix bottle cage on the bracket by a 4mm allen key . STEP 8...

  • Page 7: Part List

    P-10 PART LIST Item/Description Unit Q'ty Remark Frame Rear Ground Tube 60*86*3T*545L Bolt M10¡P1.5¡30L Washerψ22¡ψ10¡2t Adjustable Foot Pad M10¡P1.5 Foot Tube's End Cap 60¡86 Front Foot Tube 60¡86¡3t¡545L Screw M5¡P0.8¡10L Stainless Vortec #8109 Consol 10 HB top fixed cover with consol's bracket 11 Handlebar Set 12 Screw M6¡P1.0¡20L...
  • Page 8 Item/Description Unit Q'ty Remark 41 Washerψ27¡ψ13¡3t 42 Washerψ10¡ψ6¡1t 43 Bolt M6¡P1.0¡50L 44 Cover for Magnet's Bass:31¡88.7¡2t 45 Magnetψ25¡10t ,Identify：+ - pole . 46 Plastic Bass for Magnet Set 47 Magnet's Set Inner Sleeve . Stainless 48 Screw M6¡P1.0¡35L Stainless 49 Nut w/Nylon insert M6¡P1.0 Stainless 50 Magnet's set Fix plate Nylon...
  • Page 9 Item/Description Unit Q'ty Remark 81 Battery cover 82 Screw M6¡P1.0¡10L Stainless 83 Screw M5¡P0.8¡15L Stainless 84 Screw Fixing Plate 77.5¡34¡3t 85 Screw M8¡P1.25¡20L 86 Adjustment's Bolt M6¡9.5¡31.7L 87 Washerψ13¡ψ6¡1.5t 88 Nut w/Nylon Insert M6¡P1.0 89 Washerψ16¡ψ8.5¡1.5t Nut W/Nylon Insert M8¡P1.25 91 Cantilever Plate 92.5¡110¡3t 92 Washerψ21¡ψ8.5¡2t 93 Screw M8¡P1.25¡60L...
  • Page 10 Diagrams...
  • Page 11 File Name 8108 manuel in english File number Date development of 2010/8/24 Page Version sectoral developed Approved Audit Prepared...
  • Page 12 File Name 8108 manuel in english File number Date development of 2010/8/24 Page Version sectoral developed 二、 functional specification : 1. manual 2. 12 preset profile 3. HRC functions 4. 4 user features 5. Wireless heart function Function display range Input key set the range SPEED...
  • Page 13 File Name 8108 manuel in english File number Date development of 2010/8/24 Page Version developed sectoral 三、 Buttons definition: 1. RECOVERY： Press the KEY to test the heart rate detectors. When the movement to a stage at the end of RECOVERY KEY, in the TIME windo w SHOW 00:60 (60 seconds) to 00:00 after the start COUNT DOWN SHOW F1 ~ F6 (previous 10 seconds to detect.) 2.START/STOP：...
  • Page 14 File Name 8108 manuel in english File number Date development of 2010/8/24 Page Version developed sectoral 3. Press MODE button to enter the MODE select the M (Manual) 　 P (Program) 　 H (HRC) 　 M ... cycle. 4. When you select the desired mode and press ENTER KEY to enter setup. 5.
  • Page 15 File Name 8108 manuel in english File number Date development of 2010/8/24 Page Version sectoral developed c. not set time from 00:00 to 99:59 starting up the maximum number, every minute, do jump to the next s tage. d. Press ENTER to confirm or enter the campaign mode START e.
  • Page 16 File Name 8108 manuel in english File number Date development of 2010/8/24 Page Version developed sectoral i. in the state of motion in the implementation of the program value of heart rate values compared with the target heart rate, target heart rate if the value of the actual heart rate value 『target heart rate values ≧ 15 hours』,The movement automatically reduced every 15 seconds Level 2 until Level 3.
