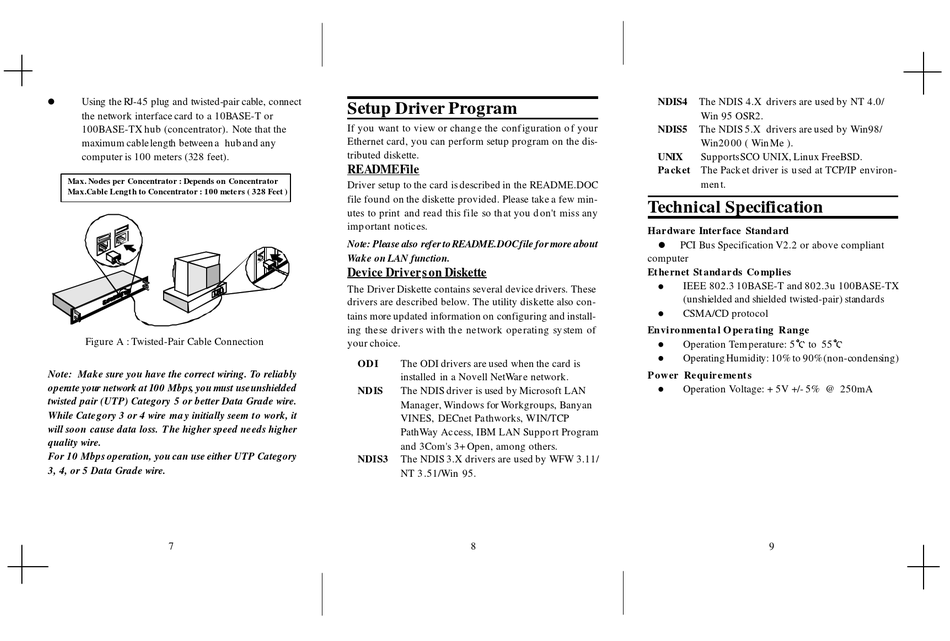

l
Using the RJ-45 plug and twisted-pair cable, connect
the network interface card to a 10BASE-T or
100BASE-TX hub (concentrator). Note that the
maximum cable length between a hub and any
computer is 100 meters (328 feet).
Max. Nodes per Concentrator : Depends on Concentrator
Max.Cable Lengt h to Concentrator : 100 mete rs ( 328 Feet )
Figure A : Twisted-Pair Cable Connection
Note: Make sure you have the correct wiring. To reliably
operate your network at 100 Mbps, you must use unshielded
twisted pair (UTP) Category 5 or better Data Grade wire.
While Cate gory 3 or 4 wire ma y initially seem to work, it
will soon cause data loss. T he higher speed ne eds higher
quality wire.
For 10 Mbps operation, you can use either UTP Category
3, 4, or 5 Data Grade wire.
7
Setup Driver Program
If you want to view or chang e the conf iguration o f your
Ethernet card, you can perform setup program on the dis-
tributed diskette.
README File
Driver setup to the card is described in the README.DOC
file found on the diskette provided. Please take a few min-
utes to print and rea d this file so th at you d on't miss any
imp ortant notic es.
Note: Please also refer to README.DOC file for more about
Wake on LAN function.
Device Drivers on Diskette
The Driver Diskette contains several device drivers. These
drivers are described below. The utility diskette also con-
tains more updated information on configuring and install-
ing the se dr iver s with th e ne twork ope rating sy stem of
your choice.
ODI The ODI drivers are used when the card is
installed in a Novell NetWar e network.
NDIS The NDIS driver is used by Microsoft LAN
Manager, Windows for Workgroups, Banyan
VINES, DECnet Pa thworks, WIN/TCP
PathWay Ac cess, IBM LAN Suppo rt Program
and 3Com's 3+ Open, among others.
NDIS3 The NDIS 3.X drivers are used by WFW 3.11/
NT 3 .51/Win 95.
8
NDIS4 The NDIS 4.X drivers are used by NT 4.0/
Win 95 OSR2.
NDIS5 The NDIS 5.X drivers are used by Win98/
Win20 00 ( Win Me ).
UNIX Supports SCO UNIX, Linux FreeBSD.
Pa cket The Pack et driver is u sed at TCP/IP environ-
men t.

Technical Specification

Har dware Inter face Standard
l
PCI Bus Specification V2.2 or above compliant
computer
Et he rnet St andar ds Co mplies
•
IEEE 802.3 10BASE-T and 802.3u 100BASE-TX
(unshielded and shielded twisted-pair) standards
•
CSMA/CD protocol
Enviro nmenta l O pe ra ting Range
•
Operation Tem perature: 5 to 55
•
Operating Humidity: 10% to 90% (non-condensing)
P ower Re quir e me nt s
•
Operation Voltage: + 5V +/- 5% @ 250mA
