Introduction
This User's Guide is used for the 100/10M PCI Adapter with
wake on L AN function which supports M/B with PCI 2.2
spec. It is a 32-bit adapter for using in personal computers
with a Peripheral Component Interconnect (PCI) computer
bus to eliminate I/O bottle necks and to reduce CPU loading
using bus master architecture. Wake on LAN (for PCI 2.2)
fun ction supp orts you to tur n on PCs from a sle ep state
over the network remotely during off-hours.
It is a Full- Duplex adap ter conne cted to an Ethernet net-
work with a single connection over unshielded twisted pair
(UT P) c able and can auto -sen se e ither 10 Mbps or 100
Mbps by full auto-detection.

Key Features

•
Single-c hip co ntr oller co mplies to PCI loca l b us
specification revision 2.2
•
Conform with IEEE 802.3 10BASE-T and
IEEE 802.3u 100BASE-TX standards
•
Support Wake on LAN function (Work with PCI 2.2
motherboard)
•
Support ACPI, PCI power management (Work with
PCI 2.2 motherboard)
•
High performance bus master architecture for low CPU
and bus utilization
•
Single RJ-45 connector for using at either 10 or 100Mbps
speed
•
On-board socket for an o ptional remote boot ROM
•
Provide diagnostic LED to monitor linking status
•
Provide high performance network drivers such as ODI,
NDIS, NDIS3, NDIS4, NDIS5, UNIX,etc.
1

Package Contents

•
One Ethernet PCI a dapter
•
Driv er Disk ette
•
One User's Guide

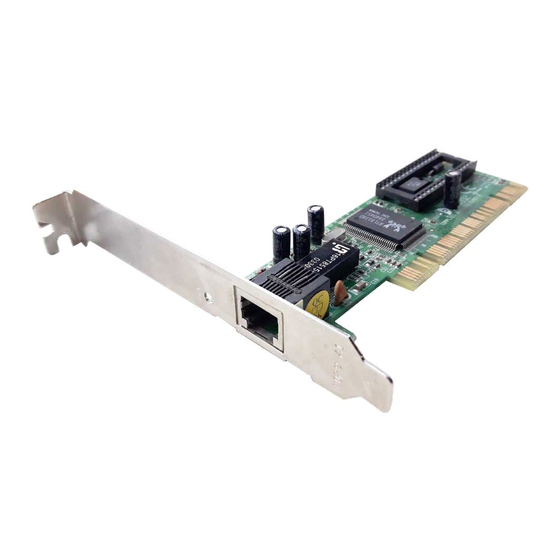

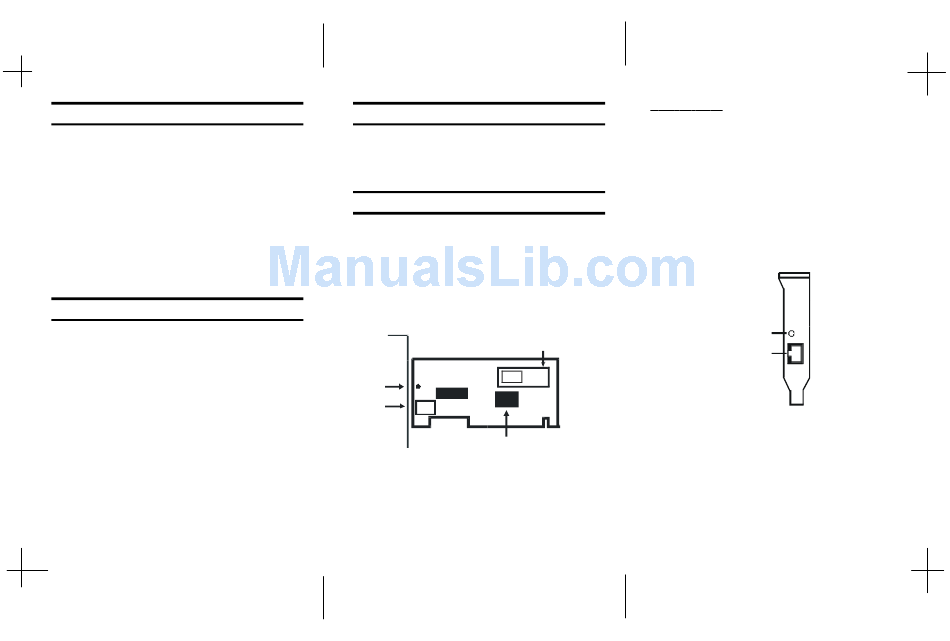

The Card Layout
Each card is clearly displayed below with major components.
100/10M PCI Adapter/Wake on LAN PCI Adapter
Support P CI 2. 2 For Wake o n LAN Funct ion
(Wit h Ca ble)
Boot Rom Socket (optional)
L E D
RJ-45
Controller Chipset
2
LED Indicator
The LED indicators o n the re ar brac ket of e ach card for
tracking network linking status When working on PCI 2.2
for Wa ke O n LAN
LINK/ACT The LED ON indicates green when the card
is connec ted to 100/10M network. The
LED indicators flash when there is trans
mission of data occurring at the card.
LINK/ACT
RJ-45 JACK
