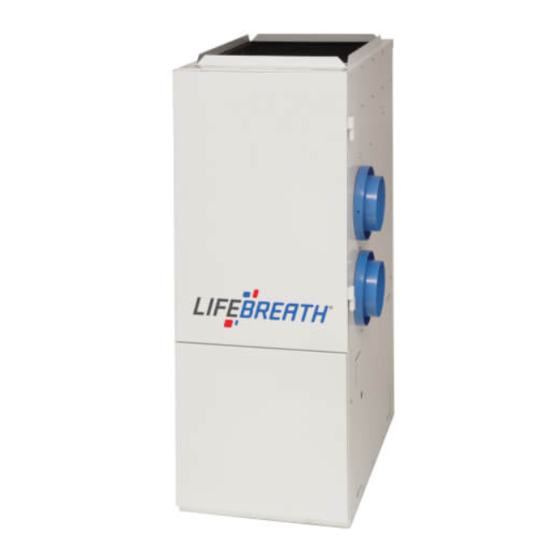

Hydronic models with built-in heat recovery ventilator
Hide thumbs Also See for CAF-U-S4A-24-P16:
Table of Contents

Advertisement

Quick Links

See also: Operation & Installation Manual

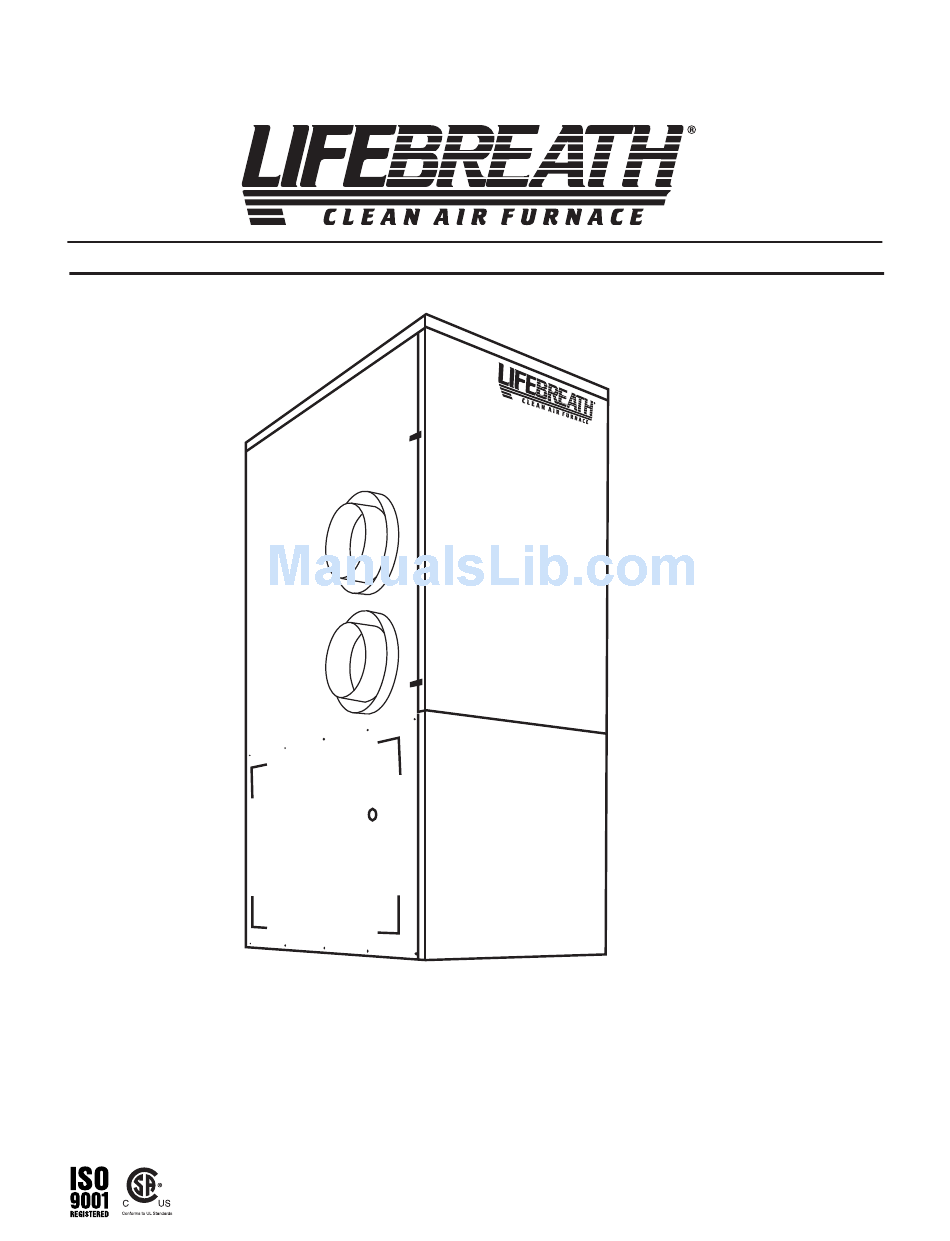

Operation, Sizing and Installation Manual
Models
CAF-U-S4A-24-P16 (E16)
CAF-D-S4A-24-P16 (E16)
CAF-H-S4A-24-P16 (E16)
CAF-U-L4A-36-P16 (E16)
CAF-D-L4A-36-P16 (E16)
CAF-H-L4A-36-P16 (E16)
CAF-U-L2A-48-P16 (E16)
CAF-U-00-24-P16 (E16)
CAF-U-00-36-P16 (E16)
CAF-U-00-48-P16 (E16)
Hydronic Models with Built-in
Heat Recovery Ventilator (HRV)
MANUFACTURED WITH
AIRCOM ELECTRONICS
69-CAF
0912

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CAF-U-S4A-24-P16 and is the answer not in the manual?

Questions and answers

Related Manuals for Lifebreath CAF-U-S4A-24-P16

Summary of Contents for Lifebreath CAF-U-S4A-24-P16

  • Page 1 Operation, Sizing and Installation Manual Models CAF-U-S4A-24-P16 (E16) CAF-D-S4A-24-P16 (E16) CAF-H-S4A-24-P16 (E16) CAF-U-L4A-36-P16 (E16) CAF-D-L4A-36-P16 (E16) CAF-H-L4A-36-P16 (E16) CAF-U-L2A-48-P16 (E16) CAF-U-00-24-P16 (E16) CAF-U-00-36-P16 (E16) CAF-U-00-48-P16 (E16) Hydronic Models with Built-in Heat Recovery Ventilator (HRV) MANUFACTURED WITH AIRCOM ELECTRONICS 69-CAF 0912...

  • Page 2: Table Of Contents

    Wiring Diagrams ............43-44 installation has been fully completed (including low voltage control wiring). Register for your warranty at www.lifebreath.com Airia will require the Model and Serial Number to register the unit. TO BE COMPLETED BY CONTRACTOR AFTER INSTALLATION Installing Contractor...

  • Page 3: Overview Of The Clean Air Furnace

    Once it is correctly installed, safety will never be an issue comfortable than air heated by a conventional furnace. One with your LIFEBREATH furnace. No flames, fumes or flue reason for this is that LIFEBREATH's hydronically heated gases to be concerned about. Your domestic hot water air is uniform and temperate...

  • Page 4: Description And Purpose

    All national and local code requirements must be met when installing a LIFEBREATH Clean Air Furnace. Be sure to This manual provides a guideline of good engineering prac- tice in the design, installation and commissioning of consult the proper authorities.

  • Page 5: The Recovery Core

    The Recovery Core HRV - Aluminum Core ERV - Enthalpic Paper Core A Heat Recovery Ventilator (HRV) is designed to provide An Energy Recovery Ventilator (ERV) is designed to pro- fresh air into a building while exhausting an equal amount vide fresh air into a building while exhausting an equal of stale air.

  • Page 6: Combo System Basic Principles

    Combo System Basic Principles Open and Closed Systems Drain Valve Open and Closed systems both deliver hot water and space A drain valve is required to allow the heating loop to be heating. drained for service or repair and to remove air from the heating loop when commissioning a system.

  • Page 7: Plumbing

    Plumbing In order to improve serviceability of our products, the check valve is included with our manual kit for field instal- Note: Take care during soldering to avoid debris or lation between the air-handler and hot water source. solder from lodging in the check valve. The check valve should be installed in a vertical run of Note: It is critical to follow the piping configuration pipe with the flow of water in an upward direction.
  • Page 8 Plumbing Expansion Tanks Expansion tanks are required in addition to a Check Valve for Closed Systems because pressure is created when water Time to Scald is heated in the water heater. (1st degree burns) The expansion tank has an air bladder which will contract to relieve pressure in the system.
  • Page 9 Plumbing Valves (a) Located on the cold water side of the Heater. This valve has the ability to isolate the hot water (domestic and space heating) from the household cold Supply water supply. Every water heater requires this valve These two regardless of space heating use.
  • Page 10 Plumbing When the room thermostat calls for heat, the circulation Call for Space Heating pump is activated. Hot water is then drawn from the top of There are two thermostats controlling every combo system, the water heater through the air handler, and then returned the water heater thermostat (controlling the hot water tem- to the water heater.
  • Page 11 Quick Connect Kit: PART# 99-CAF-PKit 1/2 or 3/4 The pre-assembled, Quick Connect Kit shortens the KIT CONTENTS installation time. It provides an instant, easy assembly of the major plumbing fittings required for a proper CAF/AH installation. The Quick Connect Kit includes the WATER IN and WATER OUT assemblies.
  • Page 12 Plumbing Air System Pressure Drop (PD) A circulation fan draws cool house air at approx. 70°F Pressure drop (PD) is the reduction in total pressure caused (21°C) from the return ductwork, forces it through the water by components added to a piping system such as coils, coil where it is heated, and then distributes it to the various valves, and fittings.
  • Page 13 Plumbing Air Handler Output Capacity Air Handler Air Flow Rate There are four factors that will significantly affect the The air entering the air handler can only be warmed by the heating output of the air handler. temperature difference between the hot water and the cool air.

  • Page 14: Plumbing

    Plumbing Look inside the furnace and locate the pump. Attach the Drain Line "Hot Water In" (Supply) to the pipe running to the pump. The ventilation portion of the Clean Air Furnace has two drain pans for removing condensation, which may occur on Attach the "Hot Water Out"...

  • Page 15: Installation

    Installation This manual gives the contractor guidelines for installing Duct Connections the LIFEBREATH Clean Air Furnace. All national and To accommodate various installations, the Clean Air local codes relating to this type of equipment must be Furnace has knockouts for the return air plenum and followed.
  • Page 16 Installation Option 2 - Downflow Models Ventilation Ports Off Right Ventilation Ports Off Left Remove Remove styrofoam styrofoam knockout knockout Remove Remove styrofoam styrofoam knockout knockout ATTENTION Do not remove lower styrofoam knockout when installing the optional Bathroom Exhaust System (Part 99-CAF-BESKIT).
  • Page 17 Installation cabinet. The collars can then be fastened into place with Locating Intake Weatherhood screws. Note the exhaust outlet is always the port on the The intake weatherhood should be located as follows: bottom, and the supply inlet is always the port on the top, •...

  • Page 18: Pitot Tube Air Flow Balancing

    Pitot Tube Air Flow Balancing Insert the Pitot tube into the duct, pointing the tip into the Prior to balancing, ensure that: airflow. 1. All sealing of the ductwork system has been completed. For general balancing it is sufficient to move the Pitot tube around in the duct and take an average or typical reading.
  • Page 19 Pitot Tube Air Flow Balancing The accuracy of the airflow reading will be affected by how close to any elbows or bends the readings are taken. Accuracy can be increased by taking an average of multiple readings as outlined in the literature supplied with the Pitot tube.

  • Page 20: Function And Controls

    Function and Controls Standard Motor RELAY Fan Hi Fan Med Fan Low FEED Neutral/Neutre Line/Ligne CHASSIS N.O. N.O. N.O. N.O. AUX 2 AUX 1 SPARE DIP SWITCHES TO BE SEUL UN TECHNICIEN ADJUSTED BY QUALIFIED QUALIFIÉ PEUT AJUSTÉ LES TECHNICIANS ONLY. COMMUTATEURS DIP.

  • Page 21: Function And Controls

    Function and Controls ECM Motor ECM Motor DIP Switch Settings Neutral/Neutre Line/Ligne CHASSIS N.O. COOL HEAT ADJUST DELAY AUX 1 AUX 2 DIP SWITCHES TO BE SEUL UN TECHNICIEN ADJUSTED BY QUALIFIED QUALIFIÉ PEUT AJUSTÉ LES TECHNICIANS ONLY. COMMUTATEURS DIP. COOL HEAT ADJUST...

  • Page 22: Optional Dehumidistat

    Optional Dehumidistat - Part #99-DH-01 Key Features • The Dehumidistat measures the indoor humidity level and will Instruction card initiate high speed ventilation when the moisture level in the building exceeds the set point on the control. • Once the humidity in the building is reduced, the unit will revert to its previous setting.

  • Page 23: Wiring The Controls

    Wiring the Controls Optional Dehumidistat Connect to Yellow, Red & Green Optional Timers Connect to Yellow, Red & Green...

  • Page 24: Aircom Relays

    Aircom Relays The Aircom circuit board has three available “dry contact” relays. Contact 3 is not available. Maximum 115V 10 amp resistive load. SPARE SPARE F2 MAX 2 amp MAX 2 amp N.0. COM N.C. N.0. COM N.C. N.0. COM N.C. N.0 . COM N.0.

  • Page 25: Start-Up Procedure

    Start-Up Procedure In order for any appliance to work properly it must be set Once all of the necessary connections have been up and tested by a knowledgeable technician. made, the Clean Air Furnace Start-Up Procedure is as follows: The following conditions must be met prior to 1.

  • Page 26: Service And Maintenance

    Service/Maintenance A dedicated maintenance program will prolong the life of Clean Core Twice a Year the equipment, and maintain its optimum performance. a) Open access door. We recommend at least two (2) full inspections and b) Carefully grip ends of core, and pull evenly outward. cleanings per year under normal operating conditions, and Core may be snug, but will slide out of the "H"...

  • Page 27: Troubleshooting

    Troubleshooting Lack of heat HRV core freezes up 1. Check that the room thermostat is set to the desired 1. Make sure that the supply and exhaust lines are balanced temperature. according to the "Balancing Procedure" in this manual. 2. Confirm the units have power and the shut-off valves are 2.

  • Page 28: Controlling Your Hrv

    Controlling your HRV Today's modern, tight homes require fresh outdoor air to maintain a healthy indoor air environment. The amount of HOW MUCH VENTILATION DO I NEED? During seasons when your windows and doors are closed ventilation you require in your home will depend upon: (winter, and summer if air conditioned), the HRV should be set to operate continuously on low speed with the option of •...

  • Page 29: Model Number Nomenclature Breakdown

    L2A - Large Coil - 2 Row Coil (available in upflow only) L4A - Large Coil - 4 Row Coil Available Clean Air 00 - No Hydronics - No Heating Coil, No Pump Furnace Models (available in upflow only) CAF-U-S4A-24-P16(E16) CAF-D-S4A-24-P16(E16) * CFM (High Speed) CAF-H-S4A-24-P16(E16) Cooling Capacity...

  • Page 30: Specifications

    Model CAF-U-S4A-24-P16 Core Ventilation system has patented aluminum heat recovery core (standard) or an enthalpic energy recovery core (optional) for energy-efficient ventilation. Enthalpic cores are recommended for regions where the temperature does not drop below 25°F (-4°C). Filters Washable air filters in exhaust and supply air streams of ventilation section, 1" (25 mm) pleated in return plenum side.
  • Page 31 Units carry a lifetime warranty on the heat recovery (aluminum) core, a five year warranty on the energy recovery (enthalpic) core and a five year replacement parts warranty on all other components. Date: ___________________________________________ Contractor: ______________________________________ Tag: _____________________Qty:___________________ Supplier: ________________________________________ Project: _________________________________________ Quote#: _________________________________________ Engineer: _______________________________________ Submitted by: ____________________________________ info@lifebreath.com...
  • Page 32 Units carry a lifetime warranty on the heat recovery (aluminum) core, a five year warranty on the energy recovery (enthalpic) core and a five year replacement parts warranty on all other components. Date: ___________________________________________ Contractor: ______________________________________ Tag: _____________________Qty:___________________ Supplier: ________________________________________ Project: _________________________________________ Quote#: _________________________________________ Engineer: _______________________________________ Submitted by: ____________________________________ info@lifebreath.com...
  • Page 33 Units carry a lifetime warranty on the heat recovery (aluminum) core, a five year warranty on the energy recovery (enthalpic) core and a five year replacement parts warranty on all other components. Date: ___________________________________________ Contractor: ______________________________________ Tag: _____________________Qty:___________________ Supplier: ________________________________________ Project: _________________________________________ Quote#: _________________________________________ Engineer: _______________________________________ Submitted by: ____________________________________ info@lifebreath.com...
  • Page 34 Units carry a lifetime warranty on the heat recovery (aluminum) core, a five year warranty on the energy recovery (enthalpic) core and a five year replacement parts warranty on all other components. Date: ___________________________________________ Contractor: ______________________________________ Tag: _____________________Qty:___________________ Supplier: ________________________________________ Project: _________________________________________ Quote#: _________________________________________ Engineer: _______________________________________ Submitted by: ____________________________________ info@lifebreath.com...
  • Page 35 Units carry a lifetime warranty on the heat recovery (aluminum) core, a five year warranty on the energy recovery (enthalpic) core and a five year replacement parts warranty on all other components. Date: ___________________________________________ Contractor: ______________________________________ Tag: _____________________Qty:___________________ Supplier: ________________________________________ Project: _________________________________________ Quote#: _________________________________________ Engineer: _______________________________________ Submitted by: ____________________________________ info@lifebreath.com...
  • Page 36 20, 40, or 60 minutes (3 wire) 20 gauge wire ventilation for 20 minutes. (3 wire) 20 gauge wire (minimum) (minimum) 100 ft. length 100 ft. length. Date: ___________________________________________ Contractor: ______________________________________ Tag: _____________________Qty:___________________ Supplier: ________________________________________ Project: _________________________________________ Quote#: _________________________________________ Engineer: _______________________________________ Submitted by: ____________________________________ info@lifebreath.com...
  • Page 37 20, 40, or 60 minutes (3 wire) 20 gauge wire ventilation for 20 minutes. (3 wire) 20 gauge wire (minimum) 100 ft. length. (minimum) 100 ft. length Date: ___________________________________________ Contractor: ______________________________________ Tag: _____________________Qty:___________________ Supplier: ________________________________________ Project: _________________________________________ Quote#: _________________________________________ Engineer: _______________________________________ Submitted by: ____________________________________ info@lifebreath.com...
  • Page 38 Units carry a lifetime warranty on the heat recovery (aluminum) core, a five year warranty on the energy recovery (enthalpic) core and a five year replacement parts warranty on all other components. Date: ___________________________________________ Contractor: ______________________________________ Tag: _____________________Qty:___________________ Supplier: ________________________________________ Project: _________________________________________ Quote#: _________________________________________ Engineer: _______________________________________ Submitted by: ____________________________________ info@lifebreath.com...
  • Page 39 Units carry a lifetime warranty on the heat recovery (aluminum) core, a five year warranty on the energy recovery (enthalpic) core and a five year replacement parts warranty on all other components. Date: ___________________________________________ Contractor: ______________________________________ Tag: _____________________Qty:___________________ Supplier: ________________________________________ Project: _________________________________________ Quote#: _________________________________________ Engineer: _______________________________________ Submitted by: ____________________________________ info@lifebreath.com...

  • Page 40: System Commissioning

    System Commissioning This section of the manual is designed to be used with the • Hot water is available to the furnace “Commissioning of Integrated Combo System” worksheet. • The drain valve for the heating loop is closed The worksheet is designed to guide you through the start-up •...
  • Page 42 Part E - SYSTEM START UP E.5 Start Air Handler E.1 Fill Water-Heater with water E.2 Set Water-Heater at designed temperature E.6 Check Circulation Pump Operation E.3 Fill Heating Loop with water Check Circulation Fan Operation E.4 Purge Circulation Pump Label Water-Heater HRV BALANCING Exhaust Air Flow...

  • Page 43: Wiring Diagrams

    Standard Motor Wiring Diagram Defrost Dégivrage Freeze Congélation WARNING Do not initiate power before plumbing is commissioned.

  • Page 44: Wiring Diagrams

    ECM Wiring Diagram Defrost Freeze WARNING 69-CAF Do not initiate power before plumbing is commissioned. 0912...
