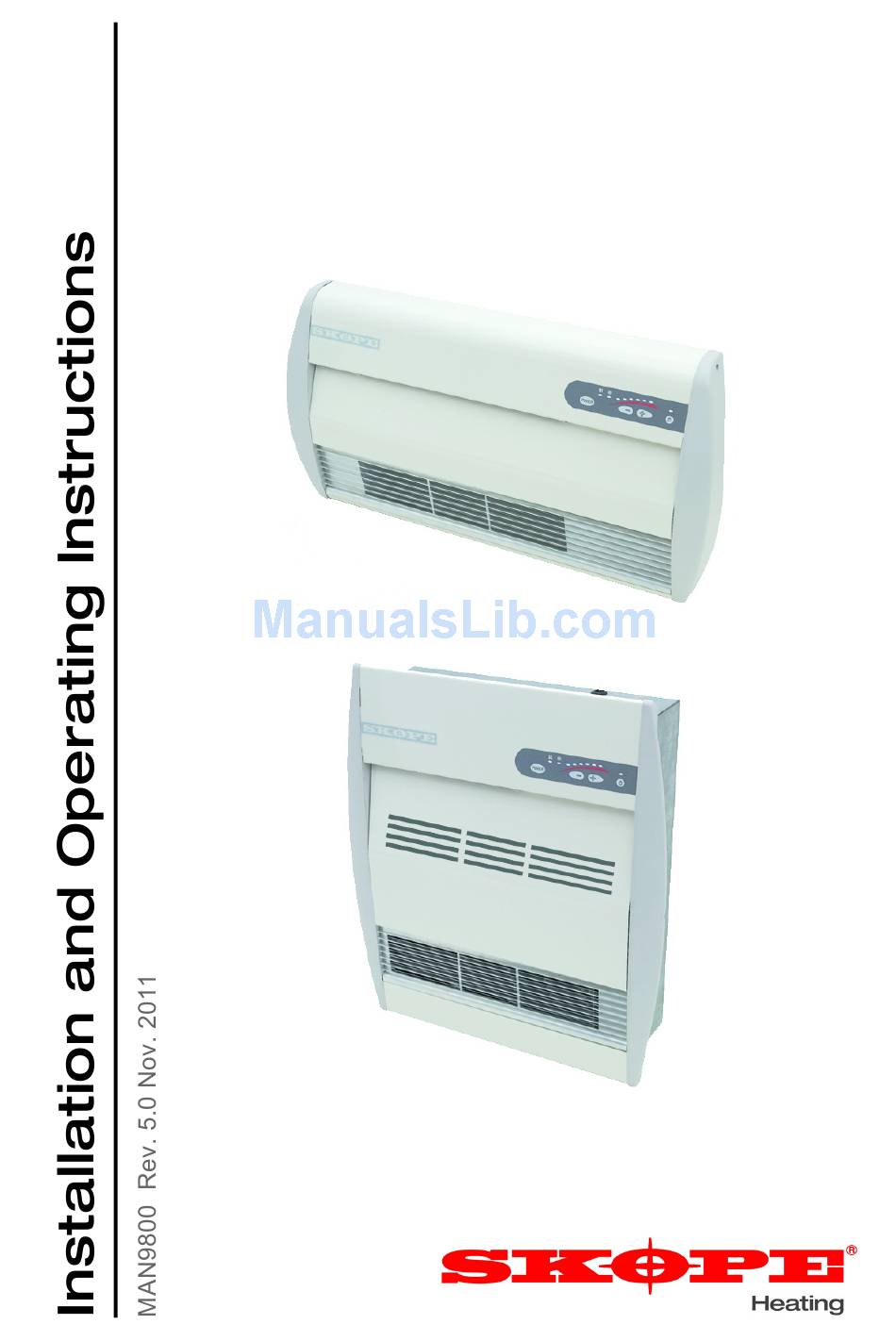

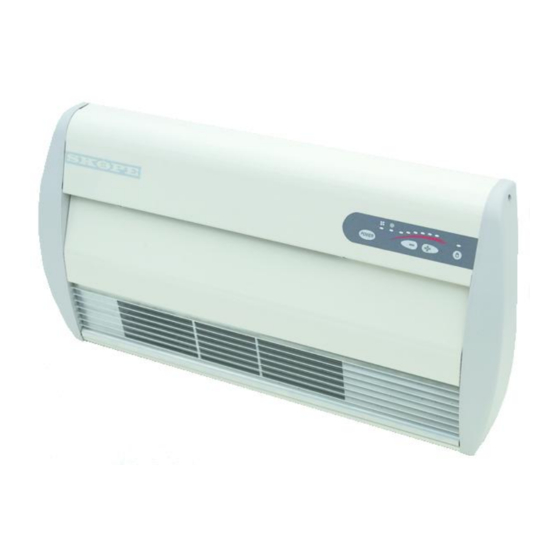

- Page 1 989E, 990E, 981E, 723E SKOPE Surface and Recessed Wall Fan Heater...
-
Page 2: Table Of Contents
Safety Cutout ..........11 Care .............11 Servicing ............11 Contact Addresses ........12 Copyright © 2003 SKOPE Industries Limited. All rights reserved. SKOPE is the registered trademark of SKOPE Industries Limited. SKOPE Surface and Recessed Wall Fan Heater Installation and Operating Instructions... -
Page 3: Safety Information
• If the supply cord becomes damaged, it must be replaced by a SKOPE authorised service agent, or similarly qualified person, in order to avoid a hazard (model 989E only). • For service, contact your nearest authorised service agent. -
Page 4: Basic Operation
HIGH heat. Operation Modes Your SKOPE Wall Fan Heater has two selectable modes of operation: Normal Mode: This is the default factory mode. In this mode the heater will operate as a conventional heater with no timer functionality. -
Page 5: Control Panel
3 seconds, until you hear a beep and the Red Tamper Lock indicator is lit. To deactivate this function, repeat the operation. * Ensure the heater can operate safely, if operated on the Freeze Guard setting. SKOPE Surface and Recessed Wall Fan Heater Installation and Operating Instructions... -
Page 6: Surface Mounted Models
Following installation or a period of non-use, in order to free up the lubricant, operate the appliance on FAN ONLY setting for approximately five minutes before using the heat settings. SKOPE Surface and Recessed Wall Fan Heater Installation and Operating Instructions... -
Page 7: Installation Diagram
989E = 372mm 990E = 437mm Fixing holes (4) Cable entry position 200 min. Floor level Heater body Fixing screws (4) Front panel hinged down Front panel screws (2) SKOPE Surface and Recessed Wall Fan Heater Installation and Operating Instructions... -
Page 8: Recess Mounted Models
The cable must be kept flat and close to the back of the heater, and the cable bar clamp must be used. If using the bottom cable entry, feed the cable under the motor to the terminal block. SKOPE Surface and Recessed Wall Fan Heater Installation and Operating Instructions... - Page 9 981E = 322mm Hole in wall 723E = 403mm Cable entry knockout Fixing screws (4) Heater body 300 min. Floor level Front panel hinged down Front panel screws (2) SKOPE Surface and Recessed Wall Fan Heater Installation and Operating Instructions...
-
Page 10: 3-Hour Timer Mode
(i.e. within one second of releasing the buttons) or the change will not occur and the controller will enter calibration mode. Should this happen, disconnect the power supply and start again. Press the POWER button and the heater will operate. SKOPE Surface and Recessed Wall Fan Heater Installation and Operating Instructions... -
Page 11: Specifications
SKOPE Industries Limited reserve the right to alter specifications without notice. Safety Cutout Your SKOPE Wall Fan Heater is fitted with an auto-reset thermal cutout and a fusible link. Either of these devices will automatically switch off the elements and the motor, should the unit reach an abnormal temperature. -
Page 12: Contact Addresses
Website: www.skope.co.nz Australia A.B.N. 73 374 418 306 PO Box 7543, Baulkham Hills B.C. NSW 2153, Australia Freephone: 1800 121 535 Freefax: 1800 121 533 Email: enquiry@skope.com.au Website: www.skope.com.au SKOPE Surface and Recessed Wall Fan Heater Installation and Operating Instructions...
