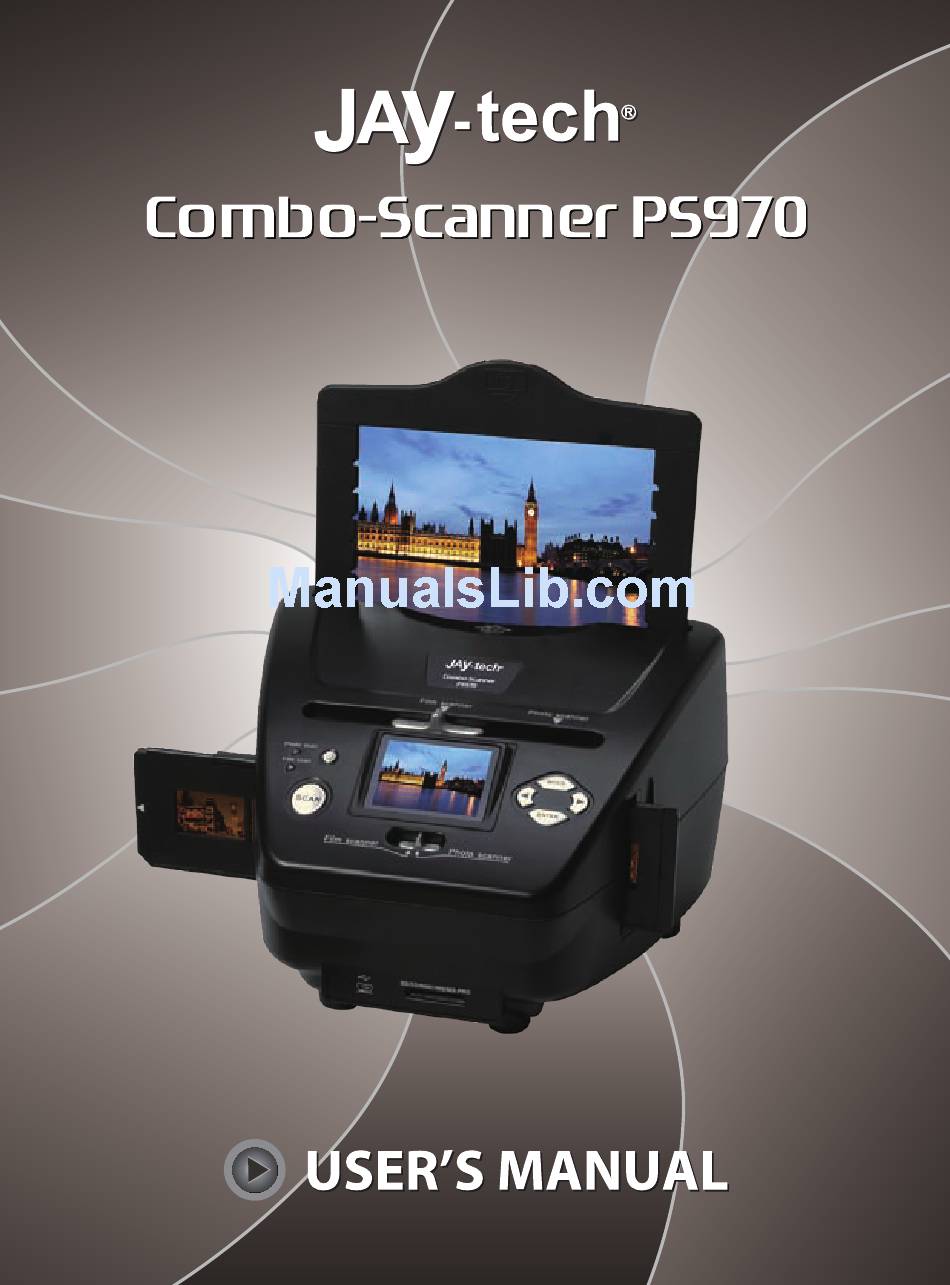

Jay-tech Combo-Scanner PS970 User Manual
  1. Manuals
  2. Brands
  3. Jay-tech Manuals
  4. Scanner
  5. Combo-Scanner PS970
  6. User manual

Jay-tech Combo-Scanner PS970 User Manual

Hide thumbs

Advertisement

Table of Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Combo-Scanner PS970 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Jay-tech Combo-Scanner PS970

Summary of Contents for Jay-tech Combo-Scanner PS970

  • Page 2: Table Of Contents

    For correct usage please read these instructions carefully and keep in a safe place for future reference! CONTENTS Safety Precautions ..........Package Contents ..........Description of Parts ..........Loading Slides ............Loading Negatives ..........Loading Photos ............General Operations ..........Technical Specifications ........

  • Page 3: Safety Precautions

    1. Safety Precautions Please read these notes carefully before initial use. General Notes: Do not place the device on an unstable surface. If it falls it may cause personal injury. Follow the safety and operating instructions for the other devices to be connected to your film scanner.

  • Page 4: Ambient Conditions

    Ambient Conditions: Set the scanner up so that the ventilation openings are not obstructed. For example do not place it on a bed, sofa, carpet, or similar surfaces. Do not place the device close to heat sources such as radiators or ovens. And do not subject the device to high temperatures or severe temperature fluctuations.

  • Page 5: Package Contents

    Insert the plug of the power adapter into a power outlet. USB Connection: Use the USB cable to connect the device to your PC. 2. Package Contents Combo-Scanner PS970 USB Cable Negative Film Holder Positive Slide Holder Photo Tray (13x18, 10x15, 9x13) AC/DC Adapter User’s Manual...

  • Page 6: Description Of Parts

    3. Description of Parts Positive Slide Holder Negative Film Holder Combo-Scanner PS970 Photo Tray 13x18 10x15 9x13...

  • Page 7: Loading Slides

    4. Loading Slides Hold up the slide toward the light. Face the trademark side of the slide away from you. Look through the slide and it should appear normally (not a mirror image). Now turn the slide so the image is upside down while looking at the same side.

  • Page 8: Loading Negatives

    5. Loading Negatives Hold up the negative toward the light. As you look through the negative you should be able to read the small negative numbers normally (not a mirror image). Now turn the negative so the image is upside down while looking at the same side.

  • Page 9: Loading Photos

    6. Loading Photos First insert the photo into appropriately sized photo tray (13x18, 10x15, 9x13) Note: Handle photo with care. Any dust scratches or fingerprints will show up on your saved images. 13x18 10x15 9x13 Insert the photo tray into the slot from the top of the Combo-Scanner as shown.

  • Page 10: General Operations

    7. General Operations Quick Start 1. If you want to scan the films, please switch two switches on the top of the device to the left side. Otherwise if you want to scan the photos, please switch to the right side. 2.

  • Page 11: Operation Guide

    Operation Guide Home/MODE: Main menu When the Film scanner mode is selected, the following main menu will be appeared: Language mode USB mode Capture mode Playback mode Film Type Resolution...
  • Page 12 When the Photo scanner mode is selected, the following main menu will be appeared: Language mode USB mode Capture mode Playback mode Effect: Multicolor, Black & White Crop proportion: 13x18, 10x15, 9x13 Resolution...
  • Page 13 Home/MODE: No memory card No memory card indicator If there is no memory card been inserted to device, a warning icon will be shown on screen when enter main menu. 1. Capture After welcome page, above menu will be appeared. User can press LEFT/RIGHT button for desired menu, then press ENTER button to confirm the selection.
  • Page 14 1.1 Capture: Mirror/Flip (Hard Key) If any image requires for Mirror or Flip before capture, press LEFT/RIGHT button for Mirror/Flip function, the live view will be adjusted accordingly. (This step is to correct user misplaced the film/photo either upside down or flip).

  • Page 15: Capture Mode

    1.2 Capture Mode Live view indicator Once enter capture mode, there will be an indicator on left top corner to indicate it is in live view mode. User can also press ENTER button, then press LEFT/RIGHT button to adjust EV value, press ENTER button again to confirm and back to live view mode. 1.3 Capture: Edit Menu Selected image Save: save captured image...
  • Page 16 1.4 Live View Capture/Edit Menu SCAN ENTER Once press SCAN button in live view, the edit menu will be appeared. When user press ENTER button, the current image will be saved to internal memory or memory card when there is a memory card inserted, the display will return to live view again.
  • Page 17 1.6 Capture: Cancel Selected image Select Cancel icon with LEFT/RIGHT button and press ENTER button to cancel any of editing step with present selected image and the display will return to live view mode (nothing will be saved). 1.7 Capture: Home Select Home icon with LEFT/RIGHT button, then press ENTER button or press MODE button on top of the device anytime to back to main menu.
  • Page 18 1.8 Exit from Edit Mode Back to Capture Mode (Live View) Once user press ENTER button for save or cancel option, the display will return to capture mode/live view. Then user can move the film holder to next target film or change another photo to capture. 1.9 Memory Full Once the images in internal memory or memory card is full, a memory full icon will be shown on screen when press SCAN button.
  • Page 19 2. Playback Press LEFT/RIGHT button to playback mode when power on the device or access the main menu by Home icon/MODE button anytime. Press ENTER button to confirm the selection. 2.1 Playback: Auto Slide Show Slide show mode Once user enter playback mode (default to slide show), TFT will auto display all images stored in internal memory or memory card with 2 seconds interval from previous captured image.
  • Page 20 2.2 Playback: Edit Menu Rotate +90: captured image rotate +90 degrees Rotate –90: captured image rotate –90 degrees Delete: delete this picture stored in internal memory or memory card Exit: return to Slide show mode Save: save the modified image to internal memory or memory card Home: return to main menu...
  • Page 21 2.3 Playback: Slide Show Single Picture Edit Mode User can interrupt (stop) slide show mode to stand alone playback mode (single picture playback) by press ENTER button. (Pause slide show) Then user is able to scroll each picture by LEFT/RIGHT button. Once user select the picture stored in internal memory or memory card which intended to be modified, press ENTER button again to bring out the edit mode for modification.
  • Page 22 2.4 Playback: Rotate/Save ENTER If user wants to rotate +90 degrees by ENTER button, the image will be rotated +90 degrees and cursor will remain at Save. Press ENTER button again to save modified result and next picture will be shown. For continuously rotate +90 degrees, move cursor to rotate again and press ENTER button.
  • Page 23 2.6 Playback: Delete ENTER Select delete icon with LEFT/RIGHT button then press ENTER button, that will delete the present selected picture and next picture will be shown. Cursor will remain at Exit icon. If user intend to process continuously delete, just move cursor to delete icon again and press ENTER button to confirm.

  • Page 24: Film Type

    2.8 Playback: No Picture If there is no picture when enter playback mode, a No picture symbol will show on screen 3. Film Type When the Film scanner mode is selected, user can change film type by enter Film Type menu when power on the device or access the main menu by Home icon/MODE button anytime.
  • Page 25 4. Effect When the Photo scanner mode is selected, user can change color effect by enter Effect menu when power on the device or access the main menu by Home icon/MODE button anytime. Press LEFT/RIGHT button for Effect and press ENTER button to confirm Multicolor effect Black &...
  • Page 26 5. Crop Proportion When the Photo scanner mode is selected, user can change crop proportion by enter Crop menu when power on the device or access the main menu by Home icon/MODE button during operation. Press LEFT/RIGHT button for Crop and press ENTER button to confirm. 5 X 7 (13x18cm) Crop proportion 4 X 6 (10x15cm) Crop proportion 3 X 5 (9x13cm) Crop proportion...
  • Page 27 6. Resolution Change resolution by enter Resolution menu when power on the device or access the main menu by Home icon/MODE button anytime. Press LEFT/ RIGHT button for Resolution and press ENTER button to confirm. 5M Resolution 10M Resolution User can press LEFT/RIGHT button to select resolution, then press ENTER button to confirm 7.
  • Page 28 8. USB Mode After finished capture, please take out the memory card from the Combo- Scanner to download the stored images from the memory card. When the device is connected with USB cable to PC, User can also press MODE button to main menu, then press LEFT/RIGHT button to select USB mode, then press ENTER button to confirm, the Combo-Scanner will become a mass storage device and user can review or edit images on PC.

  • Page 29: Technical Specifications

    8. Technical Specifications Lens F/3.6, f=4.83mm Sensor 5.1 Megapixel CMOS Sensor 6.1 cm LTPS LCD Display External Memory SD/MMC/MS/XD/MS-PRO Card Exposure Auto Color Balance Auto Scan High Resolution 3,600 dpi Interpolation Resolution Data Conversion 12 bits Per Color Channel Scan Method Single Pass Light Source 7*2 white LED / Backlight (3 White LED)

  • Page 30: Declaration Of Conformity

    The EU conformity declaration for this product is available under www.jay-tech.de Intended Use: Combo-Scanner PS970 is suitable for private indoor use. The device is used to digitize photos in size 9x13, 10x15, 13x18, 35mm slides and negatives to internal memory, SD memory card, or a PC via a USB connection.

  • Page 31: Service Procedures

    Service Procedures: If you have reason for complaint, or your device is defective, please contact your dealer or the service division of JAY-tech GmbH to make arrangements for service procedures. Service Hours: Monday – Thursday from 8:00 am to 5:00 pm Friday from 8:00 am to 2:00 pm.
