Unload the bearing and oil seal of the left crankcase.
Inspect whether the bearing or oil seal is damaged, and
replace if necessary.
13.3.2 Installation
Installation is conducted in the reverse order of disassembly.

13.4 Shift shaft set

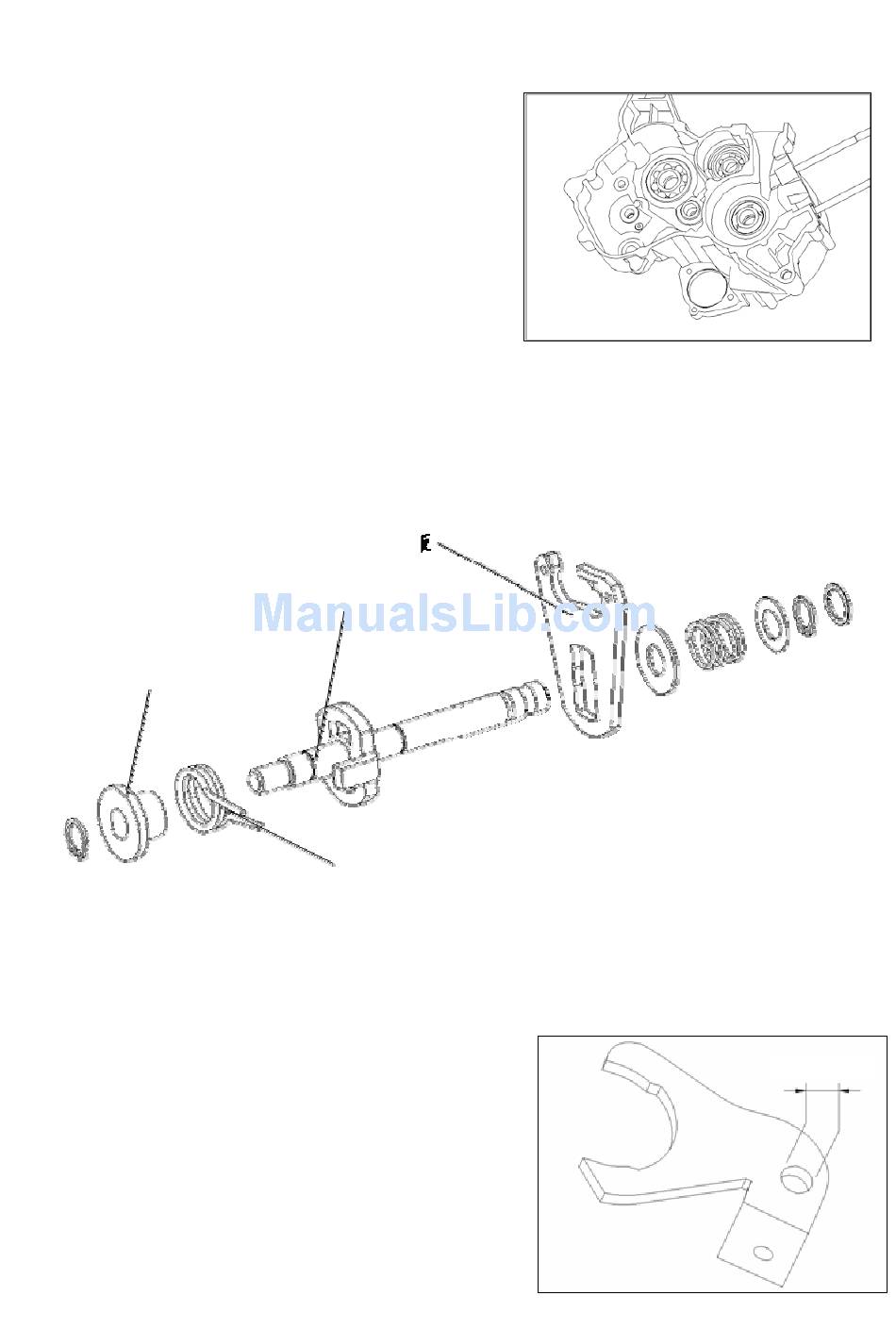

13.4.1 Dismantling
spread plate
hift shaft set
spring sleeve
return spring
13.4.2 Inspection
Before the dismantling, the spread plate should be flexible in return without clamping stagnation.
Inspect the wear and tear of the spread plate and shift shaft set. Severe wear and replace them.
Inspect the bent or distortion of shift forks. If the bent or distortion is severe, replace them.
Inspect whether the shift shaft is bent, if it is, then replace it.
bore diameter
Inspect elasticity of the return spring weakens and replace it if
necessary.
Measure the bore diameter of the shift fork.
Allowable limit ：7.91mm。
