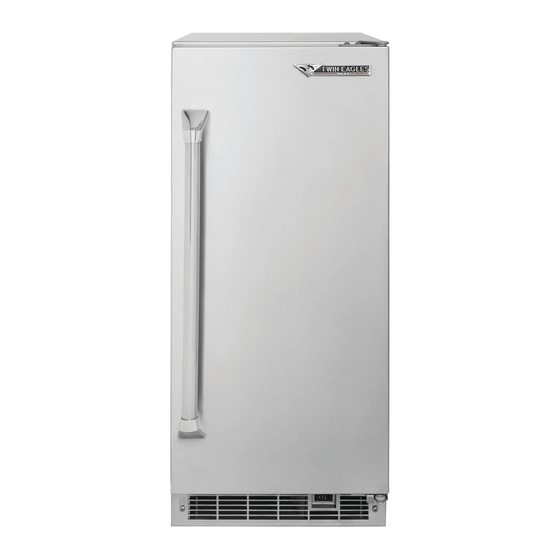

- Page 1 Twin Eagles Outdoor Ice Maker Model: TEIM15-E 18909A 04/15...
-
Page 2: Table Of Contents
Leveling legs .............. Electrical Connection ..........Installing the drain plumbing .......... Drain pump ..............Connecting the water supply........... Dimensions for TEIM15-E..........Recommended Rough in Opening Dimensions for TEIM15-E .............. Operation, Care, and Cleaning........Operation (Turning on the ice machine)......The Ice Making Process .......... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Important Safety Instructions Warnings and safety instructions appearing in this guide are not meant to cover all possible conditions and situa- If the ice machine was shipped or has been laying on its tions that may occur. Common sense, caution, and care back for any period of time allow the ice machine to sit must be exercised when installing, maintaining, or operat- upright for a period of at least 24 hours before plugging in. -
Page 4: Installing Your Ice Machine
(see “Electrical Connec- on the floor and level from side to side and front to back. tion” section). The overall height of your Twin Eagles ice machine may be adjusted from 33 ⁄ ” (85.7cm) with the leveling legs turned... -
Page 5: Electrical Connection
The ice machine must be installed to your local build- ing codes and ordinances. This drain pump is designed to be installed in Twin Eagles ice machines only. Failure to use an adequate drainage system, will result in surrounding water damage and/or poor ice production. -
Page 6: Drain Pump
OPTIONAL DRAIN PUMP The Twin Eagles Drain Pump is designed to remove drain water from ice machines installed in areas without direct drainage access. The sealed reservoir pump collects the melted ice water and pumps it to a maximum lift of eight (8) feet (2.44 meters) through... -
Page 7: Connecting The Water Supply
CONNECTING THE WATER SUPPLY Water Supply The ice machine must be connected to a potable, active cold water supply line delivering water pressure at a mini- mum of 20 psi and a maximum of 120 psi. • Water connection is made through a right angle garden hose fitting supplied with the ice machine. -
Page 8: Dimensions For Teim15-E
(7.6 to 8.8 cm) ⁄ ” (60 cm) ROUGH IN OPENING DIMENSIONS, FOR TEIM15-E Electrical Requirements: A grounded 115 volt, 15 amp dedicated circuit is required. A GFCI recep- tacle may be required for outdoor models. Power outlet can be located in the back wall behind the ice machine. -
Page 9: Operation, Care, And Cleaning
OPERATION, CARE, AND CLEANING OF YOUR ICE MACHINE Operation (Turning on the ice machine) Once the drain and water supply are connected, and the ice machine is in place and leveled, plug in the service cord. Place the switch to the “ON” position to turn on the ice machine. -
Page 10: Ice Production
OPERATION, CARE, AND CLEANING OF YOUR ICE MACHINE Care of the Ice Machine The bin level sensor is located in the ice bin, it senses when the ice supply is low or full and starts or stops the ice 1. Avoid leaning on the cabinet door. You may bend the making process accordingly. - Page 11 OPERATION, CARE, AND CLEANING OF YOUR ICE MACHINE 6. Determine the proper amount of cleaner from the ice Remove the drain plug at the bottom of the reservoir to machine cleaner manufacturer’s mixture ratio based on drain any remaining water and then reinstall. ⁄...
-
Page 12: Stainless Steel Maintenance
STAINLESS STEEL MAINTENANCE Background NOTE Stainless steel does not stain, corrode, or rust as easily as ordinary steel, but it is not stain or corrosion proof. Stain- Stainless steel products should never be installed, or stored less steels can discolor or corrode if not maintained prop- in close proximity to chlorine chemicals. -
Page 13: Troubleshooting Guide
TROUBLESHOOTING GUIDE Before calling a service provider try the trouble shooting production cycle can take up to 1 ⁄ hours. Initial start up suggestions below. cycles can take longer. Check the ice machine after 24 hours for ice accumulation in the bin. Is the reservoir drain plug in place? Check that the Ice Machine Operation reservoir drain plug is properly seated. -
Page 14: Energy Saving Tips
Check the drain pump reservoir may not have filled properly or the drain is discharge and vent line or any restrictions or kinks. Check leaking. Call Twin eagles customer service at that the drain pump is level. 562-802-3488. -
Page 15: Preparing The Ice Machine For Storage
PREPARING THE ICE MACHINE FOR STORAGE If the ice machine is moved, not used for an extended pe- 8. Reconnect the water valve outlet water line and tighten riod of time, or will be in an area that may experience freez- the compression nut to a watertight seal (finger tight, ing temperatures, it is necessary to remove any remaining then 2 complete revolutions). -
Page 16: Drain Pump Removal Instructions
DRAIN PUMP REMOVAL INSTRUCTIONS Drain Pump Removal Instructions: 1. Unplug ice machine from the electrical supply and re- move the rear access cover from the ice machine. (See Drain valve page 6 for instructions). 2. Unscrew the leveling leg in the back corner until the end of the threaded portion is flush with the threaded nut insert in the base. -
Page 17: Obtaining Service
Ice machine power cord If You Do Need Service If you do need service, contact your dealer or Twin Eagles. In any correspondence, refer to the service number and serial number of your ice machine which is located on the upper left hand side of the wall liner. -
Page 18: Warranty
Limited One Year Parts and Labor Warranty Not Supplied or Designated by Twin Eagles Twin Eagles warrants that it will supply all necessary parts The above warranties also do not apply if: and labor to repair or replace in the end user’s home or office, any component which proves to be defective in ma- •... - Page 20 41014002 revA 4/23/15...
