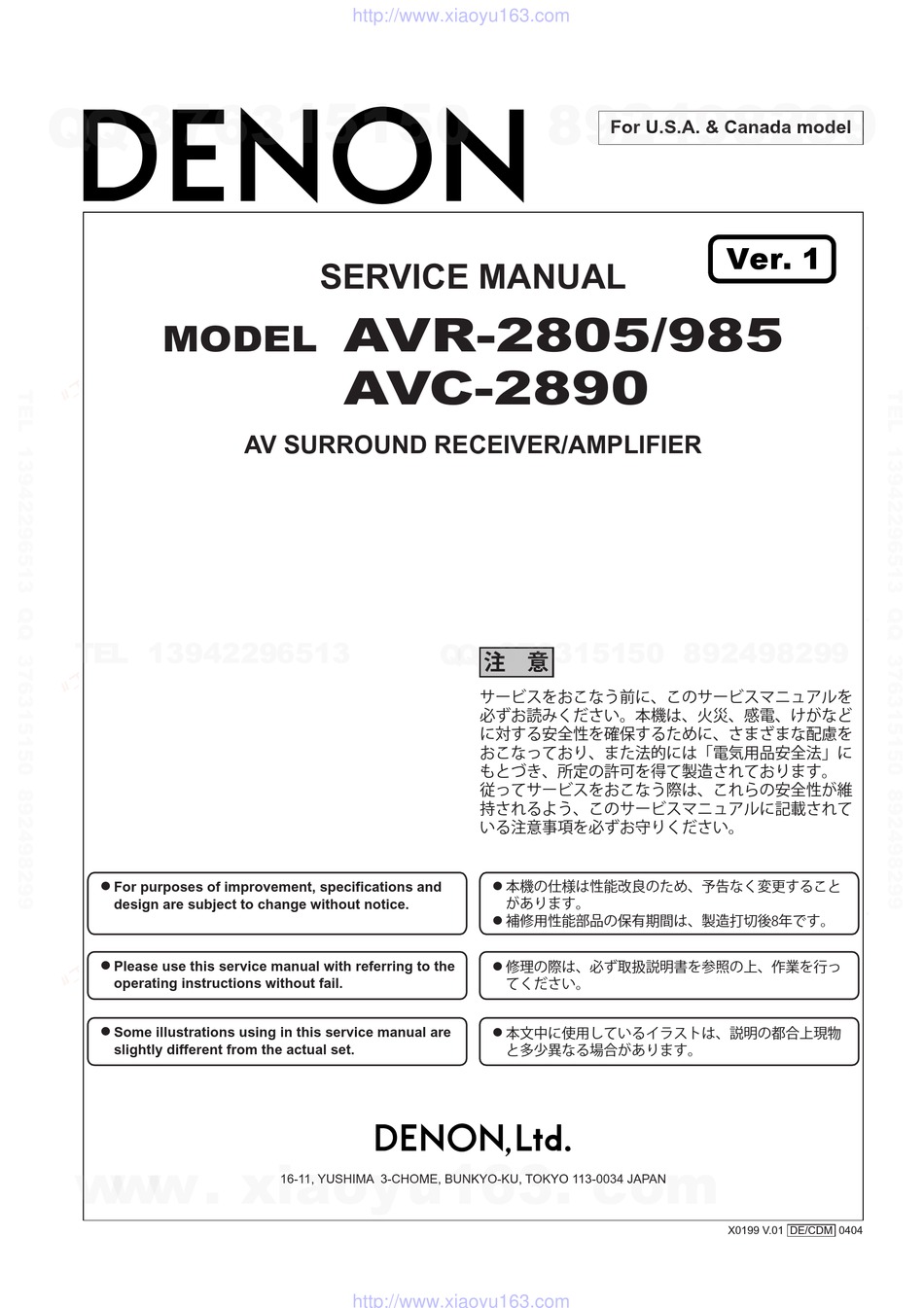

3 7 63 1515 0 For U.S.A. & Canada model Ver. 1 SERVICE MANUAL AVR-2805/985 MODEL AVC-2890 AV SURROUND RECEIVER/AMPLIFIER L 13942296513 For purposes of improvement, specifications and design are subject to change without notice. Please use this service manual with referring to the operating instructions without fail.
Page 2
AVR-2805/985/AVC-2890 3 7 63 1515 0 SAFETY PRECAUTIONS The following check should be performed for the continued protection of the customer and service technician. LEAKAGE CURRENT CHECK Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis resistance check.
Page 3
AVR-2805/985/AVC-2890 WIRE ARRANGEMENT 3 7 63 1515 0 If wire bundles are untied or moved to perform adjustment or parts replacement etc., be sure to rearrange them neatly as they were originally bundled or placed afterward. Otherwise, incorrect arrangement can be a cause of noise generation.
Page 4
AVR-2805/985/AVC-2890 CAUTION IN SERVICING 3 7 63 1515 0 Initializing AV SURROUND RECEIVER AV SURROUND RECEIVER initialization should be performed when the µcom, peripheral parts of µcom, and Digital P.W.B. are replaced. 1. Switch off the unit. 2. Hold the following MODE button and ANALOG button, and switch on the unit.
AVR-2805/985/AVC-2890 ADJUSTMENT 3 7 63 1515 0 Audio Section Idling Current (1U-3469-1) Required measurement equipment: DC Voltmeter 1. Preparation (1) Avoid direct blow from an air conditioner or an electric fan, and adjust the unit at normal room temperature 15 °C ~ 30 °C (59 °F ~ 86 °F).
Page 6
AVR-2805/985/AVC-2890 3 7 63 1515 0 SR ch VR302 SR ch TP101 SL ch FR ch SL ch VR301 FR ch VR102 FL ch VR101 DC Voltmeter C ch VR201 FL ch C ch TP301 SBR ch SBL ch...
AVR-2805/985/AVC-2890 Video Section 3 7 63 1515 0 Component Video Level Adjustment Required measurement equipment etc.: Oscilloscope, DVD VIDEO PLAYER (ex: DVD-1500) Test disc: DVD T-S01 1. Preparation (1) Avoid direct blow from an air conditioner or an electric fan, and adjust the unit at normal room temperature 15 °C...
Page 8
AVR-2805/985/AVC-2890 3 7 63 1515 0 Oscilloscope VR103 VR102 VR101 Component Video Y L 13942296513 Video Section u163 http://www.xiaoyu163.com...
Page 9
AVR-2805/985/AVC-2890 3 7 63 1515 0 Y-Signal Vo lts I R E: FLT 100.0 714 ± 50mV 10.0 -20.0 -10.0 20.0 30.0 40.0 50.0 60.0 Fig.1 Component Video Y signal Volt s I R E: FLT 50.0 486±50 (U.S.A. & Canada model) 525±50...
AVR-2805/985/AVC-2890 CLOCK FLOW & WAVE FORM IN DIGITAL BLOCK 3 7 6 3 1 5 1 5 0 Wave form CH1: D-DATA INPUT (IC511 (5) ) SELECTOR BUFFER IC515 IC511 IC513 IC906 SN74LV SN74HC LC89057W ADSP-21266 INPUT 244APW 151APW...
Page 15
AVR-2805/985/AVC-2890 CHECK WITH TEST MODE 3 7 6 3 1 5 1 5 0 µcom/DSP Error Display Mode 1. Operation Spec µcom version display mode: When the following conditions are satisfied at its starting state, error information is displayed before version information.
Page 16
AVR-2805/985/AVC-2890 SEMICONDUCTORS 3 7 63 1515 0 Only major semiconductors are shown, general semiconductors etc. are omitted to list. 1. IC’s Note : Abbreviation ahead of IC No. indicates the name of P.W.B., etc. PO : Power P.W.B. AC : Amp Connect P.W.B.
Page 17
AVR-2805/985/AVC-2890 3 7 63 1515 0 Pin Name Symbol Type Det (Ext.) Res STBY Stop Function (Int.) VSEL B O/L Master VR rotation detect input (Rotary encoder) STB output for function switching control FUNC STB1 (L-ch INPUT&REC/ZONE, EXT.
Page 18
AVR-2805/985/AVC-2890 3 7 63 1515 0 Pin Name Symbol Type Det (Ext.) Res STBY Stop Function (Int.) GRN LED O/L LED control pin FL CE2 O/L FL tube control pin (LC75721E) ...
Page 19
AVR-2805/985/AVC-2890 3 7 63 1515 0 M30622M8P (AD: IC517) M30622M8P Terminal Function Pin Name Symbol Type Function (Int.) (Ext.) P94/TB4 DSP MS DSP control pin P93/TB3 CLATCH CODEC control pin (AD1835: Chip select) L 13942296513 P92/SOUT3 CDATAIN CODEC control pin (AD1835)
Page 20
AVR-2805/985/AVC-2890 3 7 63 1515 0 Pin Name Symbol Type Function (Int.) (Ext.) P66/RXD1 Data receive input from outside P65/CLK1 MAIN/SUB-µcom comm. control output P64/CTS1 (RTS from SUB-µcom L) P63/TXD0 MISO MAIN/SUB-µcom comm. control terminal (Data output) P62/RXD0 MOSI MAIN/SUB-µcom comm.
Page 21
AVR-2805/985/AVC-2890 3 7 63 1515 0 Pin Name Symbol Type Function (Int.) (Ext.) P01/D1 FLAG 1A Not used P00/D0 FLAG 2A(BUSY1) DSP operation check flag (FLAG 2A) Normal="L" P107/AN7 FLAG 3A Special Flag for ROM update (DSP: FLAG 3A)
Page 22
AVR-2805/985/AVC-2890 3 7 63 1515 0 BU4094BCF (VI: IC120), (CO: IC503) STROBE 1 DATA CLOCK Q’ BU4094BCF Terminal Function Port Symbol Function EXP1 A(RECA) Video input switching (RECOUT SELECT) EXP2 B(RECB) Video input switching (RECOUT SELECT) EXP3 C(RECC) Video input switching (RECOUT SELECT)
Page 28
AVR-2805/985/AVC-2890 3 7 63 1515 0 CY7C1049CV33-10ZC (AD: IC908, 910) Top View INPUT BUFFER 512K x 8 ARRAY POWER COLUMN DOWN DECODER LMS202IMX (CV: IC705) L 13942296513 LMS202IMX Terminal Function Pin Number Pin Name Pin Function 1, 3 C1+, C1−...
Page 29
AVR-2805/985/AVC-2890 3 7 63 1515 0 TC90A69F (VI: IC109) NJM2274R (VI: IC110) VIEW PLL DET IIC BUS Power Save CTL 8fsc 4fsc (8fsc) CORING V-ENHANCER Vref CORING Ped. DELAY PEAKING CLIP INTERPOLATION LINE LINE Clamp MEMORY MEMORY KILLER 3 Vout Disc.
Page 34
AVR-2805/985/AVC-2890 PRINTED WIRING BOARDS 3 7 6 3 1 5 1 5 0 1U-3469 POWER P.W.B. UNIT 1 3 9 4 2 2 9 6 5 1 3 w w w u 1 6 3 COMPONENT SIDE http://www.xiaoyu163.com...
Page 35
AVR-2805/985/AVC-2890 3 7 6 3 1 5 1 5 0 1 3 9 4 2 2 9 6 5 1 3 w w w u 1 6 3 FOIL SIDE http://www.xiaoyu163.com...
Page 36
AVR-2805/985/AVC-2890 3 7 6 3 1 5 1 5 0 1U-3472 AMP CONNECT P.W.B. UNIT 1 3 9 4 2 2 9 6 5 1 3 w w w u 1 6 3 COMPONENT SIDE http://www.xiaoyu163.com...
Page 37
AVR-2805/985/AVC-2890 3 7 6 3 1 5 1 5 0 1U-3596 CONTROL P.W.B. UNIT 1 3 9 4 2 2 9 6 5 1 3 w w w u 1 6 3 COMPONENT SIDE http://www.xiaoyu163.com...
Page 38
AVR-2805/985/AVC-2890 3 7 6 3 1 5 1 5 0 1 3 9 4 2 2 9 6 5 1 3 w w w u 1 6 3 FOIL SIDE http://www.xiaoyu163.com...
Page 39
AVR-2805/985/AVC-2890 3 7 6 3 1 5 1 5 0 1U-3601 CONNECT/VIDEO P.W.B. UNIT 1 3 9 4 2 2 9 6 5 1 3 w w w u 1 6 3 COMPONENT SIDE http://www.xiaoyu163.com...
Page 40
AVR-2805/985/AVC-2890 3 7 6 3 1 5 1 5 0 1 3 9 4 2 2 9 6 5 1 3 w w w u 1 6 3 FOIL SIDE http://www.xiaoyu163.com...
Page 41
AVR-2805/985/AVC-2890 3 7 6 3 1 5 1 5 0 1U-3602 VIDEO CONNECT P.W.B. UNIT 1 3 9 4 2 2 9 6 5 1 3 w w w u 1 6 3 COMPONENT SIDE http://www.xiaoyu163.com...
Page 42
AVR-2805/985/AVC-2890 3 7 6 3 1 5 1 5 0 1 3 9 4 2 2 9 6 5 1 3 w w w u 1 6 3 FOIL SIDE http://www.xiaoyu163.com...
Page 43
AVR-2805/985/AVC-2890 3 7 6 3 1 5 1 5 0 1U-3603 AUDIO/DIGITAL P.W.B. UNIT 1 3 9 4 2 2 9 6 5 1 3 w w w u 1 6 3 COMPONENT SIDE http://www.xiaoyu163.com...
Page 44
AVR-2805/985/AVC-2890 3 7 6 3 1 5 1 5 0 1 3 9 4 2 2 9 6 5 1 3 w w w u 1 6 3 FOIL SIDE http://www.xiaoyu163.com...
Page 45
AVR-2805/985/AVC-2890 3 7 6 3 1 5 1 5 0 1U-3611 D VIDEO P.W.B. UNIT (for AVC-2890 model only) COMPONENT SIDE 1 3 9 4 2 2 9 6 5 1 3 w w w u 1 6 3 FOIL SIDE http://www.xiaoyu163.com...
Page 46
AVR-2805/985/AVC-2890 3 7 63 1515 0 NOTE FOR PARTS LIST Part indicated with the mark " " are not always in stock and possibly to take a long period of time for supplying, or in some case supplying of part may be refused.
Page 47
AVR-2805/985/AVC-2890 PARTS LIST OF P.W.B. UNIT 3 7 63 1515 0 Note: The symbols in the column "Remarks" indicate the following destinations. EU : U.S.A. model EC : Canada model E2 : Europe model E2A : Asia model E1C : China model EUT : Taiwan R.O.C.
Page 73
AVR-2805/985/AVC-2890 EXPLODED VIEW 3 7 6 3 1 5 1 5 0 WARNING: E2, E2A model Parts List Parts marked with this symbol have critical characteristics. Use ONLY replacement parts recommended by the manufacturer. JP model Except JP model...
AVR-2805/985/AVC-2890 PARTS LIST OF EXPLODED VIEW 3 7 63 1515 0 Note: The symbols in the column "Remarks" indicate the following destinations. EU : U.S.A. model EC : Canada model E2 : Europe model E2A : Asia model E1C : China model EUT : Taiwan R.O.C.
AVR-2805/985/AVC-2890 3 7 63 1515 0 Ref. No. Part No. Part Name Remarks Q'ty 1U-3603 AUDIO/DIGITAL UNIT ASS'Y for EU,EC 1U-3603A AUDIO/DIGITAL UNIT ASS'Y for E2,E2A 1U-3603B AUDIO/DIGITAL UNIT ASS'Y for E1C 1U-3603E AUDIO/DIGITAL UNIT ASS'Y for EUT 1U-3603D...
AVR-2805/985/AVC-2890 3 7 63 1515 0 Ref. No. Part No. Part Name Remarks Q'ty 113 1992 112 P.KNOB ASS'Y(SUB) for silver model 113 1992 125 P.KNOB ASS'Y(SUB) for gold model 113 1994 107 P.KNOB ASS'Y(MAIN) for black model 113 1994 110 P.KNOB ASS'Y(MAIN)
AVR-2805/985/AVC-2890 3 7 63 1515 0 Ref. No. Part No. Part Name Remarks Q'ty 112 0933 001 KNOB (S) ASS'Y for black model 112 0933 014 KNOB (S) ASS'Y for silver model 112 0933 027 KNOB (S) ASS'Y for gold model...
AVR-2805/985/AVC-2890 PACKING VIEW 3 7 63 1515 0 212 , 213 PARTS LIST OF PACKING & ACCESSORIES Note: The symbols in the column "Remarks" indicate the following destinations. EU : U.S.A. model EC : Canada model E2 : Europe model...
AVR-2805/985/AVC-2890 NOTE FOR SCHEMATIC DIAGRAM 3 7 63 1515 0 WARNING: Parts marked with this symbol ! have critical characteristics. Use ONLY replacement parts recommended by the manufactur- CAUTION: Before returning the unit to the customer, make sure you make µ...
AVR-2805/985/AVC-2890 SCHEMATIC DIAGRAMS (1/14) 3 7 6 3 1 5 1 5 0 1 3 9 4 2 2 9 6 5 1 3 w w w SIGNAL LINE u 1 6 3 SCHEMATIC DIAGRAMS (1/14) 1U-3603-2 AUDIO IN UNIT 1U-3603-4 V.
AVR-2805/985/AVC-2890 SCHEMATIC DIAGRAMS (2/14) 3 7 6 3 1 5 1 5 0 1 3 9 4 2 2 9 6 5 1 3 w w w u 1 6 3 SIGNAL LINE SCHEMATIC DIAGRAMS (2/14) 1U-3603-1 DIGITAL UNIT (1/3)
AVR-2805/985/AVC-2890 SCHEMATIC DIAGRAMS (3/14) 3 7 6 3 1 5 1 5 0 1 3 9 4 2 2 9 6 5 1 3 w w w u 1 6 3 SIGNAL LINE SCHEMATIC DIAGRAMS (3/14) 1U-3603-1 DIGITAL UNIT (2/3)
AVR-2805/985/AVC-2890 SCHEMATIC DIAGRAMS (4/14) 3 7 6 3 1 5 1 5 0 1 3 9 4 2 2 9 6 5 1 3 w w w u 1 6 3 SIGNAL LINE SCHEMATIC DIAGRAMS (4/14) 1U-3603-3 DIGITAL UNIT (3/3)
AVR-2805/985/AVC-2890 SCHEMATIC DIAGRAMS (9/14) 3 7 6 3 1 5 1 5 0 1 3 9 4 2 2 9 6 5 1 3 w w w u 1 6 3 SIGNAL LINE SCHEMATIC DIAGRAMS (9/14) 1U-3469-6 PRE OUT UNIT...
