elysia nvelope 500 User Manual

Hide thumbs Also See for nvelope 500:
Table of Contents

Advertisement

Quick Links

Download this manual
nvelope 500

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the nvelope 500 and is the answer not in the manual?

Questions and answers

Related Manuals for elysia nvelope 500

Summary of Contents for elysia nvelope 500

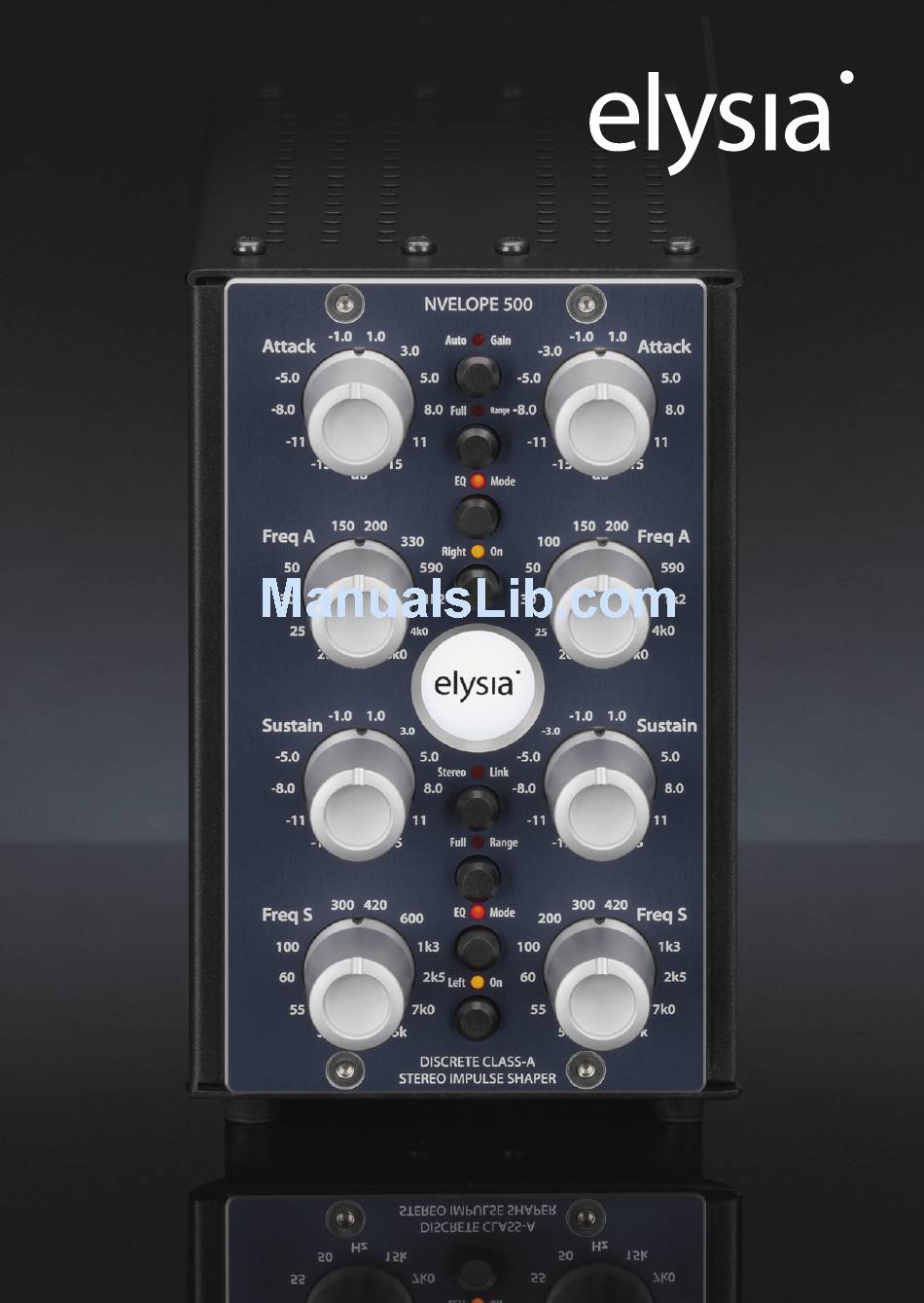

  • Page 1 500...

  • Page 2: Table Of Contents

    Its dynamics sections can also be by- passed, allowing it to function as a flexible high/low shelf EQ. We’re sure you’ll be happy to know the nvelope 500 offers true dual mono or linked stereo operation whether you are using it in Full Range, Dual Band or EQ mode.

  • Page 3: Compatibility

    4. Tighten the front panel with four screws provided by your rack manufacturer. 5. Connect your XLR audio cables (see page 6 for more info) and power up your rack. That should do it. Have lots of fun with your nvelope 500!

  • Page 4: Controls

    Controls Attack • Full Range & Dual Band Mode: Raises or reduces the attack of a signal • EQ Mode: Boosts or cuts the high frequency range Frequency Attack (Freq A) • Full Range Mode: Changes the response behavior for attack processing •...
  • Page 5 Sustain • Full Range & Dual Band Mode: Raises or reduces the sustain of a signal • EQ Mode: Boosts or cuts the low frequency range Frequency Sustain (Freq S) • Full Range Mode: No function in this mode • Dual Band Mode: Sets the end frequency for sustain processing •...

  • Page 6: Connectors

    Connectors Audio outputs (+4 dBu) 1 ground 2 hot (+) 3 ground Pin assignment balanced: Pin assignment unbalanced: 1 ground 2 hot (+) 3 idle Audio inputs (+4 dBu) 1 ground 2 hot (+) 3 cold (-) Pin assignment balanced: Pin assignment unbalanced: 1 ground 2 hot (+) 3 ground Mono operation: Connect either one or both of the input and output pairs 1 and 2 for single or dual mono channel use.

  • Page 7: The Magic

    Other useful applications would be on picked or slapped bass, edgy guitar or any kind of piano recording. Generally speak- ing, the nvelope 500 works optimally on audio signals with a significant/percussive attack structure. As a balance to the attack shaping, the sustain parameters offer control over room sound and space.

  • Page 8: Full Range Mode

    Linked Full Range Unlinked Full Range Full Range Mode In Full Range mode, you can increase or reduce the attack and sustain intensity of a signal quickly and ef- ficiently. Just turn the two controllers to the right for more accent, or to the left for more smoothing. Like a compressor (and unlike in Dual Band mode), you can use the Freq A controller to reduce the influence of low fre- quencies on the attack processing, so higher frequency = less...

  • Page 9: Dual Band Mode

    Linked Dual Band Unlinked Dual Band Dual Band Mode Dual Band mode functions basically the same as Full Range, but it gives you more tweakability by assign- ing the attack and sustain controls to individual fre- quency selectors. The Freq A controller now sets the start frequency for attack processing, while the Freq S controller determines the end fre- quency for sustain processing.

  • Page 10: Eq Mode

    Linked EQ Unlinked EQ EQ Mode In EQ mode, the nvelope 500 becomes a two band equalizer with a high/low shelf characteristic, and even here the channel link for processing stereo ma- terial can be activated. Freq A now sets the frequency of the high shelf filter, while Attack determines the amount of cut (turn left) or boost (turn right) in this band.

  • Page 11: Mixed Mode

    Dual Band (L) & Full Range (R) EQ (L) & Dual Band (R) Mixed Mode When the nvelope 500 is not in Stereo Link mode, the two individual channels can be used as different pro- cessors simultaneously. For example, you can shape one signal in Dual Band mode in channel L and a completely different signal in Full Range mode in channel R.

  • Page 12: Appendix

    Input impedance: 10 kOhm Output impedance: 68 Ohm CE Conformity elysia GmbH, Ringstraße 82, 41334 Nettetal, Germa- ny, declares with sole responsibility that this product complies with the following norms and directives: • 2006/95/EG Low Voltage Directive (formerly 73/23/EWG or 93/68/EWG) •...
  • Page 13 Precautions CAUTION: Electricity • Make sure to operate your API 500 series compatible rack at the specific mains voltage of your country. • Replace rack frame fuse with the same type and value only. • Your rack frame must be connected to ground. •...
  • Page 14 Warranty Info The nvelope 500 is covered by a limited warranty for a period of 2 years against defects in parts and labor from the date of purchase. Natural wear is not covered by this warranty. Re- pairs or replacements will not extend the warranty period.
  • Page 15 GmbH. Other product and brand names contained in this document are used for identification purposes only. All registered trade- marks, product designations or brand names used in this doc- ument are the property of their respective owners.

  • Page 16: Deutsches Handbuch

    GmbH Ringstraße 82 41334 Nettetal Germany +49 2157 126040 info@elysia.com...
