- Page 1 24 Hour Mechanical Time Switch Model: NTT02 General Purpose Timer...

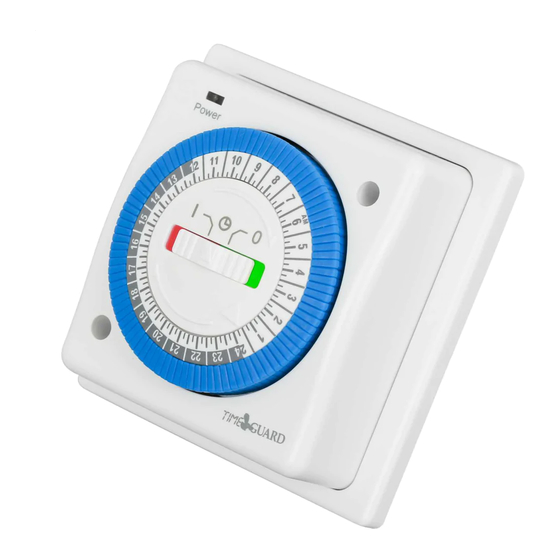

- Page 2 NTT02 General Purpose Timer Programme Power LED ring Bezel Bezel fixing screws Time indicator segment Time control segments: Control switch: 1 segment = 15 minutes, 1 = permanently ON, push segment down Timer symbol = timed for ON, pull up for Off.
- Page 3 3. Installation: We recommend that this unit be fitted by a qualified electrician. Install in accordance to wiring and current building regulations. Please read the instructions carefully. If in any doubt contact the Timeguard Helpline. Important: Switch off mains electricity before commencing work.
- Page 4 for wiring, the terminals are marked as follows: Live supply. Neutral supply. S IN Live Input for volt free output (or a link can be added between L and S IN if volt free is not required). S OUT Switch live output to heater or other appliance. 4.
-
Page 5: Specifications
5. Permanent Override: The main slider on the timer can be set to permanent ON by sliding it to the left, aligning the arrow head to the 1 symbol. In the middle position, with the arrow head pointing at the timer symbol, the timer is in automatic mode. If the slider is moved to the right, and the arrow head points at the 0 symbol, the timer is permanently Off. - Page 6 3 Year Guarantee In the unlikely event of this product becoming faulty due to defective material or manufacture within 3 years of the date of purchase, please return it to your supplier in the first year with proof of purchase and it will be replaced free of charge.
