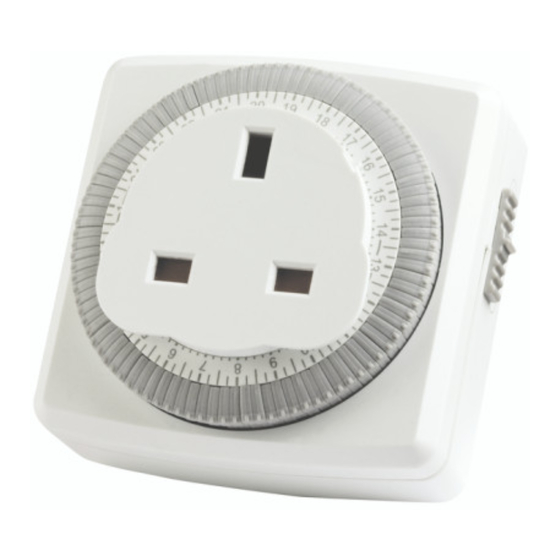

Time Guard TG24 Operating Instructions Manual

Single/twin 24 hour segment timeswitch
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
2 4 H O U R
S E G M E N T
T I M E S W I T C H
Cat No. TG24 (Single)
TG44 (Twin)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TG24 and is the answer not in the manual?

Questions and answers

Related Manuals for Time Guard TG24

Summary of Contents for Time Guard TG24

  • Page 1 2 4 H O U R S E G M E N T T I M E S W I T C H Cat No. TG24 (Single) TG44 (Twin)
  • Page 2 TG24 (single) / TG44 (twin) 24 Hour Segment Timeswitch Time of day Tough flame pointer retardant casing Manual Time of day override setting ring switch Appliance socket Time control segments 1 segment = 15 minutes Push all segments downwards for ON, leave in ON segments upward position for OFF.
  • Page 3 Segment shown in ON (lower) position Timed 1 Decide what times you would like the TG24/TG44 to switch ON and OFF. 2 Push all the segments downwards for the complete duration of an ON period and leave them all in the upper position for an OFF period (see diagram above left).
  • Page 4 24 hour cycle. You will need to plug the TG24/TG44 into a live socket and plug in an appliance such as a lamp (switched on) into the TG24/TG44’s appliance socket to do this.
  • Page 5 The TG24/TG44 can be used with incandescent filament lamps rated up to a total of 300W. The timeswitch is NOT suitable for use with fluorescent lighting (‘low energy compact’...

  • Page 6: Specifications

    Specifications Operating Temperature: 0°C to 40°C Operating Voltage: 230V 50Hz Switch Rating: 13A resistive (3kW) 2A inductive 300W filament lamps Control Type: Conforms to Directives: 73/23/EEC & 89/336/EEC Not suitable for low energy, fluorescent or discharge lamps.
  • Page 7 3 Year Guarantee In the unlikely event of this product becoming faulty due to defective material or manufacture within 3 years of the date of purchase, please return it to your supplier in the first year with proof of purchase and it will be replaced free of charge.
  • Page 8 HELPLINE 020-8450-0515 For a product brochure please contact: Timeguard Ltd. Victory Park, 400 Edgware Road, London NW2 6ND Tel: 020-8452-1112 or email csc@timeguard.com 67-058-151...

This manual is also suitable for:

Tg44
