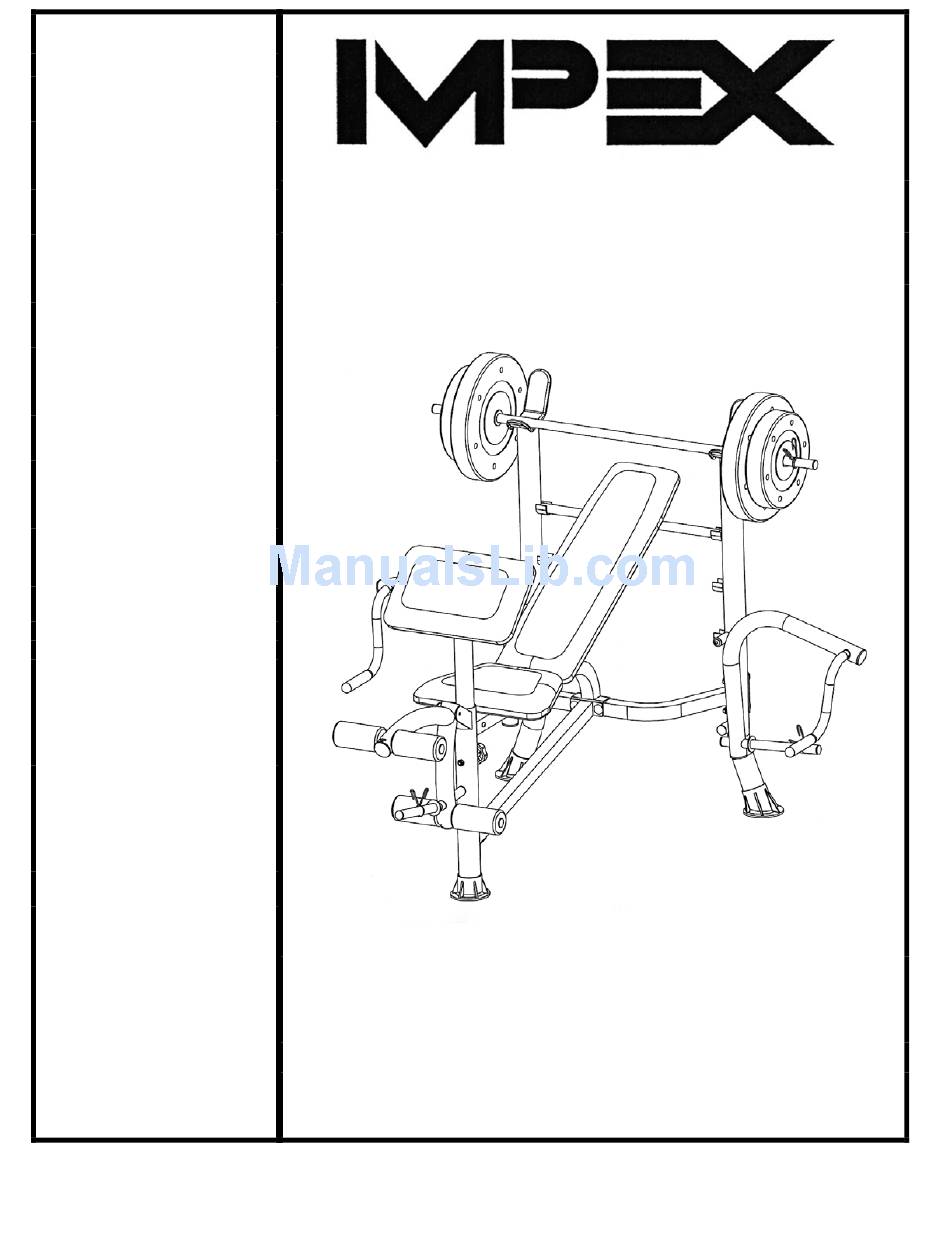

MPEX MARCY MWB-36780B Owner's Manual

Bench w/80lb weight set

Advertisement

NOTE:
Please read all instructions
carefully before using this
product
®
MARCY
BENCH
Table of Contents
Safety Notice
W/80LB WEIGHT SET
Hardware Identifier
MWB-36780B
Assembly Instruction
Parts List
Warranty
Ordering Parts
Model
MWB-36780B
Retain This
Manual for
Reference
100617
OWNER'S
MANUAL
®
IMPEX
INC.
14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746
Tel: (800) 999-8899 Fax: (626) 961-9966
www.impex-fitness.com
info@impex-fitness.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MARCY MWB-36780B and is the answer not in the manual?

Questions and answers

Summary of Contents for MPEX MARCY MWB-36780B

  • Page 1 NOTE: Please read all instructions carefully before using this product ® MARCY BENCH Table of Contents Safety Notice W/80LB WEIGHT SET Hardware Identifier MWB-36780B Assembly Instruction Parts List Warranty Ordering Parts Model MWB-36780B Retain This Manual for Reference 100617 OWNER'S MANUAL ®...
  • Page 2: Table Of Contents

    PARTS LIST....................……. WARRANTY....................…. ORDERING PARTS..................… BEFORE YOU BEGIN Thank you for selecting the MARCY MWB-36780B Bench w/80lb weight set ® by IMPEX INC. For your safety and benefit, read this manual carefully before using the machine. As a manufacturer, we are committed to provide you complete customer satisfaction.
  • Page 3: Important Safety Notices

    IMPORTANT SAFETY NOTICE PRECAUTIONS This exercise machine is built for optimum safety. However, certain precautions apply whenever you operate a piece of exercise equipment. Be sure to read the entire manual before you assemble or operate your machine. In particular, note the following safety precautions: 1.
  • Page 4: Warning Label Placement

    WARNING LABEL PLACEMENT The Warning Label shown here has been placed on the Cross Brace. If the label is missing or illegible, please call customer service at 1-800-999-8899 for replacement. Apply the label in location shown.
  • Page 5: Hardware Identifier

    HARDWARE IDENTIFIER NOTE: The following parts are not drawn to scale. Please use your own ruler to measure the size.
  • Page 6: Assembly Instructions

    ASSEMBLY INSTRUCTION Tools Required for Assembling the Machine: Two Adjustable Wrenches and Allen Wrenches NOTE: It is strongly recommended that two or more people assemble this machine to avoid possible injury. STEP 1 (See Diagram 1) A.) Do not tighten Nuts and Bolts until instructed to do so. B.) Install the two Upright End Caps (#17) onto the bottom of the Right &...
  • Page 7 STEP 2 (See Diagram 2) A.) Do not tighten Nuts and Bolts until instructed to do so. B.) Install a Front Leg End Cap (#20) onto the bottom of Front Leg (#5). Attach the Front Leg to the Main Seat Support (#3). Secure it with three M8 x 5/8” Allen Bolts (#35) and three Ø...
  • Page 8 STEP 3 (See Diagram 3) A.) Attach the Leg Developer (#7) to the Front Leg (#5). Secure it with one M8 x 3 1/8” Allen Bolt (#36), two Ø 5/8” Washers (#40), and one M8 Aircraft Nut (#44). B.) Insert two Foam Tubes (#11) halfway through the holes on the Leg Developer. Push four Foam Rolls (#28) onto the Tubes from both sides.
  • Page 9 STEP 4 (See Diagram 4) A.) Attach the Backrest Supports (#10) onto both ends of the pivot on the Main Seat Support (#3). Place the other end rest against the Backrest Adjustment Bar (#32). B.) Place the Backrest Board (#31) onto the Backrest Supports. Secure it with four M6 x 1 ½” Hex Bolts (#46) and Ø...
  • Page 10 STEP 5 (See Diagram 5) A.) Attach the Arm Curl Pad (#29) to the Arm Curl Stand (#6). Secure it with two M8 x 5/8” Allen Bolts (#35) and Ø 5/8” Washers (#40). B.) Insert the Arm Curl Stand into the top opening on the Front Leg. Secure it with a M10 x 2 5/8”...
  • Page 11 STEP 6 (See Diagram 6) A.) Attach one Butterfly (#8) to the pivot on Left Upright Beam (#2). Secure it with one M10 x 5 7/8” Allen Bolt (#37), two Ø ¾” Washers (#39), one M10 Hex Nut (#51)and one M10 Butterfly Lock Knob (#50). Do not over tighten the Knob.
  • Page 12 A.) Load 25 lbs two Weight Plates (#26) onto each end of the Bar. B.) Load 15 lbs two Weight Plates (#27) onto each end of the Bar. C.) Attach a Spring Clip (#19) to each end of the Bar to hold the plates in position. D.) Place the Weight Bar (#14) onto the Left &...
  • Page 13: Exploded Diagram

    PARTS LIST...
  • Page 14 KEY NO. DESCRIPTION QUANTITY Right Upright Beam Left Upright Beam Main Seat Support Cross Brace Front Leg Arm Curl Stand Leg Developer Butterfly Main Seat Stabilizer Backrest Support Foam Tube Curved Bracket Butterfly Handle Weight Bar 1” Square End Cap Ø...
  • Page 15: Warranty

    ® IMPEX INC. LIMITED WARRANTY ® IMPEX Inc. ("IMPEX ") warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period of two years on the Frame from the date of purchase.
