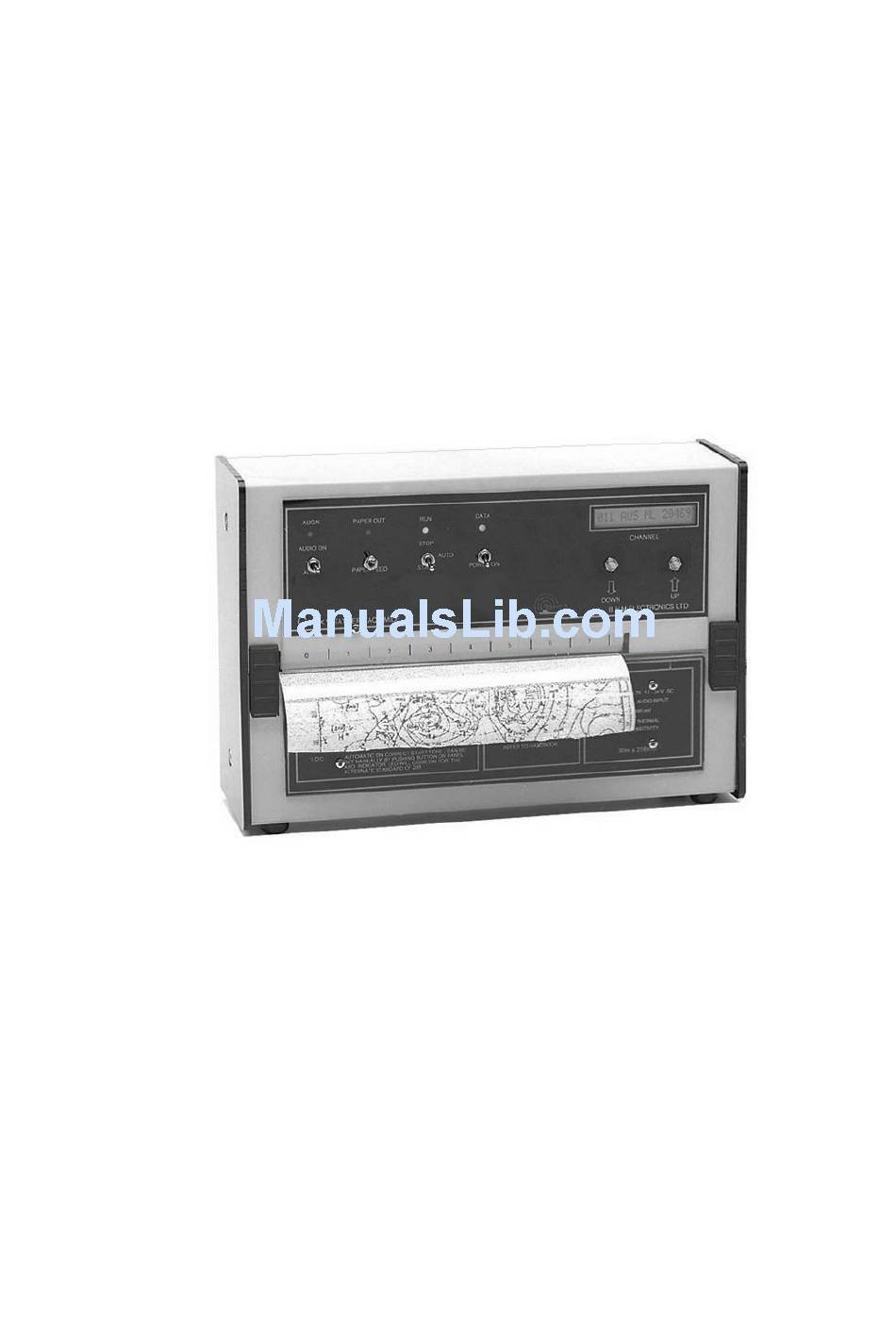

RADIO FACSIMILE RECEIVER
USER HANDBOOK
BHM Electronics

Advertisement

Table of Contents
loading

Summary of Contents for BHM Electronics 3 C-FAX

  • Page 1 C-FAX Model 3 RADIO FACSIMILE RECEIVER USER HANDBOOK BHM Electronics...
  • Page 2: Table Of Contents

    CONTENTS Introduction Unpacking Mounting Connecting Power and Aerial Connecting an External Receiver Loading Paper The Controls Using the C-Fax Sample Weather Maps Weather Map Abbreviations Detailed Description of the Controls Care of the C-Fax Trouble Shooting Replacing the Fuse Specifications Wiring Connections Frequency List...
  • Page 3: Introduction

    Introduction The C-Fax radio facsimile receiver has been designed as an easy to use, reasonably priced unit with low operating costs. The materials and finishes used ensure durability and long life, and the small size enables fitting in areas where space is at a premium. The C-Fax uses standard fax paper as used in telephone fax machines.
  • Page 4: Mounting

    Mounting the C-Fax The C-Fax may be left free standing or wall mounted on the supplied bracket. To fix the C-Fax to a wall, remove the mounting bracket from the rear of the C-Fax by taking out the two screws holding it at the bottom. Screw the bracket to the wall, slide the C-Fax back onto the bracket and replace the two bottom screws.
  • Page 5: Connecting An External Receiver

    Using an External Receiver An external receiver may be used with the C-Fax and is required if your model has no internal receiver. It must be a crystal controlled or synthesised SSB (single side band) type, with LSB (lower side band) mode. Connection should be made from either the speaker output or line level output of the external receiver to the audio socket on the side panel of the C-Fax.
  • Page 6: Loading Paper

    Loading Paper The C-Fax uses standard telephone fax machine paper, 216mm wide. The recommended paper length is 30m, longer rolls may not fit. To load a roll of paper into the C-Fax, open the two catches located each side on the front. Pull the lower edge of the catch away from the C-Fax and then unhook the upper edge.
  • Page 7: The Controls

    The Controls 2 3 4 5 6 7 8 Brief Description of the Controls Audio On/Off/Picture Align Up - received signal audible Centre - no audio Down - hold down to manually align picture Align Indicator - used for manual align Fast Paper Feed Paper Out Indicator Stop/Auto/Start...
  • Page 8: Using The C-Fax

    Using the C-Fax Switching On Make sure power plug and aerial connections have been made and that a roll of paper is properly inserted in the C-Fax, as described on pages 4 to 7. Move the power switch (number 7 in the picture on the previous page) down. If your C-Fax has an internal receiver the channel display (9) should show the current channel number, location and frequency the C-Fax is listening to.
  • Page 9 picture generally takes about 15 minutes to send. Finally the stop signal is sent. This is 5 seconds of alternating tones followed by 10 seconds of a steady tone. You may turn off the audio by putting the Audio switch (1) back to the middle position. It is only required for determining the signal quality of a channel.
  • Page 10: Sample Weather Maps

    Sample Weather Maps Australia Significant Weather Prognosis Australia Mean Sea Level Prognosis Darwin Tropics Significant Weather Prognosis Indian Ocean Mean Sea Level Prognosis Example of a noisy signal...
  • Page 11: Weather Map Abbreviations

    Weather Map Abbreviations These are some of the common abbreviations you will see on weather maps Map areas ASIA 50°N to 50°S, 100°E to 180° Indian Ocean NPAC 50°N to 50°S, 160°E to 110°W NREG Equator to 50°S, 140°E to 140°W New Zealand South Pacific (Australia to South America) South West Pacific (Australia to Tahiti)
  • Page 12: Detailed Description Of The Controls

    Detailed Description of the Controls Numbers in brackets refer to the picture on page 6 Audio On/Align switch (1) and Align light (2) When this switch is placed in the up position then audio from the receiver can be heard. This can be used to listen to the quality of the radio reception on any of the channels.
  • Page 13 Note: Some brands of paper are glued to the center core, in this case the paper out light will not operate as the paper remains in the print area. If you find this happening try changing the roll within a few maps of the warning stripe appearing. Stop/Auto/Start switch (5) and Run light (6) In the up position the printer is off.
  • Page 14: Care Of The C-Fax

    Care of the C-Fax There are no parts to be lubricated. When a new roll of paper is fitted remove any paper scraps or dust from the paper compartment. At this time also check and clean the rubber pressure roller if necessary. The roller should only be cleaned with alcohol.
  • Page 15: Trouble Shooting

    Trouble Shooting Unit is dead - no lights Check Power switch is on (down) Power lead is connected Fuse on side panel is intact Power polarity, red wire of lead is positive, black is negative Voltage to the C-Fax is correct, between 12 and 15V If all these check ok, or if the fuse fails again after replacement, seek technical assistance.
  • Page 16: Specifications

    Specifications RECORDING SYSTEM Printing by static thermal head on thermal paper RECORDING PAPER High sensitivity thermosensitive INDEX OF COOPERATION SCANNING SPEED 120 lines per minute RESOLUTION 8 dots/mm START AND STOP Automatic or manual PHASING Automatic or manual DATA TONES White 1500Hz Black 2300Hz RECEIVING SYSTEM Double conversion superheterodyne...
  • Page 17: Wiring Connections

    Wiring Connections Power Supplied via a 4 pin round line socket, standard threaded locking collar. Side Panel Power pin 1 unused pin 2 negative (black) pin 3 positive (red) pin 4 unused Power supply 12 to 15V DC at 1.5A, 12W maximum Audio In Standard 3.5mm mono audio plug for external receiver.
  • Page 18: Frequency List

    Frequency list for the C-Fax Channel Frequency Call Location/Country sign 1 Auckland 5807.0 kHz ZKLF Auckland,New Zealand 2 Auckland 9459.0 kHz ZKLF 3 Auckland 13550.5 kHz ZKLF 4 Auckland 16340.1 kHz ZKLF 5 Melbourne 2628.0 kHz AXM31 Melbourne,Australia 6 Melbourne 5100.0 kHz AXM32 7 Melbourne...
  • Page 19 61 Tokyo JMH 13597.0 kHz JMH4 62 Tokyo JMH 18220.0 kHz JMH5 63 Tokyo JMH 23522.9 kHz JMH6 64 Tokyo Radio 4316.0 kHz Tokyo Radio,Japan 65 Tokyo Radio 8467.5 kHz 66 Tokyo Radio 12745.5 kHz 67 Tokyo Radio 16971.0 kHz 68 Tokyo Radio 17069.5 kHz 69 Tokyo Radio...
  • Page 20 126 Maritime Air 14626.0 kHz 127 Bracknell 2618.5 kHz GFE25 Bracknell,United Kingdom 128 Bracknell 4610.0 kHz GFA22 129 Bracknell 8040.0 kHz GFA23 130 Bracknell 14436.0 kHz GFE23 131 Bracknell 18261.0 kHz GFE24 132 Northwood 2618.5 kHz Northwood,United Kingdom 133 Northwood 4610.0 kHz 134 Northwood 8040.0 kHz...
  • Page 21 191 Nairobi 12315.0 kHz 5YE2 192 Nairobi 15525.0 kHz 5YE9 193 Nairobi 16315.0 kHz 5YE6 194 Nairobi 17365.0 kHz 5YE3 195 Nairobi 22867.0 kHz 5YE7 196 Test 1750kHz 1750.0 kHz test Receiver test frequencies 197 Test 3.5MHz 3500.0 kHz test 198 Test 7.0MHz 7000.0 kHz...
  • Page 22 Manufactured by BHM Electronics Invercargill New Zealand Postal Address: PO Box 787, Invercargill Delivery: 287 Dee Street, Invercargill Phone: 0-3-218 3495 Fax: 0-3-218 3494 International Phone: +64 3 218 3495 International Fax: +64 3 218 3494 E-mail: bhm@bhmelectronics.co.nz Web: bhmelectronics.co.nz...
