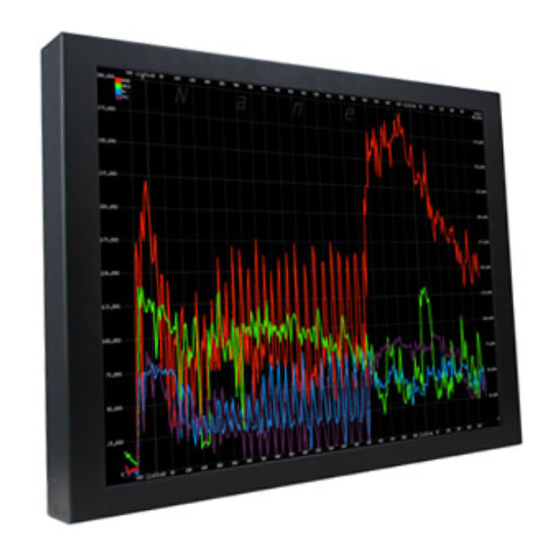

42" FHD-Compatible Widescreen Industrial LCD Display
ADM-5842BP-0XX
USER MANUAL
Thank you for purchasing the ADM-5842BP-0XX Industrial LCD Display. We are confident that you will
be pleased with the performance and reliability of your new display. The display is designed to meet
the screen performance requirements of today's demanding industrial applications. While complying
with a wide variety of industrial video formats, it delivers a larger screen area, higher resolutions, and
greater color accuracy than many displays in its price range.
Publication date: 2014/08/26
Version No.: V2.1
Advertisement
Table of Contents
Related Manuals for Arista ADM-5842BP-0XX
Summary of Contents for Arista ADM-5842BP-0XX
-
Page 1: User Manual
ADM-5842BP-0XX USER MANUAL Thank you for purchasing the ADM-5842BP-0XX Industrial LCD Display. We are confident that you will be pleased with the performance and reliability of your new display. The display is designed to meet the screen performance requirements of today's demanding industrial applications. While complying with a wide variety of industrial video formats, it delivers a larger screen area, higher resolutions, and greater color accuracy than many displays in its price range. -
Page 2: Product Safety Precautions
Product safety precautions Read all of these instructions and save this manual for later use. Follow all warnings and instructions on the product. • Relative humidity: 25%~80% • Storage temperature: -20 C to 60 C(-4F to 140F) • Operation temperature: 0~50 C(32F to 122F) •... -
Page 3: Table Of Contents
Connecting through VGA/DVI....................18 Connecting the touch interface via RS-232 or USB cable .............19 Connecting the Remote OSD.....................19 Connecting the power supply....................20 Checking connectivity for the ADM-5842BP-0XX ..............21 Chapter 4 Settings......................22 Installing the eGalaxTouch Utility....................22 Using the eGalaxTouch Utility....................23 OSD settings..........................25 Chapter 5 Appendix......................28... -
Page 4: Chapter 1 Welcome
Chapter 1 Welcome Features • 42” Active Max TFT LCD display, full HD 1920 x 1080 resolution(DVI input) • 16:9(wide) aspect ratio for the display. • LCD protected by tempered glass. • Computer video signals of VGA, SVGA, XGA, SXGA, WXGA, UXGA, WUXGA standard. • Supports vertical refresh rate of up to 75Hz for VGA, SVGA and XGA of VESA standard specification. -
Page 5: Product Specifications
Product specifications -0XX... -
Page 6: Unpacking
Unpacking Open the package and inspect the items carefully to make sure no item is damaged and all atures items listed are present in your package. ADM-5842BP-0XX Display x1 Remote OSD Remote control 6 feet DVI cable x1 6 feet USB cable x1... -
Page 7: Chapter 2 Basics
Chapter 2 Basics Interfaces and remote control Front View Rear View Display screen Remote OSD connector Power indicator- green for working mode, red for DVI port standby mode. VGA port Remote control IR receiver RS-232 port (for touch screen) DC 24V input USB port (for touch screen) Ground terminal... -
Page 8: Remote Control
Remote Control Buttons Description POWER • Power on or power off. MENU • Press MENU to bring up the settings menu such as: Brightness, Contrast, etc. • Move the cursor or increase the data value of settings. ▼DOWN • Move the cursor or decrease the data value of settings. INFO • Press to display channel information, resolution, color space, etc. -
Page 9: Battery Installation For The Remote Control
Using the Remote Control Correctly Remote Sensor Point the remote control unit no more than 5 30° meters from the sensor and within 60° of the 30° front of the display. 5M Maximum distance Battery Installation for the Remote Control Push and pull to open the... -
Page 10: Remote Osd
Follow the steps outlined below to connect the Remote OSD: • Step1: As shown in the figure below, the Remote OSD can be affixed to a wall, board or bracket with the use of screws. • Step2: Use the Remote OSD cable to connect to the connector located at the rear of the ADM-5842BP-0XX. Rear panel Remote OSD (supplied) AUTO LEFT... -
Page 11: Configuration
The configuration is given in two parts: the model number and the order information. Model number The model number can be parsed as followed: For more detailed technical information, including configuration layout, please contact Arista customer support at (510) 226-1800, ext. 400 ADM-58 LCD Size Mounting Scheme Environmental Protection Order information The ordering information for each configuration is defined below. -
Page 12: Physical Dimensions
Physical dimension The diagram below shows the physical and specific dimensions of the ADM-5842BP-0XX. Front view Rear view Model Number L(Overall W(Overall width) Height Weight Length) ADM - 5842BP-0XX 42.85” 26.85” 5.04” 47 kg... -
Page 13: Chapter 3 Connections
Warning! Make sure your display is grounded at all times. Also make sure that it is on the same ground as any other equipment connected to its communications ports. Connectors Connectors are located at the bottom of the ADM-5842BP-0XX display... -
Page 14: Pins In The Dvi Port
Pins in the DVI port 1 2 3 4 5 6 7 10 111213 141516 DVI signal input connector Pin NO. Pin Assignment Pin Description Remark RXD2- T.M.D.S Data 2- RXD2+ T.M.D.S Data 2+ T.M.D.S Data 2 Shield No connection No connection DDC clock DDC data... -
Page 15: Pins In The Vga Port
Pins in the VGA port 5 4 3 2 15 14 13 12 11 VGA signal input connector Pin NO. Pin Assignment Pin Description Remark VGA R VGA Red signal VGA G VGA Green signal VGA B VGA Blue signal No connection Ground Ground... -
Page 16: Pins In The Rs-232 Touch Port
As the below figure shown, Please follow the steps to mount the display. • Step 1: Place two VESA mounts on the back of the ADM-5842BP-0XX, and align the holes on the VESA mounts with the holes on the display. -
Page 17: Vesa Mounting
ADM-5842BP-0XX 100 x 400mm/3.94 x 15.75 inch Warning! The ADM-5842BP-0XX display needs be mounted on a VESA- compliant mount and wall bracket. Failure to properly and securely situate the display can result in injury to personnel or damage to equipment. -
Page 18: Connecting Through Vga/Dvi
Connecting through VGA and DVI • Connect one end of the VGA or DVI cable to the VGA or DVI port of the ADM-5842BP-0XX LCD display. Connect the other end of the VGA or DVI cable to the VGA or DVI port of a computer. -
Page 19: Connecting The Touch Interface Via Rs-232 Or Usb Cable
• Follow the steps outlined below to connect the Remote OSD: • Step1: As shown in the figure below, the Remote OSD can be affixed to a wall, board or bracket with the use of screws. • Step2: Use the Remote OSD cable to connect to the connector located at the rear of the ADM-5842BP-0XX. Rear panel Remote OSD(supplied) -
Page 20: Connecting The Power Supply
AC outlet Rear panel Power supply DC Power cable (supplied) The AC to DC 24V power supply provided with ADM-5842BP-0XX does not have environmental protection. In order to meet a degree of protection, the power supply has to be installed in a specific IP rating enclosure. Step1 Step3... -
Page 21: Checking Connectivity For The Adm-5842Bp-0Xx
Checking connectivity for the ADM-5842BP-0XX Turning on the ADM-5842BP-0XX display • Make sure the power cable is connected correctly, • Make sure the DVI or VGA cable is connected correctly. • If you want to use the touch screen function, please make sure your RS-232 or USB cable is connected correctly. -
Page 22: Chapter 4 Settings
Chapter 4 Settings Installing the eGalaxTouch Utility Insert the driver CD into your computer and 3. Click “next”and follow the on-screen install the eGalax touch driver software by instructions to continue the installation. following the steps below. 1. Double click the “setup” to start the installation of the eGalaxTouch software. -
Page 23: Using The Egalaxtouch Utility
Using the eGalaxTouch Utility There are seven property tabs in the eGalaxTouch Utility window: General, Setting, Tools, Display, Edge Compensation, Hardware and About. Each tab contains different functions for users to adjust to their preferences Therefore, users can easily manage all the eGalaxTouch controller settings through this utility window. - Page 24 3.Display Tab 4. Edge Compensation Tab 5. Hardware Tab 6. About Tab...
-
Page 25: Osd Settings
OSD settings Display settings 1. Press the MENU button on the Remote OSD or the Remote control to enter the settings/options menu. 2. the UP/DOWN buttons or the LEFT button to select. Press the ENTER button on the remote control or the INPUT button on the Remote OSD to confirm. Select and enter the Picture Settings screen. -
Page 26: System Settings
System settings 1. Press the MENU button to enter the settings/options screen,then press the Right button to bring up the system setting screen. 2. Press the UP/DOWN buttons on the remote control or the LEFT button on the Remote OSD to select a setting. Press ENTER and/or INPUT to enter/confirm a setting. Press the MENU button to return to the previous screen. - Page 27 Input source settings 1. Press the MENU button to enter the settings/options screen, then continuously press the Right button to bring up the Input Source setting screen. 2. Press the UP/DOWN buttons or the LEFT button to select (DVI, PC-RGB) item, then press the ENTER or INPUT buttons to confirm the selection and exit.
-
Page 28: Chapter 5 Appendix
Chapter 5 Appendix Maintenance and troubleshooting 1. Maintenance Regular maintenance of the ADM-5842BP-0XX industrial display can help prevent damage or downtime. Warning! Do not operate or service the unit with its chassis open. There are hazardous voltages inside. Service should only be performed by qualified and authorized personnel. Make sure your industrial display is powered down and unplugged before removing the cover or working on internal components. -
Page 29: Product Limited Warranty
North America region. 1) Limited Warranty Coverage • If a product does not work properly because of a defect in materials or workmanship, Arista Corporation will, for the length of a period of three years, starting with the date of the original purchase (invoice date), at its discretion either repair your product with new or refurbished parts, or replace it with new or a refurbished product. - Page 30 No Credit DOA: No credit will be given to the customer for DOA products received by Arista beyond 30 calendar days after the invoice date. No credit will be given to all non-cancellable,...
- Page 31 • In cases of transportation damage, the customer is responsible for filing any and all claims with the shipping carrier. • To avoid any potential risk that an RMA product is lost or damaged while in transit to Arista, it is recommended that the customer insures and declares the full value of the RMA product.
-
Page 32: Customer Responsibilities
Products will not be accepted by Arista Corporation if not accompanied by a valid RMA number, which must be clearly marked on the outside of the package. Arista reserves the rights to return any RMA product received that does not comply with the information given on the original Return Material Authorization (RMA) request, such as: • Invalid RMA number... -
Page 33: Frequently Asked Questions
Frequently asked questions What does ‘refresh rate’ mean in relation to an LCD display? The refresh rate is of much less relevance for LCD displays. LCD displays stay at a stable, flicker-free image at 60Hz. There is no visible difference between 85Hz and 60Hz. Are LCD display Plug-and-Play? Yes, the displays are Plug-and-Play compatible with Windows XP, 7 and 8 What is a Liquid Crystal Display? A Liquid Crystal Display (LCD) is an optical device that is commonly used to display ASCII characters and images on digital items such as watches, calculators, portable game consoles, etc. -
Page 34: Disposal And Recycling Information
Disposal and Recycling Information Your display must be disposed of properly according to local laws and regulations. Because your remote control contains a battery, it must be disposed of separately from household waste. When your display reaches the end of its life cycle, contact your local authorities to know about recycling options. - Page 35 Talk to us. We listen. Arista Corporation 40675 Encyclopedia Circle, Fremont, CA 94538 U.S.A. Tel: (510) 226-1800 Fax: (510) 226-1890 http://www.goarista.com...
