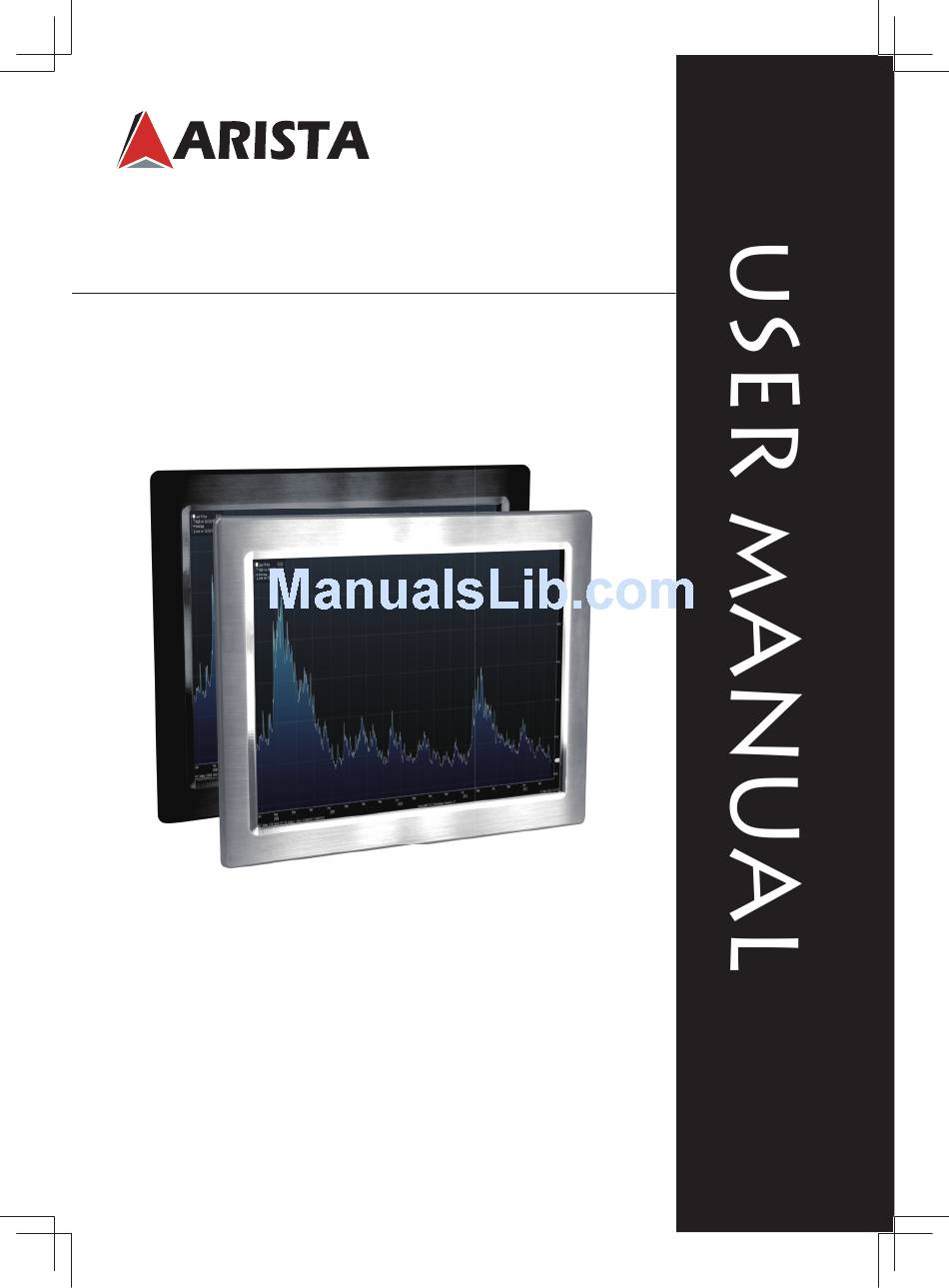

ADM-1800 Series
Industrial Panel Mount LCD Display
Thank you for purchasing the ADM 1800 series Industrial Panel Mount
LCD Display. We are confident that you will be pleased with the
performance and reliability of your new display. The display was designed
to meet the screen performance requirements of today's demanding
industrial applications. While complying with a wide variety of industrial
video formats, it delivers a larger screen area, higher resolutions, and
greater color accuracy than many displays in its price range.
Version 1.3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADM-1800 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Arista ADM-1800 Series

  • Page 1 Talk to us. We listen. ADM-1800 Series Industrial Panel Mount LCD Display Thank you for purchasing the ADM 1800 series Industrial Panel Mount LCD Display. We are confident that you will be pleased with the performance and reliability of your new display. The display was designed to meet the screen performance requirements of today's demanding industrial applications.
  • Page 3: Table Of Contents

    4. Technical Support ....................27 5. RMA Procedures ....................28 6. RMA Credit Policy ....................28 7. RMA Transportation Policy .................. 29 8. RMA Shipping Instruction ..................29 9. Arista’s Limited Liability ..................30 10.Disclaimer ......................30 Frequently asked questions ..................31...
  • Page 4: Product Safety Precautions

    Product safety precautions Read all of these instructions and save this manual for later use. Follow all warnings and instructions on the product. • Relative humidity: 25%~80% • Storage temperature: -20 C to 60 C(-4F to 140F) • Operation temperature: 0~50 C(32F to 122F) •...
  • Page 5: Fcc Declaration Of Conformity

    - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected - Consult the dealer or an experienced radio/TV technician for help DECLARATION OF CONFORMITY We (Arista Corporation), 40675 Encyclopedia Circle, Fremont, CA 94538 U.S.A. 510-226-1800...
  • Page 6: Features

    Features • 6”, 8”,10”, 12“, 15”, 17”, 18”, 19”, 20”, 21”, or 24” XGA color TFT LCD display. • Support Vertical refresh rate up to 75Hz for VGA, SVGA and XGA of VESA standard specifi cation. • The Best Productivity Solution •...
  • Page 7: Unpacking

    Unpacking Unpack the package and inspect the items closely to make sure no item is damaged and all items listed are present in your package: Display x1 Adaptor x1 AC power cord x1 RS232 cable x1 Drive CD rom x1 VGA cables x1 Screws Automatic Power Saving...
  • Page 8: Product Overview

    Product Overview Rear panel Button Function Use for selecting options or decrease the data MENU Use for setup OSD settings or confi rm some operations. Use for selecting options or increase the data POWER Power On/Off control 24V DC jack 24V DC power input DVI jack DVI source input...
  • Page 9: Confi Guration

    The confi guration is given in two parts: the model number and the options. Model number The model number can be parse as follow: For more detailed technical information, including jumpers and board layout, please contact Arista customer support at (510) 226-1800, ext. 137 ADM-18 Options The options can be parsed as follows:...
  • Page 10: Panel Spectifi Cations

    Panel spectifi cations Model Display Type Resolution Colors Dot Size (mm) Luminance Contrast Viewing Number Angle (V/H) ADM-1806 6.5 Inch TFT 640 x 480 16.7M 0.207 X 0.207 /160 ADM-1808 8.0 Inch TFT 800 x 600 16.7M 0.213 X 0.213 /150 ADM-1810 10.4 Inch TFT 800 x 600 16.7M 0.264 x 0.264...
  • Page 11: Dc Power Specifi Cation

    DC power specifi cation DC Power input The standard value 12.0V Note: Before using the machine, please make sure the pressure range in LCD screen, LCD backlight, and cooling fan is enough. VGA signals input The minimum value The standard value The maximum value 600mV 650mV...
  • Page 12: Physical Dimensions

    Physical dimensions Physical dimensions for the eight basic chasses are given in the table on the following page. The diagram below shows the ADM-1815 as an example, with the generic dimensions indicated. To fi nd the specifi c dimensions for a chassis, cross-reference the generic dimensions * w: Overall width : Display Chassis W...
  • Page 13: Connectors

    Connectors This section describes the components and connectors of your ADM-1800 series industrial panel mount LCD display. Warning! Make sure your display is grounded at all times. Also make sure that it is on the same ground as any other equipment connected to its communications ports.
  • Page 14: Pins In Dvi Signal Input Connector Description

    Pins in DVI signal input connector description 1 2 3 4 5 6 7 10 111213 141516 DVI signal input connector Pin NO. Pin Assignment Pin Description Remark RXD2- T.M.D.S Data 2- RXD2+ T.M.D.S Data 2+ T.M.D.S Data 2 Shield No connection No connection DDC clock...
  • Page 15: Pins In Vga Signal Input Connector Description

    Pins in VGA signal input connector description 5 4 3 2 15 14 13 12 11 VGA signal input connector Pin NO. Pin Assignment Pin Description Remark VGA R VGA Red signal VGA G VGA Green signal VGA B VGA Blue signal No connection Ground Ground...
  • Page 16: Pins In Touch Connector Description

    Pins in touch connector description 9 8 7 6 RS232 signal input connector Pin NO. Pin Assignment Pin Description Remark No connection ISP program upgrade TXD signal serial transmit data ISP program upgrade RXD signal Serial receive data No connection Ground No connection No connection...
  • Page 17: Installing

    Installing 1. Panel mounting This display panels can be placed on a shelf or table, or mounted onto a control panel. To mount them onto a control panel you need a kind of mounting kits, which you will fi nd in the accessory box.
  • Page 18: Connecting The Display

    DVI cable, connect it to the DVI (IN) connector of the display. The optional DVI graphics adapter and the DVI cable can be ordered by contacting Aydin Displays. Display rear panel Arista BOXPC 138G VGA connector connector VGA cable(supplied) DVI cable(not supplied) : Signal fl...
  • Page 19: Connect The Display Via Usb Cable Or Rs 232 Cable

    Connect Touch Screen Cable (Optional): Connect the optional USB or RS 232 serial touch screen connection to the driver card or system driving the touch screen controller. Display rear panel Arista BOXPC 138G RS232 cable(supplied) USB cable(not supplied) 3. Connect power adapter and cable •...
  • Page 20: Installing Calibration Software

    Installing calibration software 3. Restart the computer to fi nish the Install the calibration software follow the several steps as below: installing. 1. Double click the “setup” to start to install the calibration software. 2. Click “next” to continue, and go ahead 4.
  • Page 21: Video Alignment Or Calibration

    Video alignment or calibration 1. If the mouse cursor doesn’t appear at 3. Use the point of something such as the the position of touch, double click the pen to calibrate the four points of the “USB Controller“ on the desktop to open display.
  • Page 22: Operations

    If your computer was off, turn on your computer/system, and turn on your display. Your display should now operate as a normal computer display showing your windows or whatever video is being sent to the fl at panel. Display rear panel Arista BOXPC 138G VGA connector connector VGA cable(supplied) DVI cable(not supplied) Warning! Make sure your LCD is grounded at all times.
  • Page 23: Picture Setting

    Picture setting 1. Press MANUAL button to enter PICTURE setting screen. Picture Mode User Color Temperature Aspect Ratio PC Setup Backlight 2. Press SEL- button to select item, and press MANUAL button to confi rm the selection, then enter the next menu for setting. 3.
  • Page 24: Option Setting

    Option setting 1. Press MANUAL button to enter PICTURE setting screen, then press SEL+ button to bring up the OPTION setting screen. OSD Language English Restore Factory Default Blending OsdDuration Light Sensor Temperature Sensor 2. Press SEL- button to select item, and press MANUAL button to confi rm the selection, then enter the sub-menu for setting.
  • Page 25: Input Source

    Input source 1. Press MANUAL button to enter PICTURE setting screen, then press SEL+ button to bring up the Input Source setting screen. 2. Press SEL- button to select (DVI, PC-RGB) item, then press MANUAL button to confi rm the selection and exit. Input Source DVI, PC-RGB, Select the input source signal.
  • Page 26: Maintenance And Troubleshooting

    LCD backlights are rated at the number of hours of operation until they are at half of their original brightness. The ADM-1800 series industrial display backlights are rated at 50,000 hours — that equates to six years of continuous service.
  • Page 27: Product Limited Warranty

    • The customer pays the freight for shipping the defective products to Arista Corp. After repair or replace, Arista Corp. will ship and pay UPS Ground for the products being shipped back to the customer. •...
  • Page 28: Rma Procedures

    No Credit DOA: No credit will be given to the customer for DOA products received by Arista beyond 30 calendar days after invoice date. No credit will be given to all non-cancelable, non-...
  • Page 29: Rma Transportation Policy

    • To avoid any potential risk that an RMA product is lost or damaged while in transit to Arista, it is recommended that the customer insures and declares the full value of the RMA product since the customer is 100% responsible for the RMA product while in transit to Arista.
  • Page 30: Arista's Limited Liability

    RMA Rejection Policy Products will not be accepted by Arista Corp. if not accompanied by a valid RMA number, which must be clearly marked on the outside of the package. Arista reserves the rights to return any RMA product received that dose not comply with the information given on the original Return Material Authorization (RMA) request, such as: •...
  • Page 31: Frequently Asked Questions

    4. Restart your computer and repeat step 2 and 3 to verify that your PC is set at 1920x1200@60Hz. 5. Shut down your computer, disconnect your old display and reconnect your Arista LCD display. 6. Turn on your display and then turn on your PC.
  • Page 32 Arista Corporation 40675 Encyclopedia Circle, Fremont, CA 94538 U.S.A. Tel: (510) 226-1800 Fax: (510) 226-1890 http://www.goarista.com...
