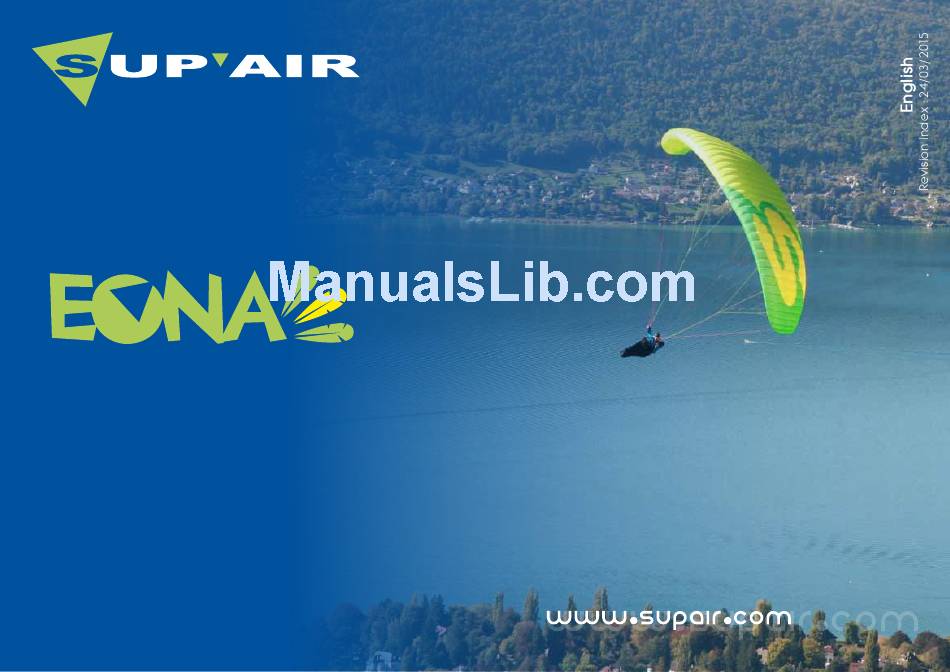

- Page 1 EONA glider user’s manual User’s manual EN-A GLIDER SUP’AIR - VLD 34 rue Adrastée Parc Altaïs 74650 Annecy - Chavanod FRANCE 45°54.024’N / 06°04.725’E SUP’AIR _EONA Page 1...
- Page 2 EONA glider user’s manual Thank you for choosing to fly our EONA to paraglide with. We are delighted to have you on-board to share our passion for para- gliding. SUP’AIR has been designing producing and selling accessories for free flying acti- vities since 1984.
-
Page 3: Table Of Contents
EONA glider user’s manual Contents Introduction Technical specifications Equipment overview Connecting the glider Pre-flight preparation Take-off Flight characteristics End of the flight Specific practices Fast descents Flight incidents Line layout Materials Measurement table Certificates Maintenance Mandatory checks Warranty Disclaimer Pilot equipment Complementary equipment / Accessories SUP’AIR... -
Page 4: Introduction
Welcome to the world of free flying : a shared world of passion. The EONA wing is a glider meeting all the students and instructors requirements. It was designed for both intensive schooling and private use while providing great inflight comfort all along the pilot's progression curve. The well though out design and choice of materials were guided by the same quality and longevity objectives. - Page 5 EONA glider user’s manual Technical data Glider EONA Cell number Flat surface area (m²) 26.5 29.45 Span (m) 10.51 11.28 11.89 Chord (m) 2.48 2.66 2.86 3.01 Flat Aspect Ratio Projected surface area (m²) 16.98 19.53 22.50 25.00 Projected span (m) 7.71...
-
Page 6: Equipment Overview
EONA glider user’s manual Equipment overview Leading edge Trailing edge Stabilizer Intrados Extrados A riser A' riser (for big ears) B riser C riser Brake line Brake holding guide Brake handle Riser hook-up loop « Ears » kit BIRD 100 lt. capacity carrying rucksack. -
Page 7: Connecting The Glider
A,B.C, risers as well as the brake lines neatly. Knots or tangles can not be present. Choosing an adapted harness. The EONA glider was certified EN A with a EN1651 & LTF certified harness and hence can be flown with most harnesses models found on the market today. We wil advise you to choose a EN1651 and or LTF certified harness with a built-in dorsal protection system. - Page 8 EONA glider user’s manual Connecting the glider Brake line length fisherman's knot Brake line lengths are set at the factory to allow optimal glider control. However, if they do not suit you they can be adjusted to your liking. We will advise using a fisherman’s knot and to keep your length changes to a minimum (approx 5cm maximum).
-
Page 9: Pre-Flight Preparation
PRE-FLIGHT PREPARATION The EONA glider was designed to help new pilots with their progression. To discover your new wing, we will advise you to conduct your first small flights in calm conditions on a school training hill or a familiar site you are used to flying with your own harness. -
Page 10: Take-Off
EONA glider user’s manual Take-off The design team has strived to produce a wing with optimum inflating abilities in all flyable conditions. Whether it be in light or high winds you will enjoy its docile behavior while launching. However before the first flight, practice ground-handling to become familiar with your new glider. - Page 11 Using the accelerator/speedbar. According to the EN A norm, the EONA glider was designed to be stable throughout its speed range. Accelerated, the wing becomes more sensitive to turbulence. If you sense a glider internal pressure decrease while pushing on the accelerator;...
-
Page 12: End Of The Flight
Towing The EONA wing can be towed up. Fly only with certified gear operated by qualified personal and only after taking a towing clinic. The towing force must correspond to the weight of the equipment, and the pulling sequence can only start when the wing is fully inflated and stable over the pilot's head. -
Page 13: Fast Descents
EONA glider user’s manual FAST DESCENTS The following techniques should only be used in emergencies and require prior training to be safely conducted. Appropriate analysis and anticipation of the conditions will often prevent the need to use fast descent techniques. We will advise you to practice in still air and preferably above water. - Page 14 To prevent stressing we do not recommend combining spiral dives with "Ears". Conforming to the EN A, the EONA glider does not show any tendency to stay in a locked spiral configuration and will return by itself to a normal flying angle in less than two full rotations when the toggles/brakes are brought back up.
-
Page 15: Flight Incidents
EONA glider user’s manual Flight incidents Asymmetric collapses Any paraglider may occasionally collapse due to turbulence or a piloting error. In the event of an asymmetric collapse your priority must be to stay clear of the terrain and regain level flight. It is done by via of weight shifting toward the open side and if necessary, support the action by applying an appropriate amount of brake on the same side. -
Page 16: Line Layout
EONA glider user’s manual LINE LAYOUT DIAGRAM SUP’AIR _EONA Page 16... -
Page 17: Materials
EONA glider user’s manual Materials Fabrics Producer Reference Outer surface Porcher Sport Skytex 38 Universal – 9017E25 Inner Surface Porcher Sport Skytex 38 Universal – 9017E25 Supported ribs Dominico tex Dominico 30D hard finish Compression straps and D ribs Dominico tex... - Page 18 EONA glider user’s manual Maintenance sheet. EONA glider Size XS Line Check Maintenance Sheet Frein Centre 5667 5590 5655 5771 6400 5618 5542 5605 5719 6218 5610 5533 5594 5707 6097 5640 5562 5627 5741 6084 5636 5547 5591 5702...
-
Page 19: Measurement Table
EONA glider user’s manual Measurement table EONA glider Size S Line Check Maintenance Sheet Frein Centre 6084 6003 6074 6197 6779 6033 5952 6021 6141 6601 6025 5944 6009 6130 6488 6057 5976 6045 6167 6484 6061 5966 6016 6135... - Page 20 EONA glider user’s manual Measurement table EONA glider Size M Line Check Maintenance Sheet Frein Centre 6535 6445 6530 6672 7347 6481 6391 6475 6613 7157 6472 6381 6466 6603 7035 6508 6417 6504 6644 7032 6529 6434 6506 6646...
- Page 21 EONA glider user’s manual Measurement table EONA glider Size L Line Check Maintenance Sheet Frein Centre 6911 6819 6897 7035 7656 6855 6763 6839 6973 7457 6845 6754 6828 6961 7330 6883 6792 6870 7005 7327 6893 6786 6847 6976...
-
Page 22: Certificates
EONA glider user’s manual CERTIFICATES Certification EN 926 -1 : 2006 & 926 - 2 : 2013 Classe N° PG-0889.2014 LTF 91/09 Class: PG_0926.2015 In accordance with EN standards 926-2:2013 & 926-1:2006: 24. 03. 2015 Date of issue (DMY): Supair - VLD... - Page 23 EONA glider user’s manual CERTIFICATES Certification EN 926 -1 : 2006 & 926 - 2 : 2013 Classe N° PG-0889.2014 LTF 91/09 Class: PG_0913.2015 In accordance with EN standards 926-2:2013 & 926-1:2006: 17. 03. 2015 Date of issue (DMY): Supair - VLD...
- Page 24 EONA glider user’s manual CERTIFICATES Certification EN 926 -1 : 2006 & 926 - 2 : 2013 Classe N° PG-0889.2014 LTF 91/09 Class: PG_0889.2014 In accordance with EN standards 926-2:2013 & 926-1:2006: 14. 11. 2014 Date of issue (DMY): Supair - VLD...
- Page 25 EONA glider user’s manual CERTIFICATES Certification EN 926 -1 : 2006 & 926 - 2 : 2013 Classe N° PG-0889.2014 LTF 91/09 Class: PG_0914.2015 In accordance with EN standards 926-2:2013 & 926-1:2006: 17. 03. 2015 Date of issue (DMY): Supair - VLD...
-
Page 26: Maintenance
• Lines (no excessive wear no breakages or folds) maillons and carabiners • Materials selected for the EONA ensure the best compromise for lightness and longevity. However in certain conditions such as exposure to UV or abrasion or exposure to chemical products the glider must be submitted to a thorough inspection by a qualified facility. -
Page 27: Disclaimer
Most of them are recyclable. If your EONA's life span is over, you can separate all metallic and plastic parts from the cloth and dispose of the rest according to your country's recycling guide lines and requirements. Please contact your local recycling center for more information.. - Page 28 SUPAIR-VLD Parc Altaïs 34 rue Adrastée 74650 Chavanod, Annecy FRANCE info@supair.com +33(0)4 50 45 75 29 45°54.024’N / 06°04.725’E...
