Installation & Operation Instructions
KOLD-DRAFT
®
Ice Machine Products
1525 East Lake Road, Erie, PA 16511-1088
814/453-6761
FAX 814/455-6336
©2004 KDIndustries, Inc., Erie, PA U.S.A.
Printed in U.S.A.
508 1036 01
A Tradition of Excellence In Ice Equipment.
3/04
CLASSIC
®
AKD-125
AKD-125-FF
ICE DISPENSER
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kold-Draft AKD-125
Summary of Contents for Kold-Draft AKD-125

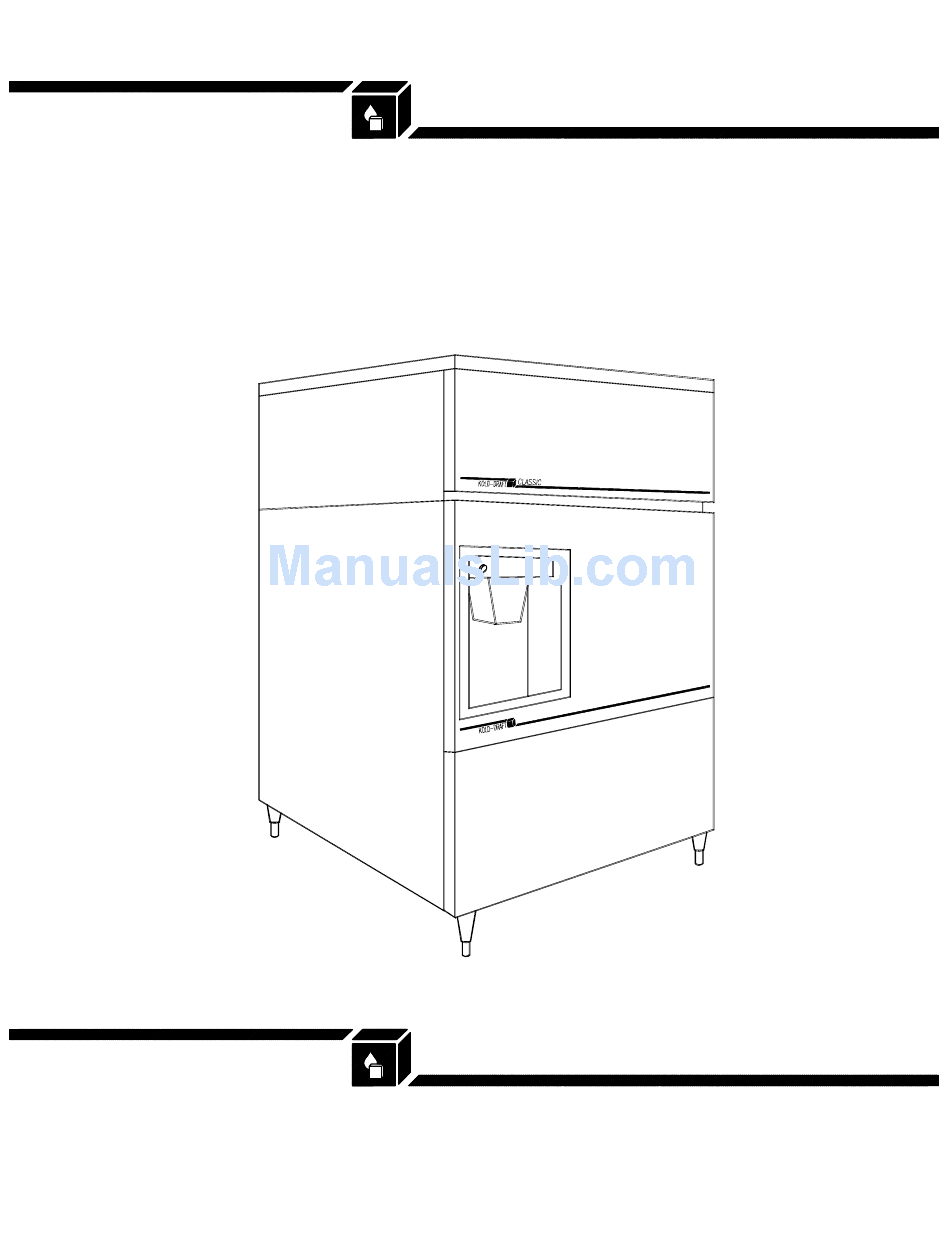

- Page 1 AKD-125 AKD-125-FF CLASSIC ICE DISPENSER KOLD-DRAFT ® Installation & Operation Instructions KOLD-DRAFT ® Ice Machine Products 1525 East Lake Road, Erie, PA 16511-1088 A Tradition of Excellence In Ice Equipment. 814/453-6761 FAX 814/455-6336 ©2004 KDIndustries, Inc., Erie, PA U.S.A. Printed in U.S.A.
- Page 2 Never operate this equipment with covers, panels or other parts removed or not properly secured. Warn all users to clean up spillage immediately, and report any apparent leakage or unusual sounds to maintenance personnel. ® Proper installation must include Kold-Draft GT Series Ice Cuber mounted above Dispenser.
- Page 3 INSTALLATION NOTE: Refer to ice cuber instructions before proceeding. 1. CAREFULLY remove the carton from the dispenser. 2. If the dispenser is to be mounted on the 6" legs provided, carefully place the unit on its back and install the legs in the threaded mounting holes. 3.
- Page 4 8. If the GT cuber that you are mounting on the AKD does not have the hole in the drain pan support, you must do the following: A) Drill out the pop rivet, on the drain pan support that is nearest to the right side of the cuber, with a #27 (.144") drill.
- Page 5 The AKD-125 Ice Dispenser is designed for 115 volt 60 hz. operation. The AKD-125-FF is designed for 230 volt 50 hz. operation. Refer to equipment name plate data for current value and maximum fuse size. This unit must be provided with a separate, properly protected circuit with no other loads. A fused disconnect installed adjacent to the dispenser is recommended (to be supplied by installer), and may be required by local codes.
- Page 6 508 1036 01 - 5 -...
