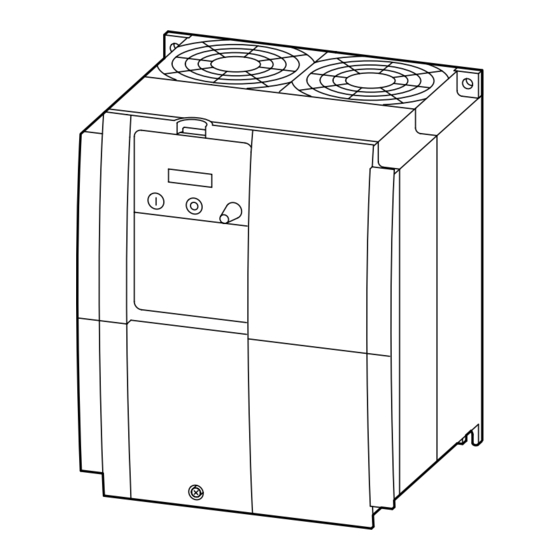

Quick Reference Guide

DF6-340-...
Frequency Inverters
02/02 AWB8230-1449GB
st
1
published 2002, edition 02/02
© Moeller GmbH, 53105 Bonn
Author:
Holger Friedrich
Editor:
Michael Kämper
Translator:
Dominik Kreuzer
All brand and product names are trademarks or registered
trademarks of the owner concerned.
All rights reserved, including those of the translation.
No part of this manual may be reproduced in any form
(printed, photocopy, microfilm or any otherprocess) or processed,
duplicated or distributed by means of electronic systems without
written permission of Moeller GmbH, Bonn.
Subject to alteration without notice.
