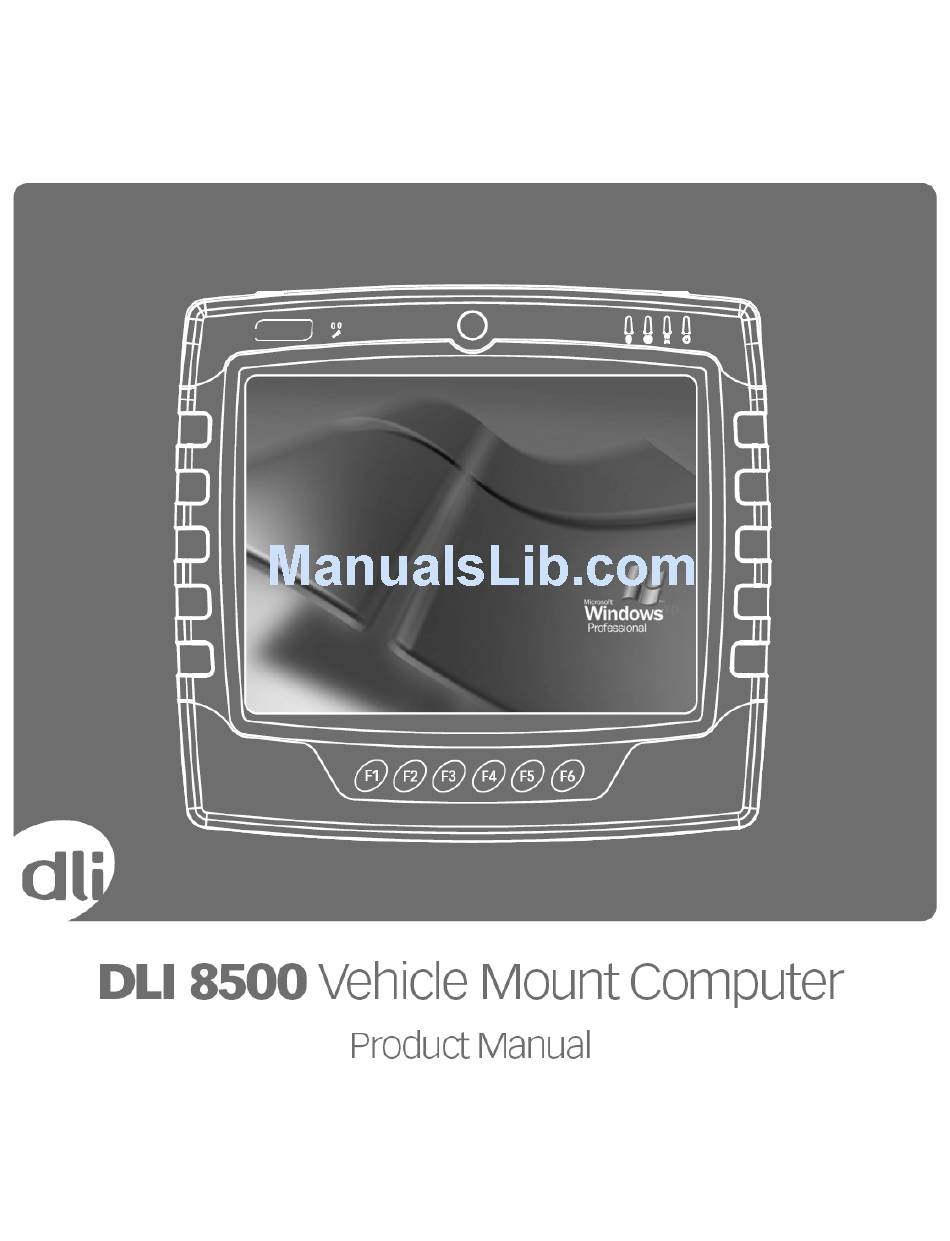

DLI 8500 Product Manual

Dli 8500 vehicle mount computer product manual

Advertisement

Rev 2.0
Rev. 3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8500 and is the answer not in the manual?

Questions and answers

Summary of Contents for DLI 8500

  • Page 1 Rev 2.0 Rev. 3...
  • Page 2: Table Of Contents

    Data Ltd., Inc. (DLI) reserves the right to make changes in specifications and other information contained in this document without prior notice, and the reader should in all cases consult DLI to determine whether any such changes have been made. The information in this publication does not represent a commitment on the part of DLI.
  • Page 3: Thank You

    FCC Compliance ........................... 42 Thank You! Data Ltd Inc. would like to thank you for selecting the DLI 8500. The DLI 8500 was designed as a forward thinking product that is modular in design and upgradeable. We thank you the customer for giving us the inspiration for the following features: •...
  • Page 4: Hardware Overview

    Hardware Overview Front Panel Battery Status LED WiFi LED Bluetooth LED Microphone 2MP Color Camera Power LED LCD with Touch Panel Impact Resistant Case Programmable Keyboard DLI 8500 PRODUCT MANUAL PAGE 4/44 Rev. 3...
  • Page 5 No Connection Refer to Battery Status LED Battery Status section. Page 8 Bottom Panel Master Reset VGA Port Ethernet Speaker Microphone Port Port Port Wifi Serial Locking AC Power Connector Port Ports Connector DLI 8500 PRODUCT MANUAL PAGE 5/44 Rev. 3...
  • Page 6 VGA Port (Video Out) Optional SMA Connector for External GPS Optional External Wifi Antenna Connector Standard locking USB, industrial grade connectors. Only DLI authorized peripherals should be attached to these USB ports. The USB port power is rated to 1A. USB Port...
  • Page 7: Setting Up The Dli 8500 Terminal

    Holder Speaker Speaker Setting Up the DLI 8500 Terminal 1. Unpack the carton and verify its contents. – Page 8 3. Charge the main battery for 2hrs. 4. Power on the terminal via the power button on the left side of the terminal.
  • Page 8: Unpack The Carton And Verify Its Contents

    DLI 8500 Quick Reference Start Guide If you ordered peripherals and/or accessories, verify that they are also included with the order. Be sure to keep the original packaging in case the DLI 8500 needs to be returned for service– See page 36. Battery Status LED’s...
  • Page 9: Power Management Utility

    Checking the Battery Power The battery power can be checked from two areas on the DLI 8500. The battery icon will provide a graphical representation of the remaining battery power. 1. Tap on the battery icon in the system task bar.
  • Page 10: Adjusting The Backlight

    By default the level is set to 7. (0 being the lowest and 7 being the highest level) To adjust the level of backlight: Start>Control Panel. Choose the DLI Brightness icon. Tap “–“ or “+” to adjust the brightness. The settings are auto saved after adjustment.
  • Page 11: Using The Stylus

    Holding down the stylus for 3 seconds will activate the right mouse click. Calibration: 1. Right tap on the PenMount icon in the system stray. 2. Select the PenMount Control Panel. 3. Chose the PenMount 6000 USB icon and tap the Configure button. DLI 8500 PRODUCT MANUAL PAGE 11/44 Rev. 3...
  • Page 12 5. Hold the stylus naturally as if you were writing with a ball point pen, holding the stylus down on each red point as they appear. During calibration, position the terminal as close to the way you would use it. DLI 8500 PRODUCT MANUAL PAGE 12/44 Rev. 3...
  • Page 13: Using The Programmable Keys

    Using the Programmable Keys The DLI 8500 has 6 integrated function keys. Each of the keys is user configurable via the DLI KeyMon Utility. The keys can be assigned to perform executable applications or to Data Ltd.
  • Page 14 2. The DLI KeyMon screen is presented. Choose a key that requires a definition by tapping on the orange keys or by highlighting the key in the button assignment area and then double tapping. 3. There are 5 options for key assignment. Choose the assignment that is required for the key.
  • Page 15 5. The user is returned to the assign menu once the selection has been chosen from the browser icon. Selecting the apply button saves the change to the key. The path to the application will appear in blue below the Current Assignment: DLI 8500 PRODUCT MANUAL PAGE 15/44 Rev. 3...
  • Page 16 7. The drop menu has a list of various actions and keystrokes to choose from. Once you have selected the command, tap the apply button to save. 8. To Close the DLI KeyMon tap on the “X” on the top right of the Main Window. DLI 8500 PRODUCT MANUAL PAGE 16/44 Rev.
  • Page 17: Using The Wifi Radio

    Using the WiFi Radio The DLI 8500 has an USB 802.11b/g integrated radio. The radio is configured using the Ralink Wireless Utility (RaUI) The RaUI provides the following features to Administrators and end-users: Disable the radio (turn it off) and enable the radio (turn it on)
  • Page 18 Highlight a network and click the "Connect" button. If the SSID is broadcasted and no securities are found, you will connect. Connection is indicated by the blue triangle next to the network. DLI 8500 PRODUCT MANUAL PAGE 18/44 Rev. 3...
  • Page 19 If the SSID is not broadcasted, you will be prompted for the SSID. Enter in SSID and click OK. DLI 8500 PRODUCT MANUAL PAGE 19/44 Rev. 3...
  • Page 20 If the network is secured, you will be prompted for the security entries, such as WEP. Enter in WEP keys and click OK. (The little key icon indicates the network has securities.) DLI 8500 PRODUCT MANUAL PAGE 20/44 Rev. 3...
  • Page 21 To add a connection to the preferred profile list; highlight the network, tap Add to Profile. Enter in the SSID and appropriate securities. Click OK found at the bottom of the window. DLI 8500 PRODUCT MANUAL PAGE 21/44 Rev. 3...
  • Page 22: Using The Bluetooth Radio

    Activate the profile by highlighting it and clicking the Activate button. Using the Bluetooth Radio The internal Bluetooth Class II wireless radio in the DLI 8500 is disabled by default. Microsoft™ Bluetooth software comes pre-installed on your terminal. Enabling the Bluetooth Radio To enable the Bluetooth radio, follow the instructions below: 1.
  • Page 23 2. Select Open Bluetooth Settings. 3. From the tabs at the top of the screen choose the Hardware tab. Tap on the Properties button. DLI 8500 PRODUCT MANUAL PAGE 23/44 Rev. 3...
  • Page 24 This may take a few seconds. The Bluetooth LED on top of the terminal will begin to flash when the radio is turned on. 5. Select the Finish button to end the installation process. Tap the Ok button at the Bluetooth properties screen. DLI 8500 PRODUCT MANUAL PAGE 24/44 Rev. 3...
  • Page 25 6. Tap the OK button to finalize the enabling process. Bonding an Accessory to the DLI 8500 To bond a Bluetooth device to the DLI 8500 the icon in the system tray offers shortcuts to the Bluetooth Settings window; the Bluetooth File Transfer Wizard and the Add New Connection Wizard.
  • Page 26 Bluetooth is running) 2. Using your stylus, Right mouse click the Bluetooth Devices icon in the system tray. 3. Tap Add a Bluetooth Device to launch the Bluetooth Add Bluetooth Device Wizard. DLI 8500 PRODUCT MANUAL PAGE 26/44 Rev. 3...
  • Page 27 Look at the documentation that came with the Bluetooth device or visit the manufacturer’s website for information. 5. After you make the Bluetooth device discoverable, tap Next. The Add Bluetooth Device Wizard will search for the Bluetooth device. DLI 8500 PRODUCT MANUAL PAGE 27/44 Rev. 3...
  • Page 28 Windows will choose one for you. Press Next to continue If required, immediately enter the number shown in the passkey field and press Next. Consult your device documentation for more information. DLI 8500 PRODUCT MANUAL PAGE 28/44 Rev. 3...
  • Page 29: Using The Camera Option

    The 2M Pixel Color Camera is located on the front side of the terminal. The camera can be used for picture capture as well as streaming video. 2MP Color Camera Front Panel DLI 8500 PRODUCT MANUAL PAGE 29/44 Rev. 3...
  • Page 30: Using The Rs-232 Db9M

    To verify the operation of the camera you will need to launch the DLI Camera Demo. To launch the application tap Start>Control Panel>DLI Camera Demo icon. Tap Ok at the Stream Format Properties. The camera will auto focus to the image you chose to capture.
  • Page 31 Chose the General Tab to configure the RS-232 port and check Use Serial Keys. Tap the Settings button to access the Baud Rate and Com port that will be configured. 4. Set Serial Port to COM1 and Baud Rate to 9600, tap OK. DLI 8500 PRODUCT MANUAL PAGE 31/44 Rev. 3...
  • Page 32: Using The Gps

    Data Ltd has included in the DLI 8500 a GPS software tool to verify that all functions of the GPS module are working properly.
  • Page 33 3. The configuration screen is displayed. Set the COM Port to COM 3. This is the COM port that your GPS module is using. Set the Baud Rate to 9600. Tap the OK button to save the settings. DLI 8500 PRODUCT MANUAL PAGE 33/44 Rev. 3...
  • Page 34 The blue bar indicates a lock to a satellite and the gray bar indicates that the module is communicating with the satellite but does not have a complete fix on your location. DLI 8500 PRODUCT MANUAL PAGE 34/44 Rev. 3...
  • Page 35 7. To verify the longitude and latitude reading from the DLI 8500 location choose the Navigation icon. The module must be locked onto 3 satellites before the reading is accurate.
  • Page 36: Installing Clearance & Airflow

    Make sure the device is given a minimum of 1.5 inches of clearance to allow for proper airflow. Integrated Power Filtering DC Converter The DLI 8500 has an Integrated Backup Battery with 10~60V DC/DC Converter. The DLI 8500 must be installed post ignition with a 10AMP in-line fuse. DC Converter: 10~60V Input...
  • Page 37: Shipping Your Dli Device

    Shipping your DLI Device Proper way to pack your DLI device DO NOT ship any DLI Device without a proper UPS or FedEx container. The DLI Container is not meant for stand-alone shipping. Place device in foam cover as shown.
  • Page 38 Using a proper UPS or FedEx container, line the bottom with Bubble Wrap, Air Pillows, Packing Foam, etc. The dimensions of the box shown are 27x17x10. Place the closed DLI container inside the lined Shipping Container. Fill the rest of the Shipping Container with packing material. DLI 8500 PRODUCT MANUAL PAGE 38/44 Rev.
  • Page 39: Limited Warranty

    IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. DATA LTD. INC’S RESPONSIBILITY AND PURCHASER’S EXCLUSIVE REMEDY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT OF THE DEFECTIVE PRODUCT. DLI 8500 PRODUCT MANUAL PAGE 39/44 Rev. 3...
  • Page 40: Regulatory And Safety Approvals

    Please read these guidelines carefully before using your DLI 8500 terminal. Embedded Safety Information Text The DLI 8500 has the following safety information on the back label of the terminal DLI 8500 PRODUCT MANUAL PAGE 40/44...
  • Page 41 DLI 8500 RF terminal is designed to comply with the most current applicable standards on safe levels of RF energy developed by the Institute of Electrical and Electronics Engineers (IEEE) and the American National Standards Institute (ANSI) and has been recommended for adoption by the Federal Communications Commission (FCC).
  • Page 42: Fcc Compliance

    FCC RF exposure guidelines for body-worn operation, do not use accessories that contain metallic components. When using accessories where the terminal is worn on the body, the terminal’s touch screen must face away from the body. DLI 8500 PRODUCT MANUAL PAGE 42/44 Rev. 3...
  • Page 43 If you need more information on the collection, reuses, and recycling systems, please contact your local or regional waste administration. You may also contact your supplier for more information on the environmental performances of this product. DLI 8500 PRODUCT MANUAL PAGE 43/44 Rev. 3...
  • Page 44 Data Ltd. Inc. 703 Data Ltd. Parkway P.O. box 761 La Porte, IN 46352 Telephone: (800) 526-1299 Fax number: (219) 362-1937 DLI 8500 PRODUCT MANUAL PAGE 44/44 Rev. 3...
