DLI 9200 Product Manual

Vehicle mount terminal
Hide thumbs
Table of Contents

Advertisement

Quick Links

Product Manual
Rev. 3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9200 and is the answer not in the manual?

Questions and answers

Related Manuals for DLI 9200

Summary of Contents for DLI 9200

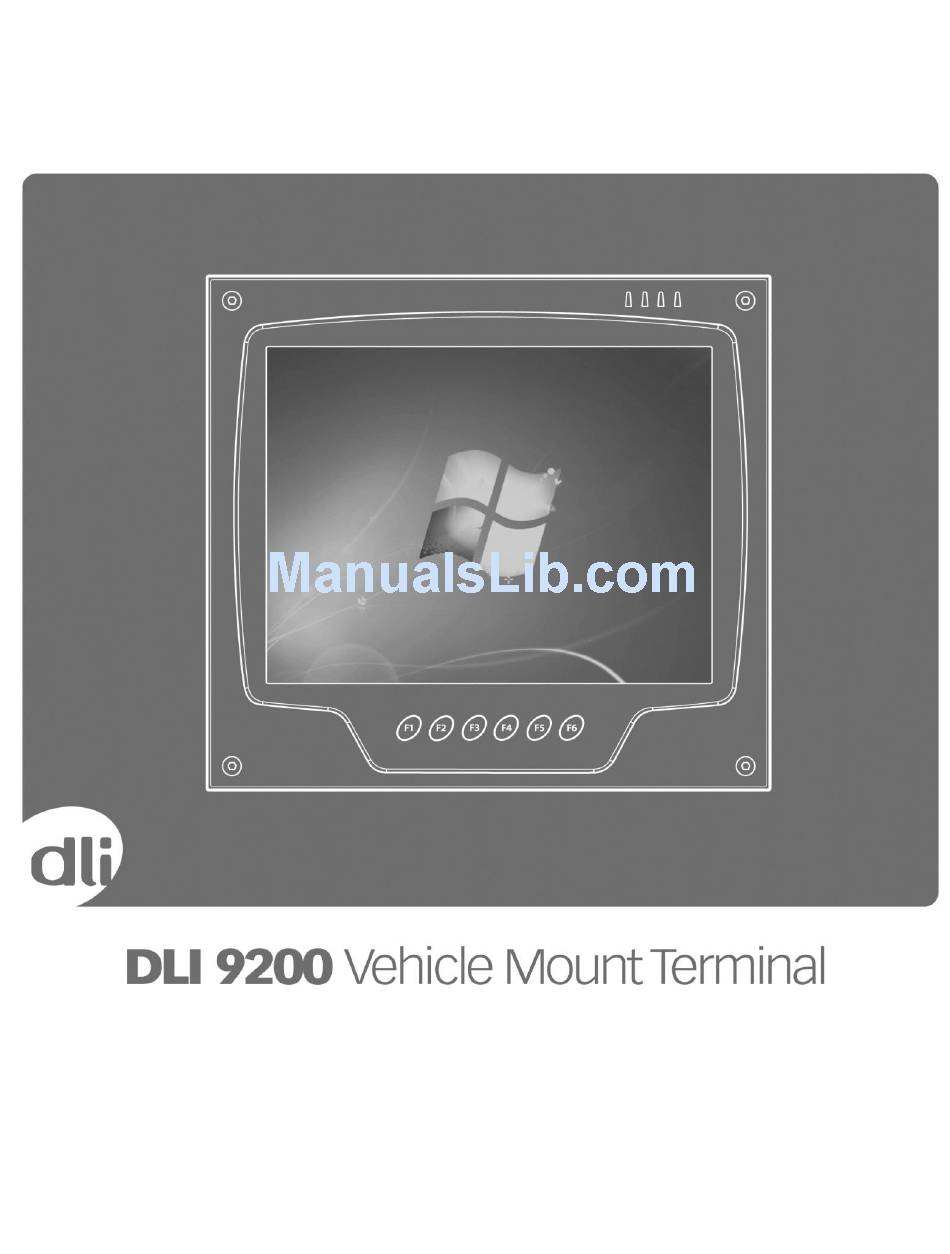

  • Page 1 Product Manual Rev. 3...
  • Page 2 Data Ltd., Inc. (DLI) reserves the right to make changes in specifications and other information contained in this document without prior notice, and the reader should in all cases consult DLI to determine whether any such changes have been made. The information in this publication does not represent a commitment on the part of DLI.

  • Page 3: Table Of Contents

    Hardware Overview……………………………………………………………………………………………...…05 Setting Up the DLI 9200 Terminal………………………………………………………………………………...09 Unpack the Carton and Verify its Contents………………………………………………………………………09 Battery Status LED…………………………………………………………………………………………………09 Charging the Battery in the DLI 9200…………………………………………………………………………….10 Power Management Utility………………………………………………………………………………………...11 Optional Auto Power On & Off Setup…………………………………………………………………………….11 Adjusting the Backlight……………………………………………………………………………………………..11 Using the Stylus…………………………………………………………………………………………………….13 Using the Programmable Keys……………………………………………………………………………………16...

  • Page 4: Thank You

    Thank You! Data Ltd Inc. would like to thank you for selecting the DLI 9200. The DLI 9200 was designed as a forward thinking product that is modular in design and upgradeable. We thank you, the customer, for giving us the inspiration for the following features: •...

  • Page 5: Hardware Overview

    Hardware Overview Battery LED Front Panel WiFi LED Bluetooth LED Power LED LCD with Touch Programmable Keyboard Impact Resistant Panel Metal Case DLI 9200 PRODUCT MANUAL PAGE 5/39 Rev. 3...

  • Page 6: Bottom Panel

    WiFi Antenna Connector Connector (RPTNC) (RPTNC) Bottom Panel Master Reset Bluetooth Serial Antenna Port Connector Speaker Ethernet Microphone Port Port Port AC Power VGA Port Locking Connector Connector Bottom Panel Features Ports DLI 9200 PRODUCT MANUAL PAGE 6/39 Rev. 3...
  • Page 7  Optional SMA Connector for External GPS  Optional External FME Antenna Connector  Standard locking USB, industrial grade connectors. Only DLI authorized peripherals should be attached to these USB ports. The USB port power is rated to 1A. USB Port...
  • Page 8 Posts Speaker Speaker Setting Up the DLI 9200 Terminal 1. Unpack the carton and verify its contents. – Page 9 3. Charge the main battery for 2hrs. 4. Power on the terminal via the power button on the left side of the terminal.

  • Page 9: Setting Up The Dli 9200 Terminal

    DLI 9200 Quick Reference Start Guide If you ordered peripherals and/or accessories, verify that they are also included with the order. Be sure to keep the original packaging in case the DLI 9200 needs to be returned for service– See page 31. Battery Status LED’s...
  • Page 10 Checking the Battery Power The main way to check the battery power on the DLI 9200 is to use the battery icon. It provides a graphical representation of the remaining battery power.  Tap on the battery icon in the system task bar.

  • Page 11: Power Management Utility

    Power Management Utility The DLI 9200 includes a comprehensive suite of power management functions. The power management is based upon the ACPI Standard (Advanced Configuration and Power Interface Specification) and is operated within the Embedded Controller (EC) at low level management.

  • Page 12: Adjusting The Backlight

    By default the level is set to 7. (0 being the lowest and 7 being the highest level) To adjust the level of backlight: Start>Control Panel. Choose the DLI Brightness icon. Tap “–“ or “+” to adjust the brightness. The settings are auto saved after adjustment.

  • Page 13: Using The Stylus

    Holding down the stylus for 3 seconds will activate the right mouse click. Calibration: 1. Right tap on the PenMount icon in the system stray. 2. Select the PenMount Control Panel. 3. Chose the PenMount 6000 USB icon and tap the Configure button. DLI 9200 PRODUCT MANUAL PAGE 13/39 Rev. 3...
  • Page 14 5. Hold the stylus naturally as if you were writing with a ball point pen, holding the stylus down on each red point as they appear. During calibration, position the terminal as close to the way you would use it. DLI 9200 PRODUCT MANUAL PAGE 14/39 Rev. 3...
  • Page 15 Select OK to close the application down. The PM icon will still be present in the system tray for quick configuration should your touch screen need recalibration. Do not write on the terminal display with ink pens or use other sharp objects that may damage the display. DLI 9200 PRODUCT MANUAL PAGE 15/39 Rev. 3...

  • Page 16: Using The Programmable Keys

    Using the Programmable Keys The DLI 9200 has 6 integrated function keys. Each of the keys is user configurable via the DLI KeyMon Utility. The keys can be assigned to perform executable applications or to Data Ltd. predefined functions. The predefined functions are as follows: F1 assigned to DLI On-Screen Keyboard and F2 assigned to DLI Camera.
  • Page 17 5. The user is returned to the assign menu once the selection has been chosen from the browser icon. Selecting the apply button saves the change to the key. The path to the application will appear in blue below the Current Assignment: DLI 9200 PRODUCT MANUAL PAGE 17/39 Rev. 3...
  • Page 18 7. The drop menu has a list of various actions and keystrokes to choose from. Once you have selected the command, tap the apply button to save. 8. To Close the DLI KeyMon tap on the “X” on the top right of the Main Window. DLI 9200 PRODUCT MANUAL PAGE 18/39 Rev.

  • Page 19: Using The Wifi Radio

    Using the WiFi Radio The DLI 9200 has a PCIe 802.11a/b/g/n integrated radio. In Windows 7 the radio is configured using the Windows Network and Sharing Center. With older versions of Windows the radio is configured by Intel PROSet. Please contact Technical Support (See page 30) if you have any questions configuring your radio.
  • Page 20 Selecting Set Up a Connection or Network brings up an easy to use wizard that helps create a connection to your network and or the Internet. Choose the option that fits what you need to do. DLI 9200 PRODUCT MANUAL PAGE 20/39 Rev. 3...
  • Page 21 If the SSID is not broadcasted you will need to select ‘Manually connect to a wireless network’. This option will allow to you create a profile to add the SSID, Security type, and Encryption type. Select Next to connect. DLI 9200 PRODUCT MANUAL PAGE 21/39 Rev. 3...

  • Page 22: Using The Bluetooth Radio

    Bluetooth software comes pre-installed on your terminal. Pairing an Accessory to the DLI 9200 To pair a Bluetooth device to the DLI 9200 the icon in the system tray offers shortcuts to the Bluetooth Settings window; the Bluetooth File Transfer Wizard and the Add New Connection Wizard.
  • Page 23 5. After you make the Bluetooth device discoverable, it will show up in the wizard. Select the Bluetooth device and select Next. The Add Bluetooth Device Wizard will search for the Bluetooth device. DLI 9200 PRODUCT MANUAL PAGE 23/39 Rev. 3...
  • Page 24 You have a limited time after selecting Enter the device’s pairing code to input the code. Select Next. If a pairing code is required, please read documentation that came with your Bluetooth device or contact the manufacturer. DLI 9200 PRODUCT MANUAL PAGE 24/39 Rev. 3...
  • Page 25 7. When the device has been successfully paired and added the wizard is complete and the device is ready to use. Select Close to finish DLI 9200 PRODUCT MANUAL PAGE 25/39 Rev. 3...

  • Page 26: Sim Card Insertion

    (two phillip screws) then remove the plate cover (two phillip screws). The SIM Card Slot is intended for use of the MC8790 (GPRS Wireless Radio) ONLY. If you are unaware of what type of WWAN Radio you have please contact DLI Technical Support; (800) 526-1299 x774 or support@dataltd.com.

  • Page 27: Using The Gps

    Data Ltd has included in the DLI 9200 a GPS software tool to verify that all functions of the GPS module are working properly.
  • Page 28 Altitude. You can also view the Streaming NMEA data. You must be outside a building as GPS antennas do not work inside buildings. The green bars indicate a lock to a satellite. DLI 9200 PRODUCT MANUAL PAGE 28/39 Rev. 3...

  • Page 29: Installation Clearance & Airflow

    DLI devices must be installed pre-ignition (directly to battery terminals) with a 5 AMP in-line fuse.  Failure to connect to battery terminals could damage the power conversion circuitry.  For 24 volt to 48 volt systems, the DLI Surge Suppressor p/n: 5400020 is required. DC Converter: 10~60V Input Positive Black Ground together Yellow Please consult your fork truck manufacturer for proper installation instructions.

  • Page 30: Technical Assistance

    Contact the appropriate location below to obtain a Return Material Authorization number (RMA #) before returning the product. Telephone: (800) 526-1299 ext 766 Fax number: (239) 491-2554 E-mail: RMA@dataltd.com Website: http://www.dataltd.com/html/request-rma.html DLI 9200 PRODUCT MANUAL PAGE 30/39 Rev. 3...

  • Page 31: Shipping Your Dli Device

    Shipping your DLI Device Proper way to pack your DLI device DO NOT ship any DLI Device without a proper UPS or FedEx container. The DLI Container is not meant for stand-alone shipping.  Place device in foam cover as shown.
  • Page 32   Using a proper UPS or FedEx container, line the bottom Place the closed DLI container inside the lined Shipping with Bubble Wrap, Air Pillows, Packing Foam, etc. Container. The dimensions of the box shown are 27x17x10.  ...

  • Page 33: Limited Warranty

    All provisions of this Limited Warranty are separate and severable, which means that if any provision is held invalid and unenforceable, such determination shall not affect the validity of enforceability of the other provisions hereof. DLI 9200 PRODUCT MANUAL PAGE 33/39 Rev. 3...
  • Page 34 The DLI 9200 has the following safety information on the back label of the terminal DLI 9200 RF terminal is designed to comply with the most current applicable standards on safe levels of RF energy developed by the Institute of Electrical and Electronics Engineers (IEEE) and the American National Standards Institute (ANSI) and has been recommended for adoption by the Federal Communications Commission (FCC).
  • Page 35 The compliance labels are located on the back of the unit: DLI9200 FCC ID: CB10006161 DLI 9200 WPAN (Bluetooth) Bluetooth FCC ID: RUJ-QB7M400 Model: QB7M400 DLI 9200 WWAN (CDMA Sierra Wireless Radio) Verizon® Sierra Wireless FCC ID: N7NMC5725 DLI 9200 802.11 A/B/G/N Radio Model: 512AH_MMW FCC ID: PD9512ANMU Model: 62205ANHMW...

  • Page 36: Fcc Compliance

    When using accessories where the terminal is worn on the body, the terminal’s touch screen must face away from the body. CAUTION! Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment DLI 9200 PRODUCT MANUAL PAGE 36/39 Rev. 3...
  • Page 37 Data Ltd. Inc. shall not be liable for use of our product with equipment (i.e., power supplies, personal computers, etc.) that is not CE marked and does not comply with the Low Voltage Directive DLI 9200 PRODUCT MANUAL PAGE 37/39 Rev. 3...
  • Page 38 DLI 9200 PRODUCT MANUAL PAGE 38/39 Rev. 3...
