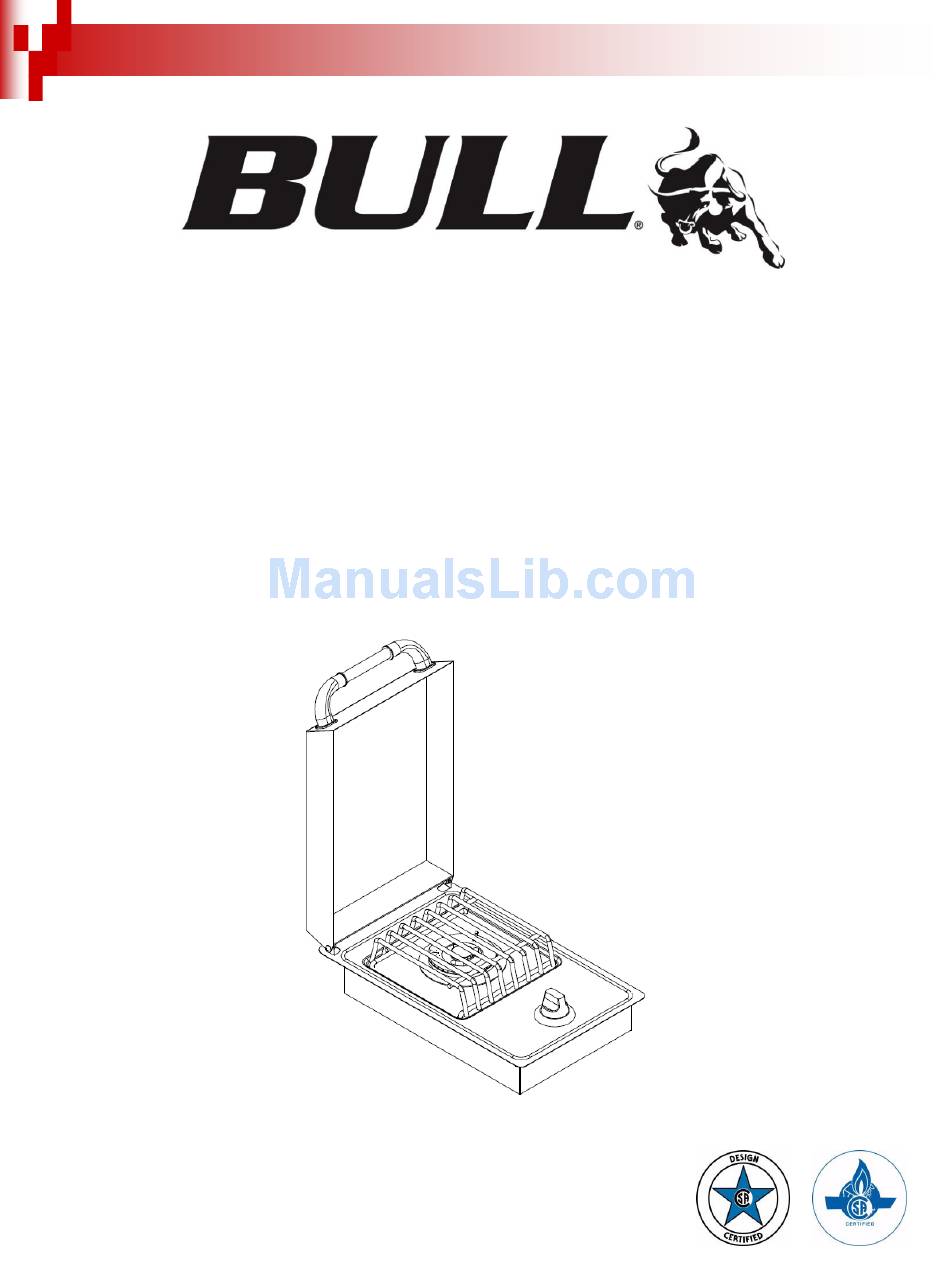

- Page 1 ASSEMBLY & OPERATING INSTRUCTIONS MODEL #60008 SINGLE SIDEBURNER STAINLESS STEEL, L.P. (PROPANE) MODEL #60009 SINGLE SIDEBURNER STAINLESS STEEL, N.G. (NATURAL GAS)
-
Page 2: Table Of Contents
TABLE OF CONTENTS PAGE # SAFETY INSTRUCTIONS……………………...…………………………………………………….………………………..………………………...2 THE LOCATION FOR YOUR SINGLE SIDEBURNER....……..…….….………………………..……….…………………..2 CHECKING FOR GAS LEAKS………………………………………………………………………………………...…..……………………..2 NATURAL GAS SAFETY…………………………………….……………………….……..………………….……………….…..…….……...3 PROPANE GAS SAFETY…………………………………………………………………………………………………….….………………..4 INSTALLATION INSTRUCTIONS…………………………………………………………………………………………..………………….……..5 SPECIFICATIONS FOR SINGLE SIDEBURNER STRUCTURE....…..…….……………………...………..……………………5 CONNECTING TO GAS SOURCE…………………………………………………..………………...……………………………………..5 NATURAL GAS CONNECTIONS……………………………………………..….………….….….….……….…….……………………….….5 PROPANE GAS CONNECTIONS………………………………………...….……..…..….…….………….…….…...…….…….…….…..5 OUTDOOR NATURAL GAS SINGLE SIDEBURNER INSTALLATION SPECIFICATIONS....….….…….………………..……6 OUTDOOR PROPANE GAS SINGLE SIDEBURNER INSTALLATION SPECIFICATIONS....………………….……...……….7 INSPECTING / CLEANING BURNER AND GAS VALVE…..………….…….…..…..……..…….………………..………..………...….…….…8... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS READ CAREFULLY BEFORE ASSEMBLY AND OPERATION OF YOUR SINGLE SIDEBURNER This single sideburner must be installed in accordance with local codes or, if in an area without local codes, with the latest edition of the National Fuel Gas Code ANSI Z223.1. In Canada, installation must conform to the standard CAN/ CGA 1-b149.1 and/or .2 (Installation Code for Gas Burning Appliances and Equipment) and any local codes. -
Page 4: Natural Gas Safety
SAFETY INSTRUCTIONS (CONT.) NATURAL GAS SAFETY Your natural gas single sideburner is designed to operate on natural gas ONLY, at a pressure of 4” water column (W.C.) regulated at the natural gas regulator and natural gas orifice located inside the ventri tube. Check with your gas utility for local gas pressure and with your local municipality for building code requirements. -
Page 5: Propane Gas Safety
SAFETY INSTRUCTIONS (CONT.) PROPANE GAS SAFETY Your propane single sideburner is designed to operate on propane gas ONLY, at a pressure of 11” water column (W.C.) when equipped with a propane regulator on the supply line regulated at the residential meter and a propane orifice located inside the ventri tube. Your propane single sideburner is designed to be used with a standard 20 lb gas cylinder and must be constructed and marked in accordance with specifications of the US Department of Transportation for Propane Gas Cylinders. -
Page 6: Installation Instructions
“OFF” position. NATURAL GAS CONNECTIONS IMPORTANT: Bull Outdoor Products does not recommend the use of any quick connect fittings or lines to the unit. Use of these types of fittings or lines could cause low gas flow and greatly reduce the performance of the unit. -
Page 7: Outdoor Natural Gas Single Sideburner Installation Specifications
INSTALLATION INSTRUCTIONS (CONT.) OUTDOOR NATURAL GAS SINGLE SIDEBURNER INSTALLATION SPECIFICATIONS NOTE: - Vents must be provided for combustion air and ventilation on both sides of built-in cabinet. - When choosing a location for your single sideburner keep in mind that it should never be located under any overhead combustible construction. - The sides and back of the single sideburner should not be any closer than 21 inches to combustible construction. -
Page 8: Outdoor Propane Gas Single Sideburner Installation Specifications
INSTALLATION INSTRUCTIONS (CONT.) OUTDOOR PROPANE GAS SINGLE SIDEBURNER INSTALLATION SPECIFICATIONS NOTE: - Vents must be provided for combustion air and ventilation on both sides of built-in cabinet. - When choosing a location for your single sideburner keep in mind that it should never be located under any overhead combustible construction. - The sides and back of the single sideburner should not be any closer than 21 inches to combustible construction. -
Page 9: Inspecting / Cleaning Burner And Gas Valve
INSPECTING I CLEANING BURNER AND GAS VALVE By following these cleaning procedures on a timely basis, your single sideburner will be kept clean and working properly with minimum effort. CAUTION – Always turn off the gas supply prior to clearing your single sideburner. BURNER CLEANING 1. -
Page 10: Burner Replacement Into Insert
INSPECTING / CLEANING BURNER AND GAS VALVE (CONT.) CAUTION – Always turn off the gas supply prior to clearing your single sideburner. IGNITER CHECK With the control knob set to “OFF”, check the igniter for presence of spark at burner. Push control knob in fully and turn slowly about a 1/4 turn to the left (counter-clockwise) until a click is heard;... -
Page 11: Lighting & Operating Instructions
LIGHTING & OPERATING INSTRUCTIONS CAUTION: TO ENSURE YOUR SAFETY, DO NOT OPERATE SINGLE SIDEBURNER UNTIL YOU FULLY READ AND UNDERSTAND THE INSTRUCTIONS. LIGHTING PROCEDURES Lighting Burner: 1. Become familiar with the safety guidelines at the front of the manual. DO NOT SMOKE WHILE LIGHTING SINGLE SIDEBURNER OR CHECKING GAS SUPPLY CONNECTIONS! 2. -
Page 12: Cleaning & Maintenance
These chemicals combined with heat and humidity greatly increase the corrosiveness of these chemicals. Regular cleaning is the best way to prevent corrosion and add years of enjoyment to your Bull stainless steel... -
Page 13: Troubleshooting
TROUBLESHOOTING IF SINGLE SIDEBURNER FAILS TO OPERATE PROPERLY 1. Turn off gas at source, turn control knob to “OFF”, and wait five minutes before trying again. 2. Check gas supply/connections. 3. Repeat lighting procedure. If single sideburner still fails to operate properly, TURN “OFF” GAS AT SOURCE, TURN CONTROL KNOB TO “OFF”, wait for sideburner to cool, and check the following: a. -
Page 14: Parts List
PARTS LIST MODEL #60008 SINGLE SIDEBURNER STAINLESS STEEL, L.P. (PROPANE) MODEL #60009 SINGLE SIDEBURNER STAINLESS STEEL, N.G. (NATURAL GAS) REF # PARTS # DESCRIPTION WARRANTY PERIOD 64001 1 Yr 64002 COOKING GRATE 5 Yrs 64004(LP)/64005(NG) VALVE 1 Yr 16539 BRASS BURNER... -
Page 15: Exploded Illustration
EXPLODED ILLUSTRATION... -
Page 16: Limited Warranty
LIMITED WARRANTY Bull Outdoor Products, Inc. warrants to the original purchaser at the original site of delivery with proof of purchase of each Outdoor Gas Grill that when subject to normal residential use, it is free from defects in workmanship and materials for the periods specified below. This warranty excludes grills used in rental or commercial applications.
