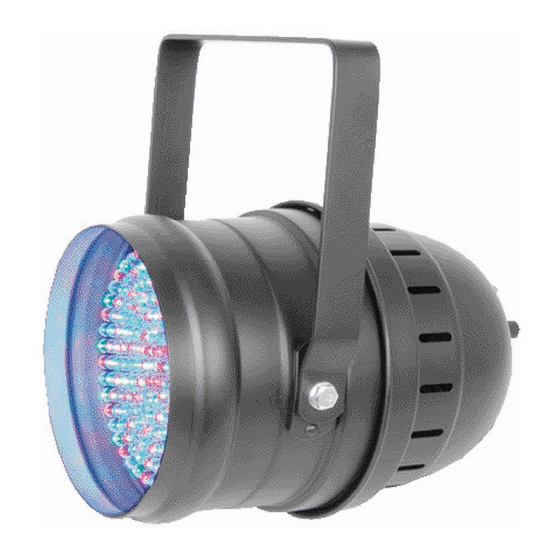

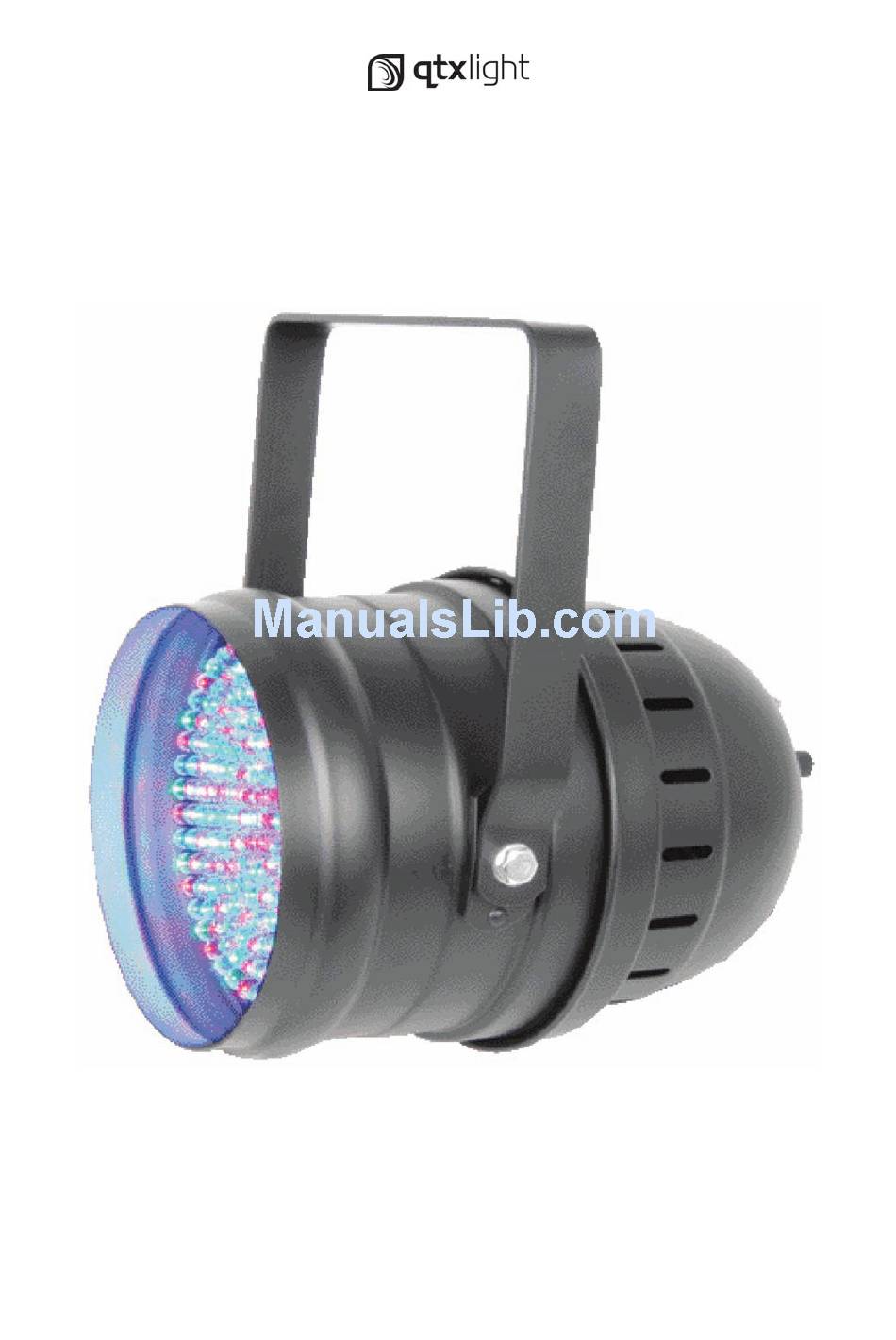

- Page 1 USER MANUAL PAR64 LED PAR CANS 153.772 / 153.775...
- Page 2 Damage caused by misuse is not covered by the warranty! ranty General Introduction : The LED PAR64 is design to create an impressive light display of multicolor beams for family parties, Discos, Bars, Night Clubs, Ballrooms and other locations. Features : LED Colorful Effect with DMX Controlling ...
- Page 3 User Manual 153.772 / 153.775 Do not use solvents or aggressive detergent to clean the device. Use a soft and clean cloth. Do not modification the device or the connected power cord without authorized. Use appropriate safety-rope for safety. ...
- Page 4 User Manual 153.772 / 153.775 10. Mounting instruction : The fixture may be mounted in any position provide there is adequate room for ventilation. It is important never to obstruct the fan or vents pathway. Mount the fixture using clamp. Adjust angle of the fixture loosening both knobs and tilting the fixture.
- Page 5 User Manual 153.772 / 153.775 Channel Function Channel 1 0-5 off , 6-255 Red 0-100% Dimming Channel 2 0-5 off , 6-255 Green 0-100% Dimming Channel 3 0-5 off , 6-255 Blue 0-100% Dimming Channel 4 0-160 Master Dimming (based on channel 1-3 set up) 161-240 Strobe 1-12Hz/Second ( from slow to fast) 241-255 Light on ( base on channel 1-3 set up) 13.
