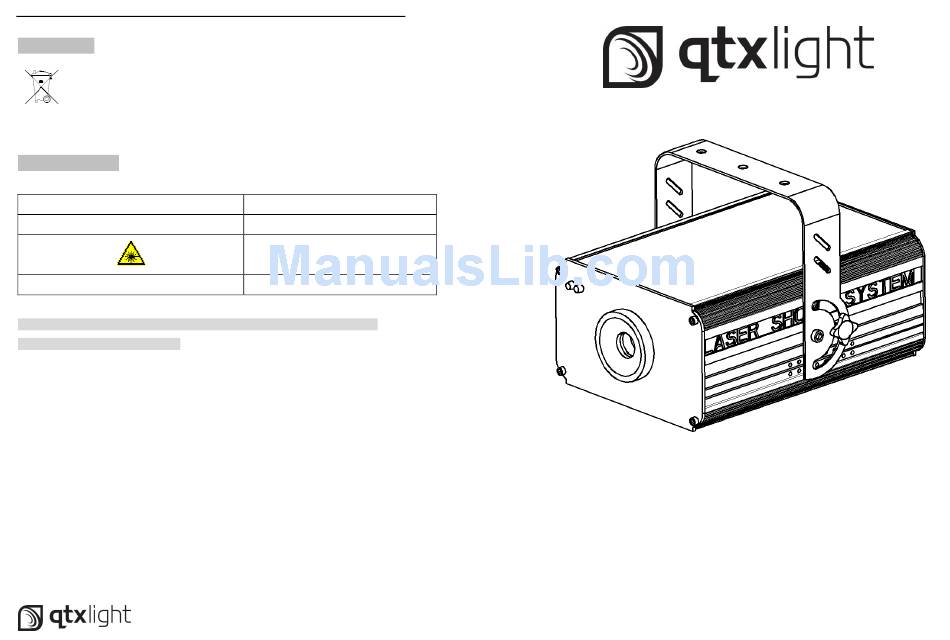

User Manual –LS01 Laser
15. Disposal :
Please disposal of the unserviceable device according to the current
statutory requirements.
16. Specification :
Voltage : 100/240Vac, 50/60Hz
Fuse : 2A Slow blow
Laser Class : 3B
Laser Power : 40mW Green, 80mW Red
Note: Conforms to Laser and LED Safety standard BSEN60825-1 2007
incorporating corrigendum 2008
Manual copyright protected by QTX Light
152.738UK
DMX Channels : 11
Dimensions : 250 x 175 x 110mm
Power Consumption : 25W
Weight : 2.6kg
16
LS-01 Laser
User manual
152.564UK
Version 2.0
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for QTX Light LS-01 laser
Summary of Contents for QTX Light LS-01 laser
- Page 1 Laser Class : 3B Laser Power : 40mW Green, 80mW Red Weight : 2.6kg Note: Conforms to Laser and LED Safety standard BSEN60825-1 2007 incorporating corrigendum 2008 LS-01 Laser User manual 152.564UK Version 2.0 Manual copyright protected by QTX Light...
- Page 2 User Manual –LS01 Laser 152.738UK User Manual –LS01 Laser 152.738UK 6 (Rotation Speed) 000-255 Rotating Speed (Slow to Fast) CAUTION 000-075 Clockwise Rotation 7 (Rotation 076-150 Stop Direction) 151-255 Anti-clockwise Rotation 000-255 Librating Range 8 (Liberating Range) • 000-056 LIBRATING Mode 1 Please read this manual fully before installing or 057-112 LIBRATING Mode 2...
- Page 3 User Manual –LS01 Laser 152.738UK User Manual –LS01 Laser 152.738UK 14. DMX controlling : 1. Introduction: DMX CHANNEL DESCRIPTION This Class 3B laser product should only be installed and used by VALUE personal who are trained in the management of laser radiation and are able to 000-019 Laser Block Out operate in accordance within the guidance given by the Health and Safety...
- Page 4 User Manual –LS01 Laser 152.738UK User Manual –LS01 Laser 152.738UK 13. DMX-512 connection : The fixture is equipped with 3-pin XLR connectors for DMX input and output. The SE connectors are wired in parallel. Only use a shielded twisted-pair cable designed for 3-pin XLR-plugs and connectors in order to connect the controller with the fixture or one fixture with another.
- Page 5 User Manual –LS01 Laser 152.738UK User Manual –LS01 Laser 152.738UK 12. Functions guide: Always allow enough room for adequate ventilation. It is important never to obstruct the fan or air-vents FUNC: Select Function Scroll up The product must be fixed to suitable rigging using an appropriate clamp and DOWN: Scroll down the fixing screws tightened to prevent the fixture from moving.
- Page 6 User Manual –LS01 Laser 152.738UK User Manual –LS01 Laser 152.738UK LS01 LASER: For indoor use only 11. Layout: 3. General introduction: This high quality unit with red and green lasers gives an effect similar to one when a light is shone on a mirror ball generating thousands of laser points. It can creates light wall, light tunnel and cloud sea effects when used with a fogger/smoke machine.
- Page 7 User Manual –LS01 Laser 152.738UK User Manual –LS01 Laser 152.738UK 10. Rear display: 4. Packaging contents: Please check the contents to ensure that the product has been received in good condition. Laser x 1unit User’s Guide x 1pc IEC Power Lead x 1pc Interlock Connector x 1pcs Safety Keys x 2pcs If you find any accessory is missing or the lighting has arrived with any...
- Page 8 User Manual –LS01 Laser 152.738UK User Manual –LS01 Laser 152.738UK 7. Caution: 8. General maintenance: For your safety, please kindly pay attention to all of the warnings below: Be sure to power off the fixture before conducting maintenance. To maintain optimum performance and minimize wear, fixtures should be Always plug in the power plug last and disconnect from the mains when cleaned frequently.
