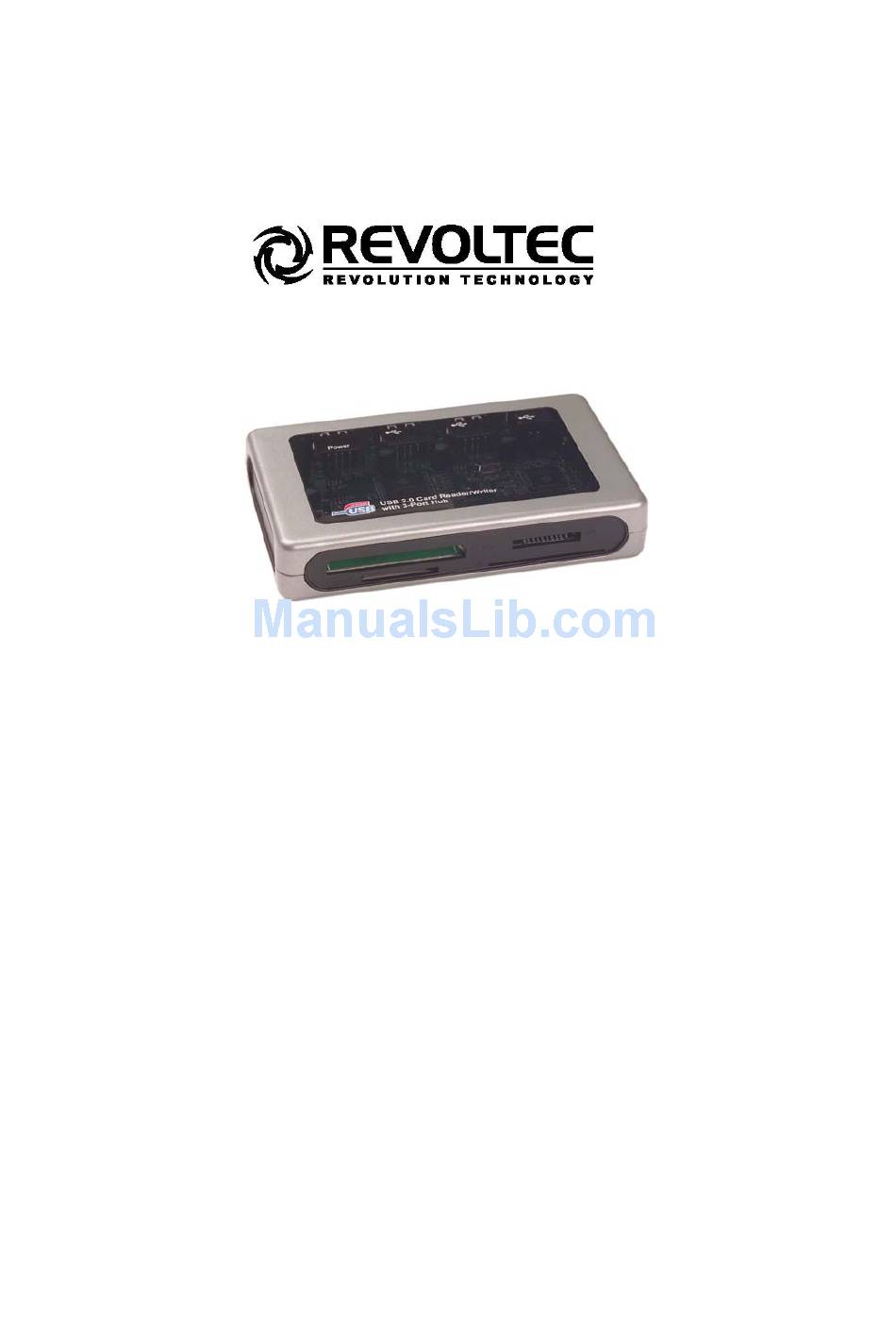

- Page 1 User’s Manual REVOLTEC CARDMAGIC USB 2.0 Card Reader/Writer with 3-port Hub CompactFlashTM Card Type I & II, IBM MicrodriveTM, Memory Stick®, Memory Stick PRO®, MultiMediaTM Card, SecureDigitalTM Card, SmartMediaTM Card, xD Picture Card...
-
Page 2: Table Of Contents
Table of Contents Introduction……………………………………………………….…….…1 Package Contents….…………………………..……….………..…1 Safety Instructions…….….…………..……………………...……1 Specification……………….…..………………………………...…..…2 SystemRequirements………………..………………………..…..3 Driver Installation………………………...…………………..…..3 AP System Installation…….……………………………..….…10 Installation Verification…………..……………………….…….15 Check the System for USB 2.0 Hub……………………17 Product Details.……………………….. …………………..………19 Over-Current Status Figure……….………………………..21 Certificate………….…………………….……………………….………22... -
Page 3: Introduction
Introduction Thank you for purchasing our REVOLTEC CARDMAGIC USB 2.0 card reader/writer with built-in USB hub. Our card reader/writer allows you to read, write, and erase data from the most popular cards such as CompactFlashTM Card Type I & II (CF Type I & II), IBM MicrodriveTM, Memory Stick ®... -
Page 4: Systemrequirements
· Connects up to 127 USB devices · Over-current detection and protection · True plug-and-play function · 1 upstream and 2/4 downstream USB ports included · 1 red LED as power-on indicator (In some models, there is a green LED indicator for each downstream port apart from the red LED) ·... - Page 5 2. Select ‘Search for the best drivers for your device [Recommended]’, and then click ‘Next’ to continue. 3. You may either select ‘CD-ROM drive’ or ‘Specify a location’ (click ‘Browse’ to select the driver for Windows 98 in our CD-ROM driver). Click ‘Next’ to continue.
- Page 6 4. When the system is ready to install the driver, click ‘Next’ to continue. 5. Once the system has finished installing the software for the new driver, click ‘Finish’ to complete the first installation.
- Page 7 6. As step 1, the wizard searches for another new driver. Click ‘Next’ to continue. 7. As step 2, select the best driver for your device and click ‘Next’ to continue.
- Page 8 8. As step 3, select either ‘CD-ROM drive’ or ‘Specify a location’. Click ‘Next’ to continue. 9. As step 4, when the system is ready to install the driver, click ‘Next’ to continue.
- Page 9 10. Once the system has finished installing the software for the new driver, click ´Finish’ to complete the first installation. 11. Check ‘My Computer’ to make sure the four icons of CF, SM, SD, and MS of the AP system is shown (see the next section for the AP system installation).
-
Page 10: Ap System Installation
AP System Installation If the four icons of the ‘Removable Disk’ are not specified, you need to install the software from the driver CD for setting up the AP system. The procedures are listed below: Windows ME/2000/XP 1. As the picture shown, no ‘Removable Disk’ is marked. Please click the drive icon of ‘RU3141 (F:)’... - Page 11 4. Select your language and click ‘OK’. 5. Click ‘Next’ to install the system. 6. Click ‘Finish’ to complete the installation.
- Page 12 7. Select ‘Yes’ click ‘OK’ to restart your computer. 8. Please check ‘My Computer’ to confirm the icons of CF, SM, SD, MS of the AP system.
-
Page 13: Installation Verification
Mac 9.X 1. Please insert the CD-driver to CD-ROM and there is a CD-ROM image on the desktop. 2. Click the image of CD-ROM, and copy “GENEUSB.sit” to the desktop. 3. Click “GENEUSB.sit“ and copy “install.sit“ to the desktop. It will generate an image “GENEUSBML.2“. - Page 14 Win2000/ WinXP...
-
Page 15: Check The System For Usb 2.0 Hub
Mac 9.X/ Mac 10.X MAC 9.X: After installation finished, please click Apple image of the menu bar and select “Apple Device”. Click “Devices and Volumes” to display the USB Card Reader. MAC 10.X: After installation finished, please click “Apple System Profiler” and select “Devices and Volumes”. - Page 16 Windows ME: Notice: If the operating system is Windows ME, a green question mark may be shown in ‘Device Manager’. It is all right because Windows ME cannot identify the USB Hub's brand but there is no influence on its function. Windows 2000:...
-
Page 17: Product Details
Windows XP: Product Details Connects to PC or Mac Type B Receptacle Type A Plug Power jack: Connects to Power Adapter 5V / 2.5A... - Page 18 USB 2.0 Card Reader/Writer CF/Micro Drive MS/MS PRO SD/MMC SM/xD * The models with SM slot do not support xD Picture Card. USB 2.0 Hub Downstream: Connect to Devices Type A Receptacle USB Power Port (optional) The isolator is red...
-
Page 19: Over-Current Status Figure
Over-Current Status Figure When the excessive current happens, the power will be disconnected from the related port. The green LED goes off. If there is a pop-up window, “ Hub Current Limit Exceeded “, please click Reset to resume. You can also reset the hub by unplugging the USB cable and plugging it back. -
Page 20: Certificate
Certificate This equipment has been tested and found to comply with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference (2) This device must accept any interference received. Including interference that may cause undesired operation.
