LZ Models Ford F15 Assembly Manual

1/35 cmp

Advertisement

Quick Links

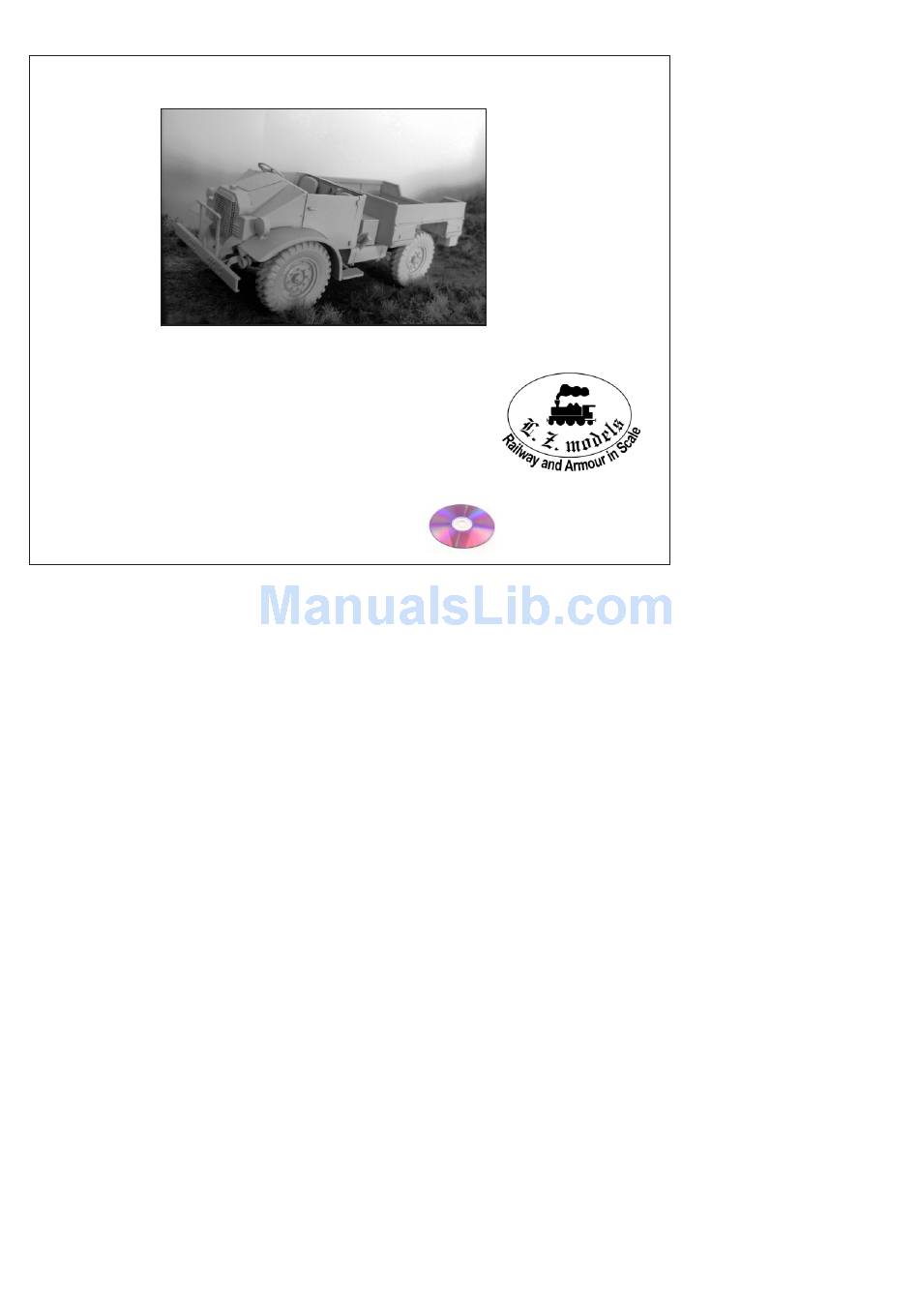

1/35 CMP Ford F15 Truck
contains 1 highly detailed and accurate model
122
resin parts
50+
PE parts
+ plastic parts and wires needed for assembly
decals for 2 vehicles
glue and paints not included
suitable for average modellers
keep safety rules for work with resin
i
nstructions and references on CD
Keep safety rules when working with resin.
For safety reasons, and due to the complexity of construction,
this kit is recommended only for advanced modellers.
The kit contains small parts, keep it out of the reach of children.
Glue and paints not included
Contains
122
needed for assembly
From Wikipedia:
The Canadian Military Pattern (CMP) truck was a class of military truck made in
large numbers in Canada during World War II to British Army specifications for
use in the armies of the British Commonwealth allies. CMP trucks were also
sent to the Soviet Union following the Nazi invasion of Russia, as part of
Canada's lend-lease program to the Allies. During the War CMP trucks
saw service around the world in the North African Campaign, the Allied invasion
of Sicily, the Italian Campaign, the Russian Front, the Burma Campaign,
the Battle of the Philippines (1941-42), the liberation of Northwest Europe, and
the Western Allied invasion of Germany. CMP trucks also saw service in post-war
conflicts in Indonesia, French Indochina, and the Portuguese colonies in Africa.
, 2 clear resin lights
resin parts,
50+
No.35404
WWW.LZmodels.com
Made in EU
PE parts
and
plastic parts and wires

Advertisement

loading
Need help?

Need help?

Do you have a question about the Ford F15 and is the answer not in the manual?

Questions and answers

Summary of Contents for LZ Models Ford F15

  • Page 1 1/35 CMP Ford F15 Truck contains 1 highly detailed and accurate model resin parts , 2 clear resin lights PE parts + plastic parts and wires needed for assembly decals for 2 vehicles glue and paints not included suitable for average modellers No.35404...
  • Page 2 The rise to power in Germany of Hitler and the Nazi party in 1933 led to discussions in the mid-1930s between the British War Office and the Canadian Army concerning the possible production of military vehicles in Canada. During the First World War Canadian land forces had participated as a corps in the British Army.
  • Page 3 proved versatile, and it formed the basis of a wide variety of different truck types and armoured vehicles. In Australian service (almost always with the No. 13 cab) these vehicles were known as the "Chev Blitz" or the "Ford Blitz". Just over 400,000 CMP trucks were manufactured in Canada, accounting for roughly h alf of the 815,729 military vehicles made in Canada during World War II .
  • Page 4 A9 A10 Number of pieces in red if multiple...
  • Page 7 This kit is not difficult to build, and there are not many small parts and PE bits to deal with. The main thing is to keep the right angles where required. If some parts warp, they can be easily straightened with use of hot water or hair dryer. Many of the parts are very thin and pretty flexible to work with, and with a little bit of hot water they can be perfectly straightened or bent.
  • Page 8 wheels can be set in any direction...
  • Page 9 If wider gaps needed (empty vehicle) warm up the springs and bend them like shown loaded empty vehicle vehicle...
  • Page 10 empty vehicle heavily loaded vehicle...
  • Page 14 correct filter (A4) position for this vehicle, dont mind its position in other pics...
  • Page 15 rubber thread or lead wire used for belt I recommend to glue engine just on A17 now, not on A21 wire 0,8mm or leave it all for later, when checked and fitted with cab engine cover A56. The engine has to fit exactly into it. do not glue now!
  • Page 16 wire 0,8mm...
  • Page 17 Example of engine wiring...
  • Page 18 sparking plugs wiring diagram for extra details...
  • Page 19 correct shape of the fenders...
  • Page 20 The cab. This step needs a bit extra care and keeping all joints right. Once A54 and A55 are glued, check the shape - if any seems to be warped a bit, heat up lightly with hair dryer and set it properly. It might sound difficult, but it is very easy little filling (thicker C/A or any filler) might be needed here...
  • Page 21 62mm glue first here then glue top...
  • Page 22 Engine cover - glue on step by step as shown in pictures. Its edge mounted on the floor must be glued on the floor to keep whole opening free for engine, pull right and left sides to the sides - see arrows in the picture Hold A56 sides out and glue on floor behind the opening edges - to get enough space for the engine...
  • Page 23 then glue there Glue this side and the floor, make sure the wall is out of the floor opening...
  • Page 24 I sanded off tiny bit of A76 edge for thickness of the PE mesh to make assembly easy...
  • Page 25 for this vehicle cut PE “b” here...
  • Page 26 bent to check cab position when glued on, bend both PE ends back (straight)
  • Page 27 Once you have checked and fitted cab with engine, secure the engine in right place and glue also the cab on the frame Important - the right position of the cab the fenders have to face exactly the step board´s mountings on the frame - see the arrows bellow, do not put the cab to forward or back!!!! 0,5mm wire...
  • Page 28 0,5mm wire f - glue two bits together (one flat, one with design)
  • Page 29 Assemble one door first, then the back wall and finally second door to make sure they will fit If doors go in tightly, sand lightly the edges with hinges...
  • Page 30 0,8mm wire...
  • Page 31 6 or k pedal options, there were both in use 0,5mm wire strip of PE frame + bit of wire for handle...
  • Page 32 drilled hole 1,2mm for easier assembly of steering wheel cut step board holder on length required 2 next to front wheels, connected to mudguards shape them more with use of hot water, if necessary...
  • Page 33 For additional details fuel pipe can be connected to the filter, and tiny wire used to connect the battery...
  • Page 35 mind correct position...
  • Page 37 mind correct position to front mind correct position...
  • Page 38 for empty vehicle warm up the springs and bend them like shown 0,5mm wire...
  • Page 39 you can drill 0,5mm holes for easier assembly 0,5mm wire, 3mm long...
  • Page 40 you can drill 1 mm hole for easier assembly...
  • Page 41 clear resin lights 1,2mm rod...
  • Page 42 body assembly...
  • Page 44 Painting and marking examples These will be updated soon, check for improved instructions at: http://www.lzmodels.com/135-CMP-Ford-F15--and-variants.html...
