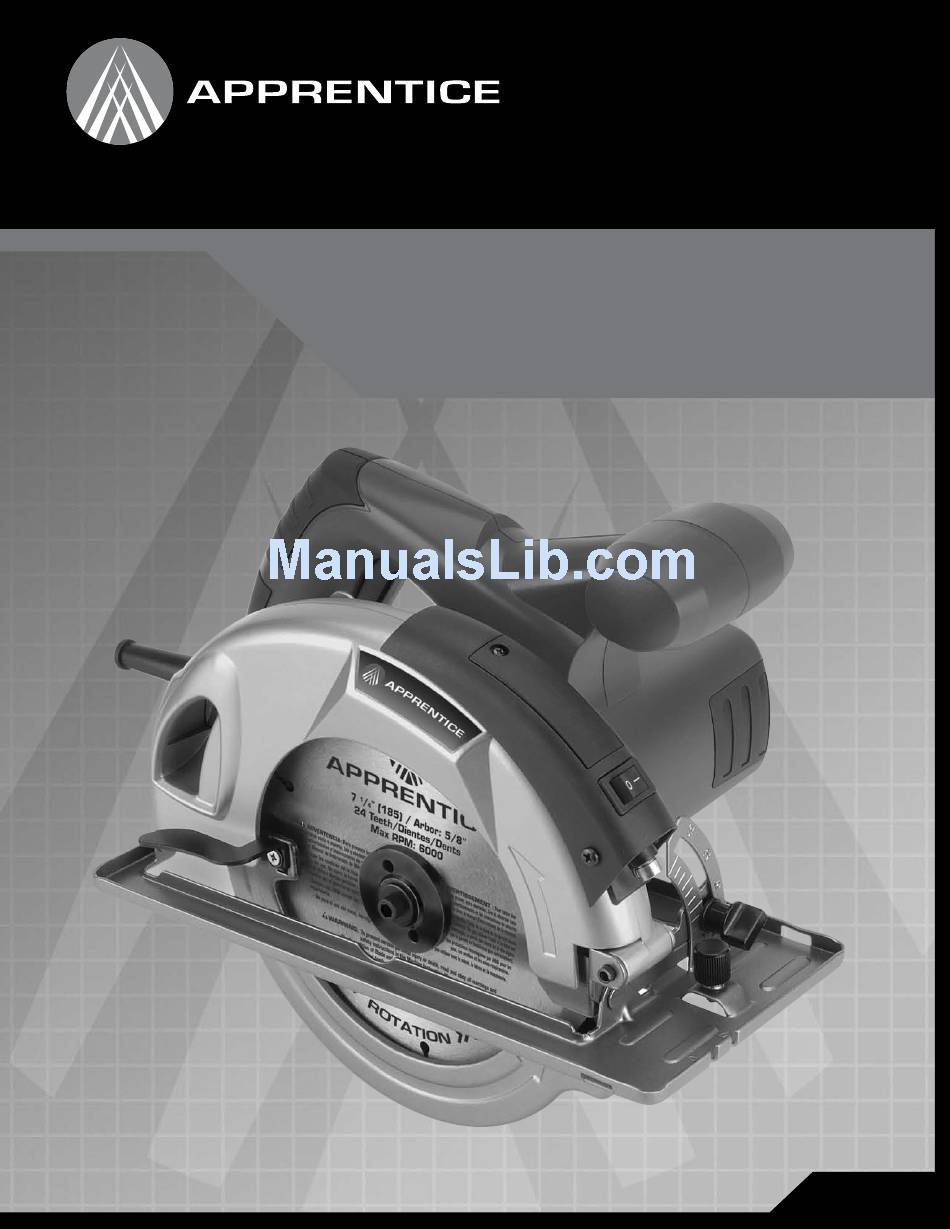

- Page 1 10 Amp LASER GUIDED CIRCULAR SAW Operator’s Manual SCIE CIRCULAIRE À GUIDAGE AU LASER 10 A Manuel d’utilisation SIERRA CIRCULAR GUIADA POR LÁSER de 10 A Manual del Operario ACS10L...
-
Page 2: Specifications
7 1⁄4" Laser Guided Circular Saw 10 Amp ACS10L Operator’s Manual Specifications: • Model # ACS10L • Description: 7 1⁄4" Circular Saw • Input: 120V AC, 60Hz, 10.0 Amp • Blade Size: 7 1⁄4" • Blade Bevel: 0-45 degrees • No-Load Blade Speed: 5000 RPM • Arbor Size: 5/8" • Cutting Capacity at 90 degrees: 2-9/16" • Cutting Capacity at 45 degrees: 1-5/8" • Net Weight: 9.4 lbs. • Includes: Circular Saw with Carbide Blade, Blade Wrench, and Rip Guide Laser: – Class IIIa Laser Product. – Wavelength: 650 nm. – Max Output: <2.5 mW. – Complies with FDA21 CFR Parts 1040.10 and 1040.11 – Runs on two AAA Batteries (Included). - Page 3 WArninG: rEAD AnD UnDErSTAnD ALL WArninGS, CAUTiOnS AnD OPErATinG inSTrUCTiOnS BEFOrE USinG THiS EQUiPMEnT. Failure to follow all instructions listed below may result in electric shock, fire and/or serious personal injury. SAVE THESE INSTRUCTIONS 1. rEAD THE OPErATOr’S MAnUAL BEFOrE OPErATinG THE MACHinE. To minimize the possible occurrence of accidents and personal injury, learn the tool’s application, limitations, and specific potential hazards peculiar to this tool.
- Page 4 Always use properly fitting niOSH/ OSHA approved respiratory protection appropriate for dust exposure, and wash exposed areas with soap and water. 10 Amp LASER GUIDED CIRCULAR SAW Operator’s Manual ACS10L...
-
Page 5: Guidelines For Using Extension Cords
EXTEnSiOn COrDS Grounded tools require a three wire extension cord. Double insulated tools can use either a two or three wire extension cord. As the distance from the power supply outlet increases, you must use a heavier gauge extension cord. using extension cords with inadequately sized wire causes a serious drop in voltage, resulting in loss of power and possible tool damage. Refer to the table shown below to determine the required minimum wire size. The smaller the gauge number of the wire, the greater the capacity of the cord. For example: a 14-gauge cord can carry a higher current than a 16- gauge cord. When using more than one extension cord to make up the total length, be sure each cord contains at least the minimum wire size required. If you are using one extension cord for more than one tool, add the nameplate amperes and use the sum to determine the required minimum wire size. Guidelines for Using Extension Cords • If you are using an extension cord outdoors, be sure it is marked with the suffix “W-A” (“W” in Canada) to indicate that it is acceptable for outdoor use. • Be sure your extension cord is properly wired and in good electrical condition. Always replace a damaged extension cord or have it repaired by a qualified person before using it. • Protect your extension cords from sharp objects, excessive heat, and damp or wet areas. Recommended Minimum Wire Gauge for Extension Cords (120 Volt) Nameplate Extension Cord Length Amperes 25 Feet 50 Feet... - Page 6 17. Blade depth and bevel adjusting locking levers must be tight and secure before making cut. If blade adjustment shifts while cutting, it will cause binding and KICKBACK. 18. Use extra caution when making a “Pocket Cut” into existing walls or other blind areas. The protruding blade may cut objects that can cause KICKBACK. 10 Amp LASER GUIDED CIRCULAR SAW Operator’s Manual ACS10L...
-
Page 7: Operation
OPErATiOn WArninG: 7-1/4” is the maximum blade capacity of your saw. never use a blade that is too thick to allow the outer flange washer to fit properly on the spindle. Too thick a blade will prevent the blade bolt from securing the blade on the spindle. Larger diameter blades will contact the blade guards. -
Page 8: Installing The Rip Guide
KiCKBACK, possibly causing severe personal injury. It’s important to understand the correct technique for operating your saw and to learn what the correct and incorrect ways for handling your saw. equally important to working safely and realizing accurate cuts is correct preparation of the work piece and work area prior to making the first cut with the saw. • Hold the tool firmly with both hands, using both the front grip and rear handle. • Avoid placing your hand on the work piece while making a cut. • Place the work piece with the “good” side down. • Set-up and support the work piece so the cut is always on your right so the larger left side of the saw’s base will be on the part that DOeS NOT fall off when the cut is made. • Securely clamp the work piece so it will not move during the cut. • Place a clamp near the cut to further support the work piece. • Draw a guideline along the desired path of cut before starting your saw or the cut. • Move and keep the cord away from the cutting area. Position the cord to prevent it from hanging up on the work piece and you from standing or tripping on the cord while cutting. 10 Amp LASER GUIDED CIRCULAR SAW Operator’s Manual ACS10L... -
Page 9: Bevel Cutting
DAnGEr: if, while operating the saw, the cord hangs up on the work piece or other object during a cut, release the switch trigger immediately. Unplug the saw and reposition the cord to prevent it from hanging up again. Cross-Cutting and Rip Cutting Cutting directly across the grain of a piece of wood is called crosscutting and is likely the most common type of cut done with a circular saw. -
Page 10: Two Year Warranty
4. Blade Screw 5. Base Plate 6. Dust extraction Chute 7. Rear Handle 8. Front Handle 9. Trigger Switch Two-Year Warranty This product is warranted free from defects in material and workmanship for 2 years after date of purchase. This limited warranty does not cover normal wear and tear or damage from neglect or accident. The original purchaser is covered by this warranty and it is not transferable. Please return the tool to store location of purchase along with your receipt, and you will receive a new drill or a refund. THIS PRODUCT IS NOT WARRANTED IF USED FOR INDUSTRIAL OR COMMERCIAL PURPOSES. Toll-Free Help Line: For questions about this or any other APPReNTICe Product, please call Toll-Free: 888-552-8665. 10 Amp LASER GUIDED CIRCULAR SAW Operator’s Manual ACS10L...
