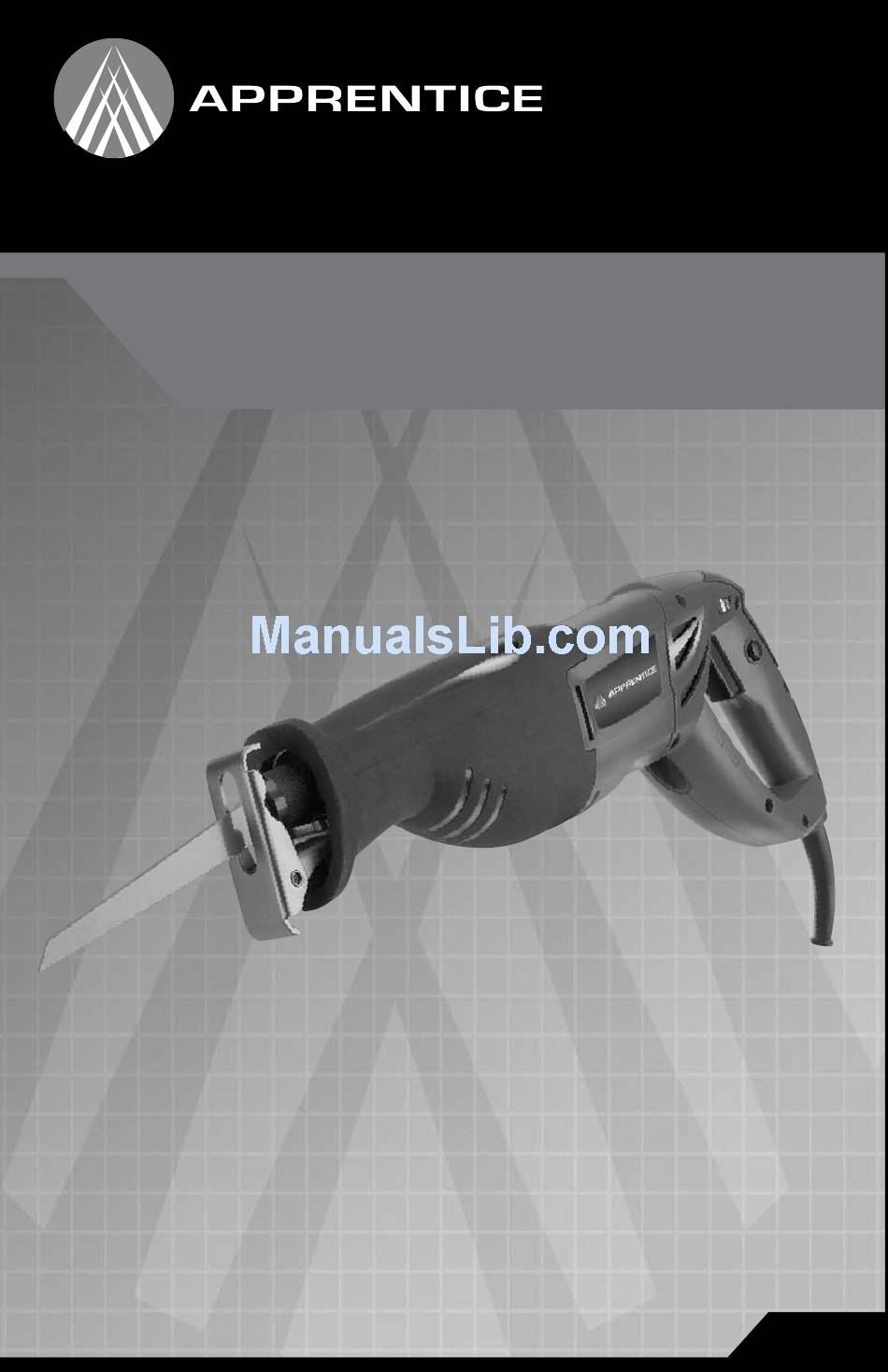

- Page 1 5.5 Amp VS Reciprocating Saw Operator’s Manual Scie alternative à vitesse variable 5,5 A Manuel d’utilisation Sierra de vaivén con velocidad variable de 5.5 amperios Manual del Operario ARS55 ARS55...
-
Page 2: Specifications
5.5 Amp VS Reciprocating Saw ARS55 Operator’s Manual Specifications: • Model: ARS55 • Input: 120V AC, 5.5 Amp. • No-Load Speed: 600-2,500 RPM • Stroke Length: 1-1/16" • Net Weight: 7.0 lbs. • Blade Type: 1/2" Shank WARning: To reduce the risk of injury, user must read and understand this operator’s manual before operating this tool. Save this Manual for future reference. Toll-Free Help Line: 1-888-552-8665. WeAR yOuR WARning: SAfeTy gLASSeS The Operation of any power tool can result in foreign objects being thrown into your eyes, which can result in severe eye damage. Before beginning tool operation, always wear safety... -
Page 3: General Safety Rules
gEnERAL SAFETY RULES WARning: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: • lead from lead-based paints, • crystalline silica from bricks and cement and other masonry products, and • arsenic and chromium from chemically treated lumber. your risk from these exposures varies, depending on how often you do this type of work. - Page 4 12. MAINTAIN ALL TOOLS AND MACHINES WITH CARE. Keep tools sharp and clean for best and safest performance. follow instructions for lubricating and changing accessories. 13. DISCONNECT TOOLS WHEN NOT IN USE, before servicing, or when changing attachments, blades, bits, cutters, etc. 14. REDUCE THE RISK OF UNINTENTIONAL STARTING. Check to be sure that the tool’s switch is in the “Off” position before plugging in the power cord. Should a power failure occur, move the switch to the “Off” position. Accidental start-ups can cause serious personal injury. 15. USE THE CORRECT TOOL FOR THE JOB. Don’t force the tool or attachment to do a job for which it was not designed. Don’t use the tool for a purpose not intended as damage to the machine and/or personal injury may result. 5.5 Amp Variable Speed Reciprocating Saw Operators Manual ARS55...
- Page 5 16. USE RECOMMENDED ACCESSORIES. using accessories and attachments not recommended by the manufacturer or intended for use on this type tool, may cause damage to the machine or result in personal injury to the user. Consult the instruction manual for recommended accessories. 17. MAKE SURE YOUR EXTENSION CORD IS THE PROPER SIZE AND IS IN GOOD CONDITION. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage resulting in loss of power and tool overheating. Consult the extension Cord Chart for the correct size based on the cord length and nameplate ampere rating. If ever in doubt, use the next heavier wire gauge cord. The smaller the gauge number, the heavier the cord. 18. SECURE THE WORK-PIECE. use clamps or a vise to hold the work-piece when practical. using clamps or similar mechanical device is safer than using your hand(s) and allows you to use both hands to operate the tool. Losing control of the work-piece can cause personal injury. 19. DON’T OVERREACH. Maintain proper footing and balance at all times; loss of balance can cause you to fall into the working machine, possibly causing an injury. 20. NEVER STAND ON THE TOOL. An injury may occur if the machine is tipped or if you should unintentionally contact the cutting tool.
- Page 6 (a serious lung disease), cancer, and death. Avoid breathing the dust, and avoid prolonged contact with the dust. Allowing dust to get into your mouth or eyes, or lay on your 5.5 Amp Variable Speed Reciprocating Saw Operators Manual ARS55...
-
Page 7: Guidelines For Using Extension Cords
skin may promote absorption of harmful material. Always use properly fitting NIOSH/OSHA approved respiratory protection appropriate for dust exposure, and wash exposed areas with soap and water. EXTEnSiOn CORDS grounded tools require a three wire extension cord. Double insulated tools can use either a two or three wire extension cord. As the distance from the power supply outlet increases, you must use a heavier gauge extension cord. using extension cords with inadequately sized wire causes a serious drop in voltage, resulting in loss of power and possible tool damage. Refer to the table shown below to determine the required minimum wire size. The smaller the gauge number of the wire, the greater the capacity of the cord. for example: a 14 gauge cord can carry a higher current than a 16 gauge cord. When using more than one extension cord to make up the total length, be sure each cord contains at least the minimum wire size required. If you are using one extension cord for more than one tool, add the nameplate amperes and use the sum to determine the required minimum wire size. -
Page 8: Operation
WARning: To avoid accidental start, check to make sure Lock-on button is not engaged prior to plugging in tool and your finger is not touching the on/off switch. Tool Uses This tool is designed to cut wood, metal, plastic, and composites. 5.5 Amp Variable Speed Reciprocating Saw Operators Manual ARS55... -
Page 9: Installing The Blade
Installing the Blade Check that the blade you are inserting matches the material you are cutting. Start with a sharp blade. Twist the quick release blade clamp as far as it will go in the direction of the engraved arrow (counterclockwise if facing the saw). Slip new blade into blade clamp as far as it will go. Release the blade clamp. The new blade should now be securely fastened. Depth of Cut Adjustment The front Shoe can be adjusted to change the depth of cut of your reciprocating saw. To adjust the depth of cut, loosen the front Shoe Locking Screws (located on the bottom of the Saw Boot) by inserting the provided allen wrench and rotating counter-clockwise. Set your depth of cut (Note: ideal depth of cut is 1” deeper than material to be cut), then tighten the front Shoe Locking Nut securely. Turning the Tool On To turn the tool on, depress the on/off switch. The tool can be locked on by depressing the lock-on button and the on/off switch at the same time, then releasing pressure on the on/off switch. Caution – The lock-on feature is to relieve fatigue on the trigger finger only. grip tool firmly at all times while it is running, and keep both hands away from cutting area. To release the lock-on button, depress the on/off switch. Using Variable Speed Adjust the speed by dialing the Variable Speed thumb roller. Speed use guidelines are as follows, however, the operator may have to vary the speed to optimize cutting efficiency: Slower Speeds: starting cuts, plastics, soft aluminum, some stainless steel Faster Speeds: aluminum, mild steel, stainless steel, various woods Cutting Action The reciprocating saw blade is doing most of its cutting as it travels towards the operator. Depending on the type of material and cutting speed, this can cause splintering on the surface of the workpiece that is facing the operator. Therefore, if possible, position yourself or the workpiece so that the desired “good” side of the workpiece is facing away from the operator. -
Page 10: Metal Cutting
2. Rubberized non-slip Boot 3. Rubberized non- slip Rear handle 4. Tool-less Blade Change System 5. Variable Speed Thumb Dial 6. Trigger Switch 7. Lock-On Button Two-Year Warranty This product is warranted free from defects in material and workmanship for 2 years after date of purchase. This limited warranty does not cover normal wear and tear nor damage from neglect or accident. The original purchaser is covered by this warranty and it is not transferable. Please return the tool to store location of purchase along with your receipt, and you will receive a new drill or a refund. THIS PRODUCT IS NOT WARRANTED IF USED FOR INDUSTRIAL OR COMMERCIAL PURPOSES. Toll-Free Help Line: for questions about this or any other APPReNTICe Product please call Toll-free: 888-552-8665. 5.5 Amp Variable Speed Reciprocating Saw Operators Manual ARS55...
