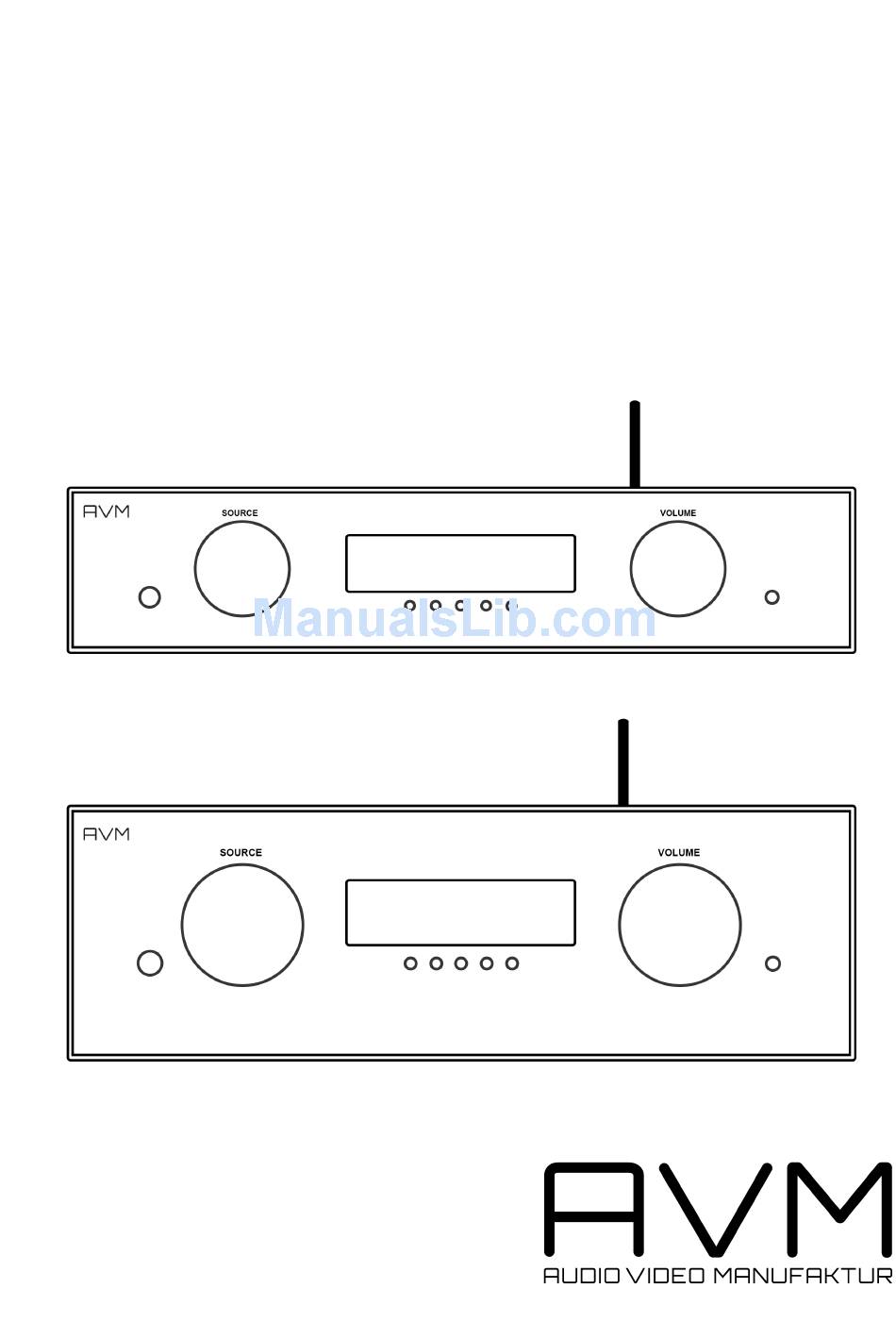

- Page 1 Operating instructions EVOLUTION SD 3.2 EVOLUTION SD 5.2...
-
Page 2: Introduction
Dear customer thank you for purchasing this AVM product. You now own a versatile, excellent sounding hifi component. Before enjoying music, please read this manual carefully. After that you will know how to use your new AVM component in the optimal way. -
Page 3: Table Of Contents
Table of contents Introduction Table of Contents Getting started .4.1 Device Selection What’s in the box? 4.4.2 Change zone Control and operating elements 4.4.3 System Information Installation and cooling 4.4.4 User Settings Connection to mains 4.4.5 Pairing... -
Page 4: Getting Started
1 Getting started 1.1 What’s in the box? EVOLUTION CS 5.2 Compact Streaming CD-Receiver • RC 9 remote control with docking station, power supply unit, USB charging cable • WLAN antenna • Power cable • CAUTION: After unpacking, please check the scope of delivery to ensure that all the parts have been supplied and are undamaged. -
Page 5: Installation And Cooling
12 Digital output optical 22 USB digital input for storage media 13 Digital output coaxial 23 Network connection 14 Analogue output (Balanced XLR) 24 Status LED 15 USB B digital input 25 Update button 16 Analogue output (RCA) 26 Reset button 17 Digital inputs (optical) 27 Configuration port 18 Analogue output (Balanced XLR) -
Page 6: Rc 9 Remote Control
1.7 RC 9 Remote control The included RC 9 remote control allows for easy and comprehensive control of your Streaming DAC. Before you can use the RC 9 together with your device, both components need to be connected. This process is also referred to as ’Pairing’. In order to start the pairing process, please follow the instructions as described in section 4.4.5. -
Page 7: Basic Operation
2 Basic operation 2.1 First operation / self test In case your Streaming DAC was not connected to mains a self test will be performed when it is switched on by the mains switch (31) for the first time. The unit will check its configuration and that all the installed components work properly. - Page 8 CLASS 2 USB can be used to play back a digital input signal with a sample rate of up to 192kHz without to install an audio driver on your Macintosh Computer. If you are using a Windows PC you will need to install an extra driver which can be found on the respective product page of the AVM website www.avm-audio.com.
-
Page 9: Advanced Settings
3 Advanced Settings Your Streaming DAC offers a lot of custom specific settings in its menu system. To enter the menu just tap on the button MENU. The button now changes to EXIT. A second tip on this button leads you to the normal operating mode. -
Page 10: Reset
3.7 Reset This function cancels certain or all settings and makes the unit return to default settings. To enter the reset menu, please switch off your Streaming DAC on the rear of the unit with the mains switch (31). Keep the multifunctional button (7) under the display pressed while you switch on the unit again (31). -
Page 11: Remote Control
4 Remote control 4.1 Overview Power button (Standby mode)* 15 Favorites list Light sensor 16 Volume Colour display 17 Increase/Decrease Hotkeys 1-4 18 Mute Option keys (red, green, yellow, blue) 19 Play Home menu 20 Skip (backward) Zone menu 21 Skip (forward) Info menu 22 Record Settings... -
Page 12: Colour Display
4.2 Colour display The colour display divided into three sections in any operating mode: Header section: In the header section the current control area is shown (e.g. source, system, internet radio etc.). On the right-hand side is the charging status of the integrated lithium-ion battery (for an explanation of the charging status symbols please refer to section 1.7.1) Content section: The content section is the central user interface of your RC 9 remote control where both menu points of the currently accessed control area and graphical user elements... -
Page 13: User Settings
4.4.4 User Settings The menu item "Settings" offers a series of useful functions which can be accessed by pressing the Navigation keys (11), the Enter key (10) or the alphanumeric input keys (25). NOTE: The left Navigation key (11) is used to delete entered characters and numbers. The blue Option key (5) is used to toggle between upper and lower case characters. -
Page 14: Pairing
Delete Zone The menu item "Delete Zone" provides a list of all existing zones and the possibility to delete these along with all known data. Transportation lock The transportation lock deactivates the motion sensor and secures the RC 9 remote control against unintentional power-up and thus saves battery while moving. -
Page 15: Webradio
Before you can start using the comfort functions of your webradio you need to register your Streaming DAC device online at the AVM portal by vTuner. vTuner lets you access their vast collection of webradio stations and transmits them directly to your registered Streaming DAC device (internet connection provided). - Page 16 Enter key (10). At the bottom of the following list you will find a string of letters and numbers which is marked with "#ID". To enter the ID of your Streaming DAC please visit the website of the AVM portal by vTuner: http://avmaudio.vtuner.com Please adjust the language settings of the website at the upper left side of the screen to your personal needs.
-
Page 17: Cleaning
My Added Stations allows you to create a new list of radio stations which aren't included in the current lists provided by the AVM portal by vTuner. To add a new radio station, please navigate to the section entitled My Added Stations and click on the following symbol: Now, please enter the name of the radio station, the URL, location, some information on the musical style and select a streaming format (MP3, AAC, etc.). -
Page 18: Conditions Of Warranty (Ec Only)
7 Conditions of warranty (EC only) If despite expectations a defect occurs that cannot be repaired by yourself or your dealer, we undertake the repair of your unit free of charge for up to three years from date of purchase. The warranty covers the costs of material and working time, transport costs are to be borne by the owner. -
Page 19: Technical Data
8 Technical Data 8.1 Preamplifier Input sensitivity 20 mV to 350 mV (adjustable) Input impedance (line) 10 kOhm Frequency response < 5 Hz - > 80 kHz, 30 Hz - > 20 kHz SD 5.2: 0,01% (mostly K2) SD 3.2: < 0,01% 8.2 D/A Converter Sampling frequency upsampling switchable up to 192 kHz / 24 Bit...
