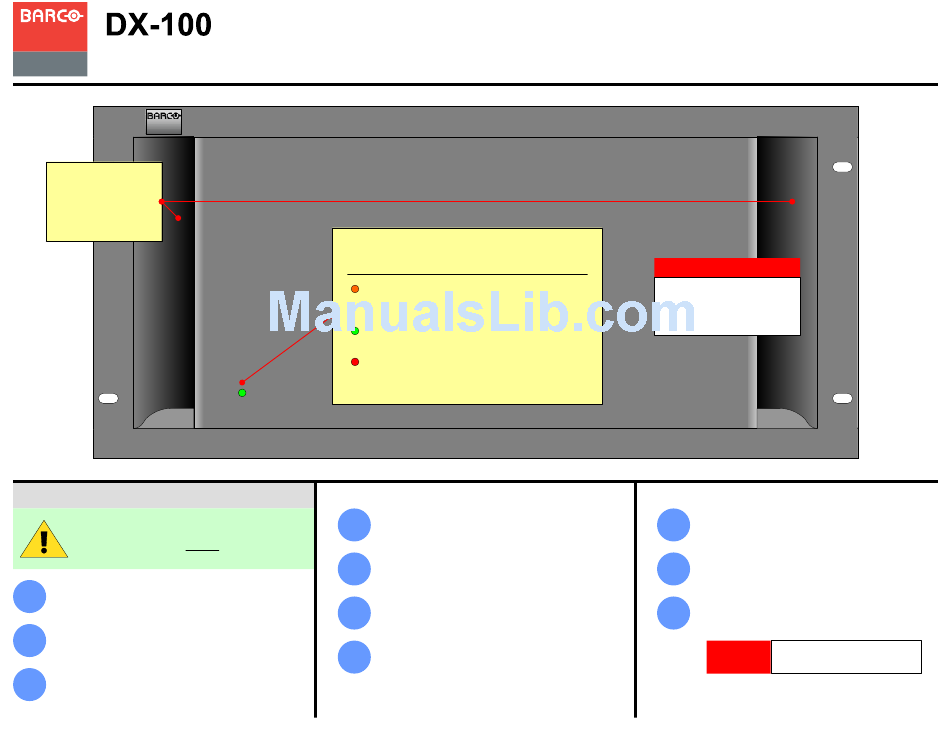

Barco DX-100 Quick Start Manual

Quick Start Guide

Visibly yours

Handles

Two recessed handles
enable you to easily
insert or withdraw the
chassis from a rack.

Quick System Setup

The following list summarizes the
overall DX-100 setup procedure. For
error-free installation, always refer to
the listed section in the User's Guide.
Install and Cable LED Wall — Ensure that your FLX
1
LED wall is properly installed and cabled.
Rackmount DX-100 — Ensure that the DX-100 is
2
properly installed in your equipment rack.
(Chapter 3, "Rack-Mount Installation")
Power Installation — Connect power to the DX-100
3
and all peripheral equipment, such as your video
sources. (Chapter 3, "Power Installation")
The following indications are provided:
On power up, the LED initializes to Orange, and
remains Orange while the DX-100 boots. The
LED also turns orange during any "reset" mode.
The LED turns Green once the DX-100 can be
controlled remotely.
The LED blinks Red (at a 2 second interval) if the
DX-100 detects that the FLX controller is drawing
too much current.
Status
Connect Inputs — As required, connect inputs to the
4
DX-100's DVI and SD/HD-SDI inputs. (Chapter 3,
"Signal Installation")
Connect Output — Connect the DX-100's NNI LED
5
output to the data input of the FLX LED wall.
(Chapter 3, "Signal Installation")
Connect Genlock — Connect a composite sync or
6
black burst signal to the Genlock In connector.
(Chapter 3, "Signal Installation")
Connect Director Toolset — Connect your laptop
7
PC to DX-100 via Ethernet. Ensure that Director
Toolset is properly installed on the laptop.
(Chapter 3, "Signal Installation")
Barco, Inc.
11101 Trade Center Drive
Rancho Cordova, CA
95670 • USA

Status LED

Phone:
Fax:
Technical Support:
Website:
DX-100
IMPORTANT
There are no operational controls
on the DX-100. The DX-100 is set
up and operated entirely from
Barco's Director Toolset.
Connect Fiberlink — If required, connect the
8
Fiberlink NNI transmitter and receiver. (Appendix C,
"Installation")
Power On — Turn on power to the DX-100, sources,
9
the LED wall and (if required) Fiberlink.
System Operation — Use Director Toolset for all
10
DX-100 setup and operations. Refer to the Director
Toolset User's Guide for instructions.
Director Toolset version 2.03 or
IMPORTANT
higher is required.
P/N 26-0901004-00, Rev 00
+1 (916) 859-2500
+1 (916) 859-2515
+1 (866) 374-7878
www.barco.com
