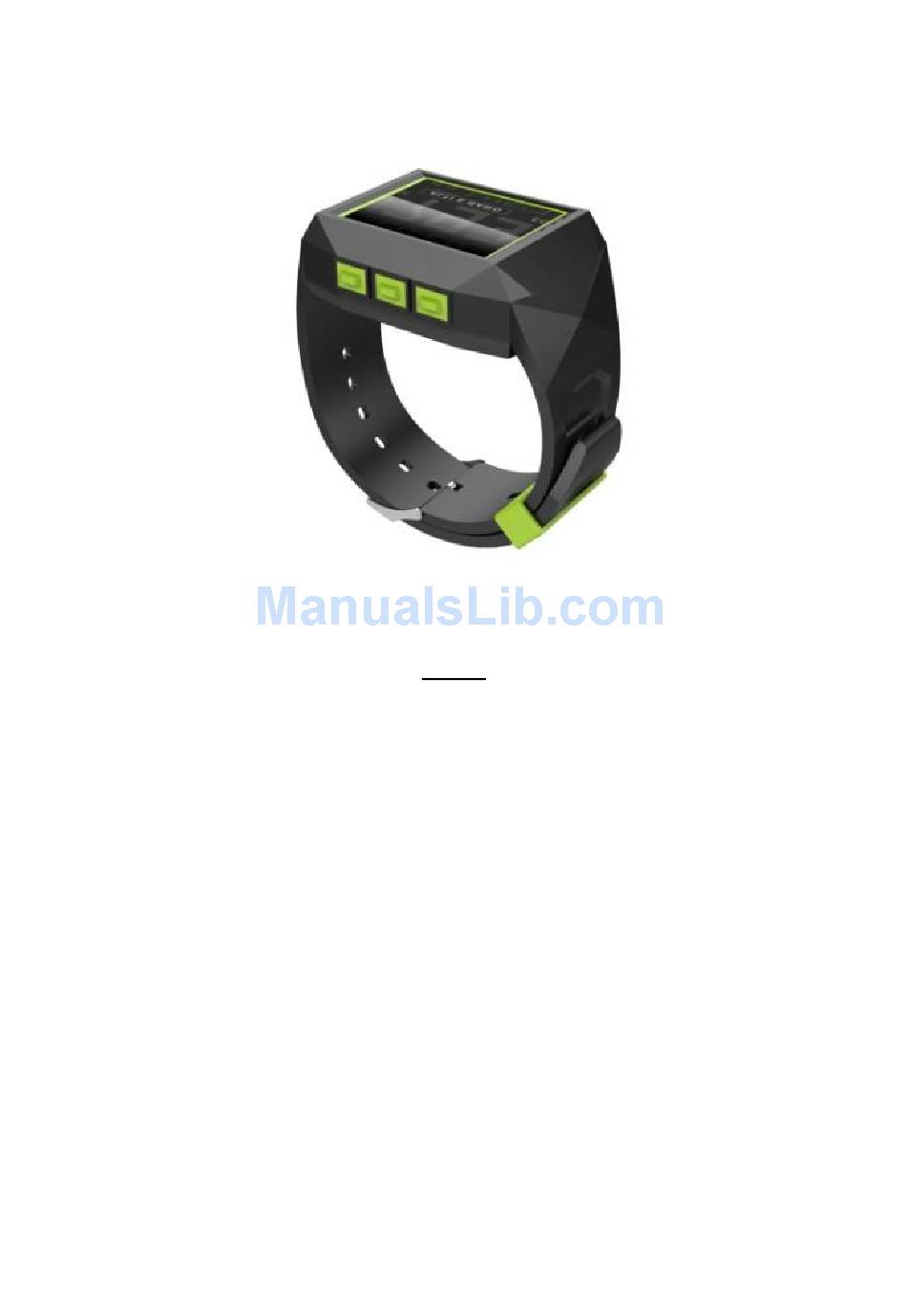

GSM/GPRS/GPS Watch GPS Tracker User Manual
Preface
Thank you for purchasing the tracker. This manual shows how to operate the device smoothly and correctly.
Make sure to read this manual carefully before using this product. Please note that specification and
information are subject to changes without prior notice in this manual. Any change will be integrated in the
latest release. The manufacturer assumes no responsibility for any errors or omissions in this document.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GPS301 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Garmin GPS301

Summary of Contents for Garmin GPS301

  • Page 1 GSM/GPRS/GPS Watch GPS Tracker User Manual Preface Thank you for purchasing the tracker. This manual shows how to operate the device smoothly and correctly. Make sure to read this manual carefully before using this product. Please note that specification and information are subject to changes without prior notice in this manual.

  • Page 2: Table Of Contents

    Contents Summary ....................................4 Applications..................................... 4 Hardware Description ................................4 Specifications ..................................4 Usage ....................................... 5 5.1 SIM card installation ................................. 5 5.2 Battery and Charger ................................5 5.3 Cautions: .................................... 5 5.4Startup ....................................6 5.5 My Location ..................................6 5.6 Dial a Phone ..................................
  • Page 3 5.38.3 IP and port setup ..............................15 5.39.Modes switch between “SMS” and “GPRS” ......................... 16 5.40. Setup monitor center number ............................16 6 .Cautions ..................................... 16 7. Faults & The solutions................................16...

  • Page 4: Summary

    1. Summary Working Based on existing GSM/GPRS network and GPS satellites, this product can locate and monitor any remote targets by SMS or internet. 2. Applications ● Protect child / the old / the disabled / pet etc ● Provide peace-of-mind for businessmen and Personnel Management 3.

  • Page 5: Usage

    Weight Network GSM/GPRS Band 850/900/1800/1900Mhz GPS chip SIRF3 chip GPS sensitivity -159dBm GPS accuracy Cold status 45s Time To First Fix Warm status 35s Hot status 1s Charging Voltage Battery Chargeable changeable 3.7V 550mAh Li-ion battery Standby 100 hours Storage Temp. -40°C to +85°C Operation Temp.

  • Page 6: Startup

    5.4Startup Put the SIM card and battery in place. Turn on the unit outdoors by pressing the “on/off” button until the screen is on. For first use, please initialize the unit and restore it to default setting. In 10 or 40 seconds, the unit will begin to work and acquire the GSM signals as well as the GPS signals. When this unit receives GPS signals normally, you can use it and do any setting as the instructions of this manual.

  • Page 7: Text Message

    5.6.2 Speaker mode is default .It will be automatically turned off when headphone is connected to gps device for phone calls. 5.6.3 Adjust volume: Under communication state, short press PAGE button to turn up volume and short press SOS button to turn it down. 5.7 Text Message Non-command SMS message from authorized number will automatically pop up .Short press Call button to reply “No”, short press SOS button to reply “YES”...

  • Page 8: Tracking Another Gps

    5.9 Tracking another gps 5.9.1 This function is used to track another gps tracker’s direction & distance and display it on screen in order to approach it quickly. 5.9.2 Establishment of relations between Manager and managed device 5.9.2.1 For Manager device :send sms command “manager+password+space+ managed gps sim number”to manager device ,“manager ok!”...

  • Page 9: Authorization

    setting in case of losing the new password. 5.11.3 Attention: Make sure the new password is in 6 digits Arabic numbers, or else the tracker cannot recognize the password. 5.11.4 The “+” in the command, please don’t type “+”, space means press the space keyboard on your cell phone 5.12 Authorization There are only 5 cell phone numbers able to be authorized, be sure to set the authorization phone number...

  • Page 10: Auto Track Continuously

    The link in SMS can be viewed on the phone directly When no GPS signal, the SMS includes the last valid latitude & longitude as well as the LAC code of current position, the LAC code can be input in the column of “manual track” menu of web platform to check location.

  • Page 11: Absolute Street Address By Sms

    And there may be some inaccuracy with actual location by LBS tracking; the bias depends on GSM reception. Note: This feature can be used normally in most areas according to the signal of GSM network. It may not be available in some areas. 5.17.

  • Page 12: Data Load

    be loaded to the monitoring platform via SMS command. 5.22.2 Storage upon times: Send SMS: “save030s005n+password” to the tracker unit, it will reply “save ok”, and will store the lat, long locations every 30 seconds for 5 times. (S: second, m: minute; h: hour). 5.22.3 Unlimited storage：Send sms:”save030s***n+ password”...

  • Page 13: Multi-Area Management

    5.27.2 Cancel: Send SMS:” nostockade+password” to deactivate this function. 5.28. Multi-area management 5.28.1 Set Area Send SMS command "area+password+space+latitude,longitude+space+areaname,distanceM" to tracker(distance unit: M for meter, K for kilometer), it will reply "area01 ok". Fox example: Send "area123456 22.353648,113.543678 school,800M". Note: 5 areas at most and the distance between two points can't be less than the total distance in the 2 commands, and different areas can't cover each other.

  • Page 14: No Sleep Mode

    consumption standby mode. Calling or SMS can awake the tracker. 5.30.2 No sleep mode Send SMS “sleep+password+space+off”, it will reply “sleep off ok”. Tracker won’t sleep and GSM, GPS, always work. 5. 31 Forward the third parties’ message 5.31.1 Send SMS "forward+password+space+third parties phone number" from authorized phone number, tracker will reply"forward ok", and supports 1 third parties phone numbers at most.

  • Page 15: Reset

    5.36 Reset Send SMS “reset+password” to tracker, it will reply “ reset ok”, the GSM and GPS module of the tracker will be reset. 5.37. Configure parameters by USB Find the USB cable in the package to connect tracker with computer, open the memory of the tracker, find and open the initial configuration file with notepad , operate according the instructions.

  • Page 16: Modes Switch Between "Sms" And "Gprs

    port). 5.39.Modes switch between “SMS” and “GPRS” The default mode is “SMS” 5.39.1 Send SMS “GPRS+password” to the unit, and it will reply “GPRS ok!” and switch to “GPRS” mode. 5.39.2Send SMS “SMS+password” to the unit, it will reply “SMS ok!” and restore to “SMS” mode. 5.39.3 PC based installation tracking software included in the CD in package.
