Verilux Rise&Shine VA04 Owner's Manual
Natural sleep system
Hide thumbs
Also See for Rise&Shine VA04:
- User manual (32 pages) ,
- Instruction manual (36 pages) ,
- Manual (40 pages)
Subscribe to Our Youtube Channel
Related Manuals for Verilux Rise&Shine VA04
Summary of Contents for Verilux Rise&Shine VA04

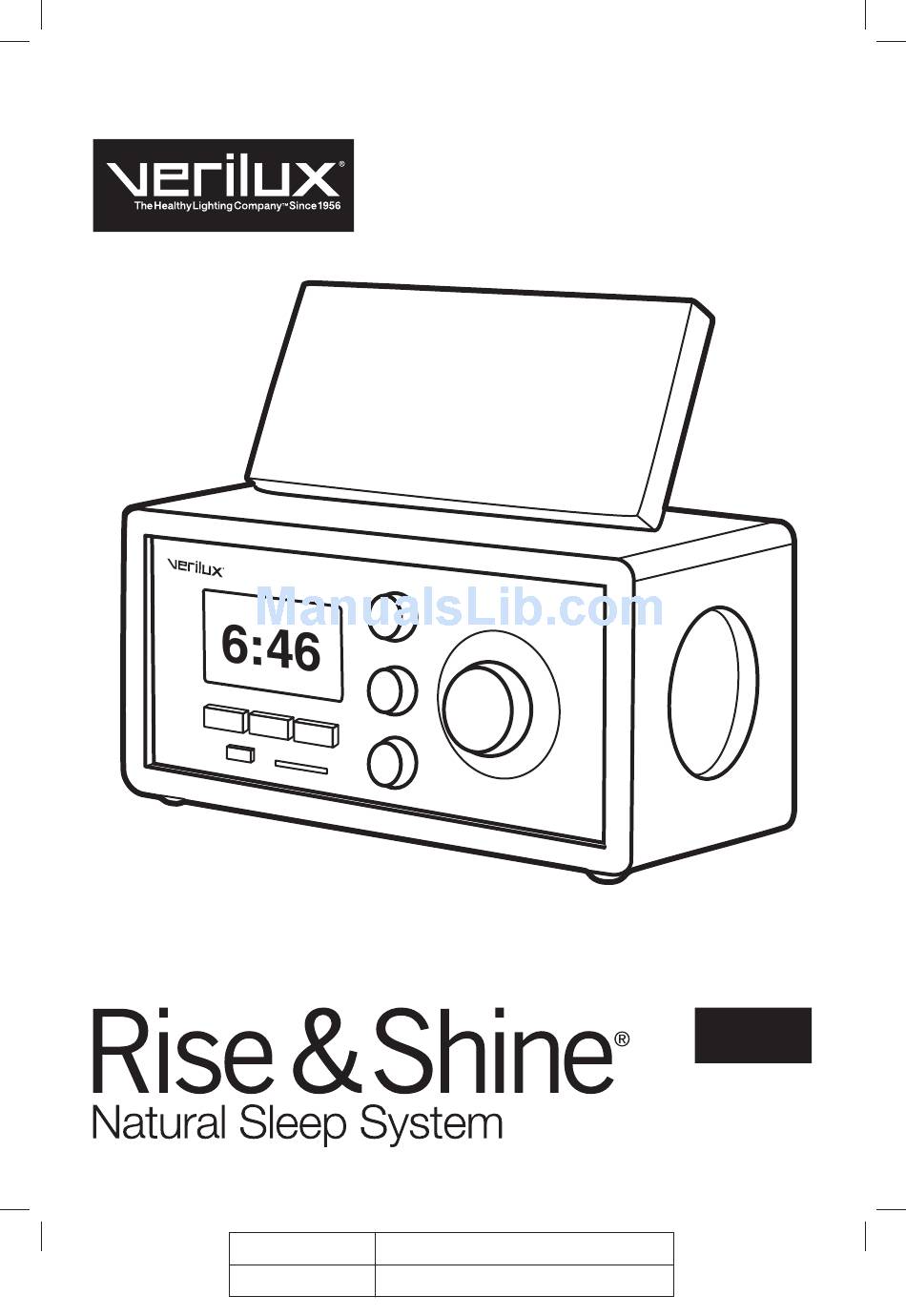

- Page 1 VA04 VA04_Man_Rev9.indd 1 VA04_Man_Rev9.indd 1 11/4/09 1:38 PM 11/4/09 1:38 PM Job#: 0.0??? Title: VA04 Manual Date: 11/04/09 Version: VA04-MAN-Rev9...
- Page 2 Many other healthy lighting products are available through our catalog and online. Visit us on the web at www.Verilux.com to request a free catalog and learn more about all our quality Verilux products, or call our toll-free number 1-800-786-6850.
-
Page 3: Table Of Contents
Table of Contents Important Safety Instructions ......... 4 FCC Compliance . -
Page 4: Important Safety Instructions
Important Safety Instructions CAUTION: THIS DEVICE MUST BE CONNECTED TO A MAINS SOCKET OUTLET WITH A PROTECTIVE EARTHING CONNECTION. TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE ANY COMPONENTS. THERE ARE NO SERVICEABLE PARTS INSIDE. TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. - Page 5 Important Safety Instructions continued • Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety.
-
Page 6: Fcc Compliance
FCC Compliance This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. -
Page 7: Guide To Features
Guide to Features Guide to Features: Front Panel 1. Brightness Control for LED light panel and optional external lamp 2. Audio Input Selector/Off Control 3. Volume Control 4. Wake On/Off Button 5. Menu Show/Hide Button 6. Sleep On/Off Button 7. Rotary Selector Control/Selector Button 8. - Page 8 1A, 250V UL 60065 T 1A L For assistance please call 1-800-786-6850 or email: info@verilux.com AUXILIARY LAMP This device complies with Part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference.
-
Page 9: Introduction
Introduction ® ® Congratulations on your purchase of the Verilux Rise & Shine Natural Sleep System. With the Rise & Shine, you’ll sleep well and wake refreshed, in tune with your circadian rhythms – on your own schedule. Sound options The Rise &... -
Page 10: Setting Up Your Rise & Shine
Setting up your Rise & Shine ® Unpacking Please check your shipping carton for the following items: • Verilux ® Rise & Shine Natural Sleep System • AC power cord • External FM antenna • Secure Digital (SD) Card Selecting a location •... -
Page 11: Operating Your Rise & Shine
Operating your Rise & Shine ® Your Rise & Shine has a wealth of features. Using them is made simple by the Rotary Selector Control/Selector Button, the large round knob on the front panel of the unit. The Rotary Selector Control knob is used to make selections from displayed menus, by turning the knob right or left, and is also used to enter your choices, by pressing the knob, which doubles as a “press-to-choose”... -
Page 12: Using Time Set
Using TIME SET Setting the Clock 1. Press the MENU button. 2. The fi rst item in the Main Menu, TIME SET, is highlighted (TIME SET sets the time, year, month and day). 3. Press the Selector Button to choose TIME SET (the large Rotary Selector Control is both a selection control and a “press-to-choose”... - Page 13 Setting and Using WAKE SET continued The Wake Cycle will begin at 6:15 am (because of 15-minute “Duration” time delay). The FM radio and light will start at a very low level and will gradually increase to maximum at 6:30 am. Setting the Alarm (WAKE) 1.
- Page 14 Setting and Using WAKE SET continued Duration Settings From the WAKE SETTINGS menu: 1. Use the Rotary Selector Control to highlight DURATION: 5 MINUTES. 2. Press the Selector Button. 3. From the WAKE DURATION sub-menu, use the Rotary Selector Control to highlight 5 MINUTES, 15 MINUTES or 30 MINUTES.
- Page 15 If you choose MP3 SD or MP3 USB, the device’s audio fi le directory will be shown and you can select a SD or USB alarm song (or other audio fi le). The display returns to the WAKE SETTINGS menu. If you choose MP3 SD and you have inserted the supplied Verilux ® nature sounds SD Card, the SD’s fi...
-
Page 16: Setting And Using Sleep Set
Setting and Using SLEEP SET ® Your Rise & Shine allows you to fall asleep gradually, using one of three Sleep Cycle Durations: 5, 15 or 30 minutes, and other options listed below. During the cycle, the volume of the sound and/or the brightness of the light will gradually decrease, allowing you to fall asleep gently. - Page 17 Setting and Using SLEEP SET continued The Brightness Control on the front panel controls the initial brightness of the LED light panel and also controls the initial brightness of an external lamp, which can be plugged into the rear panel. Both the LED light panel and external lamp dim in accord.
- Page 18 Setting and Using SLEEP SET continued 4. Press the Selector Button to choose the highlighted SLEEP SOUND setting. If you chose MP3 SD or MP3 USB, you will be presented a further selection display where you can choose a SD, USB alarm song or other audio fi le. 5.
-
Page 19: Setting And Using Audio Set
Setting and Using AUDIO SET AUDIO SET is used to adjust audio Bass and Treble levels. Bass and Treble Settings 1. Press the Menu Button. From the Main Menu: 2. Use the Rotary Selector Control to highlight AUDIO SET. 3. Press the Selector Button. 4. -
Page 20: Listening To Fm Radio
Setting and Using LIGHT and DISPLAY SET continued The DISPLAY SET item on the Main Menu is used to set the display brightness. Display Brightness Settings 1. Press the Menu Button. From the Main Menu: 2. Use the Rotary Selector Control to highlight DISPLAY SET: MEDIUM (MEDIUM is the default setting). -
Page 21: Listening To Usb Mp3 Songs
Listening to USB MP3 Songs ® The USB Port on the front panel of the Rise & Shine is used to listen to MP3 audio fi les on USB Flash Drives, also known as “Thumb Drives.” Your Rise & Shine can play MP3 audio on all standard USB Drives, regardless of memory capacity. -
Page 22: Listening To Sd Mp3 Songs
Listening to USB MP3 Songs continued 1. Use the Rotary Selector Control to highlight a folder name. 2. Press the Selector Button to open the folder and display the MP3 fi les. 3. Use the Rotary Selector Control to highlight a MP3 fi le. 4. - Page 23 Listening to SD MP3 Songs continued If the MP3 fi les were copied directly to the USB Drive without being fi rst placed in folders, the display will show: USB MEMORY ROOT ROOT will be highlighted. 4. Press the Selector Button to open the default “ROOT” folder and display the fi...
-
Page 24: Listening To Aux Devices
Listening to AUX Devices ® When using an iPod , cassette tape player or other audio device, you can enhance ® your listening experience by playing the device through your Rise & Shine using the AUX IN jack on the rear panel. Connecting an audio device requires one of the following cables: •... -
Page 25: Using Headphones
Using Headphones For private listening, connect headphones to the headphone jack on the rear panel using a 1/8 inch “mini” headphone jack. The speaker is automatically muted when you plug in your headphones. NOTE: The speaker will automatically unmute when headphones are disconnected. -
Page 26: Troubleshooting
Troubleshooting Problem What to do System does not function • Make sure the power cord is fully plugged into an operating electrical outlet. • Make sure the Audio Input Selector is not OFF. • Does the display light? No sound •... -
Page 27: Warranty
Please visit our web site at: www.Verilux.com 340 Mad River Park, Waitsfi eld, VT 05673 Printed in China for Verilux, Inc. © Copyright 2009 Verilux, Inc. All rights reserved. VA04-MAN-Rev9 VA04_Man_Rev9.indd 28 VA04_Man_Rev9.indd 28 11/4/09 1:38 PM 11/4/09 1:38 PM...
