POS POS122 Installation Manual

Touch pos monitor 120 series
Hide thumbs
Table of Contents

Advertisement

Quick Links

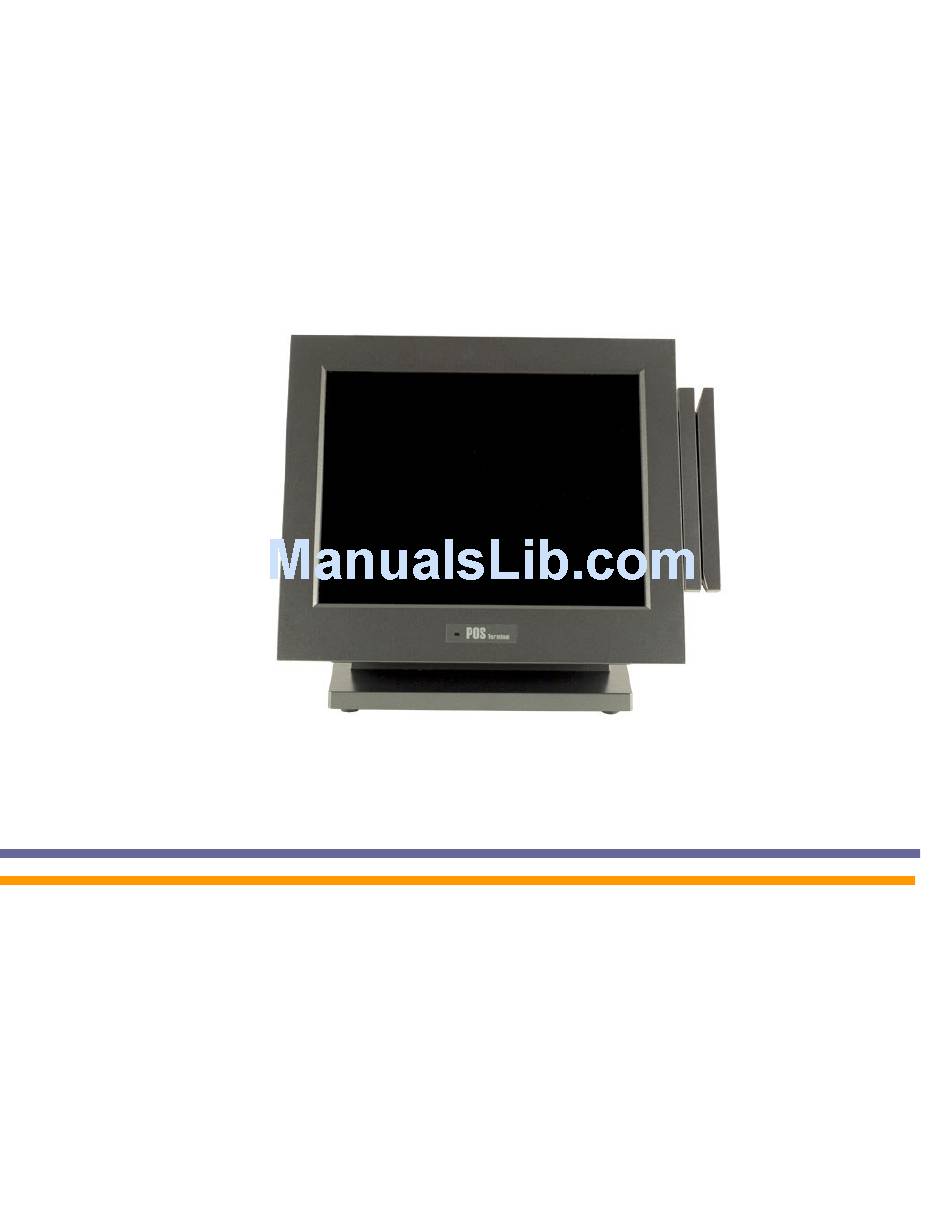

Touch POS Monitor
POS 120 Series
Installation Guide
2006 December V1.4
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the POS122 and is the answer not in the manual?

Questions and answers

Related Manuals for POS POS122

Summary of Contents for POS POS122

  • Page 1 Touch POS Monitor POS 120 Series Installation Guide 2006 December V1.4...

  • Page 2: Important Safety Instructions

    Safety IMPORTANT SAFETY INSTRUCTIONS 1. To disconnect the machine from the electrial power supply, turn off the power switch and remove the power cord plug from the wall socket. The wall socket must be easily accessible and in close proximity to the machine. 2.

  • Page 3: Legislation And Weee Symbol

    CE MARK This device complies with the requirements of the EEC directive 89/336/EEC with regard to “Electromagnetic compatibility” and 73/23/EEC “Low Voltage Directive”. LEGISLATION AND WEEE SYMBOL 2002/96/EC Waste Electrical and Electronic Equipment Directive on the treatment, collection, recycling and disposal of electric and electronic devices and their components.
  • Page 4 • RS-232 connector is unplugged and then plugged in again, while the system is switched on (hot-plug). • POS monitor AC power is removed and restored, while the system is switched on (hot-plug). • POS monitor DC power is removed and restored, while the system is switched on (hot-plug).

  • Page 5: Table Of Contents

    ANEL 3. ON-SCREEN DISPLAY....................... 9 4. SPECIFICATION....................... 10 5. DRIVER INSTALLATION ....................11 5.1 ELO T .................. 11 OUCH RIVER NSTALLATION 5.2 POS T ................. 11 OUCH RIVER NSTALLATION 6. JUMPER SETTINGS ......................17 6.1 M/B J ....................17 UMPER ETTING 7.

  • Page 6: Accessories

    1. Accessories a. Optional Audio Cable b. Driver CD c. COM Port Cable (option for MSR) d. Power Cord e. USB Cable (for USB Touch) f. VGA Cable...

  • Page 7: I/O Function

    2. I/O Function 2.1 Front View Function Magnetic Card Reader 2.2 Rear View Note: The maximum current that can be drawn from each COM port is 500 mA. Function Assignment VGA Input COM1 Magnetic Card Reader COM2 Touch Screen USB Type B PWR1 DC 19V IN KB (IN)

  • Page 8: Osd Control Panel

    2.3 OSD Control Panel Function Assignment Power Button LCD Monitor on / off Menu Button To get into video setup mode Left Button Left and Right buttons for video function adjustment purpose Right Button Select Button Moves to the next sub-menu...

  • Page 9: On-Screen Display

    5000K 6500K 7500K 9300K Image Auto image Position H. Width Phase H. Position V. Position Tools OSD. Control Timer OSD H. Pos OSD V. Pos Sharpness Overlapped Language English French Spanish German Italian Japanese Traditional Chinese Simplied Chinese Note: 1. Press the "Menu" button to make adjustments, then press the "Menu" button to exit the menu, if you press the "Menu"...

  • Page 10: Specification

    Dimension Dimension (W x D x H) POS122: 310 x 200 x 282 mm / 12.1” x 7.9” x 11.1” POS125: 386 x 200 x 340mm / 15.2” x 7.9” x 13.4” - This specification is subject to change without prior notice.

  • Page 11: Driver Installation

    File Description <CD>:\POS Monitor.htm POS120 Series Driver List <CD>:\COMMON\Elo_Touch ELO Touch driver <CD>:\COMMON\POS_Touch POS Touch driver <CD>:\COMMON\CardReader Card Reader Utility <CD>:\datasheet\POS120Series POS120 Series installation guide The following procedures s for Windows XP, other platforms are similar. 5.1 ELO Touch Driver Installation a.
  • Page 12 e. Click the “Yes” button on the License f. Click the “Next” button on the on the Agreement window. “Select the COM ports…” window. g. Select “COM5” and click the “Next” button h. Click the “Next” button on the You have on the Choose the COM ports…...
  • Page 13 Follow the instructions on the screen to do “Align” on the Elo Touchscreen Properties a three point calibration of the touch panel window. 5.2 POS Touch Driver Installation a. Click “Setup” on My Computer window. b. Click “Next” button on the Welcome window.
  • Page 14 e. Click “Next” on the Select Components f. Click “Next” on the Select Components Folder window. Folder window. g. Click “Next” on the Start Copying files h. Driver is installing now. window. i. Click “Finish” on the InstallShield Wizard j. Click “Continue Anyway” on the Hardware Complete window.
  • Page 15 Touch the flash point until it changes to Touch Utility window. yellow for alignment. o. Touch any spot on the screen for saving p. Select “Device” on the POS Touch Utility calibration data. window, then click “9 Pls Calibration” button on the POS Touch Utility window.
  • Page 16 Touch the flash point on the screen until it r. Touch any spot on the screen for saving changes to yellow for linearizing alignment. linearizing data. s. Click “Exit” button on the POS Touch Utility window, then the driver is installed now.

  • Page 17: Jumper Settings

    6. Jumper Settings 6.1 M/B Jumper Setting 1. VGA Power Enable Selection Function JP3 (1-2) Power Enable SHORT Power Disable OPEN 2. MSR Power Selection Function JP7 ( 1-2 ) JP7 (3-4) PS2 MSR SHORT (default) SERIAL MSR SHORT Note: SHORT OPEN...

  • Page 18: Appendix

    7. Appendix 7.1 Base Cover Cable Holder Cable Holder Cables route through the holder gap for cable management. Assignment USB Cable (Type B) PS2 Cable PS2 Cable COM Port Cable COM Port Cable VGA Cable...

This manual is also suitable for:

Pos125
