User's Manual
Color LCD Monitor
Downloaded from ManualMonitor.com Manuals

Advertisement

Table of Contents
loading

Related Manuals for Eizo FlexScan P1700

Summary of Contents for Eizo FlexScan P1700

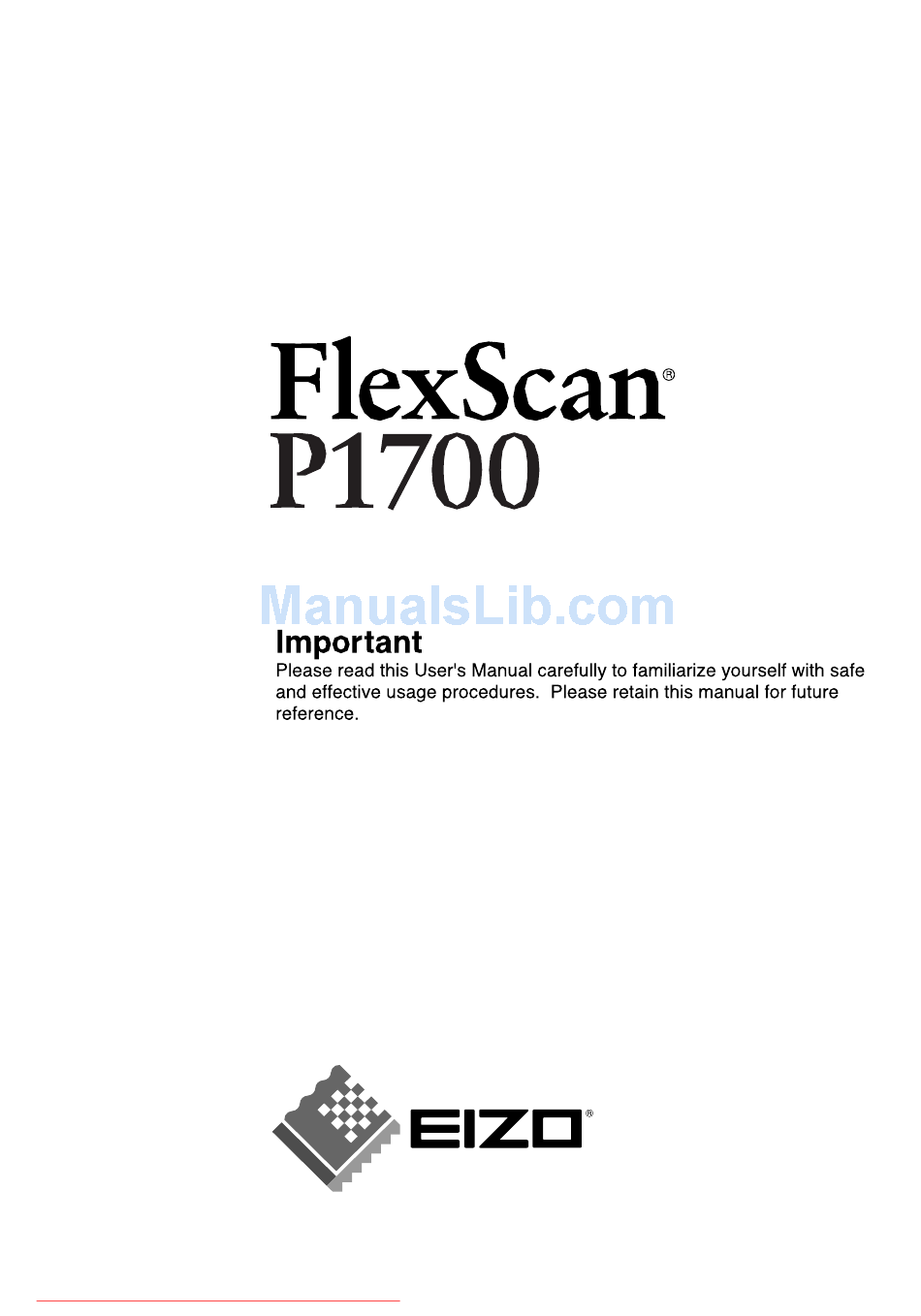

  • Page 1 User’s Manual Color LCD Monitor Downloaded from ManualMonitor.com Manuals...

  • Page 2: Safety Symbols

    EIZO NANAO CORPORATION. EIZO NANAO CORPORATION is under no obligation to hold any submitted material or information confidential unless prior arrangements are made pursuant to EIZO NANAO CORPORATION’s receipt of said information. Although every effort has been made to ensure that this manual provides up-to-date information, please note that EIZO monitor specifications are subject to change without notice.

  • Page 3: Table Of Contents

    English TABLE OF CONTENTS PRECAUTIONS ........... 4 1.

  • Page 4: Precautions

    English PRECAUTIONS IMPORTANT! This product has been adjusted specifically for use in the region to which it was originally shipped. If operated outside the region to which it was originally shipped, the product may not perform as stated in the specifications. To ensure personal safety and proper maintenance, please read this section and the caution statements on the unit (refer to the figure below).
  • Page 5 English WARNING Keep small objects or liquids away from the unit. Small objects accidentally falling through the ventilation slots into the cabinet or spillage into the cabinet may result in fire, electric shock, or equipment damage.If an object or liquid falls/spills into the cabinet, unplug the unit immediately.
  • Page 6 English WARNING The equipment must be connected to a grounded main outlet. Not doing so may cause in fire or electric shock. Use the correct voltage. The unit is designed for use with a specific voltage only. Connection to another voltage than specified in this User’s Manual may cause fire, electric shock, or equipment damage.
  • Page 7 English CAUTION Handle with care when carrying the unit. Disconnect the power cord and cables when moving the unit. Moving the unit with the cord attached is dangerous. It may result in injury. When handling the unit, grip the bottom of the unit firmly with both hands ensuring the panel faces outward before lifting.

  • Page 8: Lcd Panel

    English LCD Panel In order to suppress the luminosity change by long-term use and to maintain the stable luminosity, use of a monitor in lower brightness is recommended. The screen may have defective pixels. These pixels may appear as slightly light or dark area on the screen. This is due to the characteristics of the panel itself, and not the product.

  • Page 9: Introduction

    English INTRODUCTION Thank you very much for choosing an EIZO Color Monitor. 1-1. Features [Horizontal scanning frequency] 24.8 - 80 kHz [Vertical scanning frequency] 50.0 - 75.1 Hz [Resolution] 1280 dots x 1024 lines Auto Screen Adjustment function incorporated (p. 18) BrightRegulator function incorporated (p.

  • Page 10: Controls & Connectors

    English 1-3. Controls & Connectors Front Control Panel (3) (4) (5) (6) (7) ® ScreenManager Sensor* Control Button (Left)* Enter Button Control Button (Right)* Power Button Power Indicator* Green Operation Orange Power saving Power off *1 When using the BrightRegulator function, the sensor detects the surrounding brightness, see page 19.
  • Page 11 English Rear (10) (11) (12) Bottom Power Connector D-Sub mini 15 pin Input Connector (10) 4 Holes for Mounting an Arm-Stand* (11) Security Lock Slot* (12) Stand *4 The LCD monitor can be used with an optional arm stand by removing the stand, see page 22.

  • Page 12: Cable Connection

    English CABLE CONNECTION 2-1. Before Connecting Before connecting your monitor to the PC, change the display screen settings (resolution (p. 30) and frequency) in accordance with the charts below. NOTE When your computer and display support VESA DDC, the suitable resolution and the refresh rate are set by just plugging your display into the computer without any manual settings.

  • Page 13: Connecting The Signal Cable

    English 2-2. Connecting the Signal Cable NOTE Be sure that the power switches of both the PC and the monitor are OFF. Plug the signal cable into the connector at the rear of the monitor and the other end of the cable into the video connector on the PC. After connecting, secure the connection with the screw-in fasteners.
  • Page 14 English Plug the power cord into the power connector on the rear of the monitor. Then, plug the other end of the cord into a power outlet. WARNING Use the enclosed power cord and connect to the standard power outlet of your country. Be sure to remain within the rated voltage of the power cord.

  • Page 15: Screenmanager

    English SCREENMANAGER 3-1. How to use the ScreenManager Main Menu Control Panel Power Button Enter Button Right Control Button Left Control Button (To select the desired sub (To select the desired menu to the right / upward sub menu to the left / and adjust) downward and adjust) Entering the ScreenManager...

  • Page 16: Screenmanager Adjustments And Settings

    English 3-2. ScreenManager Adjustments and Settings The following table shows all the ScreenManager’s adjustment and setting menus. Main menu Sub menu Reference Auto Screen 4-1. Auto Screen Adjustment (p. 19) Adjustment Range Screen Screen Clock Adjust the Clock (p. 31). Phase Adjust the Phase (p.

  • Page 17: Useful Functions

    English 3-3. Useful Functions Adjustment Lock Use the “Adjustment Lock” function to prevent any accidental changes. Locked function Settings in the ScreenManager Unlocked function BrightRegulator function Adjusting the brightness by the left/right control button Turning the power on and off by the Power button [To lock] Switch off the monitor’s Power by the power button.

  • Page 18: Adjustment

    “wall paper” or “desktop” pattern is set to black. If the appropriate screen cannot be made by using the Auto Screen Adjustment, adjust the screen through the Screen adjustment program. It can be downloaded from the EIZO homepage (http://www.eizo.com/). 4-2. Range Adjustment (p. 30) Please be sure to follow the following procedure to display the whole color gradation (256 colors).

  • Page 19: Brightness Adjustment

    English 4-3. Brightness Adjustment BrightRegulator Function BrightRegulator function adjusts the brightness of the screen automatically depending on the surrounding brightness. The brightness of backlight is adjusted as the sensor on the lower side of the monitor detects the surrounding brightness (Default: this function is set “Enable”.) [To deactivate this function] Select <BrightRegulator>...

  • Page 20: Color Adjustment

    English 4-4. Color Adjustment The <Color> menu in the ScreenManager enables to change the color of the screen. By using the <Color Mode>, the adjustment mode can be selected from <Custom mode> (to adjust the color settings according to your preference) and <sRGB> (p. 31) mode.

  • Page 21: Power-Save Setup

    English 4-5. Power-save Setup NOTE Do your part to conserve energy, turn off the monitor when you are finished using it. Disconnecting the monitor from the power supply is recommended to save energy completely. This monitor complies with the “VESA DPMS” (p. 31) [Procedure] Set the PC’s power saving settings.

  • Page 22: Attaching An Arm Stand

    English ATTACHING AN ARM STAND The LCD monitor can be used with an optional arm stand. Using our optional arm or stand is recommended. (Ask your local dealer for information.) NOTE If you will use the arm or stand of other manufacturers, confirm the followings to the manufacturers before selecting.
  • Page 23 English Attach an arm stand to the LCD monitor securely. Attach the removed stand cover again to the monitor. Arm-stand 4 Mounting Screws : M4 x 12 mm 5. ATTACHING AN ARM STAND Downloaded from ManualMonitor.com Manuals...

  • Page 24: Troubleshooting

    English TROUBLESHOOTING If a problem persists even after applying the suggested remedies, contact an EIZO dealer. No picture problems → See No.1 ~ No.2 Imaging problems → See No.3 ~ No.8 Other problems → See No.9 Problems Points to check with Possible Solutions...
  • Page 25 English Problems Points to check with Possible Solutions Afterimages appear. Do you use the screen saver or timer when displaying the same image for extended periods of time? Afterimages are particular to LCD monitors. Avoid displaying the same image for extended periods of time.

  • Page 26: Cleaning

    English CLEANING Periodic cleaning is recommended to keep the monitor looking new and to prolong its operation lifetime. NOTE Never use thinner, benzene, alcohol (ethanol, methanol, or isopropyl alcohol), abrasive cleaners, or other strong solvents, as these may cause damage to the cabinet or LCD panel.

  • Page 27: Specifications

    English SPECIFICATIONS LCD Panel 43.2 cm (17.0 inch), TFT color LCD panel with Anti-Glare Hard Coating Viewing Angle: H: 170°, V: 155° (CR ≥ 5) Dot Pitch 0.264 mm Horizontal Scan Frequency 24.8 ~ 80 kHz (Automatic) Vertical Scan Frequency 50.0Hz ~ 75.1 Hz (Automatic) Resolution 1280 dots x 1024 lines...

  • Page 28: Default Settings

    English Default settings Brightness 100% Color Color Mode Custom Temperature Off (Normal white ; approx. 6500K) Gain 100% Off Timer Disable Menu Position Center BrightRegulator Enable Language English Dimensions mm (inches) 59.5(2.34) 369(14.5) 1(0.04) 1(0.04) 339.8(13.4) 28.6(1.13) 14(0.55) 14(0.55) 314(12.4) 14.6(0.57) 42.9(1.69) 192(7.6)
  • Page 29 English Pin Assignment D-Sub mini 15 pin connector Signal Signal Signal Red video Red ground Ground Shorted Green video Green ground Data (SDA) Blue video Blue ground H. Sync Ground No pin V. Sync No pin Ground Shorted Clock (SCL) 8.

  • Page 30: Glossary

    The LCD panel consists of a fixed number of pixel elements which are illuminated to form the screen image. The EIZO P1700 display panel consists of 1280 horizontal pixels and 1024 vertical pixels. At a resolution of 1280 x 1024, all pixels are displayed as a full screen.
  • Page 31 English sRGB (Standard RGB) “International Standard for Red, Green, and Blue color space” A color space was defined with the aim of the color matching between applications and hardware devices, such as monitors, scanners, printers and digital cameras. As a standard default space, sRGB allows Internet users to closely match colors. VESA DPMS (Video Electronics Standards Association - Display Power Management Signaling) The acronym VESA stands for “Video Electronics Standards Association”, and...

  • Page 32: Appendix/Anhang/Annexe

    APPENDIX/ANHANG/ANNEXE Preset Timing Chart Timing-Übersichten Synchronisation des Signaux Based on the signal diagram shown below 19 factory presets have been registered in the monitor’s microprocessor. Der integrierte Mikroprozessor des Monitors unterstützt 19 werkseitige Standardeinstellungen (siehe hierzu die nachfolgenden Diagramme). 19 signaux ont été enregistrés en usine dans le microprocesseur du moniteur, conformément au diagramme de synchronisation ci-dessous.
  • Page 33 Frequencies Sync Polarity Dot Clock Mode H kHz V Hz VESA 75.000 56.48 70.07 Nega. Nega. 1024 × 768 @70 Hz VESA 78.750 60.02 75.03 Posi. Posi. 1024 × 768 @75 Hz VESA 108.000 67.50 75.00 Posi. Posi. 1152 × 864 @75 Hz VESA 108.000 60.00...
  • Page 34 [Applicable to gray cabinet version.] Congratulations! The display you have just purchased carries the TCO’03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the Impact on our natural environment.
  • Page 35 [Applicable to black cabinet version only] Congratulations! You have just purchased a TCO’99 approved and labelled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.
  • Page 36 Environmental Requirements Flame retardants Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their purpose is to prevent, or at least to delay the spread of fire. Up to 30% of the plastic in a computer casing can consist of flame retardant substances. Most flame retardants contain bromine or chloride, and those flame retardants are chemically related to another group of environmental toxins, PCBs.

  • Page 37: Fcc Declaration Of Conformity

    Note Use the attached specified cable below or EIZO signal cable with this monitor so as to keep interference within the limits of a Class B digital device. - AC Cord...
  • Page 38 Hinweise zur Auswahl des richtigen Schwenkarms für Ihren Monitor Dieser Monitor ist für Bildschirmarbeitsplätze vorgesehen. Wenn nicht der zum Standardzubehör gehörige Schwenkarm verwendet wird, muss statt dessen ein geeigneter anderer Schwenkarm installiert werden. Bei der Auswahl des Schwenkarms sind die nachstehenden Hinweise zu berücksichtigen: Der Standfuß...
  • Page 39 DE BRAN CHE SWICO. http://www.swico.ch Recycling Information for customers in USA: All recycling information is placed in the EIZO Nanao Technologies, Inc’s website. http://www.eizo.com/ Återvinnings information för kunder i Sverige: All information om återvinning finns på Eizo Europe AB:s hemsida: www.eizo.se...
